2-916783-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 2-916783-1

2-916783-1: DescriptionPGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL; CategoryThe connector socket; File Size709KB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-916783-1 Overview

PGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL

2-916783-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	TRAY PACKAGED 90 SKTS PER BOX
body width	2.538 inch
subject depth	0.315 inch
body length	2.038 inch
Contact structure	19X19
Contact to complete cooperation	AU ON NI
Contact material	CU ALLOY
Contact style	MACHINE SCREW
Device slot type	IC SOCKET
Type of equipment used	PGA370
Dielectric withstand voltage	1000VAC V
Shell material	THERMOPLASTIC
Insulation resistance	5000000000 Ω
Manufacturer's serial number	916783
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	370
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	INTER
PCB contact row spacing	0.05 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

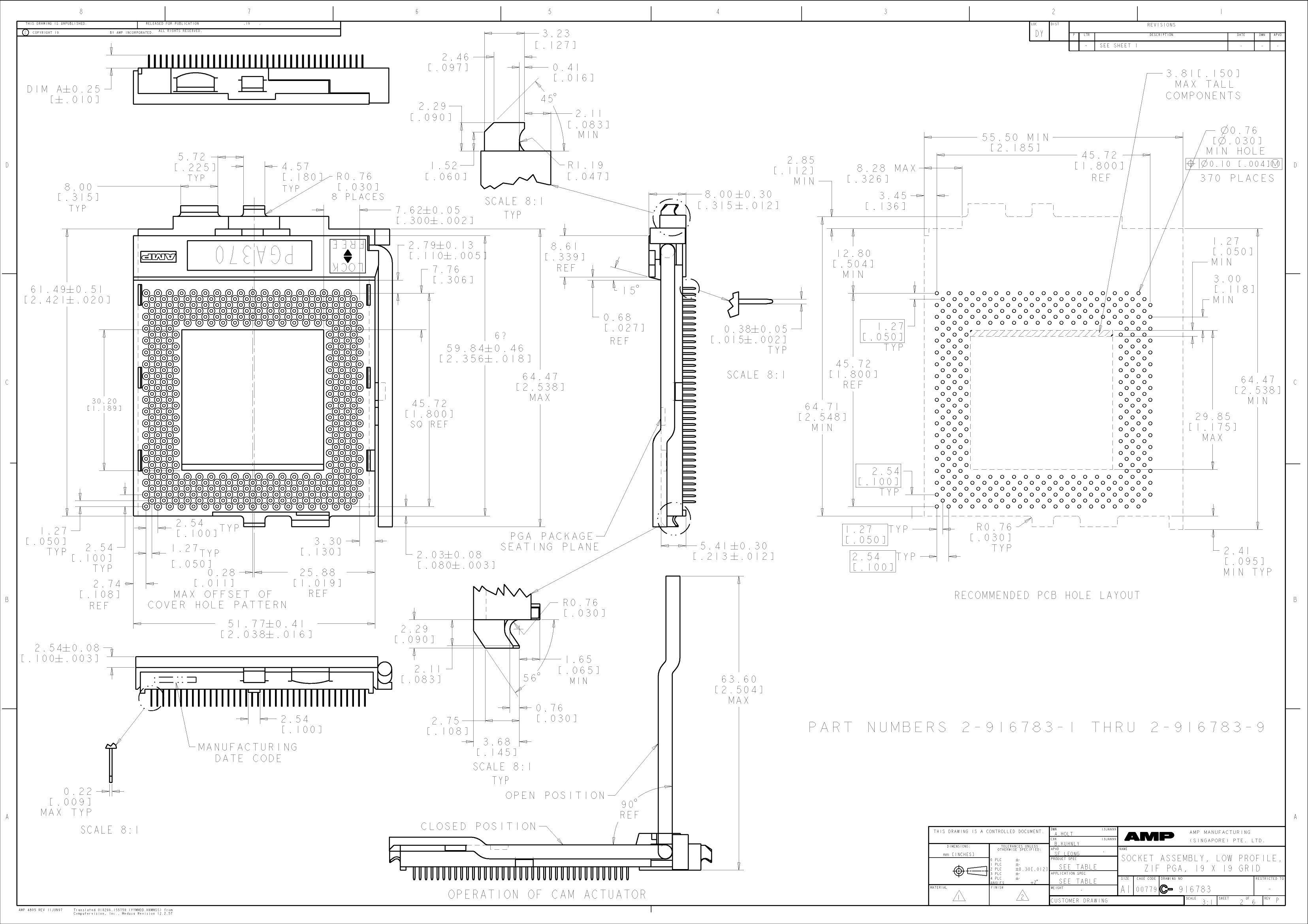

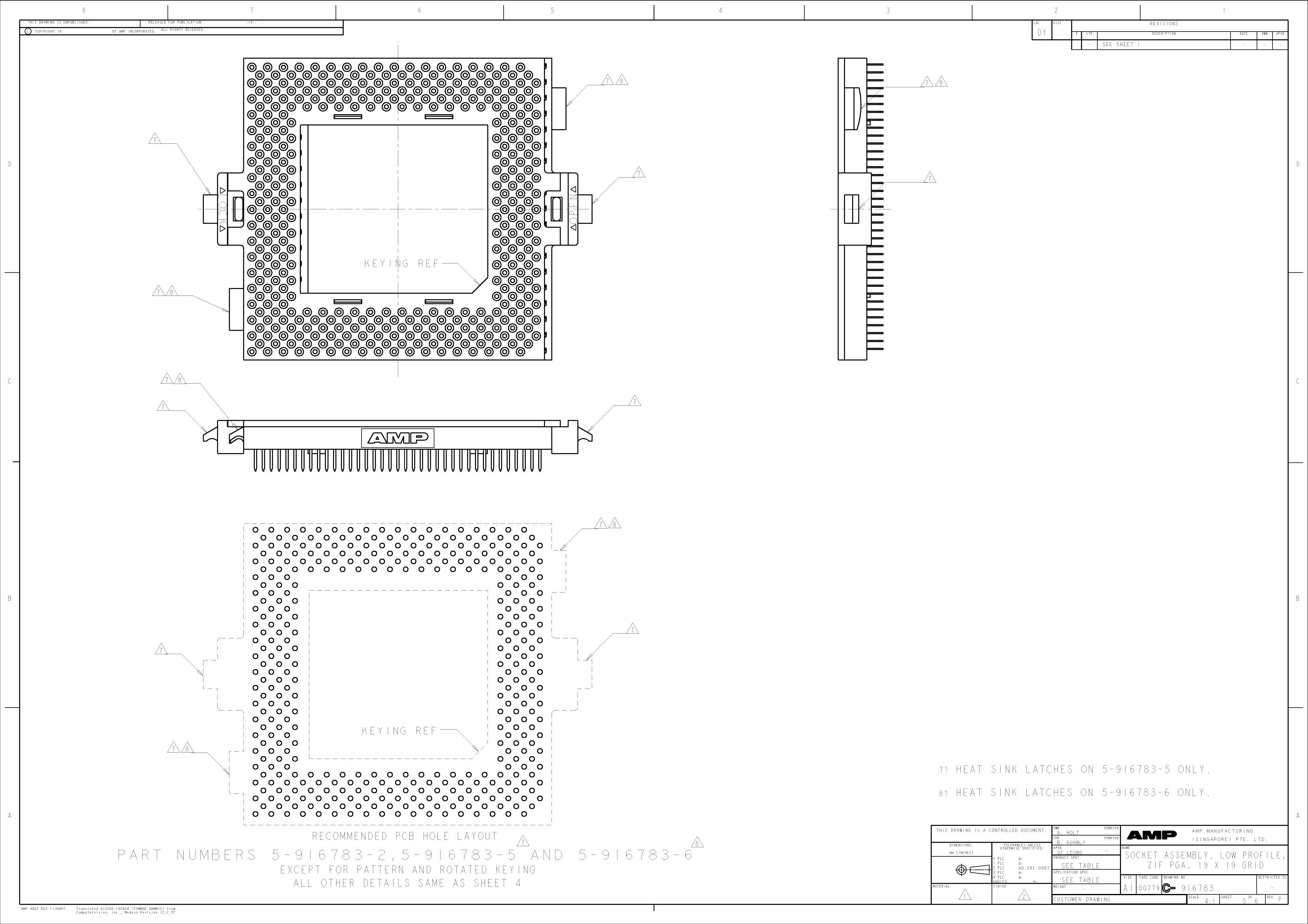

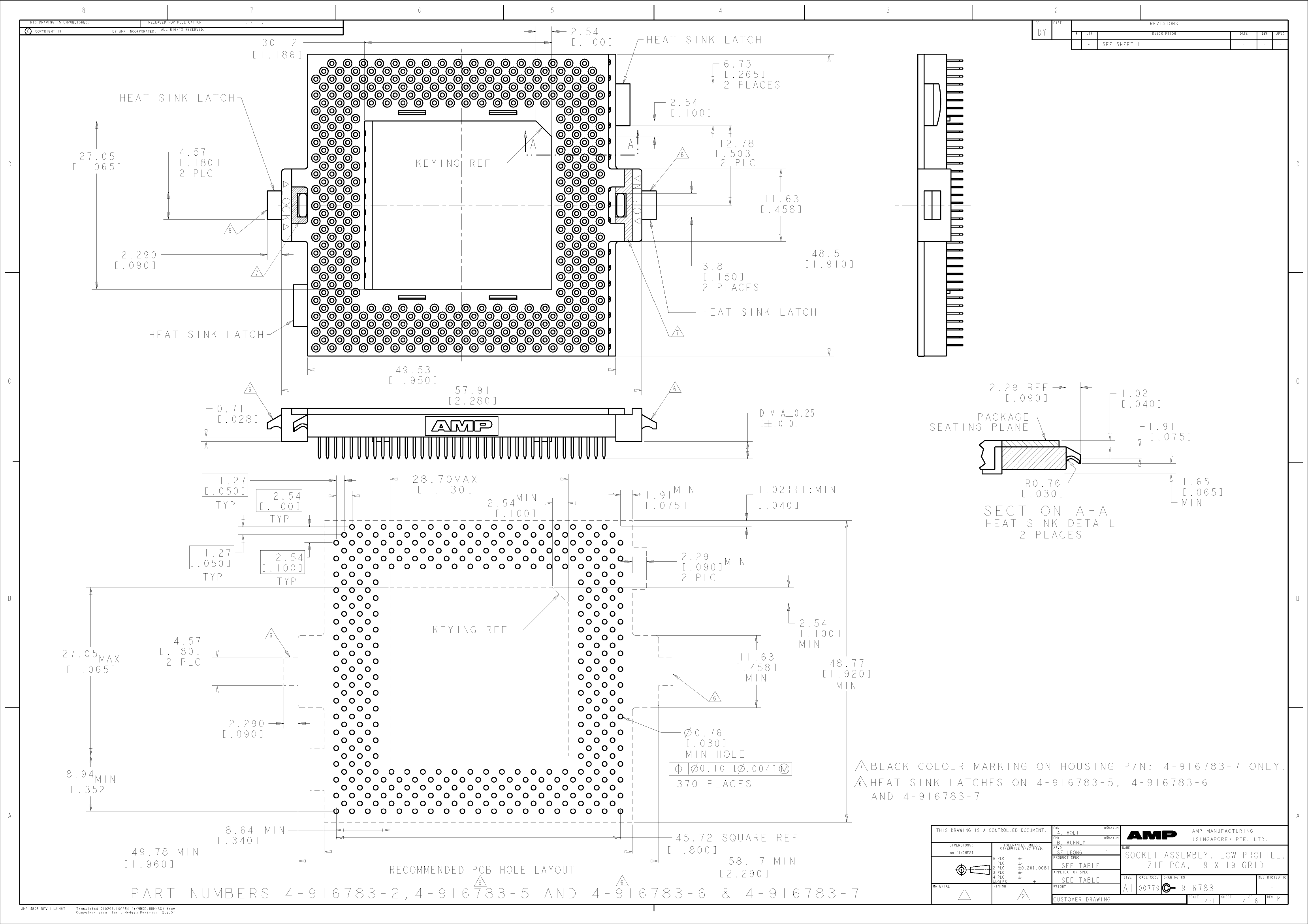

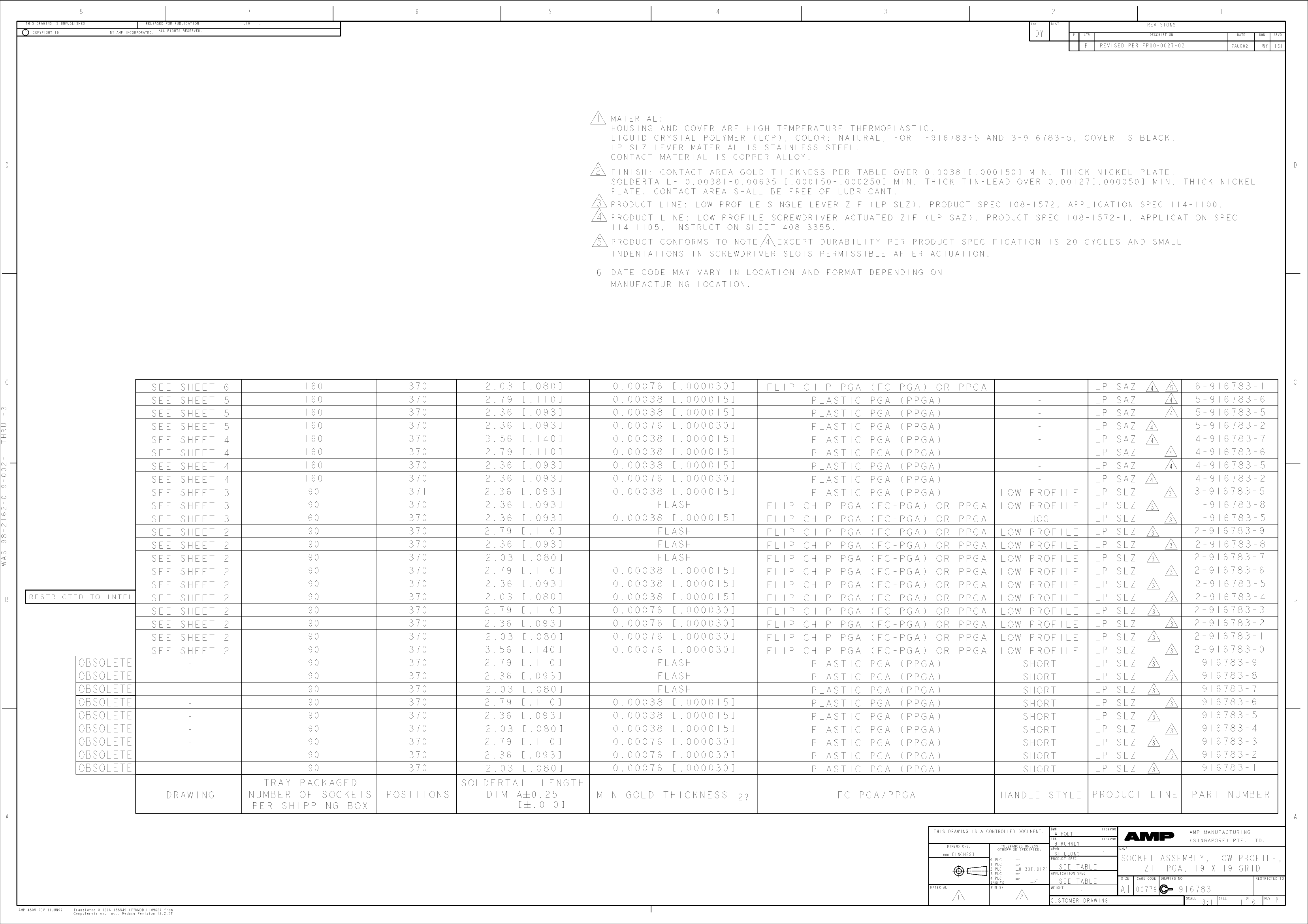

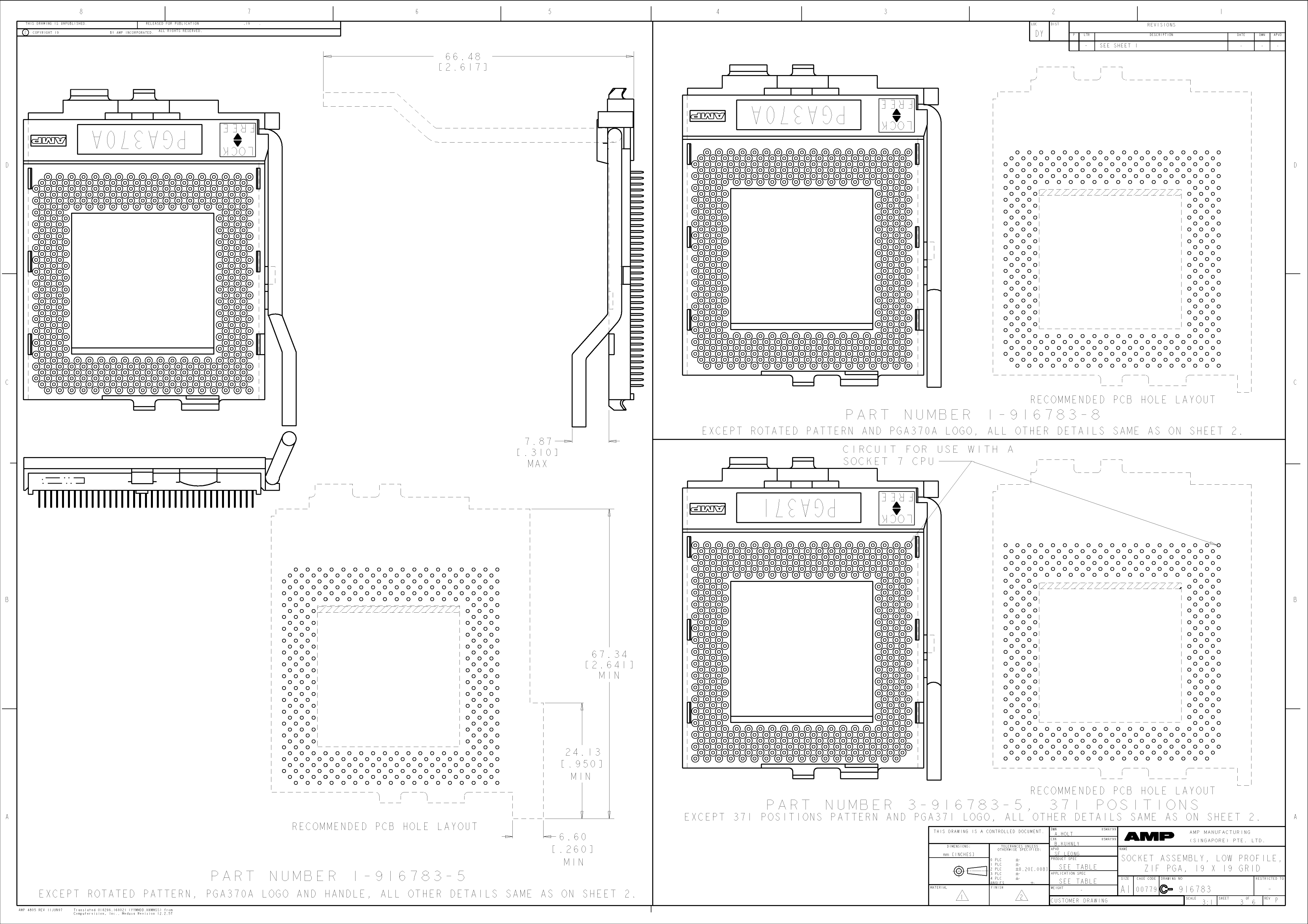

Preview

Download Datasheet

View All

2-916783-1 Related Products

	2-916783-1	2-916783-7	2-916783-9	2-916783-4	4-916783-2	4-916783-6	MFS1/4CLMTA1291D	5-916783-6	3-916783-5
Description	PGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL	PGA370, IC SOCKET	PGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL	Fixed Resistor, Metal Film, 0.25W, 1290ohm, 250V, 0.5% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED	PGA SOCKET,370 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,371 CONTACTS,19X19,0.05 ROW SPACING,PC TAIL TERMINAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant
Manufacturer's serial number	916783	916783	916783	916783	916783	916783	MF	916783	916783
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	155 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Other features	TRAY PACKAGED 90 SKTS PER BOX	TRAY PACKAGED 90 SKTS PER BOX	TRAY PACKAGED 90 SKTS PER BOX	LOW PROFILE, PGA SOCKET	TRAY PACKAGED 160 SKTS PER BOX	TRAY PACKAGED 160 SKTS PER BOX	-	TRAY PACKAGED 160 SKTS PER BOX	TRAY PACKAGED 90 SKTS PER BOX
body width	2.538 inch	2.538 inch	2.538 inch	2.538 inch	1.91 inch	1.91 inch	-	1.91 inch	2.641 inch
subject depth	0.315 inch	0.315 inch	0.315 inch	0.315 inch	-	-	-	-	0.315 inch
body length	2.038 inch	2.038 inch	2.038 inch	2.038 inch	2.28 inch	2.28 inch	-	2.28 inch	2.038 inch
Contact structure	19X19	19X19	19X19	19X19	19X19	19X19	-	19X19	19X19
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	AU ON NI	AU ON NI	-	AU ON NI	AU ON NI
Contact material	CU ALLOY	CU ALLOY	CU ALLOY	NOT SPECIFIED	CU ALLOY	CU ALLOY	-	CU ALLOY	CU ALLOY
Contact style	MACHINE SCREW	MACHINE SCREW	MACHINE SCREW	MACHINE SCREW	MACHINE SCREW	MACHINE SCREW	-	MACHINE SCREW	MACHINE SCREW
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	-	IC SOCKET	IC SOCKET
Type of equipment used	PGA370	PGA370	PGA370	PGA370	PGA370	PGA370	-	PGA370	PGA371
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC	LIQUID CRYSTAL POLYMER
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT
Number of contacts	370	370	370	370	370	370	-	370	371
PCB contact pattern	INTER	INTER	INTER	INTER	INTER	INTER	-	INTER	INTER
PCB contact row spacing	0.05 mm	0.05 mm	0.05 mm	0.05 mm	0.05 mm	0.05 mm	-	0.05 mm	0.05 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	-	1	-
