Datasheet> All Categories > Passive components> oscillator> H1280-0.001M

Preview

H1280-0.001M: DescriptionOscillator, 0.001MHz Min, 175MHz Max, 0.001MHz Nom,; CategoryPassive components oscillator; File Size339KB，3 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

H1280-0.001M Overview

Oscillator, 0.001MHz Min, 175MHz Max, 0.001MHz Nom,

H1280-0.001M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	DIP4/8,.3
Reach Compliance Code	compli
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	175 MHz
Minimum operating frequency	0.001 MHz
Nominal operating frequency	0.001 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	DIP4/8,.3
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	20 mA
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

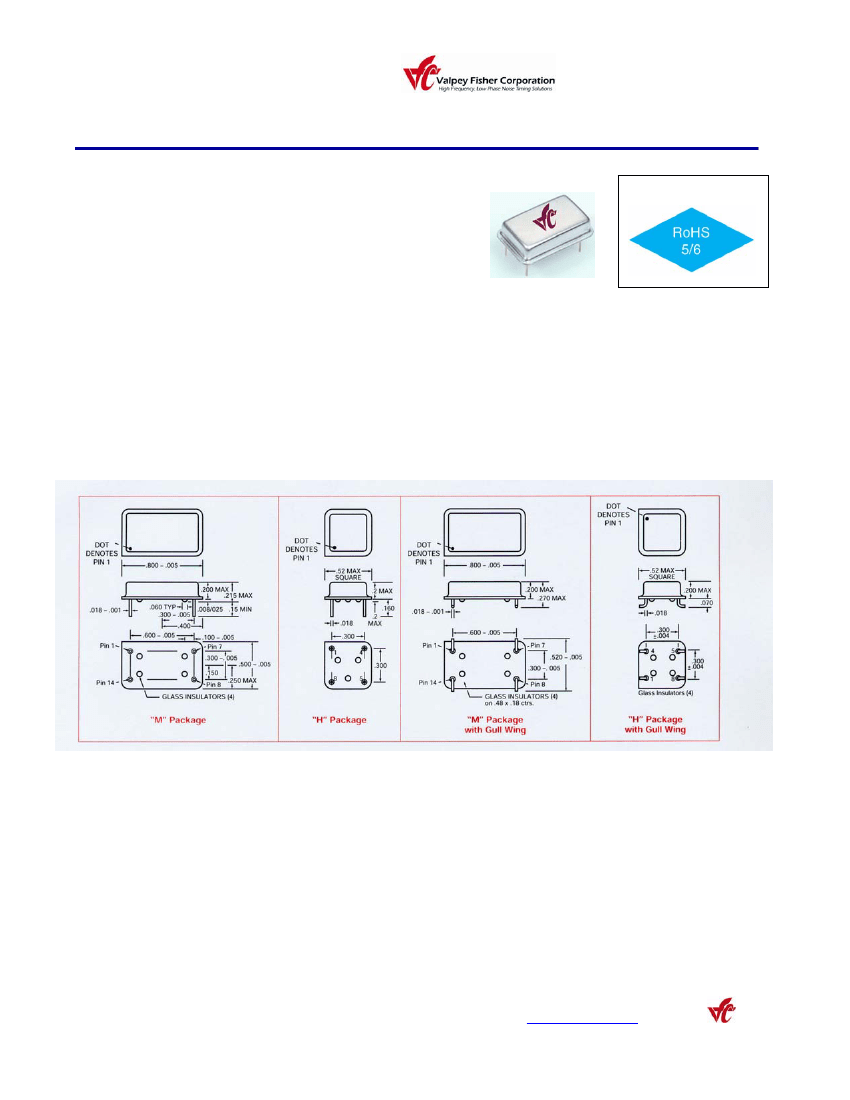

M1280 Series

XO –

Fixed Frequency, 1KHz-175 MHZ

Thru-Hole, HCMOS/TTL, 5V

Features

1KHz to 175MHz Frequency Range

5V Supply Voltage

Tristate and “Hard Zero” options accommodate

ATE

Stability options from ±100ppm, to ± 20ppm

Jitter, 50 ps RMS max

Low power consumption when tristated

FULL SIZE D. I. L.

M package

M1280, M1281,

M1282, M1288

M1289

M3290, M3291

M3292, M3298

M3299

HALF SIZE D. I. L.

H package

H1280, H1281

Hl1282, H1288

H1289

H3290, H3291

H3292, H3290

H3299

RoHS Status

Applications

Any thru-hole PCB that requires a standard

HMOS/TTL 5V clock, including microprocessors

and microcontrollers

75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289

www.valpeyfisher.com

RevA0107

1
