6-227079-1 datasheet, PDF - EEWORLD Datasheet

6-227079-1: DescriptionRF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size504KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

6-227079-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6-227079-1	-	-	View	Buy Now

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
subject depth	1.28 inch
Body diameter	0.572 inch
Body/casing type	PLUG
Cable type	RG-142
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact resistance	3 mΩ
Contact style	COAX
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1

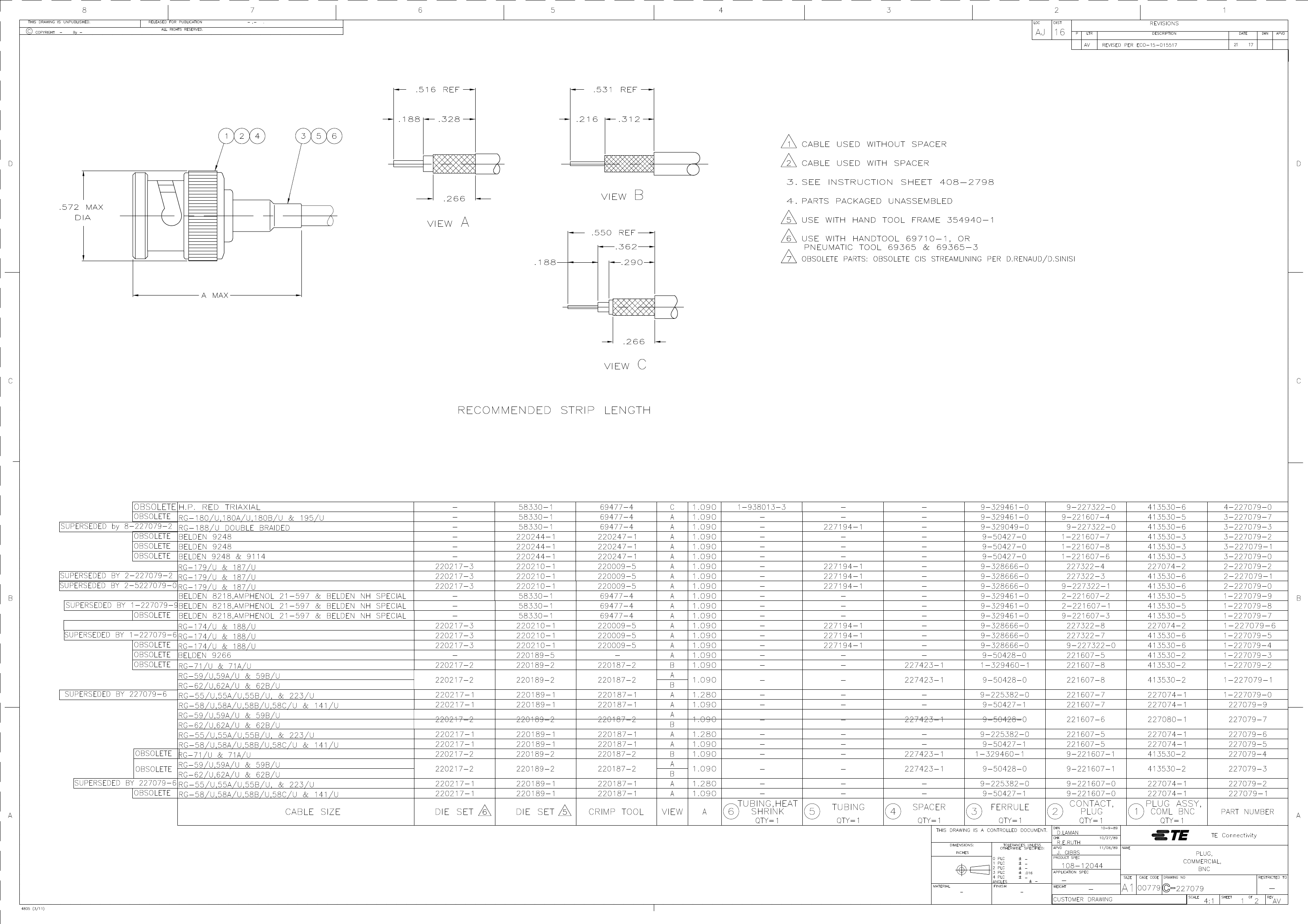

4

NOV

LN

RS

SUPERSEDED BY 1-5227079-6

4

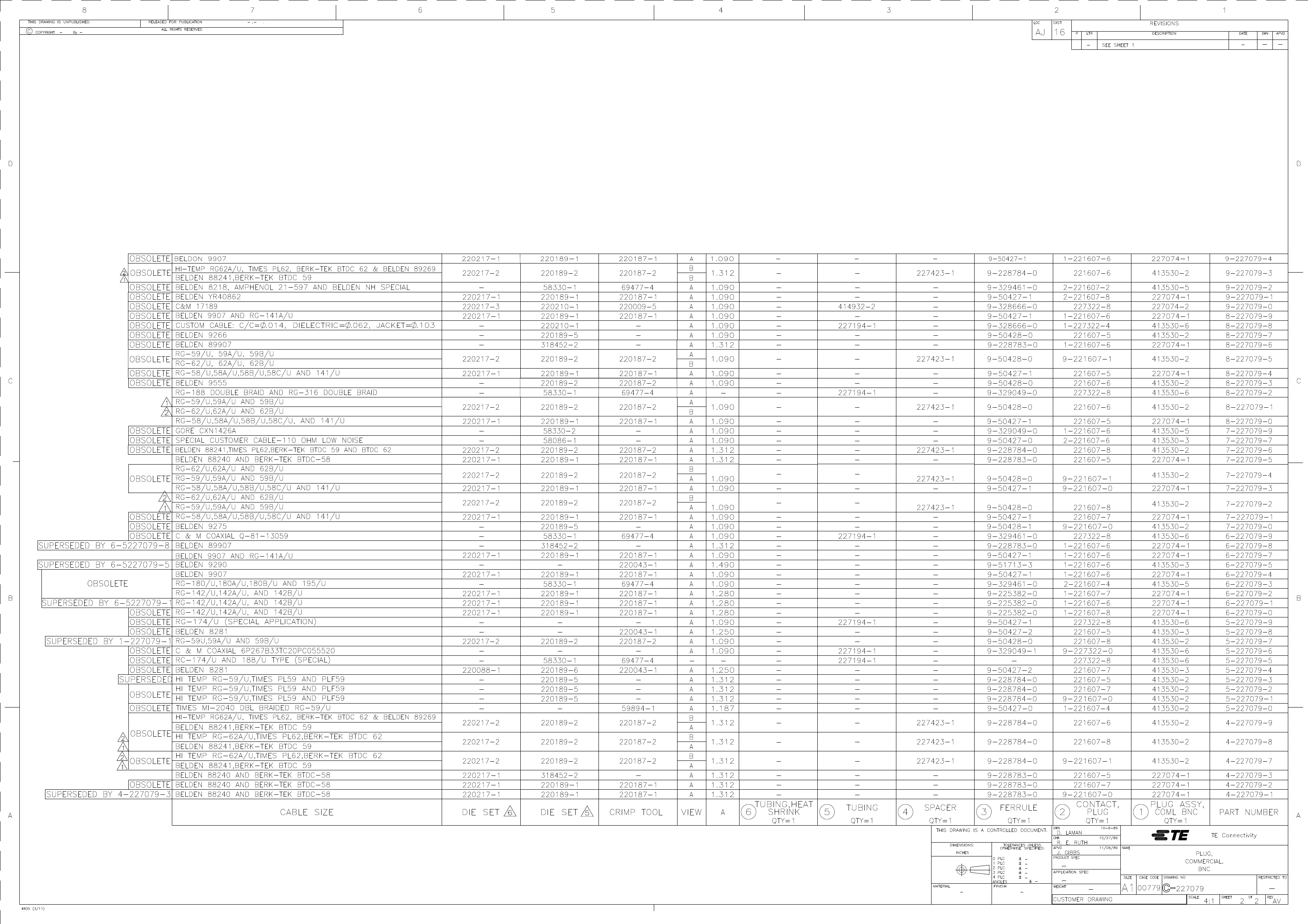

	6-227079-1	5-227079-3	6-227079-5	1-227079-6
Description	RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug	CONNECTOR, CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CONNECTOR, CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	compli	unknow	unknow	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Base Number Matches	1	1	1	1
Contact completed and terminated	NICKEL	GOLD	GOLD	-
Maximum operating frequency	4 GHz	4 GHz	-	4 GHz
voltage standing wave ratio	1.3	1.3	-	1.3
Other features	-	APPLICABLE CABLES: RG 59/U, COMPATIBLE CONTACT: 221607-5	COMPATIBLE CONTACT: 1-221607-6	APPLICABLE CABLES: RG 174/U; RG 188/U, COMPATIBLE CONTACT: 227322-8
Contact to complete cooperation	-	GOLD	GOLD	GOLD
Contact material	-	BRASS	BRASS	BRASS
Coupling type	-	BAYONET	BAYONET	BAYONET
DIN compliance	-	NO	NO	NO
Filter function	-	NO	NO	NO
IEC compliance	-	NO	NO	NO
insulator material	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	-	NO	NO	NO
Plug information	-	NO	NO	NO
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	-	NO	NO	NO
