PM0603G-3R9K-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PM0603G-3R9K-RC

PM0603G-3R9K-RC: DescriptionGeneral Purpose Inductor, 3.9uH, 10%, 1 Element, Ferrite-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT; CategoryPassive components inductor; File Size398KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

PM0603G-3R9K-RC Overview

General Purpose Inductor, 3.9uH, 10%, 1 Element, Ferrite-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT

PM0603G-3R9K-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	0603
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0603
core material	FERRITE
DC Resistance	1.7 Ω
Nominal inductance(L)	3.9 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	PM0603G
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Maximum rated current	0.015 A
self resonant frequency	36 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	10 MHz
Tolerance	10%

Preview

Download Datasheet

View All

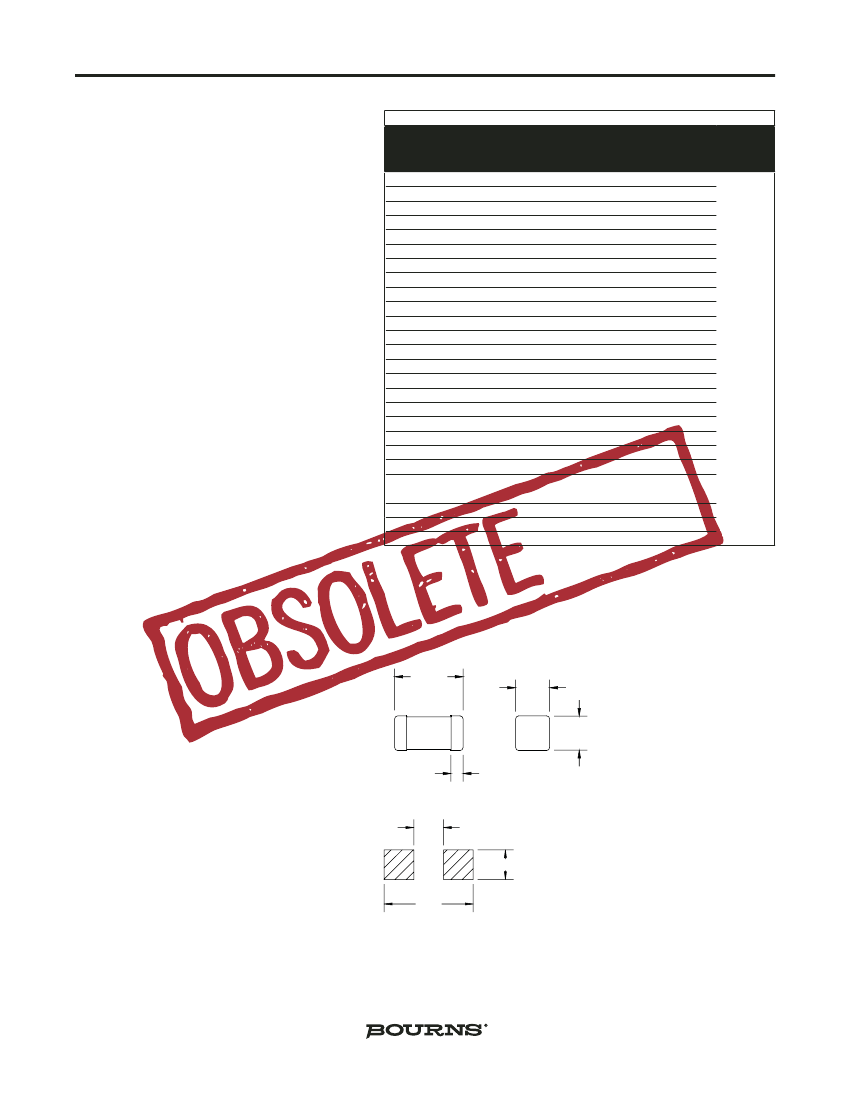

Multilayer Chip Inductors, General Applications

Special Features

• Monolithic construction provides high reliability

• High Q characteristic

• High frequency application

• Ferrite material construction provides magnetic

shielding to reduce radiation

• Operating temperature -25 to +105 °C

• Tape & reel packaged 4000/reel

Part

Number

PM0603G-R047J-RC

PM0603G-R068J-RC

PM0603G-R082J-RC

PM0603G-R10J-RC

PM0603G-R12J-RC

PM0603G-R15J-RC

PM0603G-R18J-RC

PM0603G-R22J-RC

PM0603G-R27J-RC

PM0603G-R33J-RC

PM0603G-R39J-RC

PM0603G-R47J-RC

PM0603G-R56J-RC

PM0603G-R68J-RC

PM0603G-R82J-RC

PM0603G-1R0J-RC

PM0603G-1R2J-RC

PM0603G-1R5J-RC

PM0603G-1R8J-RC

PM0603G-2R2J-RC

PM0603G-2R7J-RC

PM0603G-3R3K-RC

PM0603G-3R9K-RC

PM0603G-4R7K-RC

PM0603G-5R6K-RC

L (µH)

±5 %

0.047

0.068

0.082

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

± 10 %

3.3

3.9

4.7

5.6

PM0603G Series

Test

SRF

Freq. (MHz)

Typ. (MHz)

Typ.

260

250

245

240

205

180

165

150

136

125

110

105

DCR

(Ω)

Max.

0.30

0.50

0.60

0.80

0.85

1.00

1.35

1.55

1.70

2.10

0.60

0.80

0.95

1.15

1.35

1.55

1.70

2.10

1.55

I, DC*

(mA)

Bourns

Equivalent

Typical Applications

• Small cellular phones

• PDAs

• Pagers

• Hand-held organizers

• High frequency wireless communication devices

• Notebook computers

• Printers

• Network cards

• Industrial electronics

• Entertainment electronic devices

CS160808

Notes

* Current to cause 20 °C of temperature rise

Only available as RoHS compliant.

1.6

0.8

0.3

0.6

0.8

2.6

Pad Layout

Dimensions: mm

Tolerance: -/+ 0.15

REV. 06/07

Tel. (877) 426-8767 • Fax (951) 781-5006

www.bourns.com

4.5
