COMPACT SIZE
LIMIT SWITCHES
DL (AZD1) Mini
Limit Switches
(with forced contact opening mechanism)
An economic compact limit switch equipped with a forced contact opening
mechanism and excellent environment proofing (IP67).

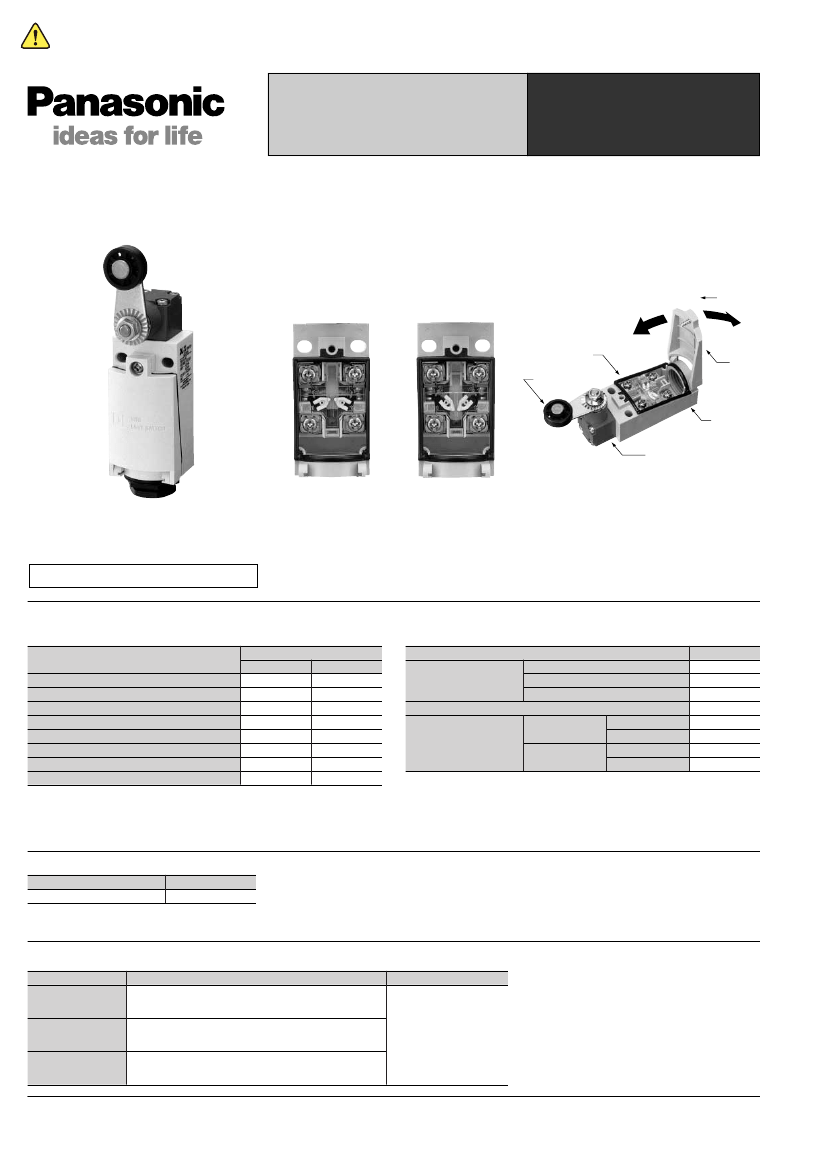

FEATURES
1. Forced contact opening mechanism
When the limit switch is ON, the contact
is forced open by the N.C. contact
through the cam movement.
4. Hinged cover for easy wiring
Cover
mounting
screw
Main block
Actuator
Hinged
cover
r
Body
Head block
(Roller arm) + (Conduit connector)
Compliance with RoHS Directive
2. Conforms to EN standard
(EN50047)
3. Uses a unit system
Any combination of actuator, head block,
and unit block is possible. The units are
also sold separately, making mainte-
nance easy.
5. Protective construction (IP67), and
wide operating temperature range
(–30°C to +80°C
–22°F to +176°F)
TYPICAL APPLICATIONS
General plant facilities such as food pro-
cessing, light machinery such as packag-
ing machines, and assembly lines.
PRODUCT TYPE
1. Basic products
Actuator
Roller Lever
Push Plunger
Roller Plunger
Adjustable roller arm (50 dia. rubber roller)
Roller Arm
Adjustable rod (2.6 dia.)
Adjustable Roller Arm
Roller lever (vertical action)
Part No.
PF type
PG type
AZD1000
AZD1050
AZD1001
AZD1051
AZD1002
AZD1052
AZD1003
AZD1053
AZD1004
AZD1054
AZD1007
AZD1057
AZD1008
AZD1058
AZD1009
AZD1059
2. Blocks
Product name
Roller Lever
Roller Arm
Adjustable Roller Arm
PF type
PG type
PF type
PG type
Part No.
AZD1800
AZD1804
AZD1808
AZD1820
AZD1101
AZD1151
AZD1104
AZD1154
Actuator
Head block
For plunger
Main block
For arm
Notes: 1. Type of conduit size: PF type (G1/2), PG type (PG13.5)
2. PG is a size standard used in Europe.
3. The roller arm and adjustable roller arm are available with metal rollers on a custom-
made basis. Please inquire.
4. Cadmium free contact types are available on a custom-made basis. Please add an “F”
to the end of the part number when ordering.
3. Conduit connector
Product name
PF type conduit connector
Part No.
AZD1830
Note: The conduit connector is for cabtire cable.
Rubber seals with an inside diameter of 9 and 11 are
attached.
Foreign standards
Standards
UL
File No.
Ratings
Product type
File No.
Ratings
Product type
File No.
Ratings
Product type
Applicable product
: E122222
: 6A 380V AC Pilot duty A300
: All models
: E122222
: 6A 380V AC Pilot duty A300
: All models
: J9551205
: AC-15 2A/250V~
: All models
Part No.
C-UL
Order by standard part No.
TÜV
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
Partly Order Discontinued as of August 31, 2012
DL (AZD1)
PRODUCT COMBINATION
[Basic products]
Roller lever
Push plunger
Roller plunger
Roller arm
Adjustable roller arm
(50 dia. rubber roller)
Adjustable roller arm Adjustable rod
Conduit connector
Conduit part PF type
AZD
1000
1009
AZD
1001
AZD
1002
AZD
1004
AZD1003
AZD1008
AZD1007
PF type
AZD1830
Conduit part PG type
AZD
1050
1059
AZD
1051
AZD
1052
AZD
1054
AZD1053
AZD1058
AZD1057
Acutuator block
Roller lever
AZD1800 (Horizontal action)
Roller arm
AZD1804
Adjustable roller arm
AZD1808
Head block
Head block
AZD1820
Main block
AZD
1001
AZD
1051
AZD
1104
AZD
1154
PF type
PG type
PF type
PG type
Note: The characteristics may change when the
individual blocks are combined.
SPECIFICATIONS
1. Rating
Voltage
AC
Load Resistive load Inductive load
(cos
φ
]1)
(cos
φ
]0.4)
125V
250V
380V
24V
60V
220V
6A
6A
6A
5A
1.5A
0.3A
6A
6A
3A
2.5A
1.5A
0.3A
2. Characteristics
Contact arrangement
Initial contact resistance, max.
Contact material
Initial insulation resistance (At 500V DC)
Initial breakdown voltage
Shock resistance
Vibration resistance
Expected life
(min. operations)
Ambient temperature
Ambient himidity
Max. operating speed
Mechanical
Electrical
Functional
Destructive
1 Form A 1 Form B
25mΩ (By voltage drop of 5 to 6 V DC 1A)
AgCdO
Min. 100MΩ
1,000Vrms for 1 min Between non-consecutive terminals
2,500Vrms for 1 min Between dead metal parts and each terminal
2,500Vrms for 1 min Between ground and each terminal
Max. 294 m/s
2
(equivalent 30G) (Noe 1)
Max. 980 m/s
2
(equivalent 100G)
10 to 55Hz, double amplitude of 1.5mm
10
7
(at 120 cpm)
1.5
10
5
(at 20 cpm, 6A 380V AC resistive load)
–30 to +80°C
–22°F to +176°F
(but not ina frozen environment)
Max. 95%R.H. (without dew at 40°C
104°F)
120 cpm
DC
Note: When DC voltage is applied, the time constant is (τ=)
0ms for resistive load, (τ=) 100ms or less for inductive
load.
3. EN60947-5-1 performance
Item
Rated insulation voltage (Ui)
Rated impulse withstand voltage (Uimp)
Switching overvoltage
Rated enclosed thermal current (Ithe)
Conditional short-circuit current
Short-circuit protection device
Protective construction
Pollution degree
Rating
250VAC
2.5kV
2.5kV
6A
100A
10A Fuse
IP67 (Note 1)
2
Note) The ratings, characteristics and operating characteristics are based on the basic model.
Note 1: This value applies when the arm length of the adjustable roller arm (50 dia. rubber roller) is 70 mm or less.
4. Operating characteristics
Characteristics
Actuator
Push plunger
Roller plunger
Roller arm
Roller lever
Adjustable roller arm (Note)
Adjustable roller arm
(50 dia. rubber roller)
Adjustable rod (2.6 dia.)
Roller lever
(vertical action)
Movement
Pretravel
Overtravel
Diferential
O.F. (N {gf}) R.F. (N {gf})
(P.T.), max.
(O.T.), min.
(M.D.), max.
max.
min.
mm
inch
mm
inch
mm
inch
6.37 {650}
6.37 {650}
4.90 {500}
3.92 {400}
4.90 {500}
4.17 {425}
4.90 {500}
4.41 {450}
1.47 {150}
1.47 {150}
0.49 {50}
0.78 {80}
0.49 {50}
0.42 {43}
0.49 {50}
0.88 {90}
2
.079
2
.079
20° to 26°
4
.157
20° to 26°
20° to 26°
20° to 26°
4
.157
1.2
.047
1.2
.047
14°
1.6
.063
14°
14°
14°
1.7
.067
4
.157
4
.157
30°
5
.197
30°
30°
30°
5
.197
Operating
Position
(O.P.),
mm
inch
18±0.5
.708±.020
28±1
1.102±.03
–
–
–
–
–
27±0.8
1.063±.031
Note 1: Adjustable roller arm (50 dia. rubber roller) type is
IP65.
5. Protective characteristics
Protective construction
IEC
IP60
IP64
IP67
DL mini limit switches
(Note 1)
Note 1: The value for protective function characteristics is the
initially set value. Also, adjustable roller arm (50 dia.
rubber roller) type is IP65.
The switches are compatible with
DIN EN50047.
Note: The above values of adjustable roller arm shows the values when roller length is set at 26mm same as roller type.
The value of adjustable roller arm (50 dia. rubber roller) type shows the value when roller length is set at 32 mm.
The value of adjustable rod (2.6 dia.) type shows the value when length of rod is set at 26 mm same as the roller arm type.
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
Partly Order Discontinued as of August 31, 2012
DL (AZD1)
WIRING DIAGRAM
Internal circuit
13
N.O.
N.C.
11
12
DL
14
N.O.
N.C.
Terminals
13
14
11
12

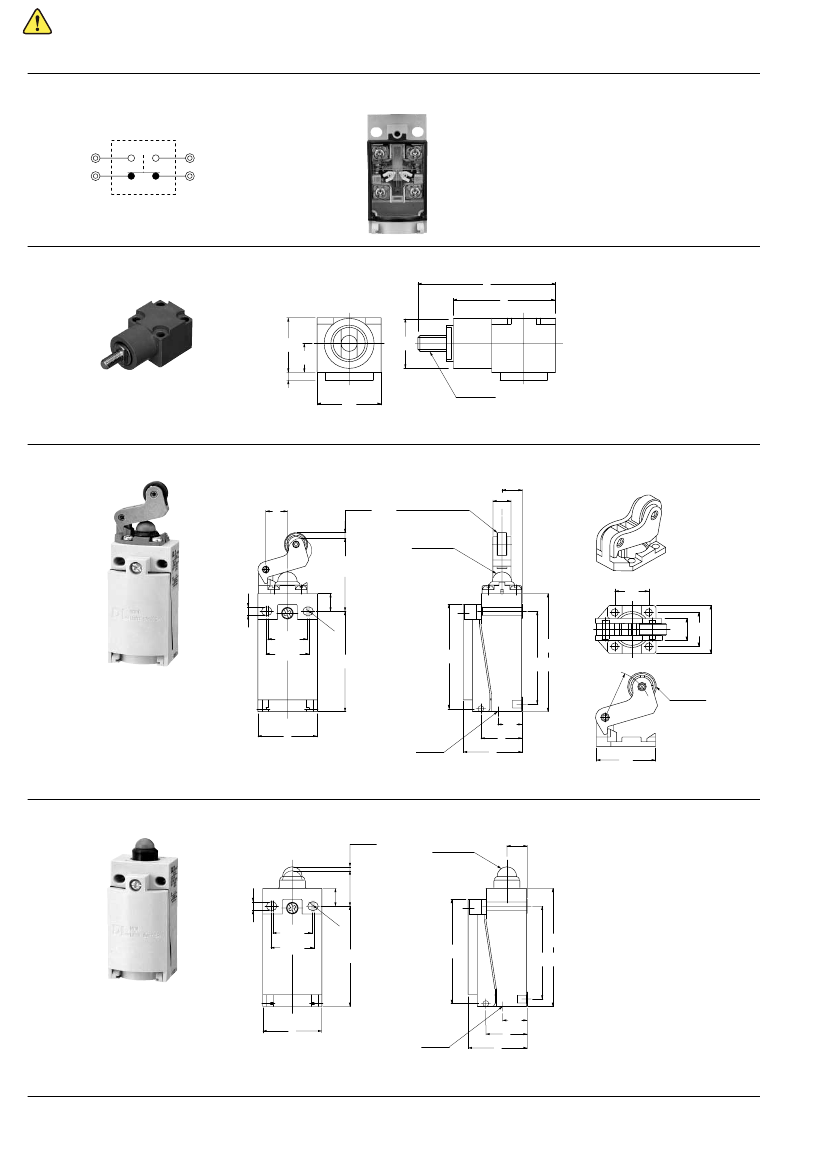

DIMENSIONS
• Head block
43
1.693
32
1.260
mm
inch
17
.669
15.6 dia.
.614
9
.354
AZD1820
2.5
.098
M5 0.8
M.197 .031
20
.787
General tolerance: ±0.4
±.016
• Roller lever
10
0
+.020
.394
0
11
.433
Pretravel 4 max.
.157
12 dia. 5 Nylon roller
.472
Resin-made
push plunger
Operating position
37±0.8
1.457±.031
9±0.2
.354±.008
4.3±0.1
.169±.004
20±0.1
.787±.004
22±0.1
.866±.004
9.2
.362
+0.5
14.2
.559
R2
.
.0
15
85
53
2.087
60
2.362
47±0.2
1.850±.008
9.2
.362
14.2
.559
20
.787
51±0.2
2.008±.008
AZD1000
AZD1050
30
1.181
G1/2
(PG13.5)
12.5
.492
21
.827
30
1.181
12 dia. 5
.472
Nylon roller
R2
0
.78
7
24.6
.969
General tolerance: ±0.4
±.016
• Push plunger
Pretravel 2 max.
.079
Resin-made
push plunger
10
0
+.020
.394
0
+0.5
9±0.2
.354±.008
Operating position
18±0.5
.709±.020
4.3±0.1
.169±.004
20±0.1
.787±.004
22±0.1
.866±.004
R2
.
.0
15
85
53
2.087
60
2.362
47±0.2
1.850±.008
51±0.2
2.008±.008
AZD1001
AZD1051
30
1.181
G1/2
(PG13.5)
12.5
.492
21
.827
30
1.181
General tolerance: ±0.4
±.016
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
Partly Order Discontinued as of August 31, 2012
DL (AZD1)
• Roller plunger
Pretravel 2 max.
.079
12 dia. 5 Nylon roller
.472
mm
inch
10
0
+.020
.394
0
+0.5
Operating position
9±0.2
28±1
.354±.008 1.102±.039
4.3±0.1
.169±.004
20±0.1
.787±.004
22±0.1
.866±.004
R2
.
.0
15
85
60
2.362
47±0.2
1.850±.008
51±0.2
2.008±.008
53
2.087
AZD1002
AZD1052
30
1.181
G1/2
(PG13.5)
12.5
.492
21
.827
30
1.181
General tolerance: ±0.4
±.016

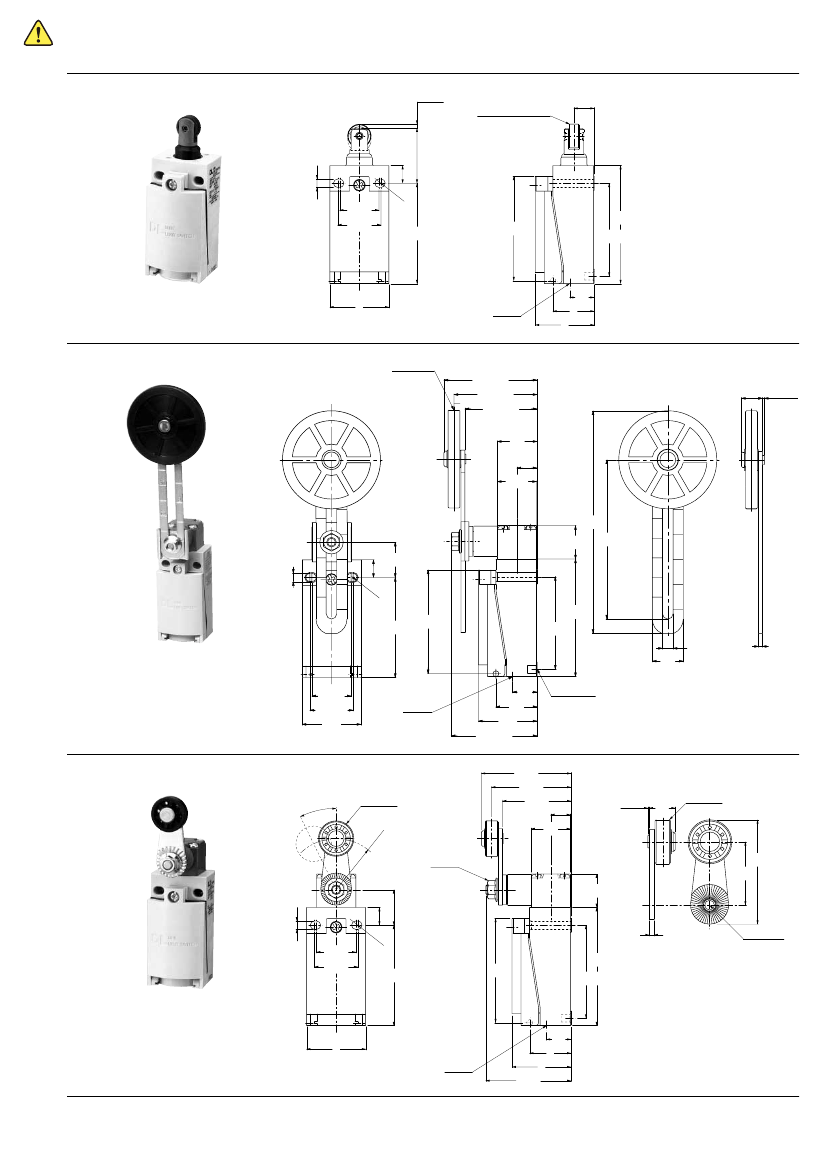

• Adjustable roller arm (50 dia. rubber roller)
50 dia.
×
6
1.969 dia.
×
6
47.5±1
1.870±.039
42.4±1
1.669±.039
36.8±1
1.449±.039
10.7
.421
Max. 1.5
.059
20.3
.799
10
+0.5
0
.394
+.020
0
20
.787
113.5
4.468
4
2
9±0.2
.354±.008
18
.709
17
.669
81.2
3.197
40
2
4.3±0.1
.169±.004
60
60
R2
.
.0
15
85
3
53
51±0.2
2.087
2.008±.008
60
2.362
47±0.2
1.850±.008
3
AZD1003
AZD1053
20±0.1
.787±.004
22±0.1
.866±.004
30
1.181
G1/2
(PG13.5)
15.8
.622
2-4
+0.2
dia.
0
2-.157
+.008
dia.
0
5 holes depth
5.4
.213
2
.079
12.5
.492
21
.827
30
1.181
43.8±1
1.724±.039
General tolerance: ±0.4
±.016

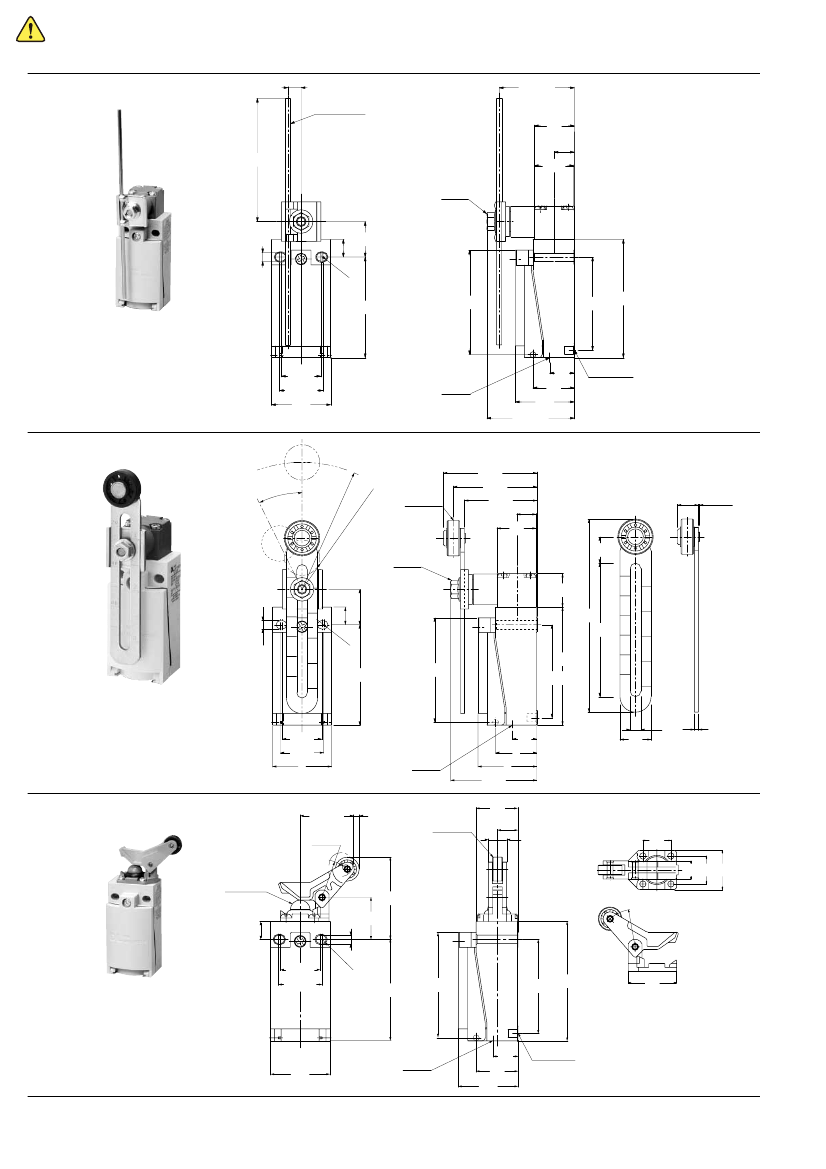

• Roller arm
°
~26°
18 dia. 7
.709
Nylon roller
0
PT2
45.5±1
1.791±.039
40.4±1
1.591±.039
34.8±1
1.370±.039
20
.787
10
0
+.020
.394
0
+0.5
Max. 1.5
.059
10.7
.421
18 dia. 7
.709
Nylon roller
1.
R26
02
4
Hex. nut
42.8
1.685
26
1.024
17
.669
4.3±0.1
.169±.004
9±0.2
.354±.008
18
.709
20±0.1
.787±.004
22±0.1
.866±.004
R2
.
.0
15
85
53
2.087
60
2.362
47±0.2
1.850±.008
2
.079
5.2 dia. hole
.205
51±0.2
2.008±.008
AZD1004
AZD1054
30
1.181
G1/2
(PG13.5)
12.5
.492
21
.827
30
1.181
43.3±1
1.705±.039
General tolerance: ±0.4
±.016
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
Partly Order Discontinued as of August 31, 2012
DL (AZD1)
• Adjustable rod (2.6 dia.)
6.7
.264
2.6
.102
dia. rod
20.3
.799
10
+0.5
0
.394
+.020
0
(26 to 114)
(1.024 to 4.488)
20
.787
38.1±1
1.500±.039
mm
inch
Hex. nut
9±0.2
.354±.008
18
.709
4.3±0.1
.169±.004
R2
.
.0
15
85
53
2.087
60
47±0.2
2.362
1.850±.008
51±0.2
2.008±.008
AZD1007
AZD1057
20±0.1
.787±.004
22±0.1
.866±.004
30
1.181
12.5
.492
21
.827
30
1.181
44.4±1
1.748±.039
2-4
+0.2
dia.
0
2-.157
+.008
dia.
0
5 holes depth
G1/2
(PG13.5)
General tolerance: ±0.4
±.016
• Adjustable roller arm
78.
5
3.0
91
gth
16
.1
.63
4
P
T
2
0
°
~
2
6
ma
°
len
n.
R
18 dia. 7
.709
Nylon roller
47.5±1
1.870±.039
42.4±1
1.669±.039
36.8±1
1.449±.039
20
.787
x. R
Arm
Ar
m
len
gth
10
0
+.020
.394
0
+0.5
10.7
.421
Max. 1.5
.059
mi
13.4
.528
Hex. nut
9±0.2
.354±.008
18
.709
4.3±0.1
.169±.004
17
.669
98.1
3.862
67.8
2.669
60
2.362
47±0.2
1.850±.008
R2
.
.0
15
85
53
2.087
51±0.2
2.008±.008
AZD1008
AZD1058
20±0.1
.787±.004
22±0.1
.866±.004
30
1.181
G1/2
(PG13.5)
12.5
.492
21
.827
30
1.181
43.8±1
1.724±.039
15.8
.622
5.4
.213
2
.079
General tolerance: ±0.4
±.016
• Roller lever (vertical action)
OP27±0.8
1.063±.031
R19
.748
Max. PT4
.157
12 dia.
×
5
.472 dia.
×
5
Nylon roller
21
.827
10
+0.5
0
.394
+.020
0
9
.354
14.2
.559
9.2 14.2 20
.362 .559 .787
Resin-mede
push plunger
(41)
(1.614)
21
4.3±0.1
.827
.169±.004
P
R19
.748
9±0.2
.354±.008
O
20±0.1
.787±.004
22±0.1
.866±.004
R
2
.0
.15
85
51±0.2
2.008±.008
53
2.087
60
47±0.2
2.362
1.850±.008
24.6
.969
AZD1009
AZD1059
30
1.181
G1/2
(PG13.5)
12.5
.492
21
.827
30
1.181
2-4
+0.2
dia.
0
2-.157
+.008
dia.
0
5 holes depth
General tolerance: ±0.4
±.016
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
Embedded System
京公网安备 11010802033920号
EEWORLD
