85017-0062: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

85017-0062 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal

85017-0062 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24) OVER NICKEL
Contact completed and terminated	GOLD (24) OVER NICKEL
Contact point gender	MALE
Contact material	BRONZE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	85017
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	48
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Press-ﬁt termination

For 1.6 to 4mm backplanes

Cavities for coaxial and high current contacts

FMLB/LMFB pins (extended/recessed) available

Version for press-ﬁt power contacts available

Electrical

Current: 1.5A

Physical

Housing: Glass-ﬁlled polyester, UL 94V-0

Contact: Bronze

Operating Temperature: -55 to +125˚C

2.54mm (.100") Pitch

DIN 41612/IEC 603-2

Mixed Layout Connector

85017

Male

Style M, Inverse

Press-Fit

Backplane Connector Systems

Reference Information

Packaging: Tray

Tooling: Press-in tool 85089-1079

UL File No.: E29179

CSA File No.: LR19980-390

Mates With:

85048—Straight

female style M

85056—Right

angle female style M “inverse”

Use With: 85023—Special power and coaxial terminals

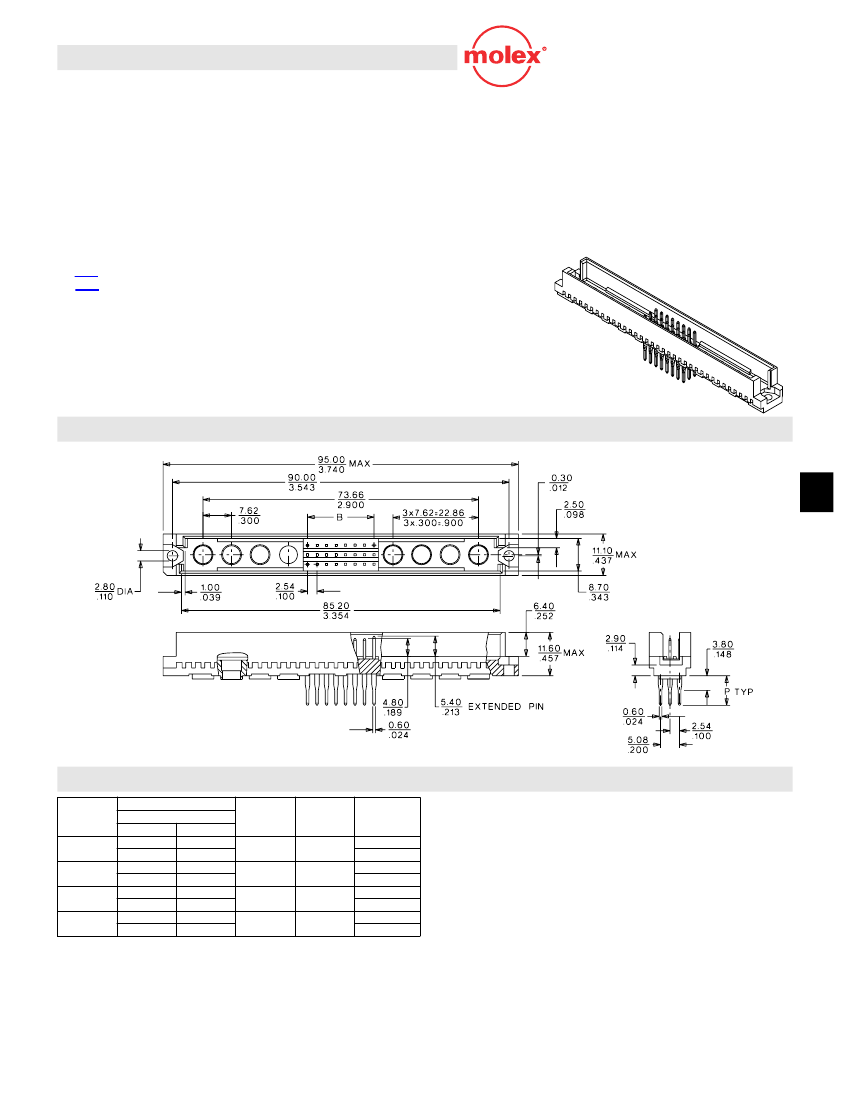

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

24+8

42+6

60+4

78+2

Order No.

Performance Level*

85017-0220

85017-0218

85017-0359

85017-0074

85017-0062

85017-0115

85017-0103

85017-0361

85017-0153

85017-0141

Contact

Full

Rows

a, b, c

Press-Fit Tail

Dimension P

5.8

13.2

5.8

13.2

5.8

13.2

5.8

13.2

(.228)

(.520)

(.228)

(.520)

(.228)

(.520)

(.228)

(.520)

For other versions contact Molex

* Performance levels based on test conditions per DIN 41612, part 5:

1: >500 mating cycles. 10 day industrial environment (S02)

2: >400 mating cycles. 4 day industrial environment (S02)

MX01

J-161

85017-0062 Related Products

	85017-0062	85017-0218	85017-0141	85017-0361
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 32 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 80 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 80 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24) OVER NICKEL	GOLD (24) OVER NICKEL	GOLD (24) OVER NICKEL	GOLD (40) OVER NICKEL
Contact completed and terminated	GOLD (24) OVER NICKEL	GOLD (24) OVER NICKEL	GOLD (24) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE
Contact material	BRONZE	BRONZE	BRONZE	BRONZE
DIN compliance	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
JESD-609 code	e4	e4	e4	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	85017	85017	85017	85017
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	48	32	80	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Maker	Molex	-	Molex	Molex
