IBM11D4360BC-70J datasheet, PDF

Datasheet> All Categories > storage> storage> IBM11D4360BC-70J

IBM11D4360BC-70J: DescriptionFast Page DRAM Module, 4MX36, 70ns, CMOS, PSMA72; Categorystorage storage; File Size1MB，22 Pages; ManufacturerIBM; Websitehttp://www.ibm.com

Download Datasheet Parametric Compare View All

IBM11D4360BC-70J Overview

Fast Page DRAM Module, 4MX36, 70ns, CMOS, PSMA72

IBM11D4360BC-70J Parametric

Parameter Name	Attribute value
Maker	IBM
package instruction	SIMM, SSIM72
Reach Compliance Code	unknown
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N72
memory density	150994944 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	36
Number of terminals	72
word count	4194304 words
character code	4000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	25.4 mm
self refresh	NO
Maximum standby current	0.012 A
Maximum slew rate	1 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

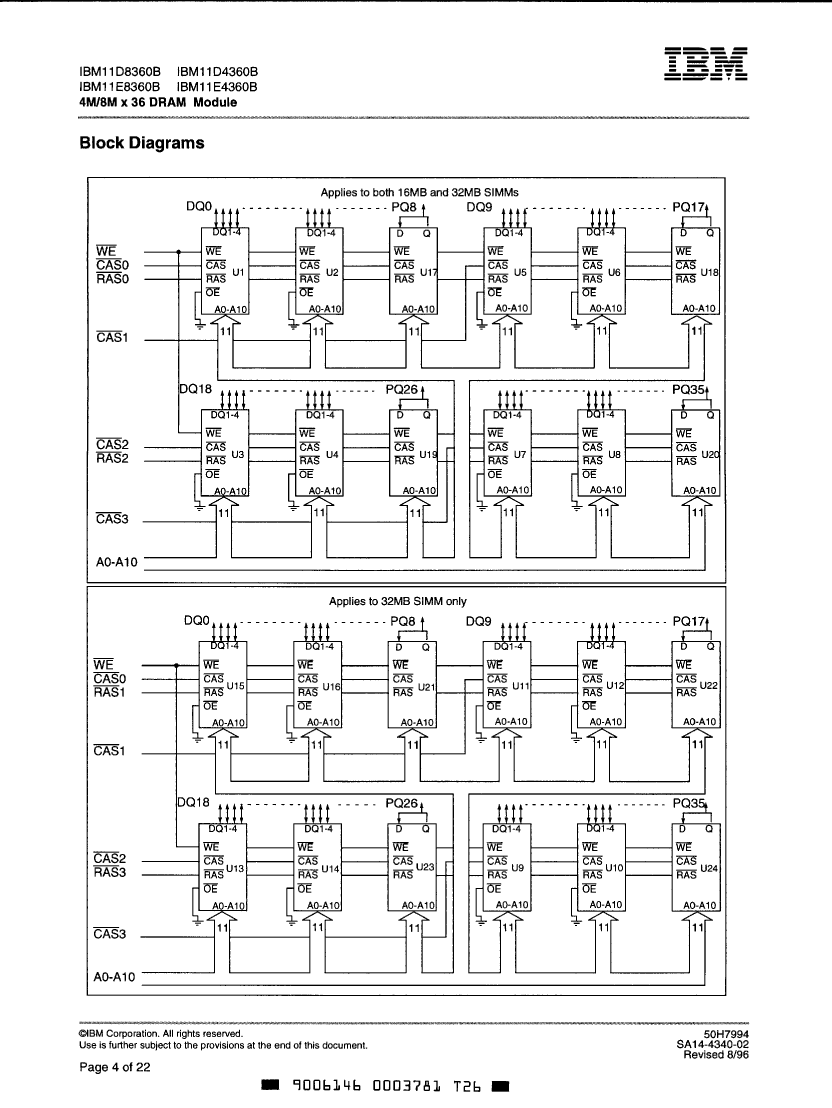

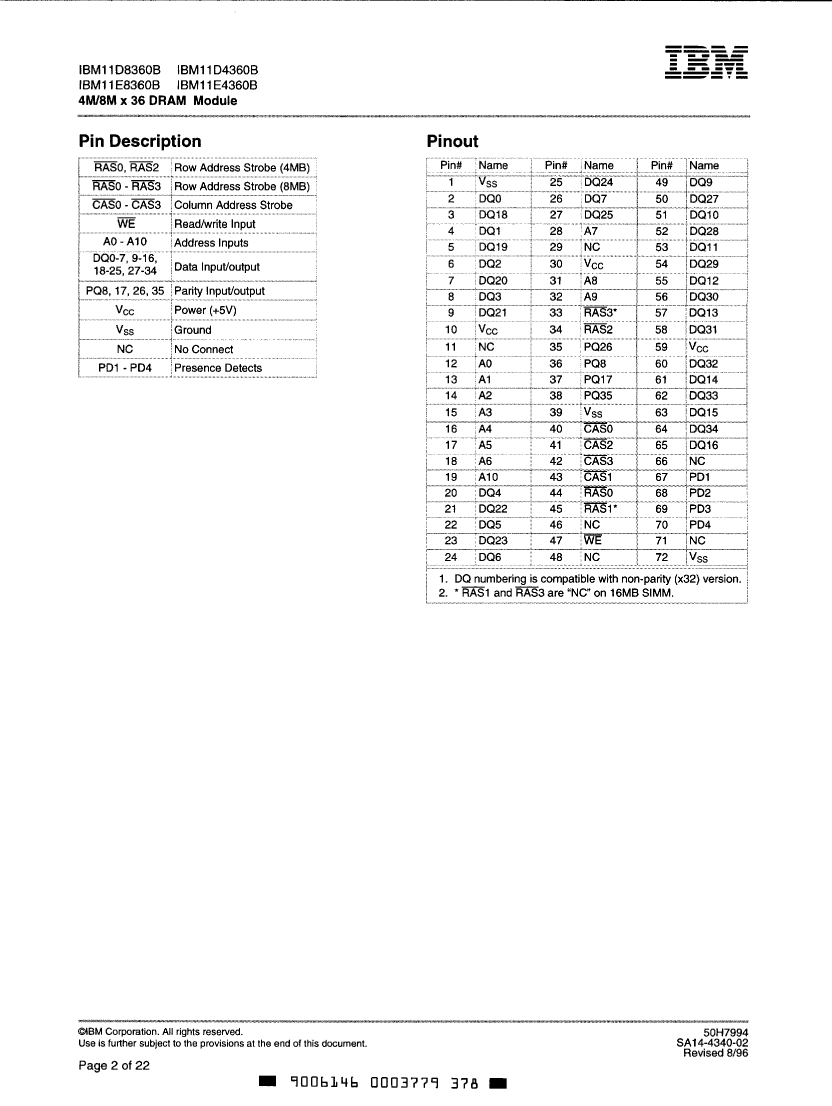

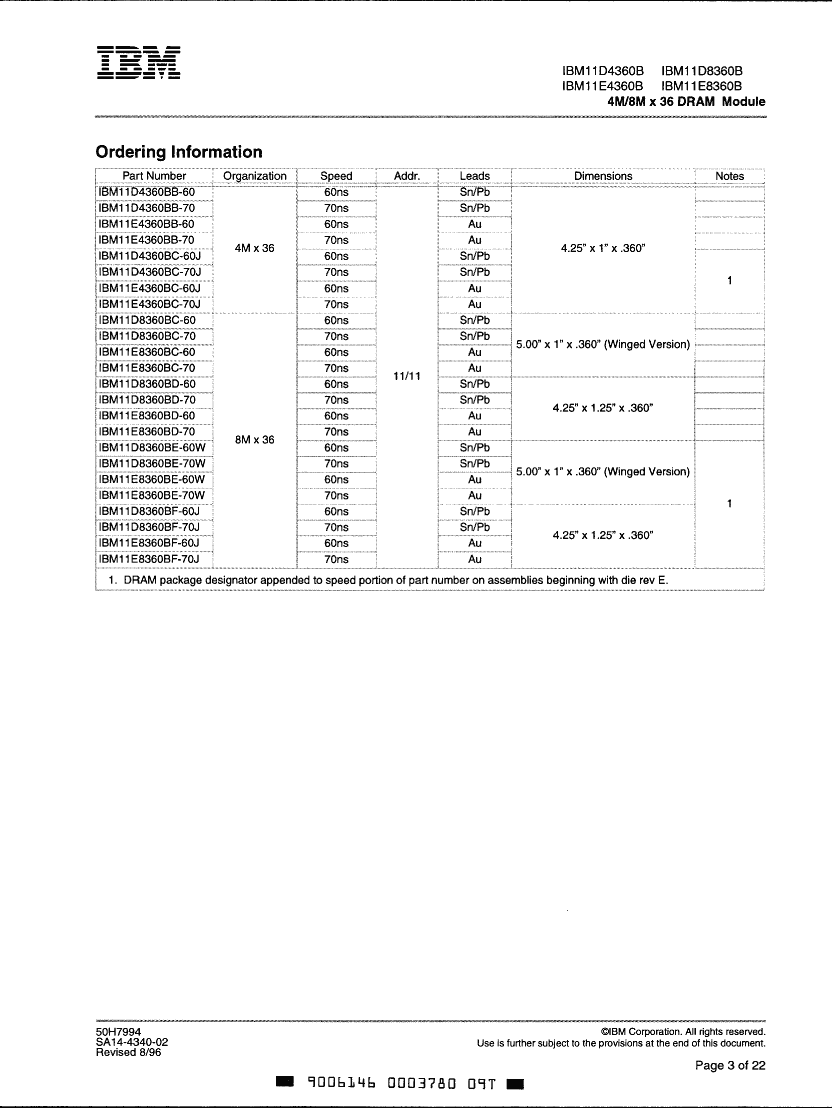

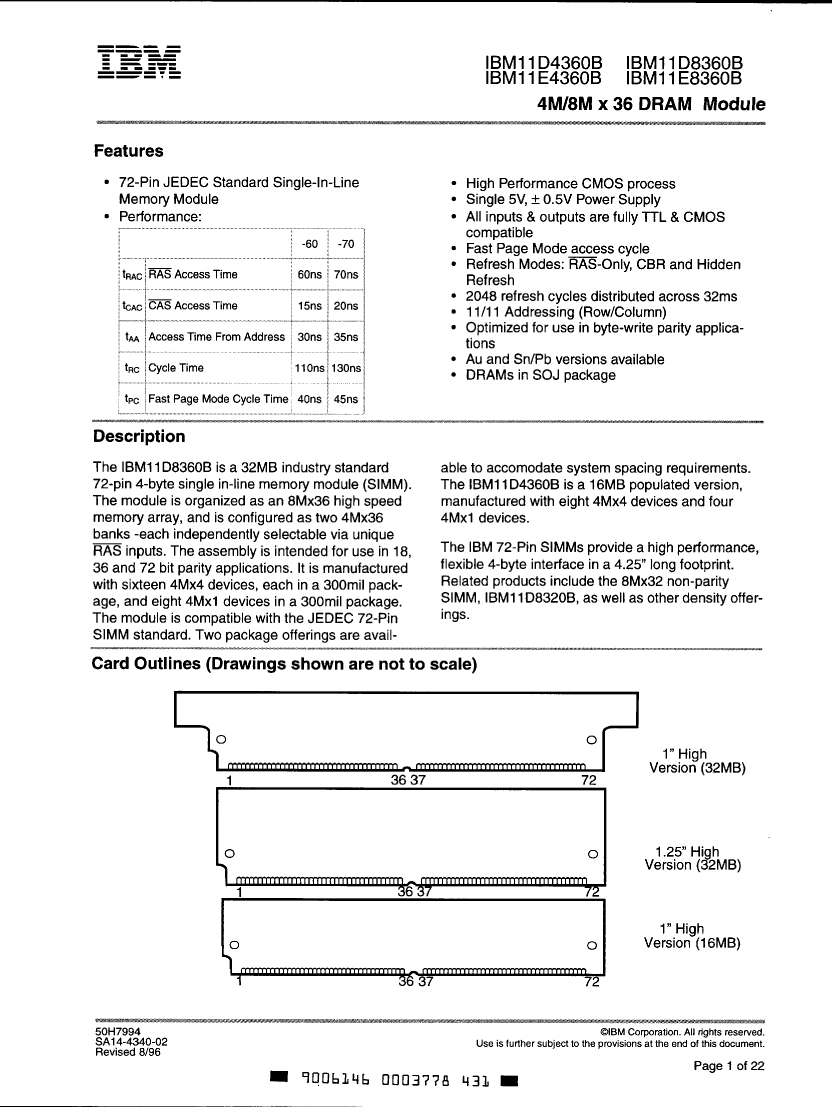

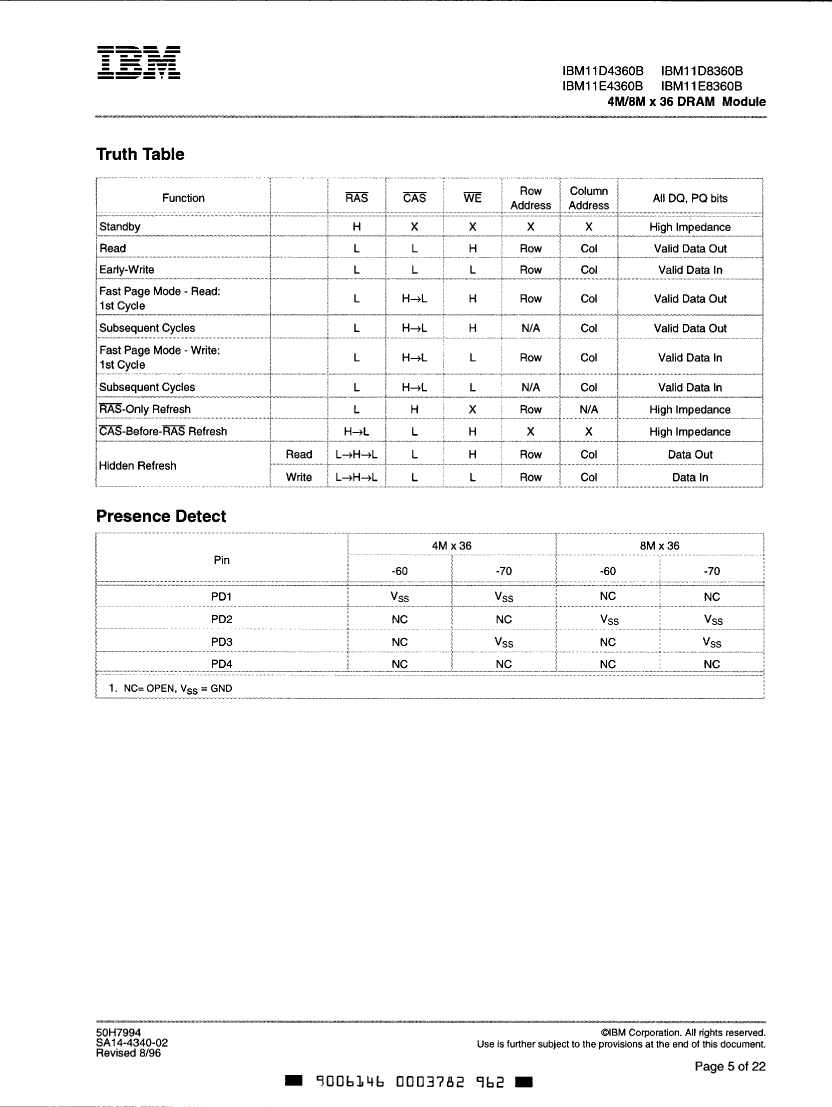

IBM11D4360BC-70J Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IBM11D4360BC-70J Related Products

	IBM11D4360BC-70J	IBM11D4360BC-60J	IBM11D8360BE-60W	IBM11E8360BF-60J	IBM11D8360BE-70W	IBM11D8360BF-60J	IBM11E8360BF-70J
Description	Fast Page DRAM Module, 4MX36, 70ns, CMOS, PSMA72	Fast Page DRAM Module, 4MX36, 60ns, CMOS, PSMA72	Fast Page DRAM Module, 8MX36, 60ns, CMOS, PSMA72	Fast Page DRAM Module, 8MX36, 60ns, CMOS, PSMA72	Fast Page DRAM Module, 8MX36, 70ns, CMOS, PSMA72	Fast Page DRAM Module, 8MX36, 60ns, CMOS, PSMA72	Fast Page DRAM Module, 8MX36, 70ns, CMOS, PSMA72
Maker	IBM	IBM	IBM	IBM	IBM	IBM	IBM
package instruction	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknow
Maximum access time	70 ns	60 ns	60 ns	60 ns	70 ns	60 ns	70 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72
memory density	150994944 bit	150994944 bit	301989888 bit	301989888 bit	301989888 bi	301989888 bi	301989888 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	36	36	36	36	36	36	36
Number of terminals	72	72	72	72	72	72	72
word count	4194304 words	4194304 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words
character code	4000000	4000000	8000000	8000000	8000000	8000000	8000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX36	4MX36	8MX36	8MX36	8MX36	8MX36	8MX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048	2048	2048	2048
Maximum seat height	25.4 mm	25.4 mm	25.4 mm	31.75 mm	25.4 mm	31.75 mm	31.75 mm
self refresh	NO	NO	NO	NO	NO	NO	NO
Maximum standby current	0.012 A	0.012 A	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A
Maximum slew rate	1 mA	1.12 mA	1.144 mA	1.144 mA	1.024 mA	1.144 mA	1.024 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
