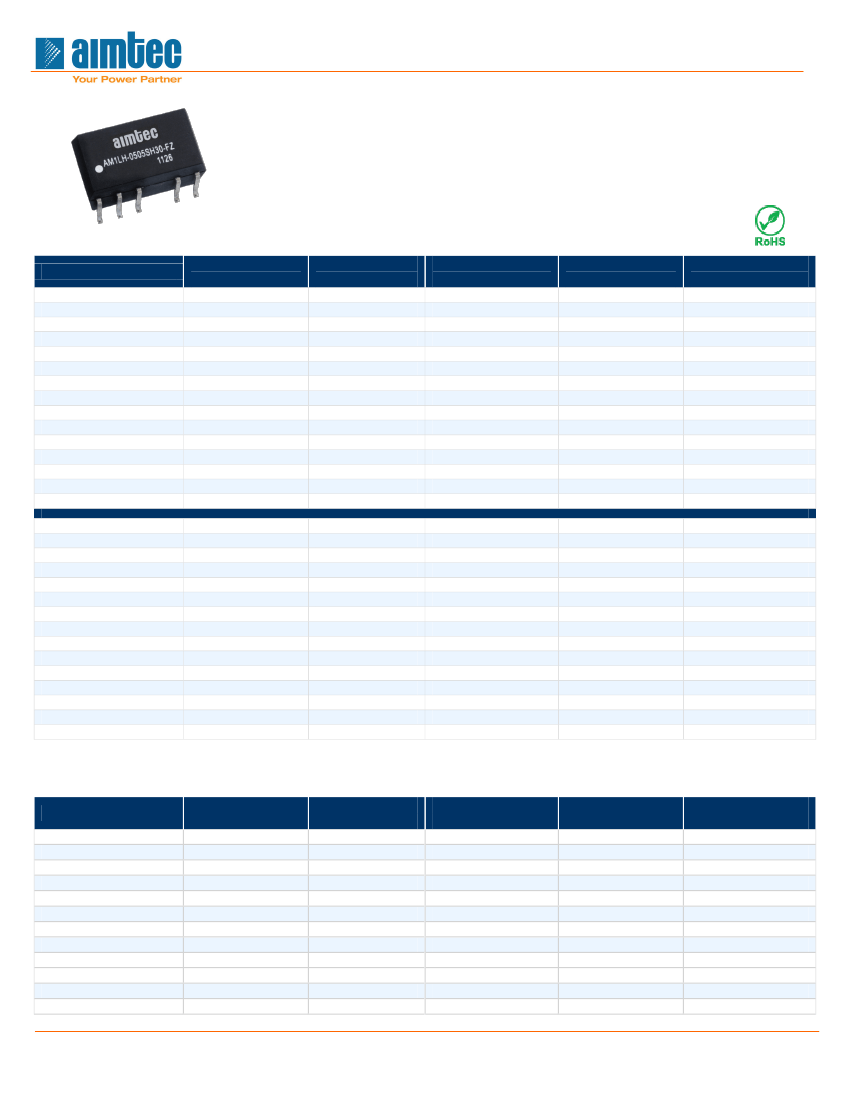

Series AM1LH-FZ
FEATURES:
•
•
•
•
Single & Dual Models
SMD Package
Low Ripple & Noise
High Efficiency up to 83%
•
•
•
•
Operating Temperature -40
o
C
to +85
o
C
Input/Output Isolation of 1000 & 3000VDC
Pin Compatible with multiple manufacturers
RoHS Compliant
1 Watt | DC-DC Converter
Models
Single output
Model
AM1LH-0503S-FZ
AM1LH-0505S-FZ
AM1LH-0509S-FZ
AM1LH-0512S-FZ
AM1LH-0515S-FZ
AM1LH-1203S-FZ
AM1LH-1205S-FZ
AM1LH-1209S-FZ
AM1LH-1212S-FZ
AM1LH-1215S-FZ
AM1LH-2403S-FZ
AM1LH-2405S-FZ
AM1LH-2409S-FZ
AM1LH-2412S-FZ
AM1LH-2415S-FZ
AM1LH-0503SH30-FZ
AM1LH-0505SH30-FZ
AM1LH-0509SH30-FZ
AM1LH-0512SH30-FZ
AM1LH-0515SH30-FZ
AM1LH-1203SH30-FZ
AM1LH-1205SH30-FZ
AM1LH-1209SH30-FZ
AM1LH-1212SH30-FZ
AM1LH-1215SH30-FZ
AM1LH-2403SH30-FZ
AM1LH-2405SH30-FZ
AM1LH-2409SH30-FZ
AM1LH-2412SH30-FZ
AM1LH-2415SH30-FZ
Input Voltage
(V)
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
Output Voltage
(V)
3.3
5
9
12
15
3.3
5
9
12
15
3.3
5
9
12
15
3.3
5
9
12
15
3.3
5
9
12
15
3.3
5
9
12
15
Output Current
max
(mA)
200
200
110
84
67
200
200
110
84
67
200
200
110
84
67
200
200
110
84
67
200
200
110
84
67
200
200
110
84
67
Isolation
(VDC)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
Efficiency
(%)
77
81
78
80
81
75
81
78
81
83
67
71
73
76
77
77
81
78
80
81
75
81
78
81
83
67
71
73
76
77
Models
Dual output
Model
AM1LH-0505D-FZ
AM1LH-0509D-FZ
AM1LH-0512D-FZ
AM1LH-0515D-FZ
AM1LH-1205D-FZ
AM1LH-1209D-FZ
AM1LH-1212D-FZ
AM1LH-1215D-FZ
AM1LH-2403D-FZ
AM1LH-2405D-FZ
AM1LH-2409D-FZ
AM1LH-2412D-FZ
www.aimtec.com
F 051e R12.A
Input Voltage
(V)
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
Output Voltage
(V)
±5
±9
±12
±15
±5
±9
±12
±15
±3.3
±5
±9
±12
Output Current
max
(mA)
±100
±56
±42
±34
±100
±56
±42
±34
±100
±100
±56
±42
Isolation
(VDC)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Efficiency
(%)
71
78
78
81
73
79
81
83
66
76
78
80
Tel: +1 514 620 2722
1 of 6
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1LH-FZ
AM1LH-2415D-FZ
21.6-26.4
±15
±34
1000
85
1 Watt | DC-DC Converter
Models
Dual output (continued)
Model
AM1LH-0505DH30-FZ
AM1LH-0509DH30-FZ
AM1LH-0512DH30-FZ
AM1LH-0515DH30-FZ
AM1LH-1205DH30-FZ
AM1LH-1209DH30-FZ
AM1LH-1212DH30-FZ
AM1LH-1215DH30-FZ
AM1LH-2403DH30-FZ
AM1LH-2405DH30-FZ
AM1LH-2409DH30-FZ
AM1LH-2412DH30-FZ
AM1LH-2415DH30-FZ
Input Voltage
(V)
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
Output Voltage
(V)
±5
±9
±12
±15
±5
±9
±12
±15
±3.3
±5
±9
±12
±15
Output Current
max
(mA)
±100
±56
±42
±34
±100
±56
±42
±34
±100
±100
±56
±42
±34
Isolation
(VDC)
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
Efficiency
(%)
71
78
78
81
73
79
81
83
66
76
78
80
85
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Input Specifications
Voltage Range
Filter
Absolute Maximum Rating
No Load Input Current
Parameters
Nominal
5
12
24
5V input models
12V input models
24V input models
4.5-5.5
10.8-13.2
22.4-26.4
Capacitor
Typical
Maximum
Units
VDC
15
-0.7 to 7.5
-0.7 to 15
-0.7 to 30
28
VDC
mA
Isolation Specifications
Tested I/O voltage
Resistance
Capacitance
Parameters
60sec
500VDC
5V input model
12V input model
24V input model
Conditions
Typical
1000
30(minimum 18)
33(minimum 16)
35(minimum 18)
1000,3000
Rated
VDC
MOhm
pF
Units
Output Specifications
Voltage accuracy
Voltage balance (Dual Output Models)
Cross Regulation (Dual Output Models)
Short Circuit protection
Line voltage regulation
Load voltage regulation (Single)
Load voltage regulation (Dual)
Temperature coefficient
Ripple & Noise
Parameters
Nominal input
Balanced Load
25% load on one output - 100% load
on second load
Per 1% of Vin Change
Output current change from 20% to
100% max load
Output current change from 20% to
100% max load
Nominal Input
20MHz Bandwidth
Conditions
Typical
1
Maximum
3
±1
5
Units
%
%
%
%
%
%
%/ C
mV p-p
o
Max 1 second
8
6
±0.01
100
1.2
12
12
±0.02
www.aimtec.com
F 051e R12.A
Tel: +1 514 620 2722
2 of 6
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1LH-FZ
General Specifications
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Derating
Cooling
Humidity
Case material
Weight
Dimensions
(L x W x H)
MTBF
Maximum soldering temperature
1 Watt | DC-DC Converter
Parameters
Conditions
100% load
100(Min 70KHz)
-40 to +85
-55 to +125
o
Typical
Maximum
150
100
90
Units
KHz
o
C
o
C
o
C
No Derating up to +85 C
Free Air Convection
Plastic (UL94-V0)
1.6/2.1
g
1KVdc isolation single output models 0.50 x 0.44 x 0.29 inches 12.80 x 11.20 x 7.62 mm
All other models : 0.60 x 0.44 x 0.29 inches 15.20 x 11.20 x 7.25 mm
3000K hours
o
300 (1.5mm from case for 10 seconds)
C
% RH
Pin Out Specifications
Pin
1
2
3
4
5
6
7
8
1000VDC
Single
-V Input
+V Input
N.C.
-V Output
+V Output
N.C.
N.C.
N.C.
Pin
1
2
3
4
5
6
7
8
9
10
1000VDC
Dual
-V Input
+V Input
N.C.
Common
-V Output
N.C.
+V Output
N.C.
N.C.
N.C.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
-V Input
+V Input
N.C.
No Pin
-V Output
N.C.
N.C.
+V Output
No Pin
N.C.
N.C.
N.C.
Single
3000VDC
-V Input
+V Input
N.C.
No Pin
Common
-V Output
N.C.
+V Output
No Pin
N.C.
N.C.
N.C.
Dual
www.aimtec.com
F 051e R12.A
Tel: +1 514 620 2722
3 of 6
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1LH-FZ
Block Diagrams
1000Vdc
1 Watt | DC-DC Converter
www.aimtec.com
F 051e R12.A
Tel: +1 514 620 2722
4 of 6
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only

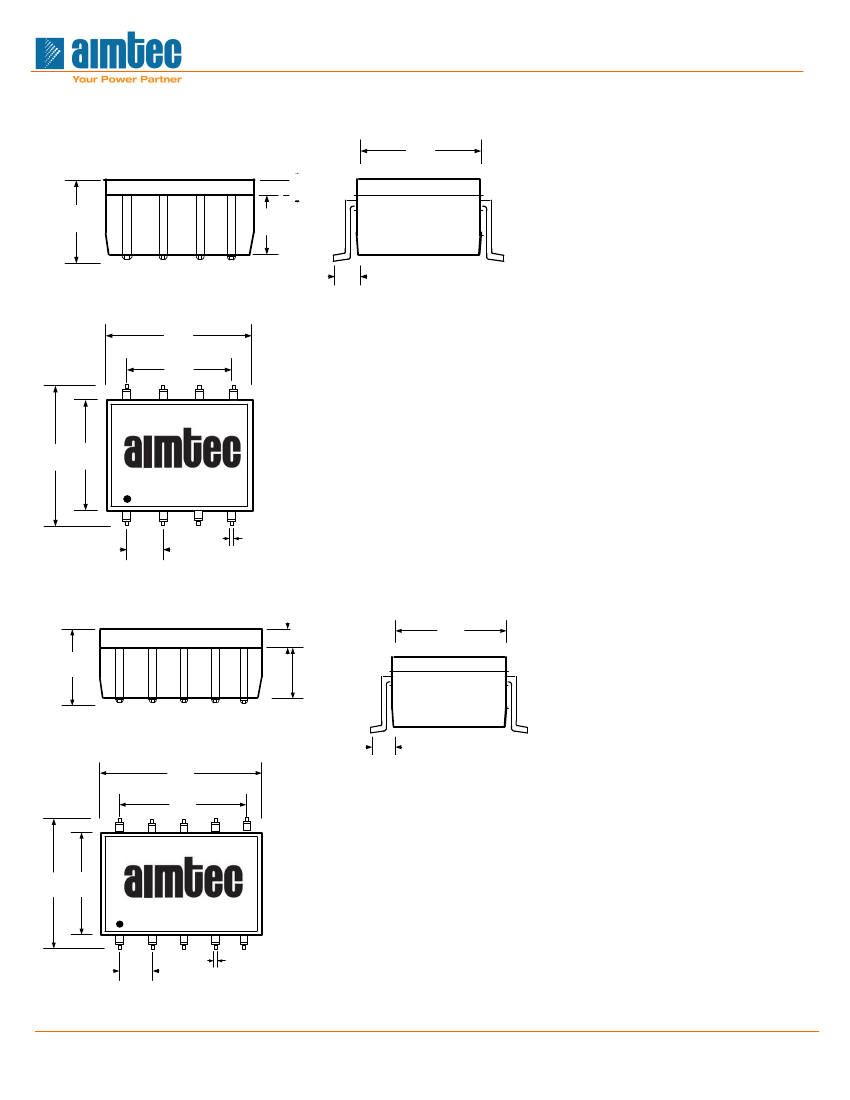

Series AM1LH-FZ
Single 1000Vdc Isolation
Side View
2.00
(0.08)
7.25
(0.29)
5.00
(0.20)
0º~10º angle
1 Watt | DC-DC Converter
Front View
7.62
(0.30)
Top View
12.80
(0.50)
7.62
(0.30)
1.50
(0.06)
11.20 8.20
(0.44) (0.32)
1
2.54
(0.10)
0.60
(0.02)
Dual 1000VDC Isolation
Side View
2.00
(0.08)
7.25
(0.32)
5.00
(0.20)
0º~10º angle
Front View
7.62
(0.30)
Top View
15.20
(0.60)
10.16
(0.40)
1.50
(0.06)
11.20 8.20
(0.44) (0.32)
1
2.54
(0.10)
0.60
(0.02)
Block Diagram
3000Vdc
www.aimtec.com
F 051e R12.A
Tel: +1 514 620 2722
5 of 6
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
