2-284517-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 2-284517-3

2-284517-3: Description11A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size200KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-284517-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-284517-3	-	-	View	Buy Now

2-284517-3 Overview

11A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK

2-284517-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLARIZED
Fastening method	CONNECTOR
Manufacturer's serial number	284517
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	23
Rated current	11 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

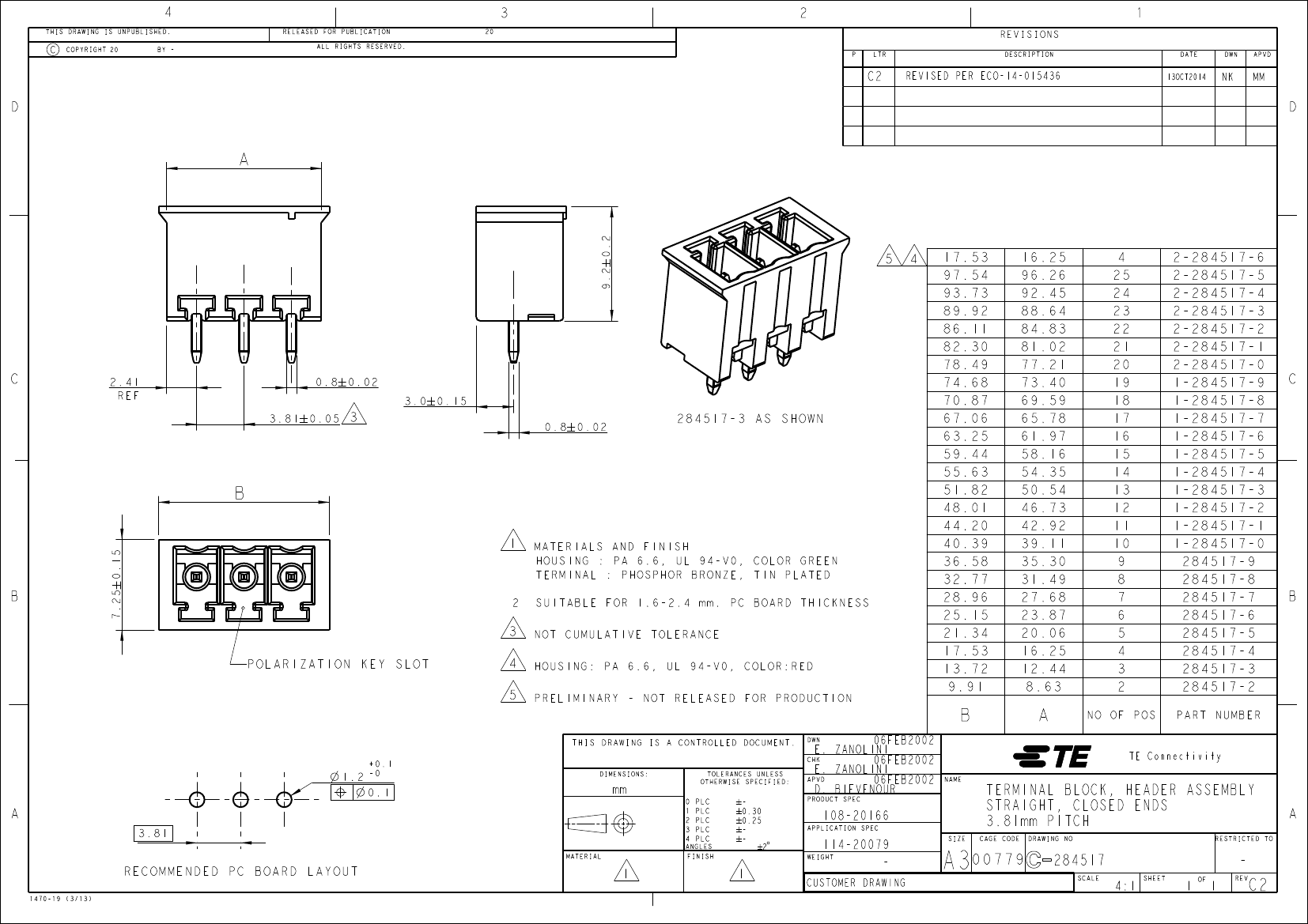

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-14-015436

13OCT2014

9.2

2.41

REF

0.8

3.81 # 0.05

3.0

0.8

284517-3 AS SHOWN

MATERIALS AND FINISH

HOUSING : PA 6.6, UL 94-V0, COLOR GREEN

TERMINAL : PHOSPHOR BRONZE, TIN PLATED

SUITABLE FOR 1.6-2.4 mm. PC BOARD THICKNESS

NOT CUMULATIVE TOLERANCE

HOUSING: PA 6.6, UL 94-V0, COLOR:RED

PRELIMINARY - NOT RELEASED FOR PRODUCTION

7.25

POLARIZATION KEY SLOT

17.53

97.54

93.73

89.92

86.11

82.30

78.49

74.68

70.87

67.06

63.25

59.44

55.63

51.82

48.01

44.20

40.39

36.58

32.77

28.96

25.15

21.34

17.53

13.72

9.91

16.25

96.26

92.45

88.64

84.83

81.02

77.21

73.40

69.59

65.78

61.97

58.16

54.35

50.54

46.73

42.92

39.11

35.30

31.49

27.68

23.87

20.06

16.25

12.44

8.63

NO OF POS

2-284517-6

2-284517-5

2-284517-4

2-284517-3

2-284517-2

2-284517-1

2-284517-0

1-284517-9

1-284517-8

1-284517-7

1-284517-6

1-284517-5

1-284517-4

1-284517-3

1-284517-2

1-284517-1

1-284517-0

284517-9

284517-8

284517-7

284517-6

284517-5

284517-4

284517-3

284517-2

PART NUMBER

DWN

CHK

THIS DRAWING IS A CONTROLLED DOCUMENT.

+0.1

-0

E. ZANOLINI

06FEB2002

NAME

TE Connectivity

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

3.81

MATERIAL

ANGLES

PLC

0.30

0.25

PRODUCT SPEC

06FEB2002

D. BIEVENOUR

APPLICATION SPEC

108-20166

114-20079

SIZE

FINISH

2 $

WEIGHT

RECOMMENDED PC BOARD LAYOUT

1470-19 (3/13)

CUSTOMER DRAWING

00779

CAGE CODE

TERMINAL BLOCK, HEADER ASSEMBLY

STRAIGHT, CLOSED ENDS

3.81mm PITCH

DRAWING NO

RESTRICTED TO

284517

SCALE

4:1

SHEET

REV

2-284517-3 Related Products

	2-284517-3	2-284517-0	2-284517-5	RIAN16LTEB223JCAT	1-284517-4	1-284517-5	RIAN16LTEB223JEBE	RIAN16LTEB223JHCT	RIAN16LTEB223JHFE
Description	11A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	11A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	11A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	Array/Network Resistor, Isolated, Thin Film, 0.8W, 22000ohm, 100V, 5% +/-Tol, -50,50ppm/Cel, 3915,	11A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	11A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	Array/Network Resistor, Isolated, Thin Film, 0.8W, 22000ohm, 100V, 5% +/-Tol, -25,25ppm/Cel, 3915,	Array/Network Resistor, Isolated, Thin Film, 0.8W, 22000ohm, 100V, 5% +/-Tol, -100,100ppm/Cel, 3915,	Array/Network Resistor, Isolated, Thin Film, 0.8W, 22000ohm, 100V, 5% +/-Tol, -100,100ppm/Cel, 3915,
Is it Rohs certified?	conform to	conform to	conform to	incompatible	conform to	conform to	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	not_compliant	unknown	unknown	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED	-	-	-
Fastening method	CONNECTOR	CONNECTOR	CONNECTOR	-	CONNECTOR	CONNECTOR	-	-	-
Manufacturer's serial number	284517	284517	284517	-	284517	284517	-	-	-
Installation type	BOARD	BOARD	BOARD	-	BOARD	BOARD	-	-	-
Number of layers	1	1	1	-	1	1	-	-	-
Rows	1	1	1	-	1	1	-	-	-
Number of channels	23	20	25	-	14	15	-	-	-
Rated current	11 A	11 A	11 A	-	11 A	11 A	-	-	-
Rated voltage	300 V	300 V	300 V	-	300 V	300 V	-	-	-
safety certificate	UL	UL	UL	-	UL	UL	-	-	-
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	-	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	-	-	-
Base Number Matches	1	1	1	-	1	1	-	-	-
