Ceramic Resin Sealed SMD Crystal
Page 1 of 2
Model:
C8AC
Formerly FC Series
RoHS Compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev.
07/10/2018
FEATURES
•
•
•
•
Low Cost
Low Frequency
(<7.2MHz)
Resin Sealed
Tape and Reel (1,000 pcs. STD)
• Tolerances to < 20 PPM
• Stabilities to <
15
PPM
• Temperatures to -40ºC ~ +85ºC
OPTIONS

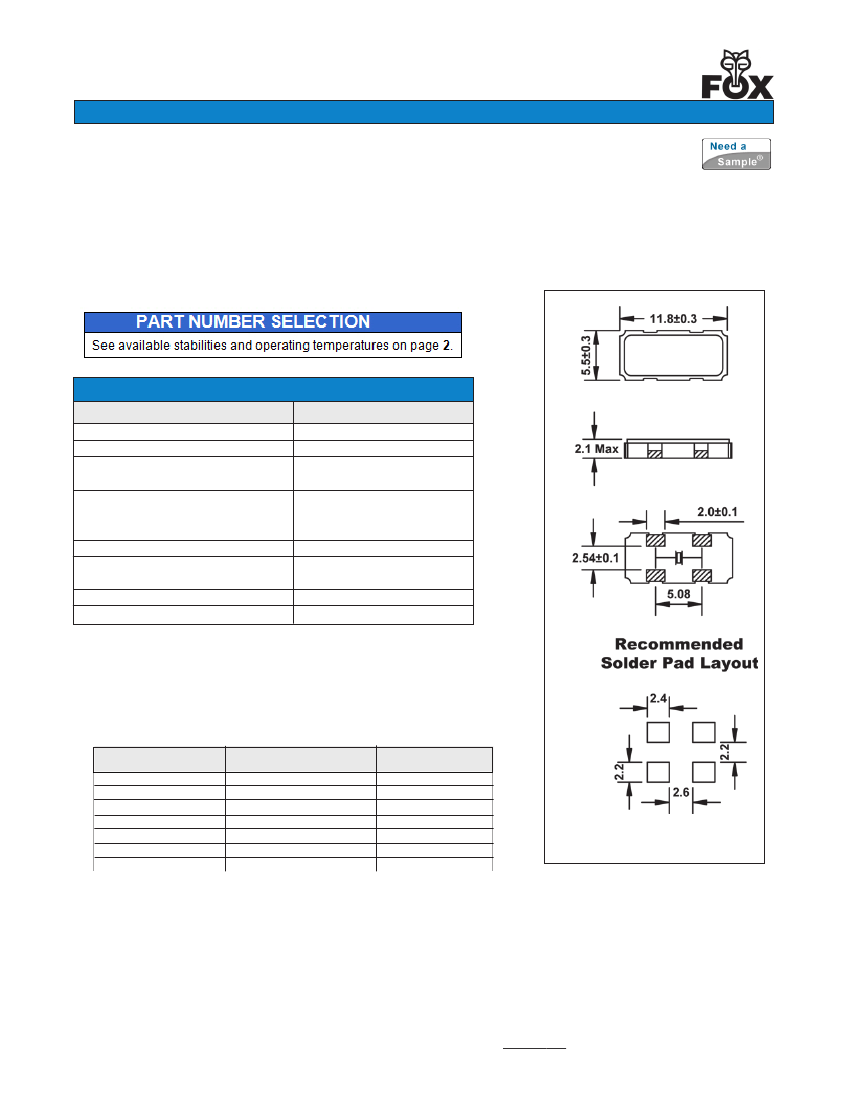

• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
1
MAX
(unless otherwise noted)
3.200 ~ 7.200
MHz
See options on page 2
See options on page 2
-See
options on page 2
-40ºC ~ +85ºC
7.0 pF
See options on page 2
(Customer Specified)
0.1 mW
±5 PPM
Other stabilities & operating temperature ranges available. Consult Fox Customer Service for
specific requirements.
All specifications subject to change without notice.
Frequency Range
(MHz)
3.200 ~ 3.499
3.499+ ~ 3.999
3.999+ ~ 4.399
4.399+ ~ 4.899
4.899+ ~ 5.999
5.999+ ~ 6.999
6.999+ ~ 7.200
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Max ESR
Ω
200
140
120
100
80
60
50
All dimensions are in millimeters.
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
Ceramic Resin Sealed SMD Crystal
Model:
C8AC
Formerly FC Series
Page 2 of 2
RoHS Compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev.
07/10/2018

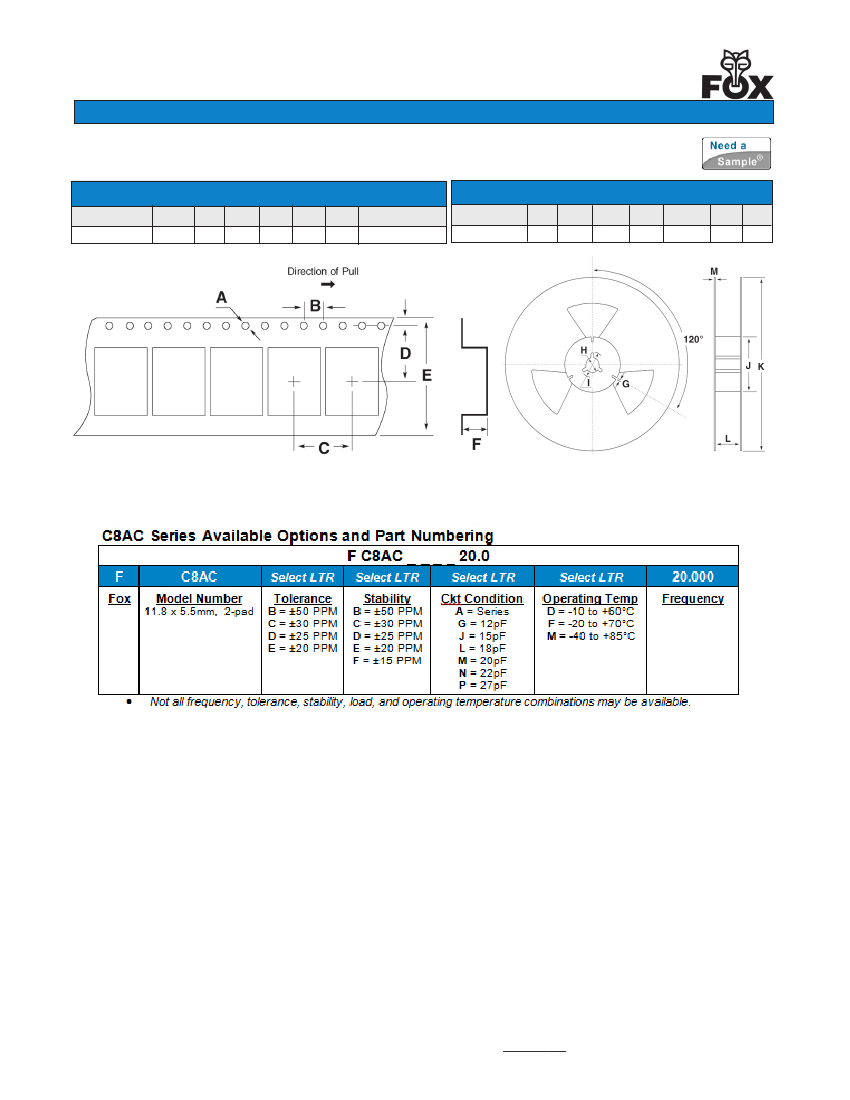

• TAPE SPECIFICATIONS
(millimeters)
• REEL SPECIFICATIONS
(millimeters)
G
I
J
K
L
H
M
B
C
D
E
F
STD Reel QTY
MODEL
MODEL
A
C8AC series
2.0
∅13 ∅21 ∅80 ∅250
25.5
2.0
1,000
C8AC series
∅1.5
4.0
12.0 11.5 24.0 2.6
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
