Datasheet> All Categories > Wireless rf/communication> Telecom circuit> HD3-6409-9-AT

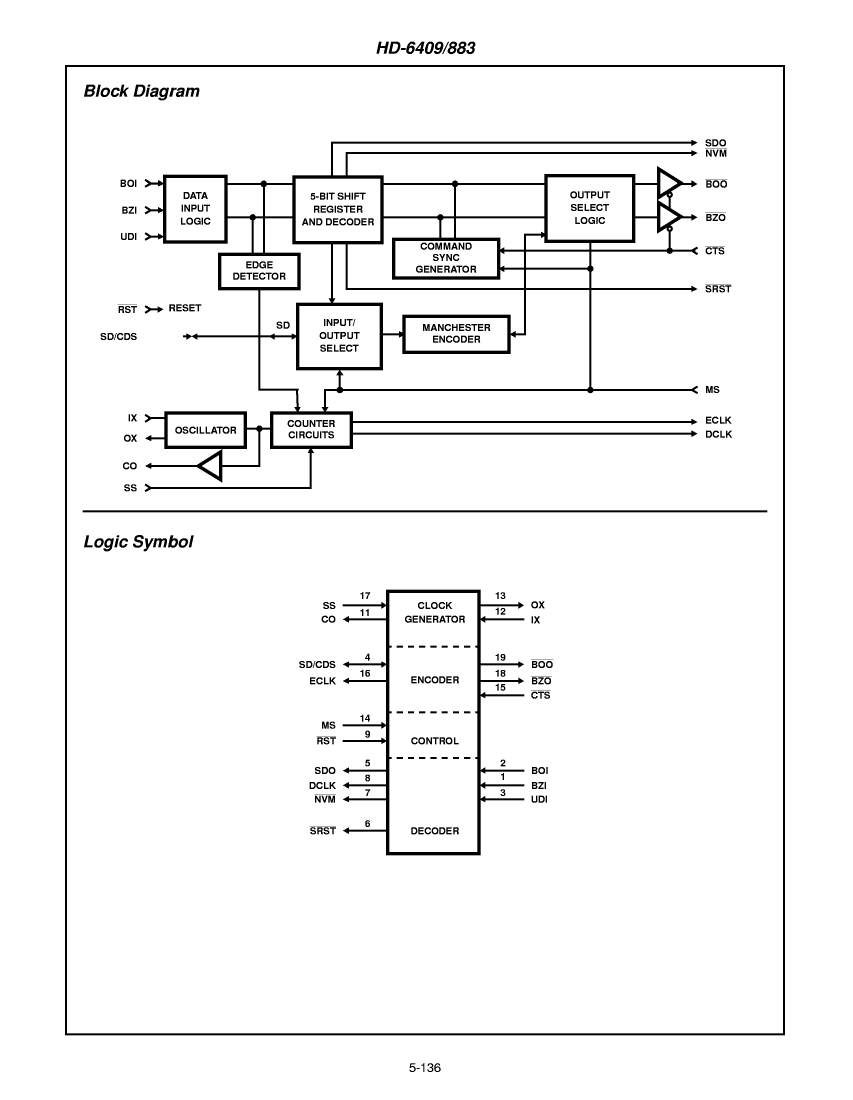

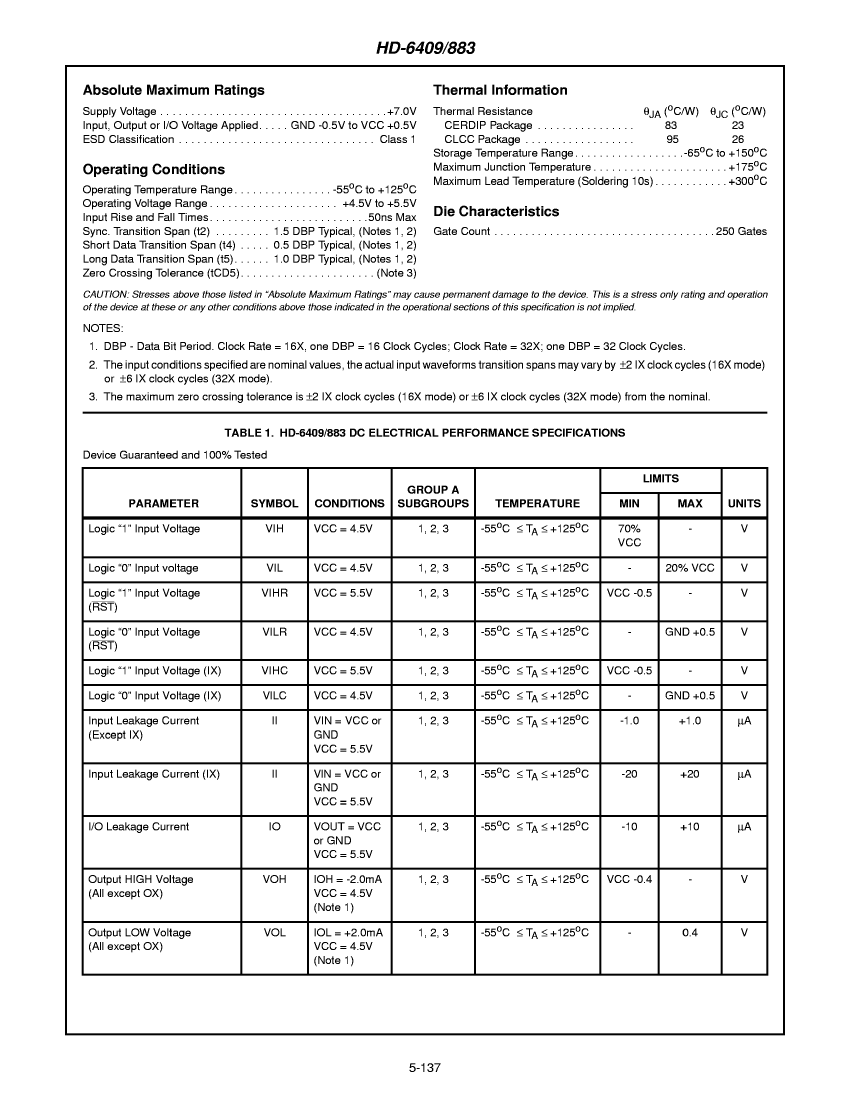

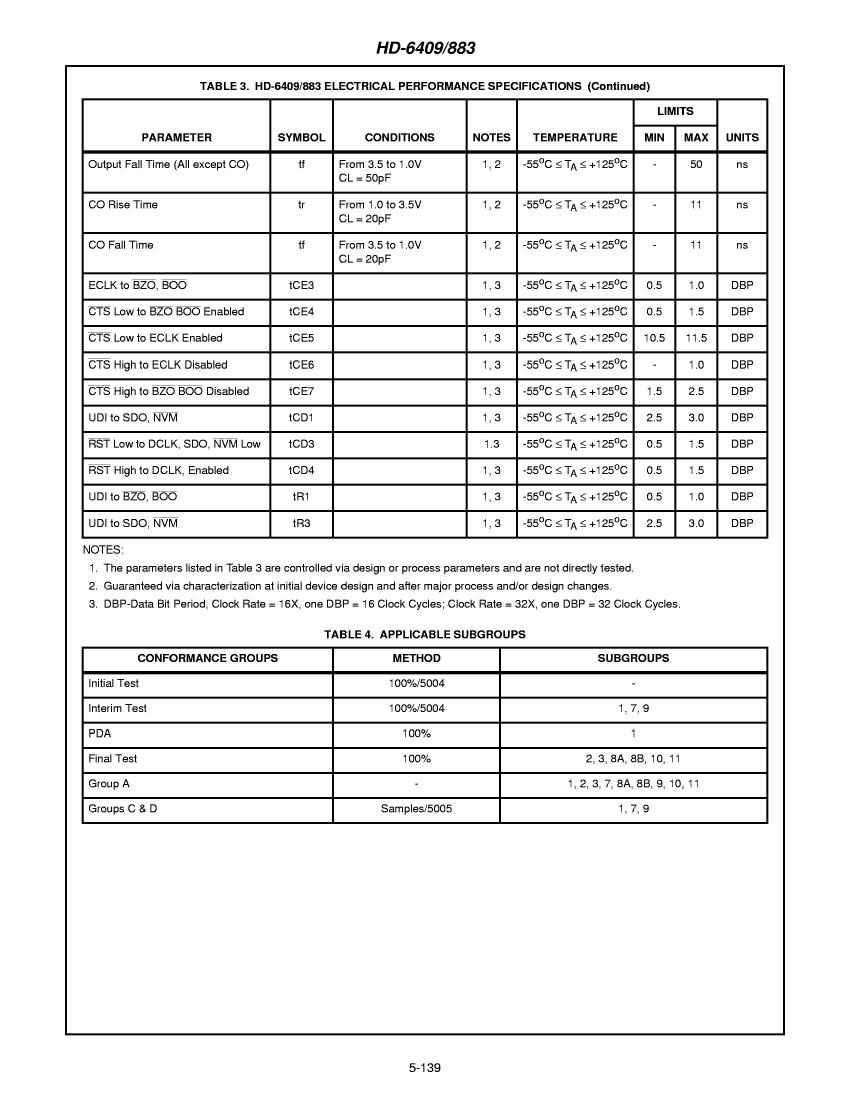

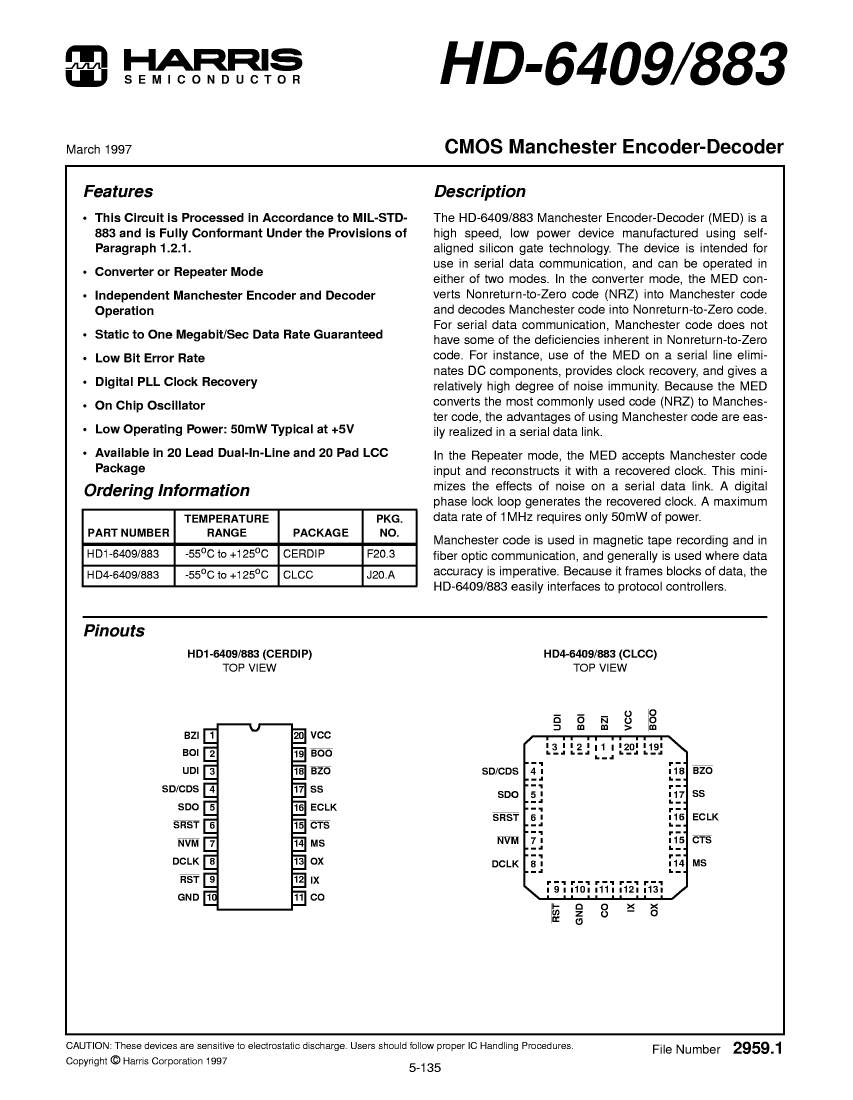

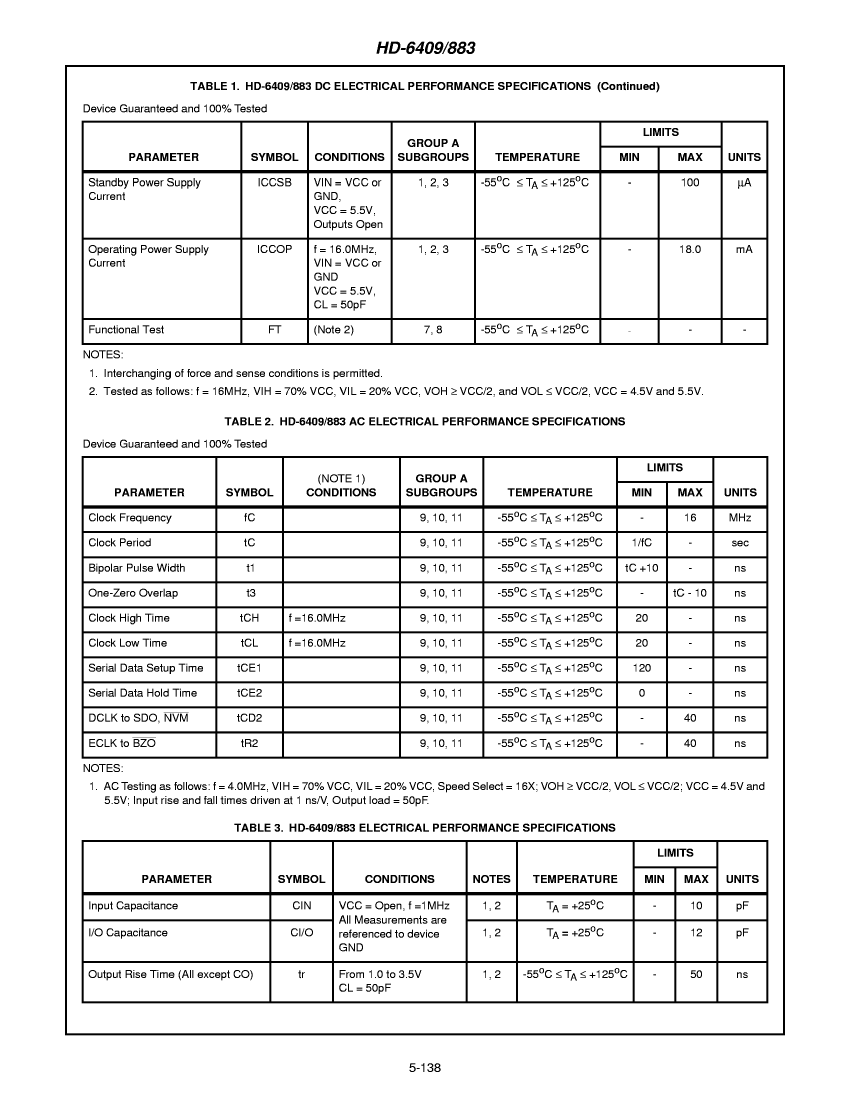

Preview

HD3-6409-9-AT: DescriptionIC,ENCODER/DECODER,CMOS,DIP,20PIN,PLASTIC; CategoryWireless rf/communication Telecom circuit; File Size362KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HD3-6409-9-AT Overview

IC,ENCODER/DECODER,CMOS,DIP,20PIN,PLASTIC

HD3-6409-9-AT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP20,.3
Reach Compliance Code	not_compliant
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

HD3-6409-9-AT Related Products

	HD3-6409-9-AT	HD1-6409-9AT	HD1-6409-9-A	HD1-6409-9+	HD3-6409-9-A	HD3-6409-9+
Description	IC,ENCODER/DECODER,CMOS,DIP,20PIN,PLASTIC	HD1-6409-9AT	IC,ENCODER/DECODER,CMOS,DIP,20PIN,CERAMIC	IC,ENCODER/DECODER,CMOS,DIP,20PIN,CERAMIC	Network Interface, CMOS, PDIP20	IC,ENCODER/DECODER,CMOS,DIP,20PIN,PLASTIC
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	compliant
JESD-30 code	R-PDIP-T20	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-PDIP-T20
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-
package instruction	DIP, DIP20,.3	-	DIP, DIP20,.3	-	DIP, DIP20,.3	DIP, DIP20,.3
JESD-609 code	e0	e0	e0	e0	e0	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
