IDT71564S45DBRT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> IDT71564S45DBRT

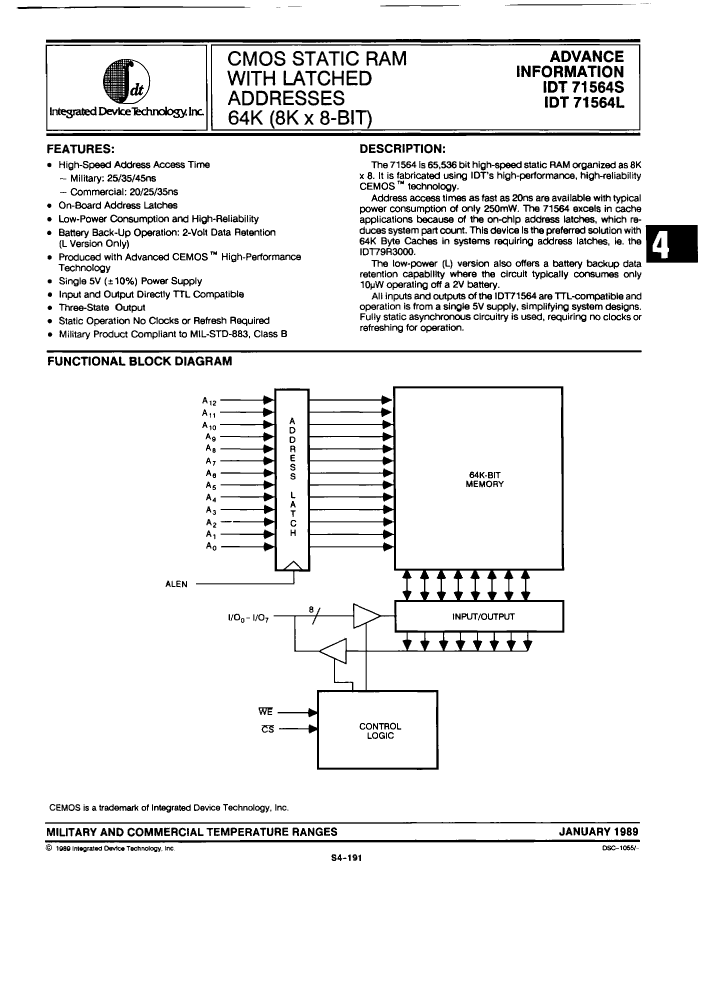

Preview

IDT71564S45DBRT: DescriptionCache SRAM, 8KX8, 45ns; Categorystorage storage; File Size33KB，1 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71564S45DBRT Overview

Cache SRAM, 8KX8, 45ns

IDT71564S45DBRT Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	45 ns
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	CACHE SRAM
memory width	8
Number of functions	1
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD

Preview

Download Datasheet

View All

IDT71564S45DBRT Related Products

	IDT71564S45DBRT	IDT71564S25DRT	IDT71564L20DRT	IDT71564L25DBRT	IDT71564L25DRT	IDT71564S20DRT	IDT71564L45DBRT	IDT71564L35DRT	IDT71564S25DBRT
Description	Cache SRAM, 8KX8, 45ns	Cache SRAM, 8KX8, 25ns	Cache SRAM, 8KX8, 20ns	Cache SRAM, 8KX8, 25ns	Cache SRAM, 8KX8, 25ns	Cache SRAM, 8KX8, 20ns	Cache SRAM, 8KX8, 45ns	Cache SRAM, 8KX8, 35ns	Cache SRAM, 8KX8, 25ns
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	EAR99	EAR99	3A001.A.2.C	EAR99	EAR99	3A001.A.2.C	EAR99	3A001.A.2.C
Maximum access time	45 ns	25 ns	20 ns	25 ns	25 ns	20 ns	45 ns	35 ns	25 ns
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Other features	-	-	BATTERY BACKUP OPERATION	BATTERY BACKUP OPERATION	BATTERY BACKUP OPERATION	-	BATTERY BACKUP OPERATION	BATTERY BACKUP OPERATION	-
