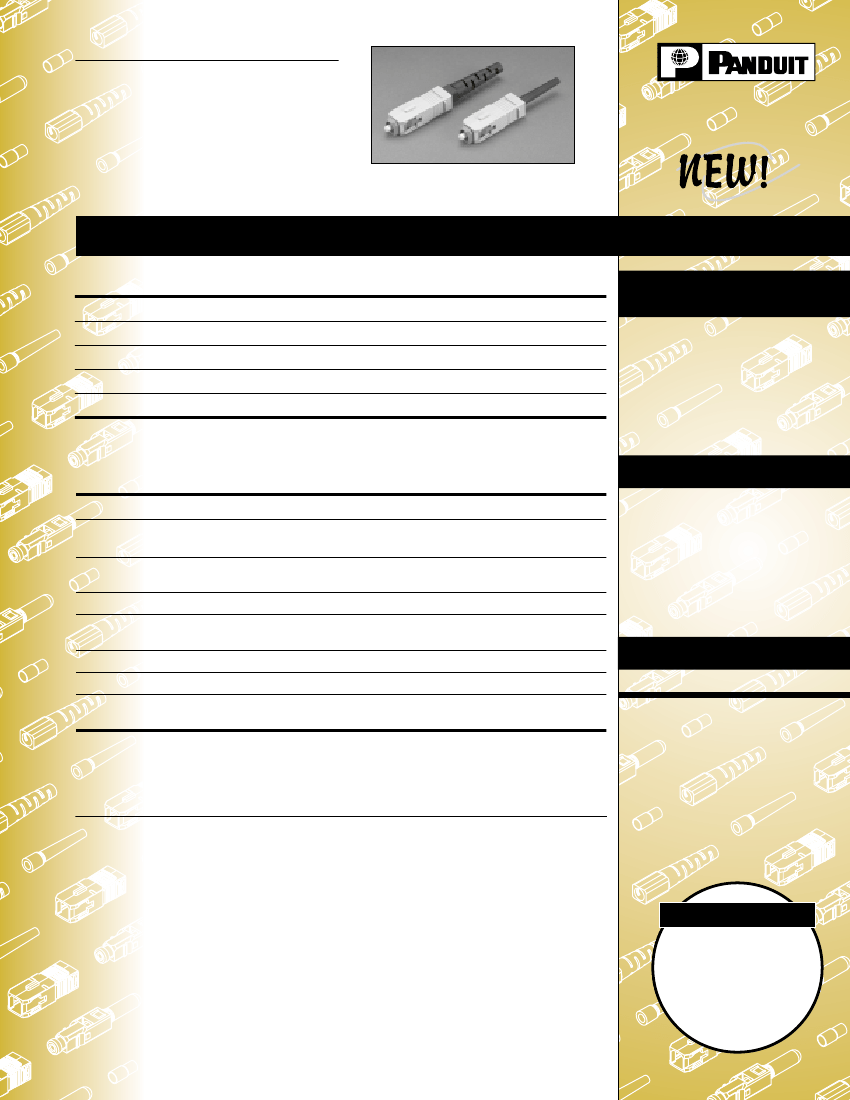

specifications
SC Fiber Optic Connectors shall be compliant
with TIA FOCIS-3. SC connectors shall
contain a factory terminated pre-polished
multimode fiber connector, requiring no field
polishing and no adhesive. The fibers shall
terminate in 2.5mm ferrules and have typical
insertion loss of 0.35dB per connector.
NETWORK CONNECTIVITY GROUP
™
SPEC SHEET
O
PTI
-C
RIMP
™
SC Fiber Optic Connector
technical information
Fiber compatibility:
Fiber cable type:
Ferrule type:
Insertion loss:
Return loss:
62.5/125µm and 50/125µm multimode
Tight-buffered cable only (3.0mm jacketed or 900µm)
Zirconia ceramic with a pre-polished fiber stub
0.3dB typical (62.5/125µm), 0.4dB typical (50/125µm)
Greater than 25dB
Pre-polished Multimode
900µm Tight-Buffered Fiber
or 3mm Jacketed Cable
62.5/125µm
black boot:
62.5/125µm
red boot:
50/125µm
black boot:
50/125µm
red boot:
FSCMMBL
FSCMMRD
FSCMM50BL
FSCMM50RD
key features and ...benefits
Pre-polished fiber stub
Mechanical crimp
cable retention
Proven 2.5mm
ceramic ferrules
Robust design
Non-optical disconnect
FOCIS-3 compliant
Eliminates polishing steps, speeding installation
Consistently provides higher than industry standard cable
retention; requires no adhesive, speeding installation
Uses standard termination tools and procedures and provides
strength and reliability
Protects fibers from mechanical and environmental stress
Network reliability; maintains data transmission under
tensile loads (jacketed cable only)
Ensures intermatability with all FOCIS-3 compliant components
Multimode Patch Cords
and Pigtails
O
PTI
-P
LUG
™
duplex
connector to SC:
F6D6P-3M‡
Simplex 900µm
buffered SC pigtails:
F6B3-NM‡
Simplex SC to SC:
Duplex SC to SC:
Duplex ST to SC:
Duplex SC to FC:
Pre-polished Crimp
Termination Tooling
Termination kit:
FJMKIT
F6S3-3M‡
F6D3-3M‡
F6D2-3M‡
F6D3-4M‡
Exceeds TIA/EIA-568-B.3
Network reliability assured as defined by TIA
Color-coded inner
housing
Immediate visual recognition or identification of inner housing;
62.5/125µm (gray) and 50/125µm (orange)
Please contact factory for additional
patch cord configurations and custom lengths.
‡Available in standard lengths of 1, 2, 3 and 10
meters
applications
The
O
PTI
-C
RIMP
SC Fiber Optic Connector
improves an industry standard design. The
factory polishing and crimp termination
speeds installation and reduces the
installation cost for the connector. SC Fiber
Optic Connectors are widely used in fiber
optic backbone and horizontal applications for
high-speed data transmissions. The pre-
polished ferrule insures reliability in essential
data networks by reducing the possibility of
installer error.
installer tip
Reduces installation
time over standard SC
field polish/adhesive
connectors by 50%.
V i s i t o u r w e b s i t e a t : w w w. p a n d u i t . c o m / n c g
O
PTI
-C
RIMP
™
SC Fiber Optic Connector
Standards Compliant Connector Performance
TIA
455
1
2
4
Description
Flex
Impact
High Temperature
Test Procedure and
TIA/EIA-568-B.3 Required Performance
100 cycles; -180 to 180 degrees; max. insertion loss
0.75dB, min. return loss 20dB
8 drops from 1.8m; max. insertion loss 0.75dB,
min. return loss 20dB
4 days at 60°C followed by post-conditioning FOTP-6;
max. insertion loss 0.75dB,
min. return loss 20dB
4 days at 90-95% RH and 40°C; max. insertion loss
0.75dB, min. return loss 20dB,
max. change during test 0.4dB
11.24 lbs. at 0 degrees, 4.4 lbs. at 90 degrees;
max. insertion loss 0.75dB, min. return loss
20dB, max. additional loss 0.5dB
500 mate/unmate cycles; max. insertion loss 0.75dB,
min. return loss 20dB
max. insertion loss 0.75dB,
min. return loss 20dB
10 cycles; 2.5 cw, 5 ccw, 2.5 cw; max. insertion loss
0.75dB, min. return loss 20dB
20dB minimum
7.4 lbs. at 0 degrees; max. insertion loss 0.75dB,
min. return loss 20dB
4 days at 0°C; max. insertion loss 0.75dB,
min. return loss 20dB, max. change during test 0.3dB
Performance
< 0.1dB additional loss
< 0.1dB additional loss
< 0.1dB additional loss
5
Humidity
< 0.1dB additional loss
6
Cable Retention
< 0.1dB additional loss
21
34
36
107
185
188
Durability
Insertion Loss
Twist
Return Loss
Coupling Strength
Low Temperature
< 0.1dB additional loss
0.3dB typical (62.5/125µm),
0.4dB typical (50/125µm)
< 0.1dB additional loss
>25dB
< 0.1dB additional loss
< 0.1dB additional loss
NOTE: Multimode tests performed at 850 and 1300nm.

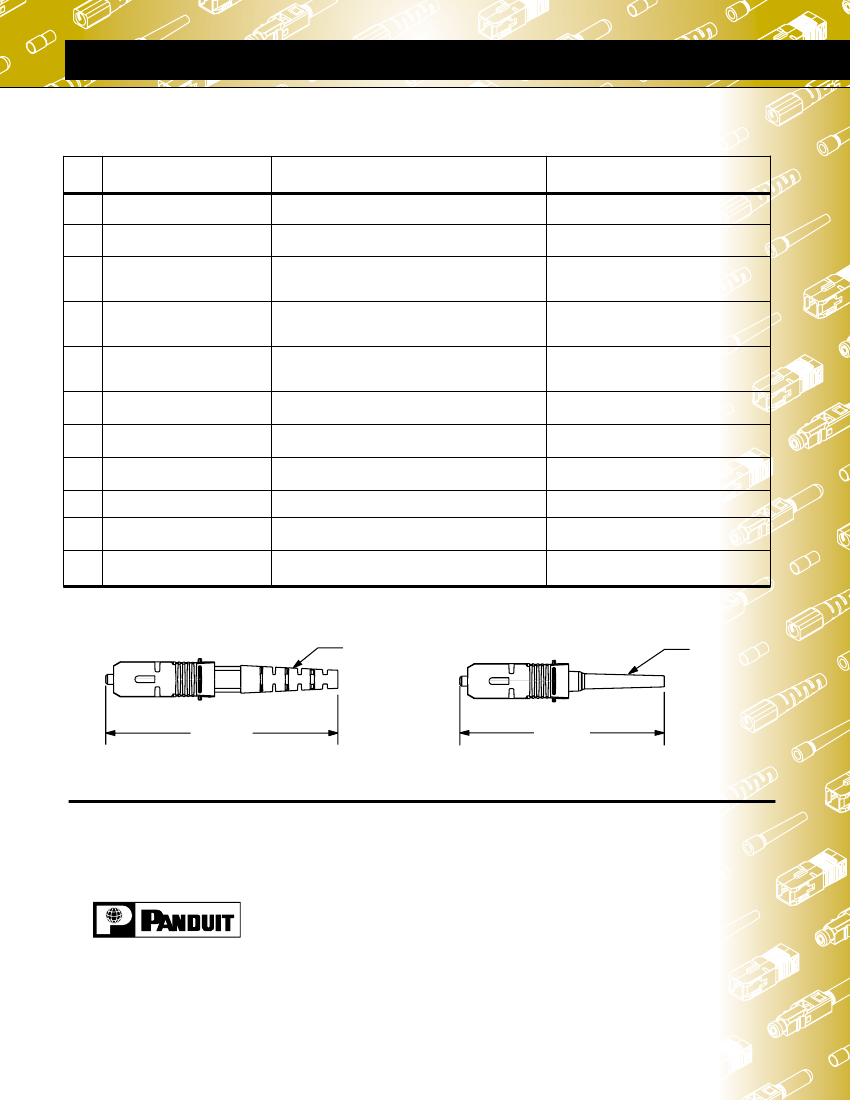

3mm Boot
900µm Boot
2.32
[59.0]
2.04
[51.9]
Dimensions are in inches (Dimensions in brackets are in millimeters)
