Telecom and Datacom Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Receptacle,
F77B-019-210-AGGAA Parametric
Parameter Name
Attribute value
Maker
Mitsumi Electric Co., Ltd.
Reach Compliance Code
unknown
Body/casing type
RECEPTACLE
Connector type
TELECOM AND DATACOM CONNECTOR
Contact point gender
MALE
DIN compliance
NO
empty shell
NO
Filter function
NO
IEC compliance
NO
MIL compliance
NO
Manufacturer's serial number
CAM-F77B
Mixed contacts
NO
Installation method
RIGHT ANGLE
Installation type
BOARD
Options
GENERAL PURPOSE
Shell material
POLYAMIDE
Termination type
SURFACE MOUNT
Total number of contacts
19
F77B-019-210-AGGAA Preview
MITSUMI
HDMI Connectors
CAM-F77B, F77C
Connectors
FEATURES
1. 19 pins connectors that conform to HDMI
interface.
2. There are two types of CAM-F77B, and F77C:
those with a flange for mounting to external
case and those without. There is also a F77B
type with an enlarged mounter adhesion area.
CAM-F77C
CAM-F77B
HOW TO ORDER
1. CAM-F77B, F77C
F77B-019-210-AGGAA-
1
2
3
4
1
2
3
Series No. (F77B, F77C)
No. of contacts (019 : 19pins)
Specification code
Ancillary note
Type of appearance
*
4
*
*
Please inquire regarding the packing specifications.
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI
HDMI Connectors
SPECIFICATIONS
CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temperature Range
10,000times
44.1N (4.50kgf) max.
39.2N (4.00kgf) ~9.8N (1.00kgf)
-20~85°C
DC 40V
0.5A
AC 500V
100MΩ min.
10mΩ min. (except for conductor resistance)
MATERIAL & FINISH
Component parts
Housing
CAM-F77B
Contact
CAM-F77C
Shielded Case
Material
LCP resin
Copper Alloy
Copper Alloy
Finish
Black
Gold plating
Tin reflow plating
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI

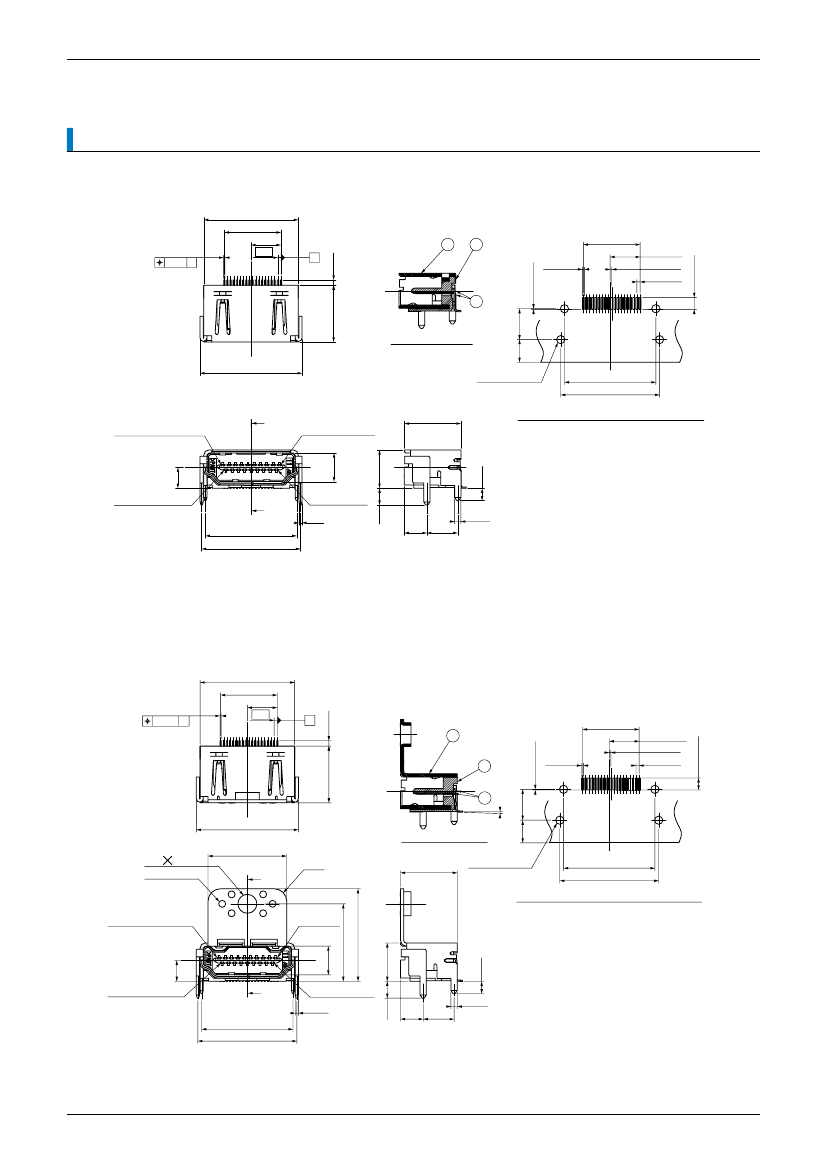

DIMENSIONS
CAM-F77B
F77B-019-210-AGGAA-M
15
9
4.75
0.1 A
3
A-A SECTION
16.2
4-ø1.3
±0.05
(3.6) 4.9
±0.05
0.05
±0.05
(Pitch)
0.3
9
14.5
±0.05
15.7
±0.05
Contact No.19
A
9
Contact No.1
(4.55)
6.1
Applicable PWB dimension (REF.)
3.3
1.9
A
14.5
15.7
2.6
Contact No.18
Contact No.2
0.5
2-1
3.6 4.9
NOTE
1.The coplanarity of this contact is equal to
less than 0.1mm.
1.9
±0.05
Unit : mm
A
0.85
0.2
0.5
1
2
±0.03
9
±0.05
4.75
±0.03
(0.25)
0.5
±0.03
CAM-F77B
F77B-019-210-AGGAA-J
0.1 A
(Pitch)
A
0.85
0.2
15
9
4.75
0.5
9
±0.05
(2°)
(3.6) 4.9
±0.05
0.05
±0.05
9
2
3
0.3
±0.03
(16.2)
A-A SECTION
M3 0.5
Projection
12.5
R2
A
9
4-ø1.3
±0.05
14.5
±0.05
15.7
±0.05
Applicable PWB dimension (REF.)
(4.55)
12.3
14.7
Contact No.19
Contact No.1
6.1
3.3
1.9
Contact No.18
14.5
15.7
A
2.6
Contact No.2
t0.5
2-1
3.6 4.9
NOTE
1.The coplanarity of this contact is equal to
less than 0.1mm.
1.9
±0.05
Unit : mm
1
4.75
±0.03
(0.25)
0.5
±0.03
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI
HDMI Connectors

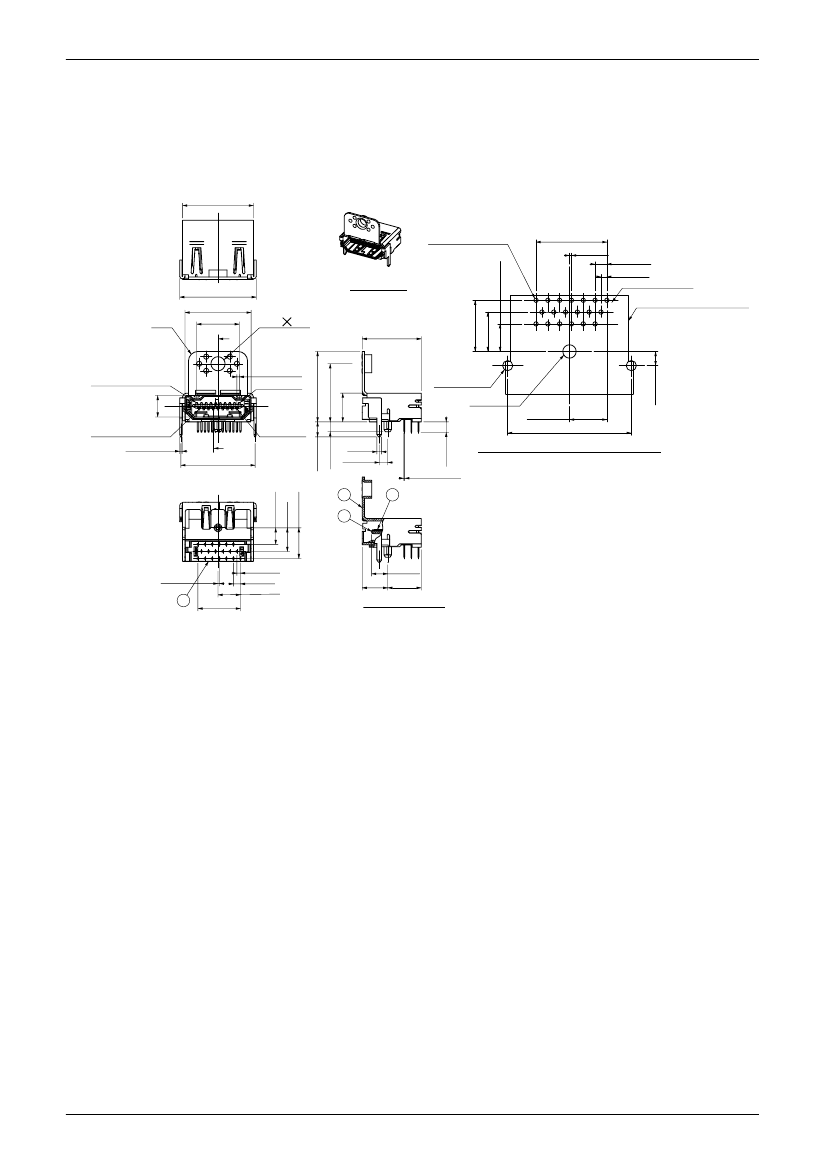

CAM-F77C
F77C-019-210-AGGAA
(15)
19-ø0.55
±0.03
3.5
±0.05
9
±0.05
(0.25)
6.5
±0.05
5
±0.05
R2
(16.2)
(14)
9
±0.1
A
Reference
M3 0.5
12.5
Pitch=0.5
±0.05
Contact No.1
(1.5)
0.75
±0.05
Contact No.
1
19 15 13 9
7
3
Connector externals
17 14 11 8 5 2
18 16 12 10 6 4
14.9
12.3
±0.2
6.1
±0.2
Contact No.19
(4.55)
2-ø1.3
±0.05
1.7
±0.05
3.2
±0.2
2.1
±0.1
A
15.7
±0.1
3.5
±0.1
5
±0.1
6.5
±0.1
1
±0.05
1.8
±0.1
2
1
3
t=0.2
±0.05
(0.25)
4
0.75
±0.1
1.5
±0.1
4.75
±0.1
9
±0.1
(3.4)
(5.4) (7.1)
A-A SECTION
2.2
±0.2
Contact No.18
t=0.5
±0.05
Contact No.2
4.75
±0.05
15.7
±0.05
Applicable PWB dimension (REF.)
1.8
±0.05
Unit : mm
