FDZ5013 /
FDZ5013C
6 TO 24 GHZ
FREQUENCY DOUBLER
•
INPUT: 3 TO 12 GHz
•
OUTPUT: 6 TO 24 GHz
•
INPUT DRIVE LEVEL: +13 dBm (NOMINAL)
•
HERMETICALLY-SEALED PACKAGE
Specifications (Rev. Date: 2/02)*
Characteristics
Conversion Loss (max.)
F
in
= 3 to 12 GHz
Typical
12.0 dB
+25°C
°
Guaranteed
-54° to +85°C
°
°
14.5 dB
15.0 dB
Fundamental Suppression (min.)
F
in
= 5 to 8 GHz
F
in
= 3 to 9 GHz
F
in
= 3 to 12 GHz
Third Harmonic Suppression
F
in
= 3.0 to 5.0 GHz
F
in
= 5.0 to 8.5 GHz
Input VSWR
F
in
= 5 to 10 GHz
F
in
= 3 to 12 GHz
15.0 dBc
13.0 dBc
11.0 dBc
25 dBc
22 dBc
11.0 dBc
9.5 dBc
8.0 dBc
20 dBc
17 dBc
9.0 dBc
7.5 dBc
6.0 dBc
18 dBc
15 dBc
1.7:1
2.0:1
*Measured in a 50-ohm system at +25°C with nominal input drive level. Typical values are measured at +25°C and are not guaranteed.
Absolute Maximum Ratings
Operating Temperature
Storage Temperature
Peak Input Power
-54° to +100°C
-65° to +125°C
+23 dBm max. @ +25°, +20 dBm max. @ +100°C
Outline Drawings
Package
Versapac
SMA Connectorized
Figure
JF
JE
Model
FDZ5013
FDZ5013C
Specifications subject to change without notice.
•
North America: 1-800-366-2266
Visit www.macom.com for complete contact and product information.
FDZ5013 / FDZ5013C

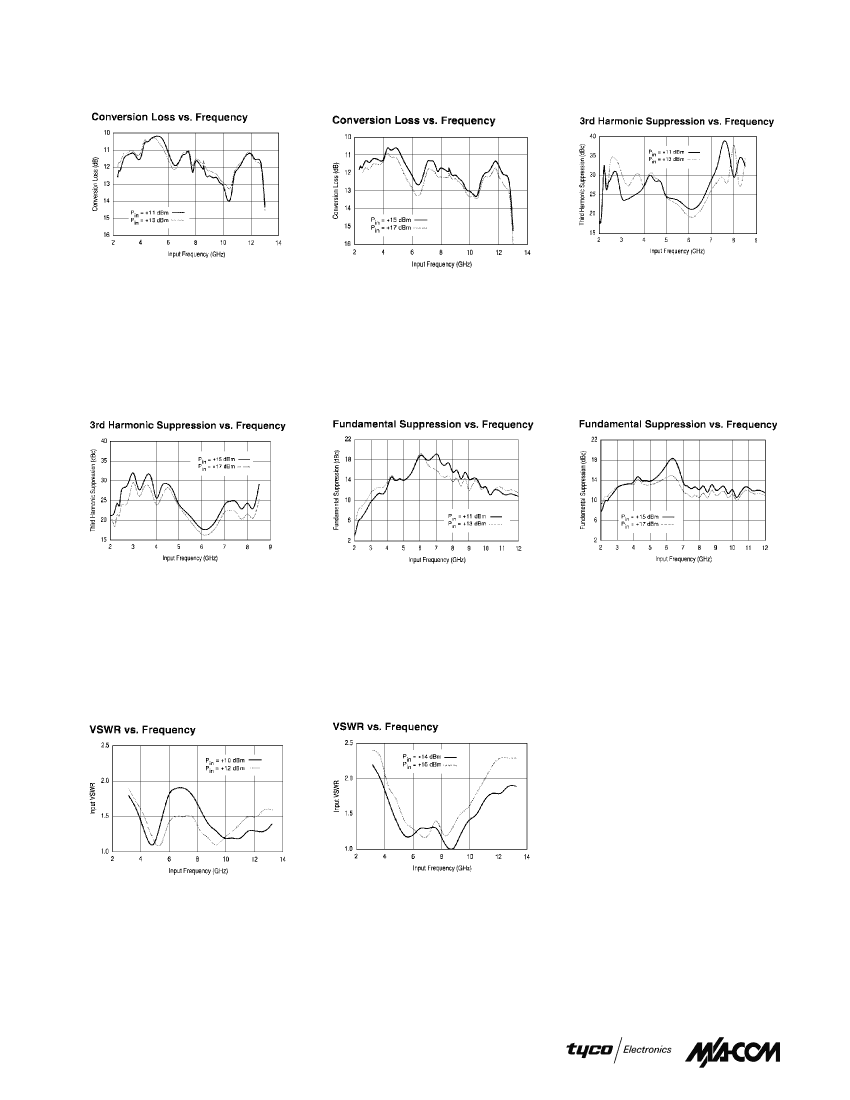

Typical Performance at 25°C
Specifications subject to change without notice.
•
North America: 1-800-366-2266
Visit www.macom.com for complete contact and product information.
