CBL-USB2-2828-100

Description
Wire And Cable, 4 Conductor(s), 28AWG, 30V, Communication Cable,
CategoryThe connector    Connector bracket
File Size59KB，1 Pages
ManufacturerL-com Global Connectivity
Environmental Compliance
Download Datasheet Parametric Compare View All

CBL-USB2-2828-100 Overview

Wire And Cable, 4 Conductor(s), 28AWG, 30V, Communication Cable,

CBL-USB2-2828-100 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
CertificationUL
conductor materialTINNED COPPER
Connector bracket typeWIRE AND CABLE
structureSTRANDED
diameter3.2 mm
insulator materialPOLYOLEFIN
Jacket materialPOLYVINYL CHLORIDE
length30.48 mm
Number of conductors4
Maximum operating temperature80 °C
Rated voltage30 V
resistance0.237 Ω
shieldYES
Wire gauge28 AWG
Wire and Cable NamesCOMMUNICATION CABLE
Base Number Matches1

Preview

Download Datasheet
MODEL NO.
CBL-USB2-2828-100
CBL-USB2-2828-500
CBL-USB2-2828-1000
LENGTH
100 FEET
500 FEET
1000 FEET

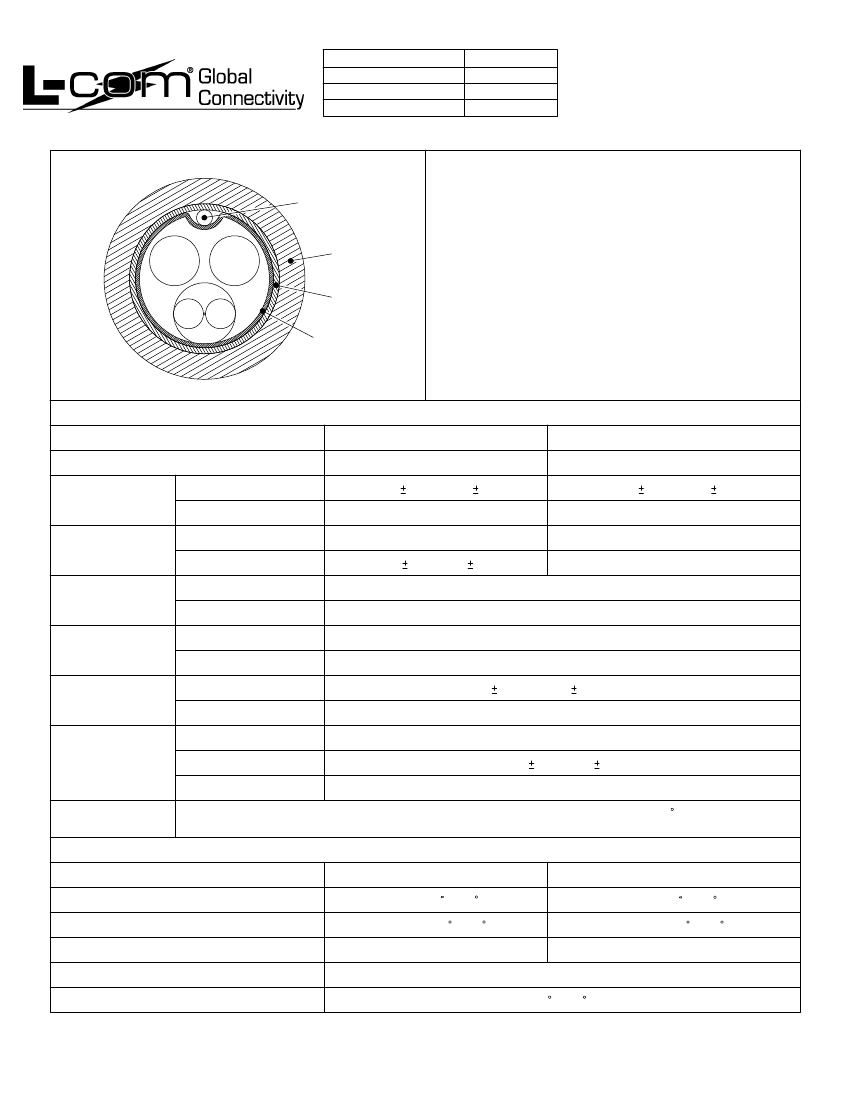

L-com Specification/Procudure
CBL-USB2-2828
Revision: C
ECN 6769
Revision Date: 4/4/13
Revised By: DLF
USB BULK CABLE SPECIFICATION
CROSS-SECTIONAL VIEW
DRAIN WIRE
COLOR CODE
3
4
JACKET
BRAID
1. WHITE
2. GREEN
3. BLACK
4. RED
1
2
FOIL SHIELD
DESCRIPTION: USB CABLE REV 2.0
ITEM
CONSTRUCTION AWG
CONDUCTORS
CONDUCTOR SIZE
MATERIAL
MATERIAL
DIAMETER, IN [MM]
MATERIAL
COVERAGE, %
MATERIAL
COVERAGE, %
CONDUCTOR SIZE
MATERIAL
MATERIAL
JACKET
DIAMETER, IN [MM]
COLOR
MARKING
COMPONENT A
28 AWG
7/.005 .0003 [.127 .008]
STRANDED TINNED COPPER
POLYOLEFIN
.031 .0007 [.78 .02]
COMPONENT B
28 AWG
7/.005 .0003 [.127 .008]
STRANDED TINNED COPPER
POLYOLEFIN
.026+.003/-.0 [.65+.08/-.0]
ALUMINUM MYLAR
125
TINNED COPPER
65
7/.005 .0003 [.127
.008] (28AWG)
INSULATION
TAPE
BRAID SHIELD
DRAIN WIRE
STRANDED TINNED COPPER
PVC
.126 .006 [3.20 .15]
BLACK
∏
USB Revision 2.0 SHIELDED 28 AWG/2C+28 AWG/2C
я
AWM 2725 80 C 30V VW-1
E81280-D WWW.L-COM.COM
ELECTRICAL PROPERTIES
ITEM
COMPONENT A
237
Ω/KM
@ 68 F [20 C] MAX
100 MΩ-KM @ 68 F [20 C] MIN
COMPONENT B
237
Ω/KM
@
68 F [20
C] MAX
100 MΩ-KM @ 68 F [20 C] MIN
CONDUCTOR RESISTANCE
INSULATION RESISTANCE
DIELECTRIC STRENGTH
VOLTAGE RATING
TEMPERATURE RATING
CBL-USB2-2828.SLDDRW
500 VAC/1 MIN
30V
176 F [80 C]
Page 1 of 1
500 VAC/1 MIN
Initial Release: 04/04/11
By: DFP

CBL-USB2-2828-100 Related Products

CBL-USB2-2828-100 CBL-USB2-2828-1000
Description Wire And Cable, 4 Conductor(s), 28AWG, 30V, Communication Cable, Wire And Cable, 4 Conductor(s), 28AWG, 30V, Communication Cable,
Is it Rohs certified? conform to conform to
Reach Compliance Code unknow unknow
Certification UL UL
conductor material TINNED COPPER TINNED COPPER
Connector bracket type WIRE AND CABLE WIRE AND CABLE
structure STRANDED STRANDED
diameter 3.2 mm 3.2 mm
insulator material POLYOLEFIN POLYOLEFIN
Jacket material POLYVINYL CHLORIDE POLYVINYL CHLORIDE
length 30.48 mm 304.8 mm
Number of conductors 4 4
Maximum operating temperature 80 °C 80 °C
Rated voltage 30 V 30 V
resistance 0.237 Ω 0.237 Ω
shield YES YES
Wire gauge 28 AWG 28 AWG
Wire and Cable Names COMMUNICATION CABLE COMMUNICATION CABLE
Base Number Matches 1 1
