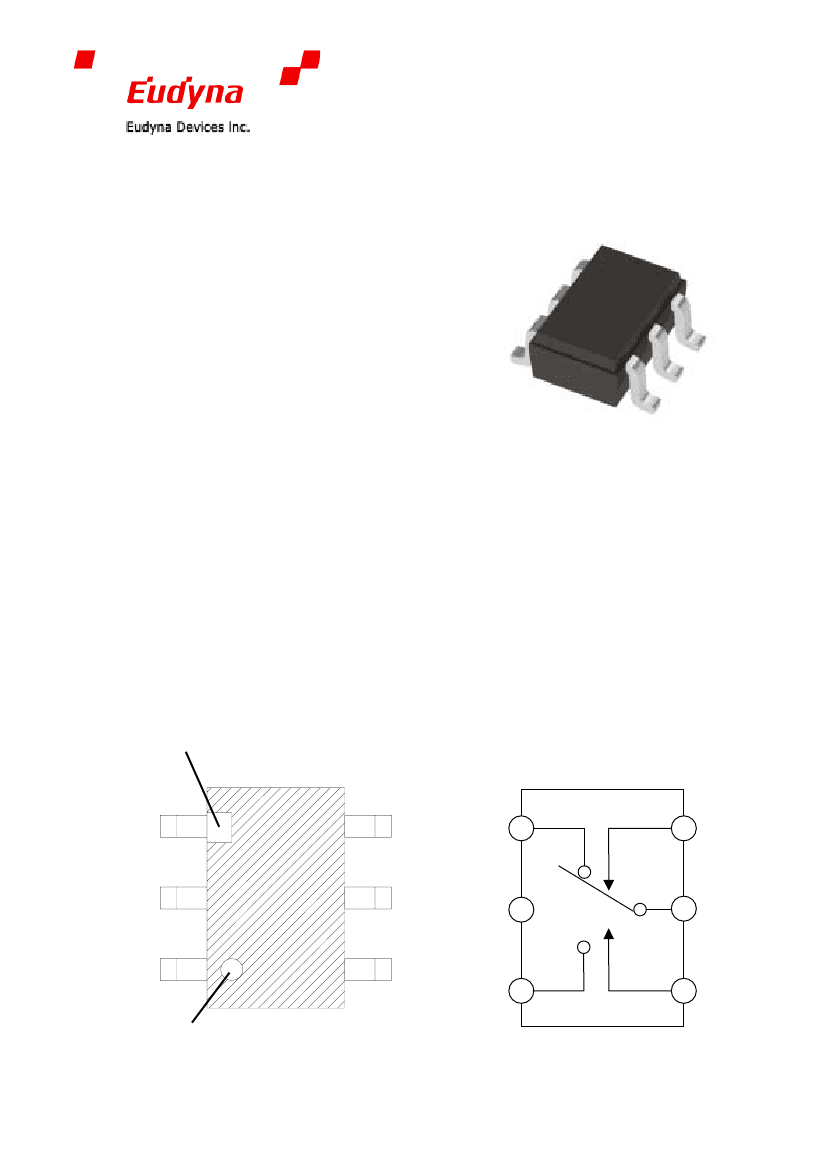

FMM5317ZW

Single Pole Double Throw Switch

Wireless LAN / WiMAX Transmit / Receive Applications

FEATURES

•

High Input P0.1dB: +34 dBm Typ

Low Insertion Loss: 0.55 dB Typ at 2.4 GHz

High Isolation: 25 dB Typ at 2.4 GHz

GaAs PHEMT technology

Small size and low-cost SC-70 / SOT363

package

APPLICATIONS

•

802.11b,g Wireless LAN T/R Switching

WiMAX T/R Switching

Handset T/R Switching (WCDMA, PHS, etc.)

Lead(Pb) Free Package

SC70 (2.0 x 2.1 x 1.0 mm)

DESCRIPTION

The FMM5317ZW is a single-throw double-pole (SP2T) GaAs PHEMT switch designed for

transmit/receive switching applications in the 0.5 GHz to 4.0 GHz frequency range. The

FMM5317ZW is ideally suited for applications where high linearity, low control voltage, low

insertion loss, high isolation, small size, and low cost are required. The device is in a low-cost,

miniature 6-pin SOT-363/SC-70 package.

INDEX

RF1 1

6 V1

RF1 1

GND 2

5 RFC

GND 2

RFC

RF2

4 V2

RF2 3

MARKED DOT

Pin Configuration

Rev 2.2

January 30, 2007

Function Block Diagram

(Top View)

Eudyna Devices Inc. Confidential

FMM5317ZW

Single Pole Double Throw Switch

Wireless LAN / WiMAX Transmit / Receive Applications

ABSOLUTE MAXIMUM RATINGS

(Ambient Temperature Ta=25°C)

Parameter

DC Input Voltage

Input Power

Storage Temperature

Operating Case Temperature

Symbol

V1, V2

Tstg

Top

Rating

+35

-40 to +85

Unit

dBm

°C

ELECTRICAL SPECIFICATIONS

(Case Temperature Tc=25°C)

Parameter

Frequency range

Control Voltage for V1 & V2

Control Current (per line)

Input P- 0.1dB

Insertion Loss

Isolation

Return Loss

Switching Speed

Symbol

Vhigh

Vlow

Icontrol

P0.1dB

I.L.

ISO

Ton

Toff

High

Low

No RF, V1 or V2 = 2.8 V

Vhigh=2.8V or Vlow=0V

Freq = 0.5 to 2.5 GHz

Freq = 2.5 to 4.0 GHz

Freq = 0.5 to 2.5GHz

Freq = 2.5 to 4.0GHz

Freq = 0.5 to 2.5 GHz

Freq = 2.5 to 4.0GHz

50% Vcontrol to 90% RF

50% Vcontrol to 10% RF

32.5

Condition/comments

Min

0.5

2.5

-0.2

2.8

0.55

0.70

110

200

150

0.70

Typ

Max

4.0

3.6

+0.2

Unit

GHz

dBm

nsec

(Unless otherwise specified Zsource=Zload=50Ω System, Tc=25°C)

TRUTH TABLE

LOW

HIGH

LOW

RF1-RFC

OFF

RF2-RFC

OFF

Specifications and pin assignment may be changed without notice.

Rev 2.2

January 30, 2007

Eudyna Devices Inc. Confidential

FMM5317ZW

Single Pole Double Throw Switch

Wireless LAN / WiMAX Transmit / Receive Applications

TYPICAL PERFORMANCE CURVES

Insertion Loss vs. Frequency

0.0

-0.2

Isolation vs. Frequency

-5

Insertion Loss[dB]

-10

Isolation [dB]

-15

-20

-25

-30

-35

-0.4

-0.6

-0.8

-1.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

Freq.[GHz]

-40

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

Freq.[GHz]

Return Loss vs. Frequency

-5

Return Loss [dB]

Insertion Loss[dB]

Insertion Loss vs. Pin

0.0

-0.2

-0.4

-0.6

-0.8

-1.0

Pin[dBm]

-10

-15

-20

-25

-30

-35

-40

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

Freq.[GHz]

Rev 2.2

January 30, 2007

Eudyna Devices Inc. Confidential

FMM5317ZW

Single Pole Double Throw Switch

Wireless LAN / WiMAX Transmit / Receive Applications

Package Marking

AN01

Part No. Code

Year Code

Week Code

Year Code

Year

2006

2007

2008

2009

2010

2011

2012

PACKAGE DIMENSIONS

Dimension

Symbol

Rev 2.2

January 30, 2007

Min

0.025

0.85

0.15

0.10

1.90

1.25

Measurement (mm)

Nom

0.075

0.88

2.00

2.10 BSC

1.30

0.65 BSC

Max

1.00

0.10

0.90

0.30

0.20

2.10

1.35

Eudyna Devices Inc. Confidential
