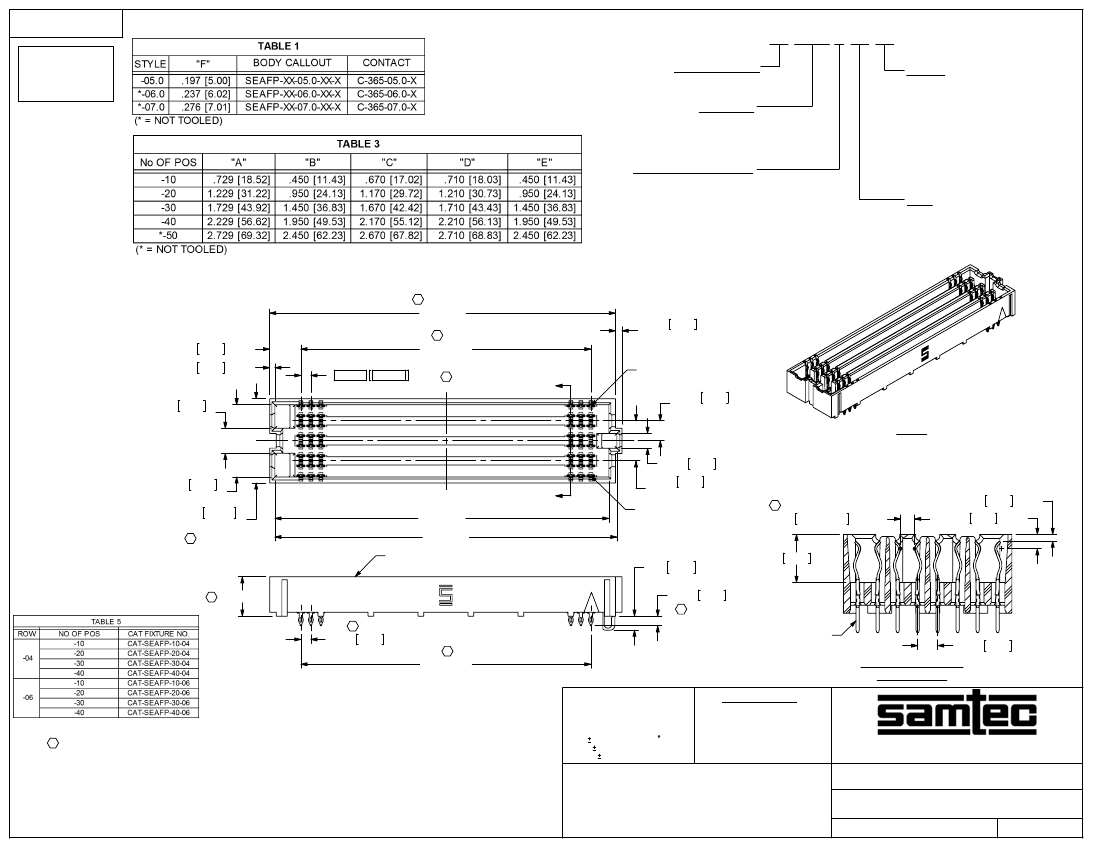

REVISION B
DO NOT
SCALE FROM
THIS PRINT
SEAFP-XX-XX.X-X-XX-XX
PATENT PENDING
No OF POSITIONS
-10, -20, -30, -40, *-50
(PER ROW)
LEAD STYLE
-05.0: .197[5.00] HEIGHT
* -06.0: .237[6.02] HEIGHT
* -07.0: .276[7.01] HEIGHT
PLATING SPECIFICATION
-L: 10 u" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
(USE C-365-XX.X-L)
-S: 30 u" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
(USE C-365-XX.X-S)
* = NOT TOOLED
C
OPTION
* -LP: LATCH POST OPTION
(SEE FIG 5, SHT 3)
(ONLY AVAILABLE WITH -05.0
LEAD STYLE, 6, & 8 ROWS)
* -PP: POLARIZATION PIN
(SEE FIG 6, SHT 3)
(ONLY AVAILABLE WITH -05.0
LEAD STYLE, 6, 8 & 10 ROWS)
-TR: TAPE & REEL
ROW
-04: 4 ROWS (SEE FIG 4, SHT 2)
-06: 6 ROWS (SEE FIG 3, SHT 2)
* -08: 8 ROWS (SEE FIG 1)
* -10: 10 ROWS (SEE FIG 2, SHT 2)
"A" REF
C
.156 3.96 REF
.026 0.66 REF
.125 3.18
REF
C
L
.0500
1.270
"B" (TYP)
(TYP)
C
.033 0.84
REF
PIN 08
.100 2.54
REF
"A"
.074 1.88 REF
.361 9.17
REF
.421 10.69
REF
C
(SEAFP-30-05.0-X-08 SHOWN)
(ALL CONTACTS NOT SHOWN FOR CLARITY)
(NOT
TOOLED)
.017 0.43 REF
.036 0.91 REF
FIG 1
"A"
"C" REF
"D" REF
SEAFP-XX-XX.X-08-X
.200 5.08
REF
PIN 01
C
.035±.005 0.88±0.13 (TYP)
.120 3.05 REF
.070 1.78 REF
.048 1.23
C
C
"F" REF
C
.050 1.27 (TYP)
C-365-05.0-X
C
"E" (TYP)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
SECTION "A"-"A"
SCALE 4 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.050 1.27 REF (TYP)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CONTACT SAMTEC FOR CONNECTOR PRESS FIT INSTRUCTIONS AND REQUIRED FIXTURES.
3. CONNECTOR BODY COLOR TO BE NATURAL(BEIGE).
4. MINIMUM PUSHOUT FORCE 0.5 LBS[2.22N] FOR CONTACTS AND GUIDE POSTS.
5. SCREWS (SAMTEC P/N MS-256-250-P-6L) FOR -LP OPTION WILL BE BULK PACKAGED AND SHIPPED WITH CONNECTORS,
MAXIMUM PCB THICKNESS IS .138[3.51] FOR SUPPLIED SCREWS.
6. APPLICATION TOOLING P/N CAT-SEAPF-XX-XX REQUIRED FOR TERMINATION, CONTACT IPG FOR FURTHER DETAILS
(SEE TABLE 5).
7. ASSEMBLIES TO BE PACKAGED IN TRAYS.
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
INSULATOR: HIGH TEMPERATURE NYLON, COLOR: NATURAL
CONTACT:
BeCu ALLOY
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SOCKET ARRAY ASSEMBLY WITH COMPLIANT TAILS
SEAFP-XX-XX.X-X-XX-XX
12/30/2010
SHEET
1
OF
3
F:\DWG\MISC\MKTG\SEAFP-XX-XX.X-X-XX-XX-MKT.SLDDRW
BY:
DUKES Z
REVISION B

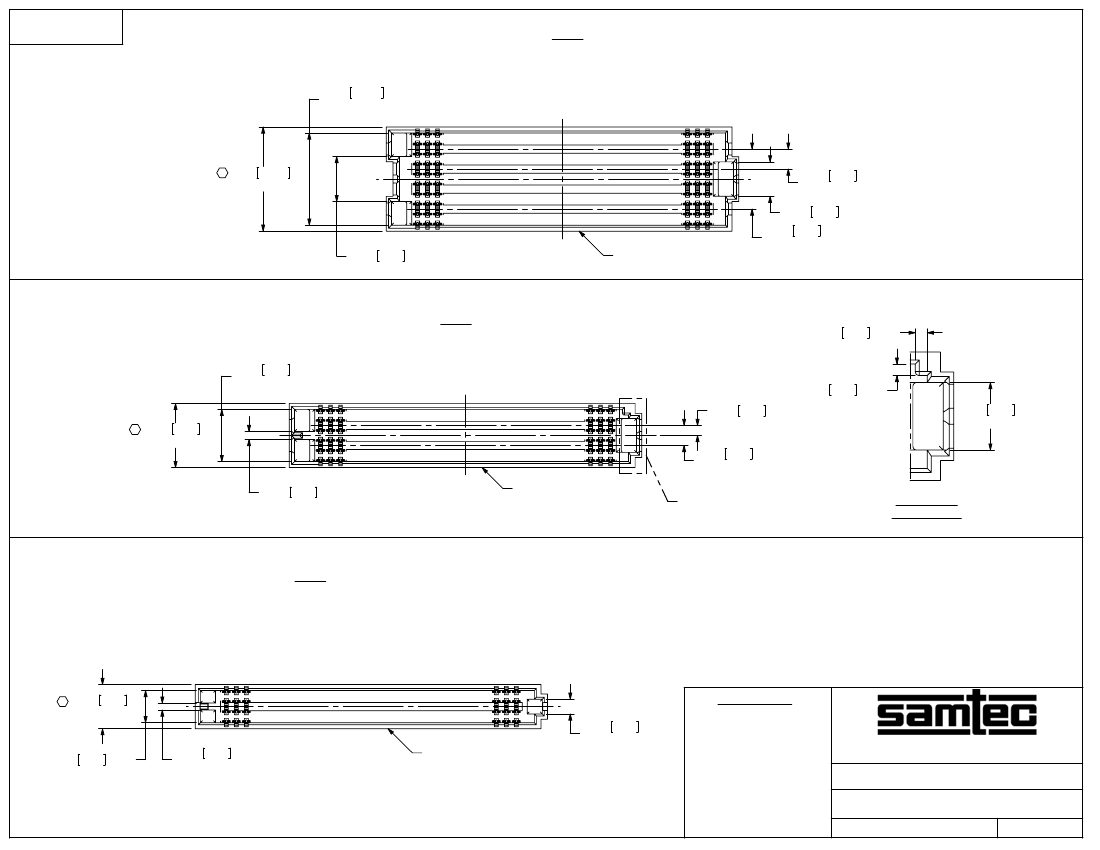

(SAME AS FIG 1, EXCEPT AS SHOWN)
(SEAFP-30-05.0-XX-10 SHOWN)
(ALL CONTACTS NOT SHOWN FOR CLARITY)
(NOT
TOOLED)
.461 11.71
REF
C
L
FIG 2
C
.521 13.23
REF
C
L
.100 2.54
REF (TYP)
.172 4.37 REF
.300 7.62
REF
.225 5.72 REF
SEAFP-XX-XX.X-10-X
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SEAFP-30-05.0-XX-06 SHOWN)
(ALL CONTACTS NOT SHOWN FOR CLARITY)
.261 6.63
REF
C
L
C
L
.050 1.27
FIG 3
.030 0.76 REF
.029 0.72 REF
.169 4.29
REF
C
.321 8.15
REF
.100 2.54
REF (TYP)
.040 1.02
REF
SEAFP-XX-XX.X-06-X
'B'
DETAIL 'B'
SCALE 4 : 1
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SEAFP-30-05.0-XX-04 SHOWN)
(ALL CONTACTS NOT SHOWN FOR CLARITY)
FIG 4
C
L
C
.221 5.61
REF
C
L
.074 1.88
REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.161 4.09 REF
.035 0.89
REF
SEAFP-XX-XX.X-04-X
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SOCKET ARRAY ASSEMBLY WITH COMPLIANT TAILS
SEAFP-XX-XX.X-X-XX-XX
12/30/2010
SHEET
2
OF
3
F:\DWG\MISC\MKTG\SEAFP-XX-XX.X-X-XX-XX-MKT.SLDDRW
BY:
DUKES Z
REVISION B
C
L
.321 8.15
REF
.140 3.56
REF
.221 5.61 REF
C
L
.117 2.97 REF (TYP)
C
L
SEAFP-XX-XX.X-06-LP
"G" REF
-LP OPTION
(SEAF-30-05.0-XX-06-LP SHOWN)
(ALL CONTACTS NOT SHOWN FOR CLARITY)
(SAME AS FIG 3 EXCEPT AS SHOWN )
(-LP OPTION REQUIRED FOR SEAC MATE ONLY)
(NOT
TOOLED)
FIG 5
"H"
- .010
C
+.005
WT-43-02-N

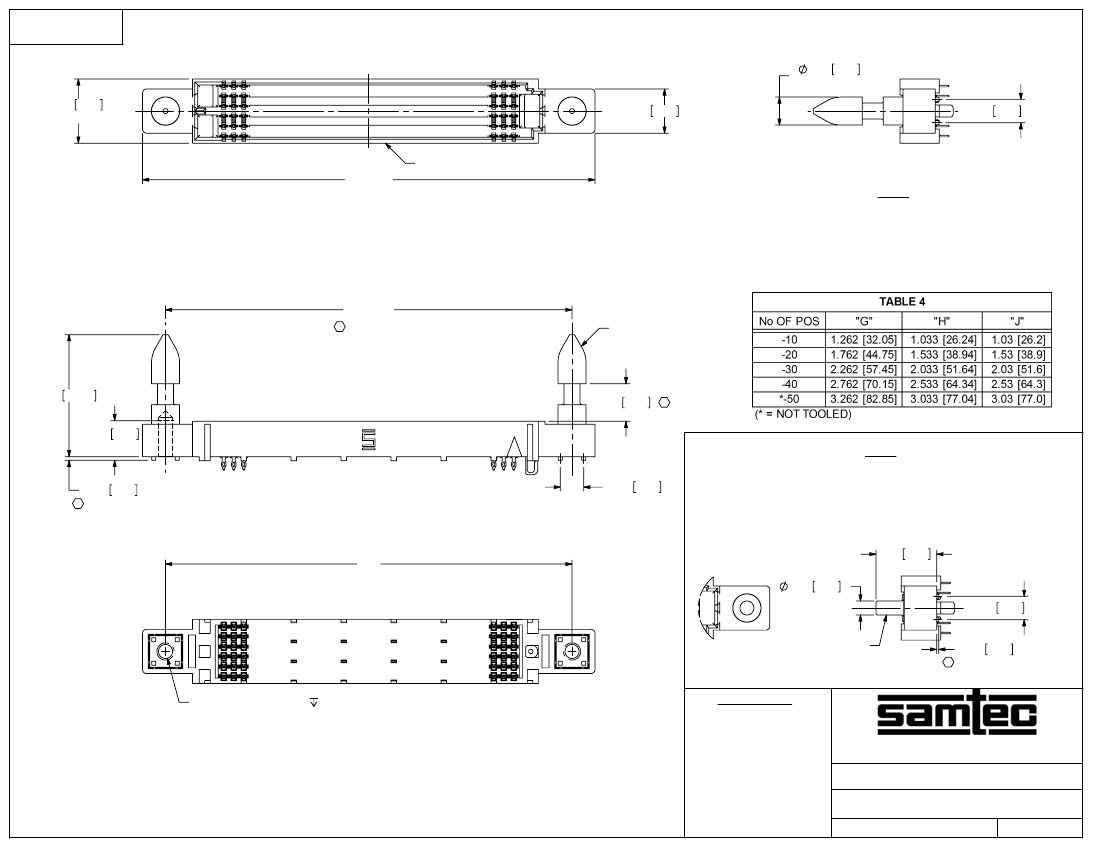

.610 15.49
.198 5.03
REF
.188 4.78
C
.018 0.46
C
.117 2.97
-PP OPTION
(SEAF-30-05.0-XX-06-PP SHOWN)
(ALL CONTACTS, NOT SHOWN FOR CLARITY)
(SAME AS FIG 5 EXCEPT AS SHOWN )
(-PP OPTION VALID FOR SEAR MATE ONLY)
(NOT
TOOLED)
.304 7.72
.070 1.78
C
L
WT-69-02-T
C
FIG 6
"J"
.117 2.97 REF (TYP)
.010 0.25
THREAD #2-56 UNC-2B .198[5.03]
(2 PLCS) REF (SEE NOTE 5)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SOCKET ARRAY ASSEMBLY WITH COMPLIANT TAILS
SEAFP-XX-XX.X-X-XX-XX
12/30/2010
SHEET
3
OF
3
F:\DWG\MISC\MKTG\SEAFP-XX-XX.X-X-XX-XX-MKT.SLDDRW
BY:
DUKES Z
