223018-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 223018-2

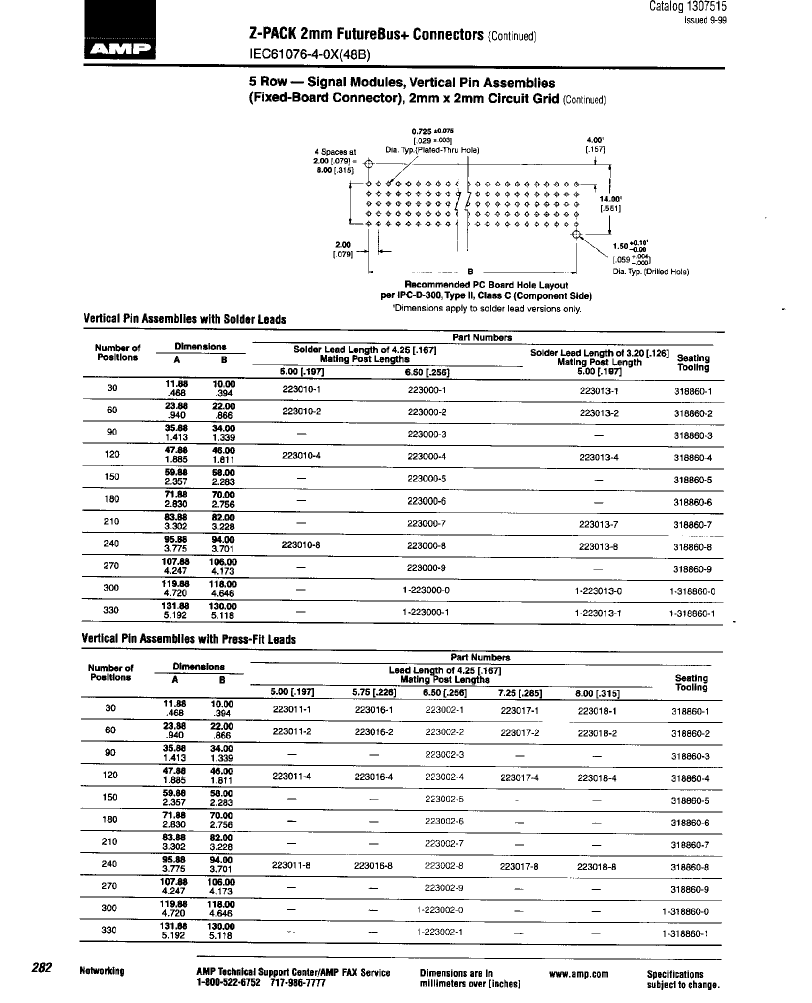

223018-2: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

223018-2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL

223018-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	MATING POST LENGTH=0.315
body width	0.701 inch
subject depth	0.669 inch
body length	0.94 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
maximum insertion force	.695 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223018
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.167 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	60
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

223018-2 Related Products

	223018-2	223011-8	223017-1	223017-2	223017-4	223017-8	223018-4	223018-8
Description	HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	240 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	_compli	unknow	unknow	unknow	unknow	unknow	unknow
Other features	MATING POST LENGTH=0.315	Z-PACK	MATING POST LENGTH=0.285	MATING POST LENGTH=0.285	MATING POST LENGTH=0.285	MATING POST LENGTH=0.285	MATING POST LENGTH=0.315	MATING POST LENGTH=0.315
body width	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch
subject depth	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	0.94 inch	3.775 inch	0.468 inch	0.94 inch	1.885 inch	3.775 inch	1.885 inch	3.775 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	GOLD (30)	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
maximum insertion force	.695 N	.695 N	.695 N	.695 N	.695 N	.695 N	.695 N	.695 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5	5	5	5	5
Number of rows loaded	5	5	5	5	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch
Terminal pitch	2.0066 mm	2 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	60	240	30	60	120	240	120	240
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N	.1112 N	.1112 N	.1112 N	.1112 N	.1112 N
Base Number Matches	1	1	1	1	1	1	1	1
Contact completed and terminated	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Manufacturer's serial number	223018	-	223017	223017	223017	223017	223018	223018
