J72S-105-1554 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> J72S-105-1554

J72S-105-1554: DescriptionRF Connector, Female, Cable Mount, Crimp Terminal, Jack,; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

J72S-105-1554 Overview

RF Connector, Female, Cable Mount, Crimp Terminal, Jack,

J72S-105-1554 Parametric

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	APPLICABLE CABLE: BELDEN 89248
Body/casing type	JACK
Connector type	RF CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	J72
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP

Preview

Download Datasheet

View All

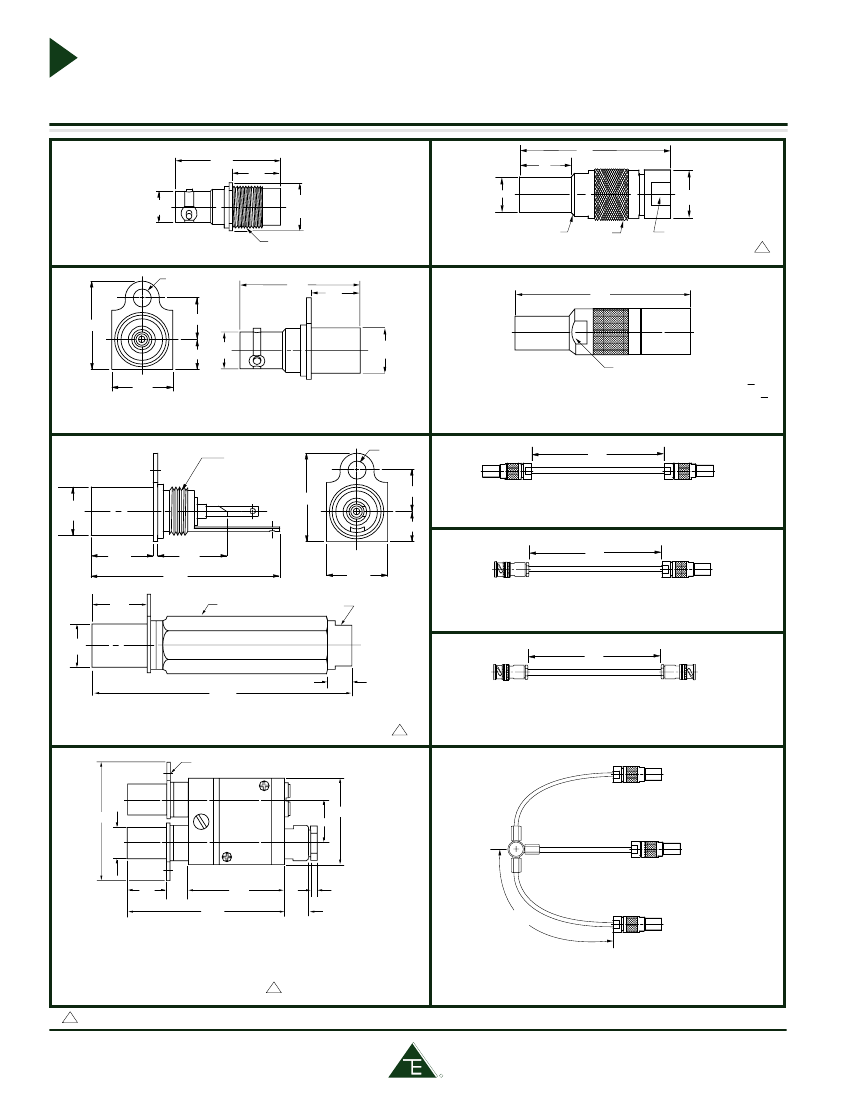

Standard twinax/triax patching & cable assemblies

1.268

.580

.374 DIA

.505

DIA

PL71-7 Shown

.575

1.337

.380

DIA

.603

DIA

MAX

.437 WRENCH FLATS

.543 DIA MAX

.500-28UNEF-2A

.437

WRENCH FLATS

Patch Jack

.156 DIA MTG HOLE

1.268

.570

J70

Patch Plug

PL71-

.812

.375

.281

.380

DIA

.445

DIA

,,,,,,

.437 WRENCH FLATS

1.880

.562

Termination

J72

RFI Cap

For patch jack, No chain

For other chain options see page 36.

TPT-1-R

RFI 70-1

Patch Jack

TRB 3-lug

.4375-28UNEF-2A

.156 DIA

MTG HOLE

Patch Cord

"L"

LENGTH

,,,

Twinax

Triax

.812

.447

DIA

.375

Patch plug to patch plug

.281

PTW-L-Z

PTR-L-Z

.570

.610

1.735

.437 WRENCH

FLATS

.562

Cable Assembly

"L"

LENGTH

Twinax

Triax

.570

.500 HEX

TRB 3-lug plug to patch plug

.445

DIA

PTWX-L-Z

PTRX-L-Z

.187

2.594

J72D

J72S-

Cable Assembly

"L"

LENGTH

Twinax

Triax

Patch Jack

Shielded

.156 DIA

2 HOLES

Without hood

With hood

TRB 3-lug plugs

Bend relief available, call factory.

PTWY-L-Z

PTRY-L-Z

,,,

1.247

.625

1.687

.445

DIA

TYP

,,,

.570

2.243

1.375

.328

.096

"L"

Length

in inches

Patch Jack

Single Entry With 20 dB isolated monitoring jack

Entry

Part #

TRB 3-lug (shown)

J72SM - 1

TRT threaded

J72SM - 2

Cable

J72SM -

,,,

Twinax

Triax

Parallel Patch Cord

PTWS-L-Z

PTRS-L-R

- Refers to Cable Group Table, see pages 68-88. Panels are on page 42-45.

Trompeter Products Catalog

ISO 9001

Registered

(800) 982-2629

Fax: (818) 706-1040
