TITLE:
SPECIFICATION CONTROL DRAWING
(0) = .0 DB AND (5) = .5 DB
VALUE WHOLE DB VALUE (00 THRU 20)
PART IDENTIFIER:
TT3XXXS
DESCRIPTION:
CHIP ATTENUATOR
ASSEMBLY DWG:
1900024
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50 OHMS NOMINAL.
1.1.2
FREQUENCY RANGE: DC-12.4 GHZ.
1.1.3
ATTENUATION VALUES AVAILABLE: 0-20 DB IN 0.5 DB INCREMENTS.
1.1.4
ATTENUATION ACCURACY: SEE CHART.
ATTENUATION ACCURACY
DC - 4 GHZ
4 - 8 GHZ
-0, +0.3
-0, +0.5
±0.3
±0.5
±0.4
±0.5
±0.5
±0.5
±0.75
+0.5,-3.0
±1.0
+0.5,-4.0
DB
0
1 -3
4-6
7 - 10
11 - 15
16 - 20
1.1.5
1.1.6
8 - 12.4 GHZ
-0, +0.5
±0.5
±0.5
±0.75
+0.5,-3.5
+1.0,-6.0
1.2
1.3
1.4
2.0
VSWR: 1.30 MAX.
INPUT POWER: 2 WATTS CW.
1.1.6.1 FULL RATED POWER TO 125°C, DERATED LINEARLY TO 0 WATTS AT 150°C.
1.1.6.2 PEAK POWER, 50 WATTS FOR 10US PULSE WIDTH @ 1% DUTY CYCLE.
MECHANICAL:
1.2.1

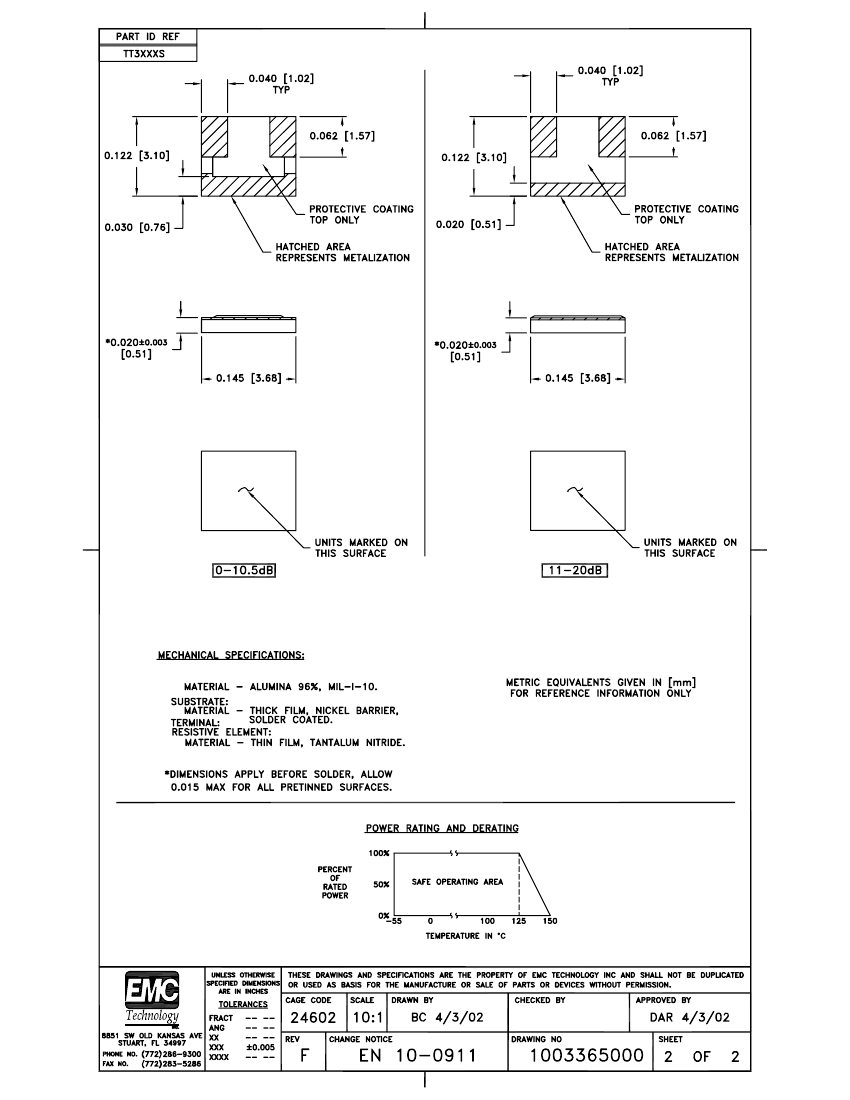

OUTLINE DWG: SEE SHEET 2.
1.2.2
WORKMANSHIP: PER MIL-PRF-55342.
ENVIRONMENTAL:
1.3.1
ALTITUDE:
1.3.1.1 NON-OPERATING: SEA LEVEL TO 50,000 FEET.
1.3.1.2 OPERATING: SEA LEVEL TO 50,000 FEET.
1.3.2
TEMPERATURE RANGE:
1.3.2.1 NON-OPERATING: -55 C TO +150 C.
1.3.2.2 OPERATING: -55°C TO +150°C.
1.3.3
VIBRATION: PER MIL-STD-202, METHOD 204, COND. D.
1.3.4
SHOCK: PER MIL-STD-202, METHOD 213, COND. I.
1.3.5
MOISTURE RESISTANCE: PER MIL-STD-202, METHOD 106 EXCEPT SUBCYCLE STEPS 7A AND 7B
AND POLARIZATION AND LOAD ARE NOT APPLICABLE.
ELECTROSTATIC DISCHARGE CONTROL: PER MIL-STD-1686.
"DB VALUE”, GREEN DOT ADDS 0.5DB.
LEGIBILITY AND PERMANENCY PER MIL-STD-130.
UNIT MARKING:
3.0
QUALITY ASSURANCE:
3.1
SAMPLE INSPECT PER ANSI/ASQC Z1.4 GENERAL INSPECTION, LEVEL II, AQL = 1.0.
3.1.1
VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO OUTLINE DRAWING REQUIREMENTS.
3.2
3.3
PERFORM INSPECTION IN ACCORDANCE WITH 824W170 AND 824F036 FOR COMMERCIAL GRADE PRODUCT.
TEST DATA REQUIREMENTS:
3.3.1
NO TEST DATA REQUIRED FOR CUSTOMER.
3.3.2
DATA RETENTION – 24 MONTHS.
STANDARD PACK PER 755W002.
4.0
PACKAGING:
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE
STUART, FLORIDA 34997
423F006 REV.-
CAGE CODE # 24602
CHANGE NOTICE
EN 10-0911
DWG #
REV LVL
SHEET
1003365000
F
1
OF
2
