MC54HC10JS datasheet, PDF - EEWORLD Datasheet

MC54HC10JS: DescriptionIC,LOGIC GATE,3 3-INPUT NAND,HC-CMOS,DIP,14PIN,CERAMIC; Categorylogic logic; File Size311KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

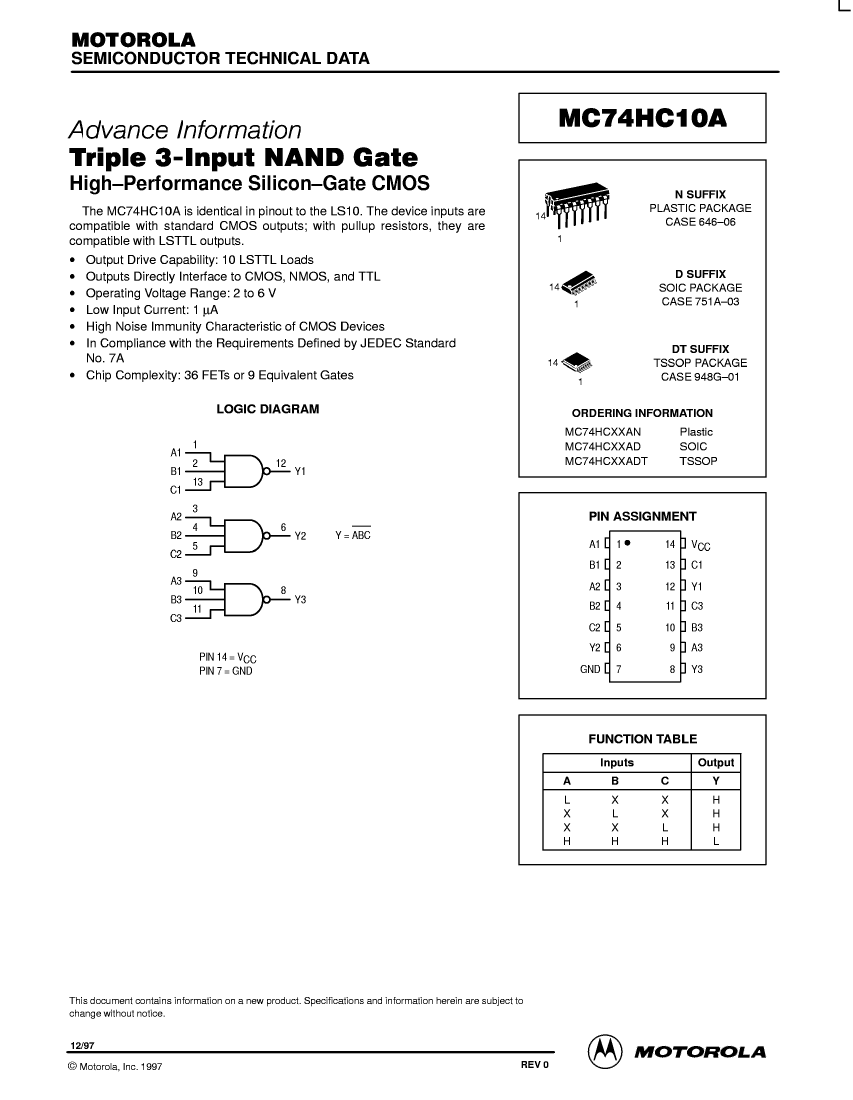

MC54HC10JS Overview

IC,LOGIC GATE,3 3-INPUT NAND,HC-CMOS,DIP,14PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP

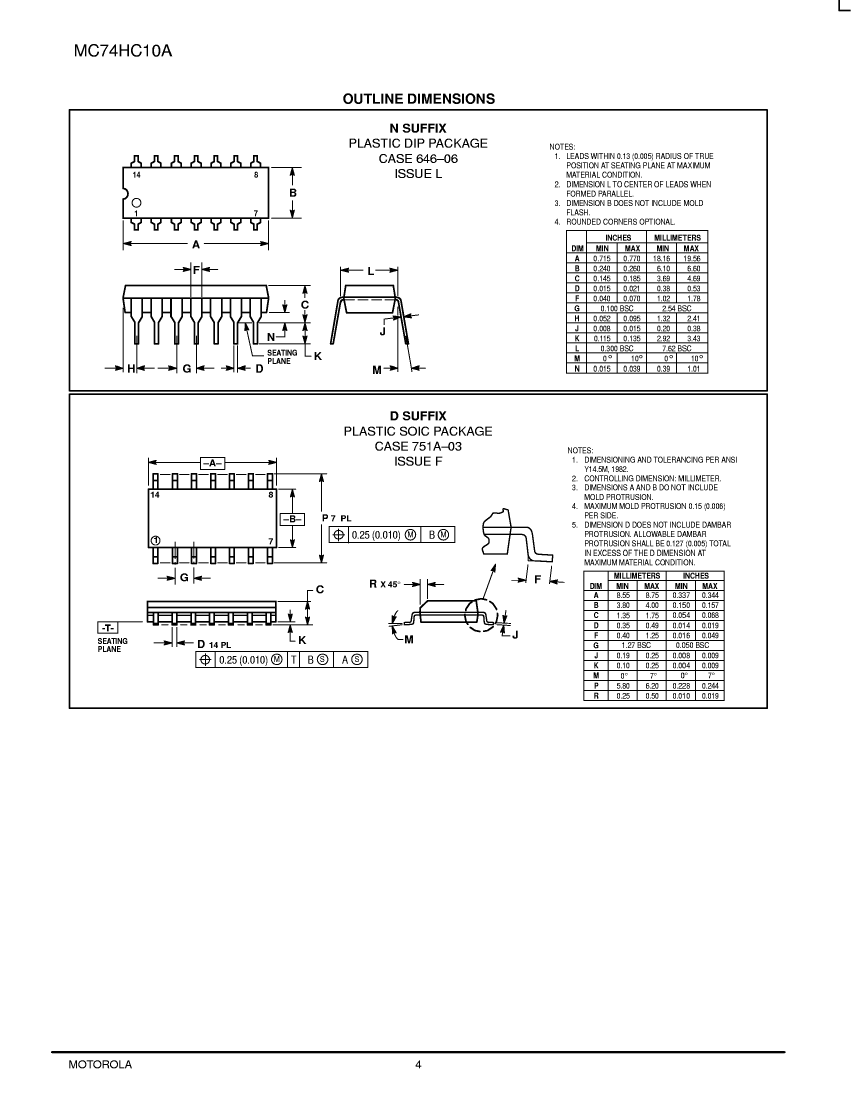

package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0

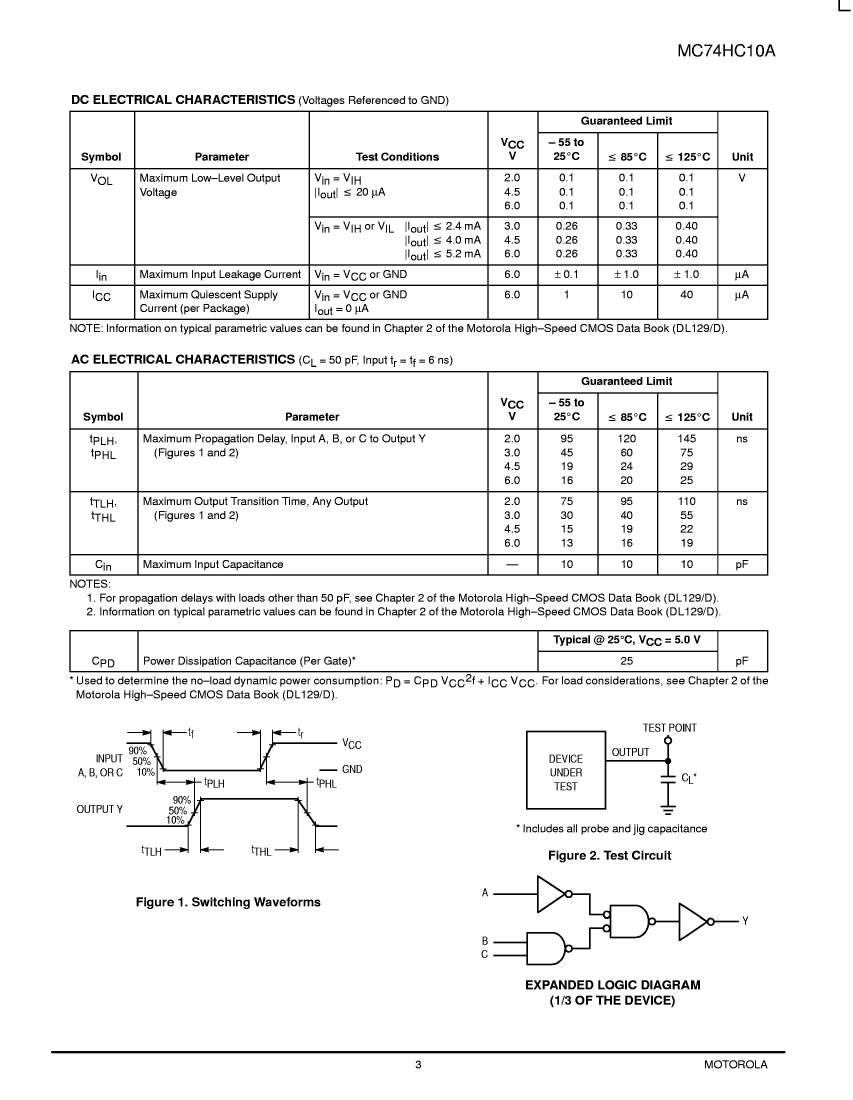

Logic integrated circuit type	NAND GATE
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE

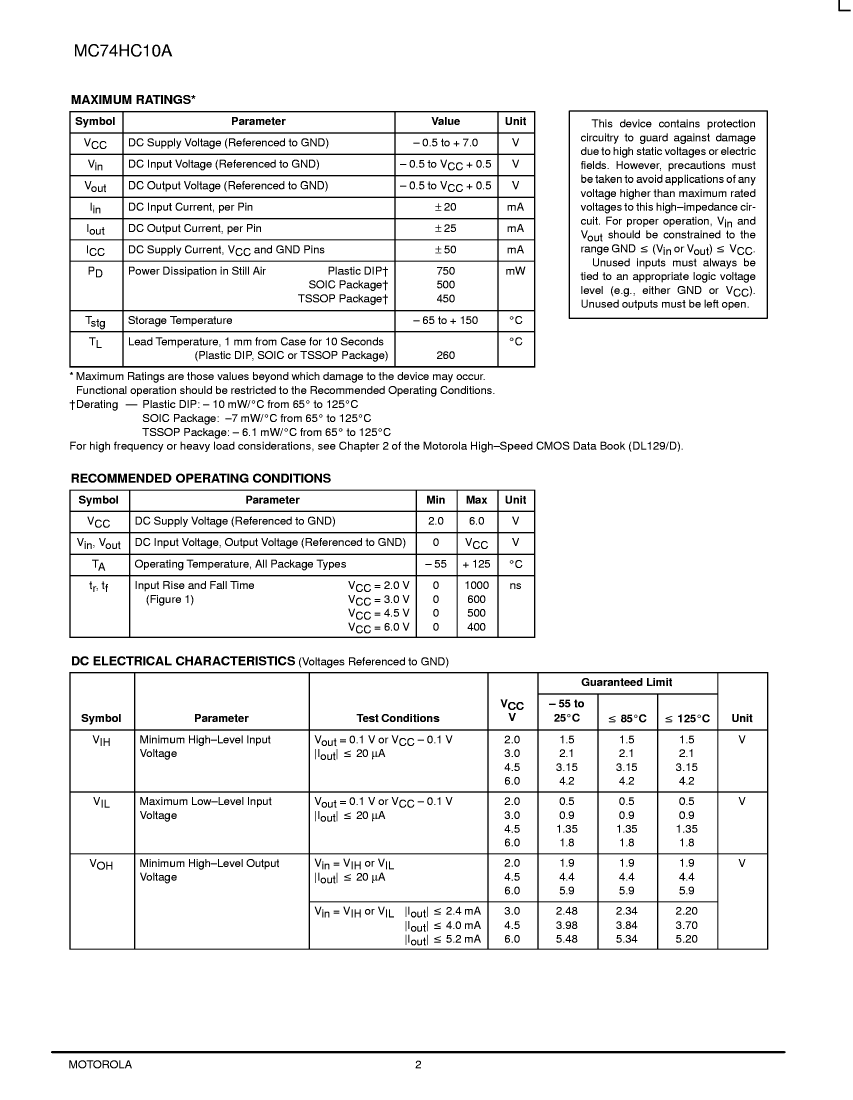

power supply	2/6 V
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

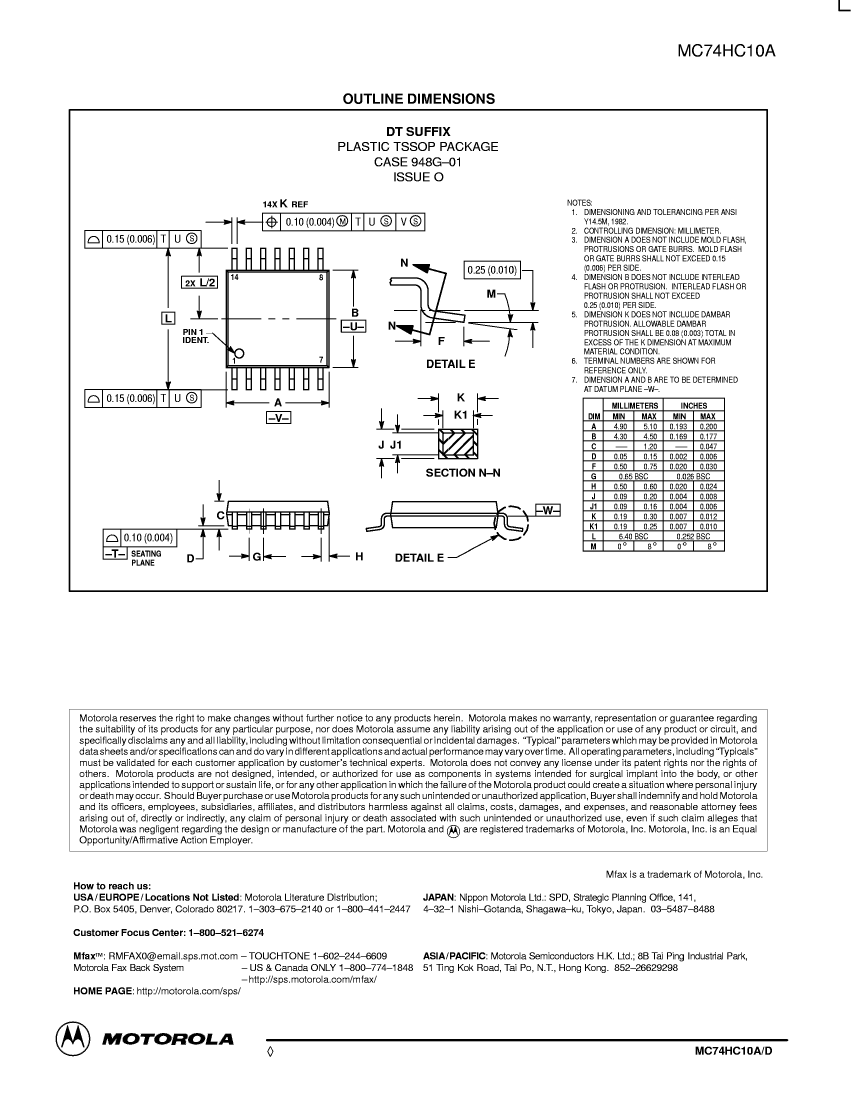

	MC54HC10JS	54HC10M/B2AJC	MC74HC10ADT	MC74HC10AN
Description	IC,LOGIC GATE,3 3-INPUT NAND,HC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,3 3-INPUT NAND,HC-CMOS,LLCC,20PIN,CERAMIC	IC,LOGIC GATE,3 3-INPUT NAND,HC-CMOS,TSSOP,14PIN,PLASTIC	IC,LOGIC GATE,3 3-INPUT NAND,HC-CMOS,DIP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP
package instruction	DIP, DIP14,.3	QCCN, LCC20,.35SQ	TSSOP, TSSOP14,.25	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T14	S-XQCC-N20	R-PDSO-G14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of terminals	14	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	TSSOP	DIP
Encapsulate equivalent code	DIP14,.3	LCC20,.35SQ	TSSOP14,.25	DIP14,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	IN-LINE
power supply	2/6 V	2/6 V	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	0.635 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL
