SMDP-672061EV-30MQ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> SMDP-672061EV-30MQ

Preview

SMDP-672061EV-30MQ: DescriptionFIFO, 16KX9, 30ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN; Categorystorage storage; File Size805KB，17 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

SMDP-672061EV-30MQ Overview

FIFO, 16KX9, 30ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN

SMDP-672061EV-30MQ Parametric

Parameter Name	Attribute value
Maker	TEMIC
package instruction	400 MIL, FLAT PACK, 28 PIN
Reach Compliance Code	unknown
Maximum access time	30 ns
period time	40 ns
JESD-30 code	R-PDFP-F28
memory density	147456 bit
memory width	9
Number of functions	1
Number of terminals	28
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX9
Exportable	NO
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL

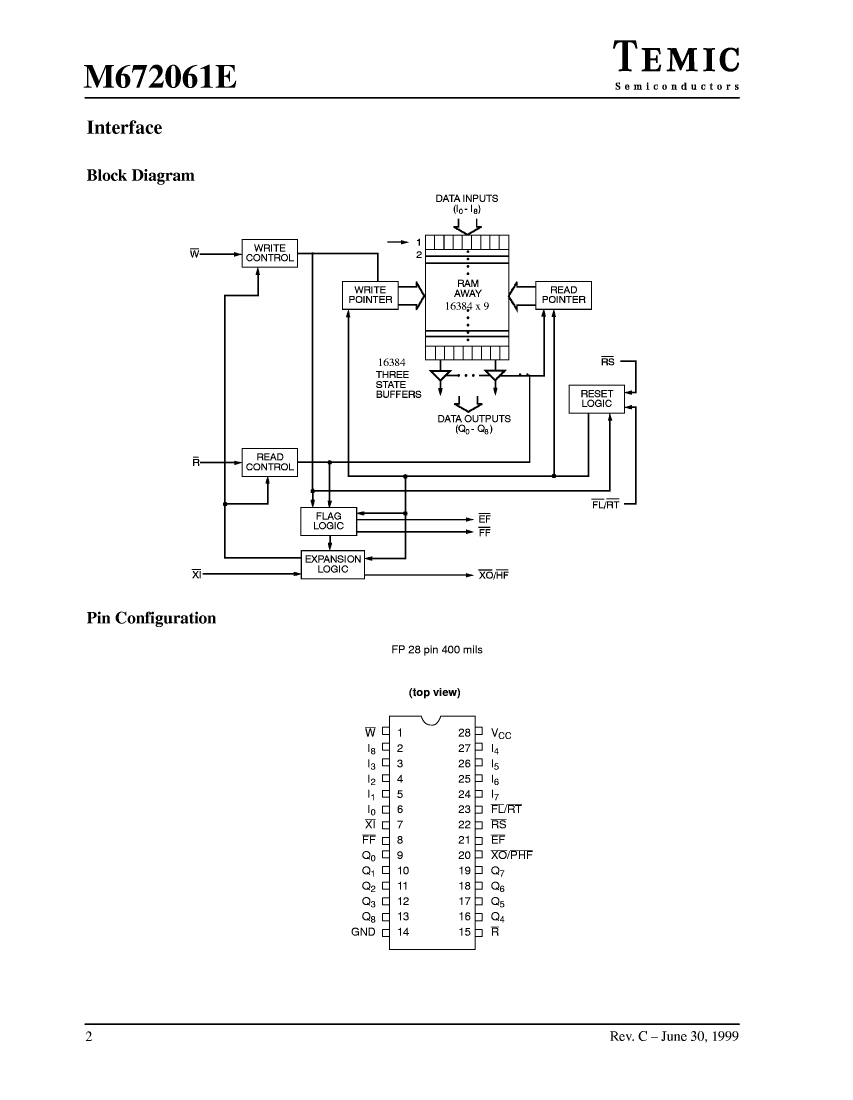

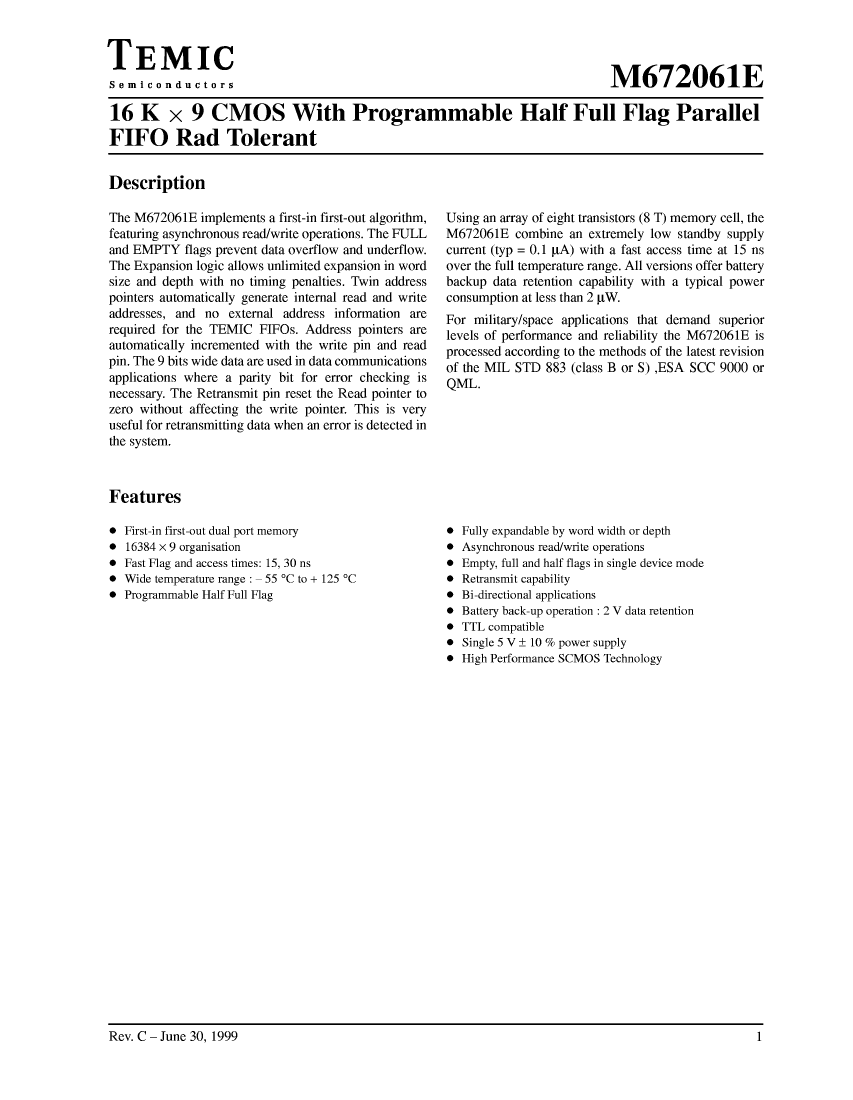

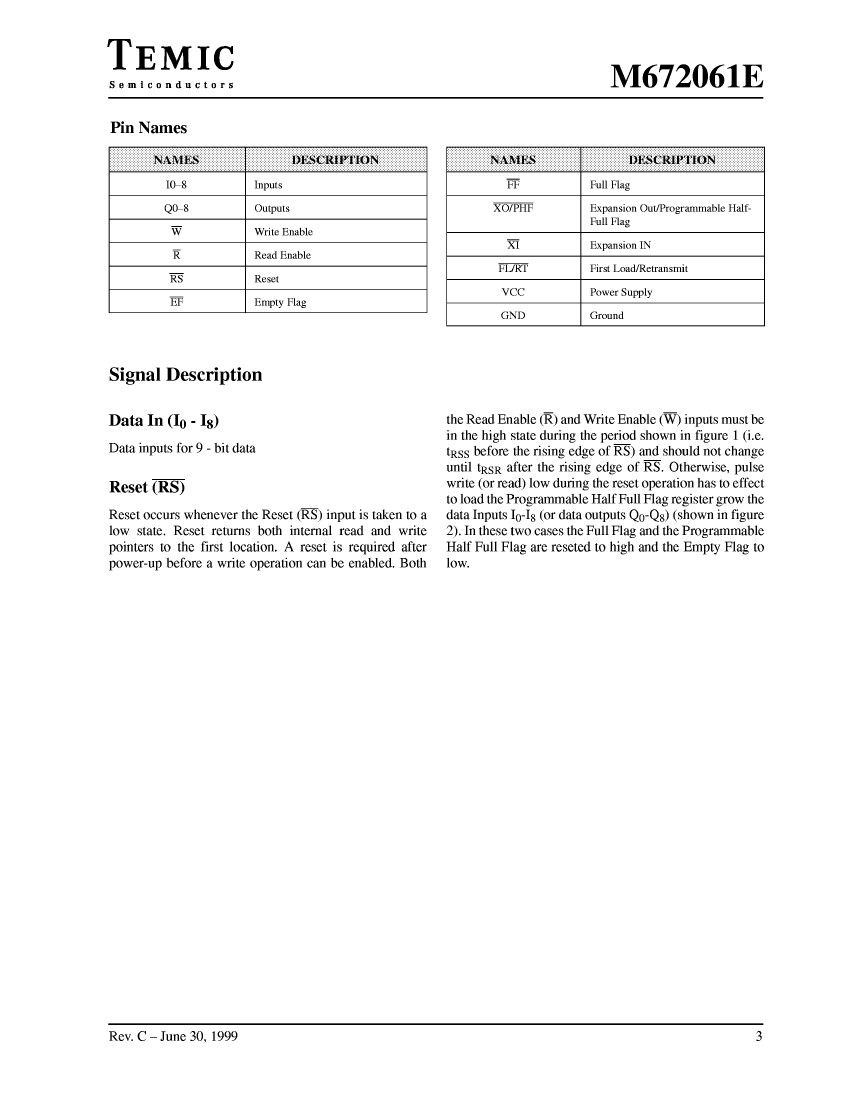

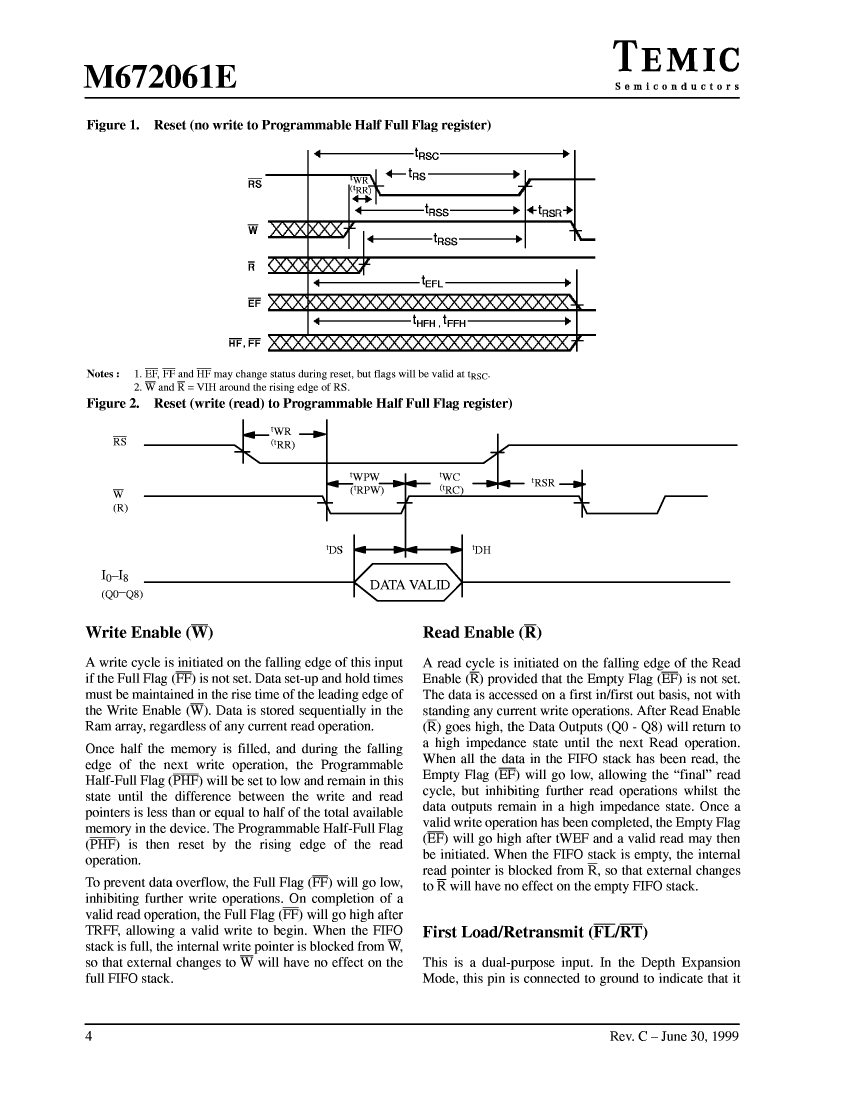

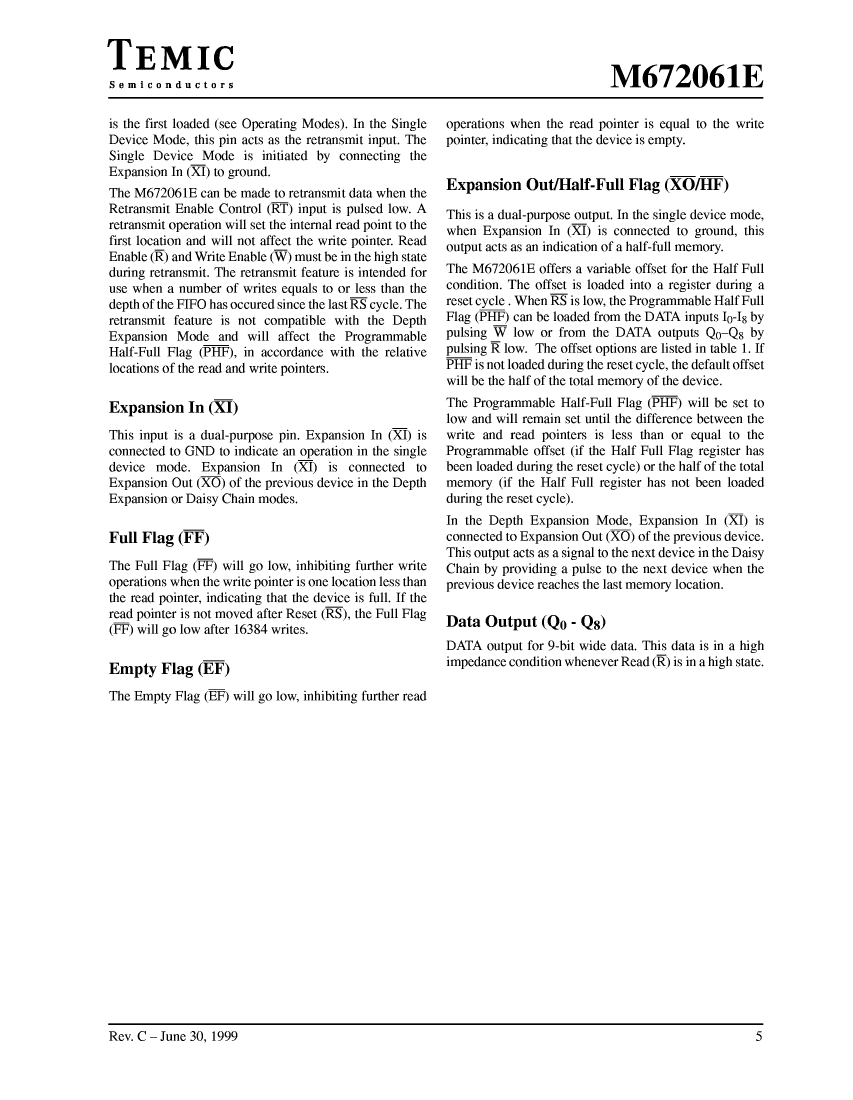

Preview

Download Datasheet

View All

SMDP-672061EV-30MQ Related Products

	SMDP-672061EV-30MQ	SMDP-672061EV-30SV	SMDP-672061EV-15/883	MMDP-672061EV-15MQ	SMDP-672061EV-15SV	MMDP-672061EV-15SV	MMDP-672061EV-30SV	SMDP-672061EV-15MQ
Description	FIFO, 16KX9, 30ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN	FIFO, 16KX9, 30ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN	FIFO, 16KX9, 15ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN	FIFO, 16KX9, 15ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN	FIFO, 16KX9, 15ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN	FIFO, 16KX9, 15ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN	FIFO, 16KX9, 30ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN	FIFO, 16KX9, 15ns, Asynchronous, CMOS, PDFP28, 400 MIL, FLAT PACK, 28 PIN
package instruction	400 MIL, FLAT PACK, 28 PIN	400 MIL, FLAT PACK, 28 PIN	400 MIL, FLAT PACK, 28 PIN	400 MIL, FLAT PACK, 28 PIN	400 MIL, FLAT PACK, 28 PIN	400 MIL, FLAT PACK, 28 PIN	400 MIL, FLAT PACK, 28 PIN	400 MIL, FLAT PACK, 28 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	30 ns	30 ns	15 ns	15 ns	15 ns	15 ns	30 ns	15 ns
period time	40 ns	40 ns	25 ns	25 ns	25 ns	25 ns	40 ns	25 ns
JESD-30 code	R-PDFP-F28	R-PDFP-F28	R-PDFP-F28	R-PDFP-F28	R-PDFP-F28	R-PDFP-F28	R-PDFP-F28	R-PDFP-F28
memory density	147456 bit	147456 bit	147456 bit	147456 bit	147456 bit	147456 bit	147456 bit	147456 bit
memory width	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	16KX9	16KX9	16KX9	16KX9	16KX9	16KX9	16KX9	16KX9
Exportable	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-STD-883 Class B	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	TEMIC	-	-	-	TEMIC	TEMIC	TEMIC	TEMIC
