ILSB-1206
Vishay Dale
Monolithic Chip Inductors
FEATURES
High reliability
Surface mountable
Magnetically self shielded
Nickel barrier plating virtuallly eliminates silver
migration
• Compliant to RoHS directive 2002/95/EC
•
•
•
•
MECHANICAL SPECIFICATIONS
Solderability:
90 % coverage after 5 s dip in 235 °C solder
following 60 s preheat at 120 °C to 150 °C and type R flux dip
Resistance to Solder Heat:
10 s in 260 °C solder, after
preheat and flux per above
Termination:
100 % Sn
Terminal Strength:
0.1 kg for 30 s
Beam Strength:
2.5 kg
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 125 °C
Thermal Shock:
- 40 °C to + 85 °C
Humidity:
90 % RH at 40 °C, 1000 h at full rated current
Load Life:
85 °C for 1000 h at full rated current
STANDARD ELECTRICAL SPECIFICATIONS
IND.
AT ± 10 %
(μH)
0.047
0.068
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.68
0.82
1.0
1.2
1.5
1.8
2.2
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
TOL.
20 %
20 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
THICKNESS “D”
(INCHES [mm])
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
0.043 ± 0.012 [1.10 ± 0.3]
TEST FREQ.
(MHz)
L&Q
50
50
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
4
4
4
2
2
1
1
1
1
1
Q
MIN.
20
20
20
20
20
20
20
20
20
25
25
25
25
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
35
35
35
SRF MIN.
(MHz)
368
322
271
253
230
213
196
173
167
156
144
121
115
87
75
69
64
58
48
44
41
37
34
30
28
26
22
21
19
17
15
DCR
ΜΑΞ.
(Ω)
0.15
0.25
0.25
0.30
0.30
0.40
0.40
0.50
0.60
0.50
0.60
0.80
0.90
0.40
0.50
0.50
0.50
0.50
0.70
0.80
0.90
0.70
0.80
0.90
1.00
1.05
0.70
0.70
0.90
0.90
1.05
RATED
DC CURRENT
(mA)
300
300
250
250
250
250
250
250
250
200
200
150
150
100
100
50
50
50
50
50
50
25
25
25
25
15
5
5
5
5
5
DESCRIPTION
ILSB-1206
MODEL
3.3 μH
INDUCTANCE VALUE
± 10 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
L
S
B
1
2
SIZE
0
6
E
R
3
R
INDUCTANCE
VALUE
3
K
TOL.
PRODUCT FAMILY
PACKAGE
CODE
Document Number: 34029
Revision: 05-May-10
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
ILSB-1206
Vishay Dale

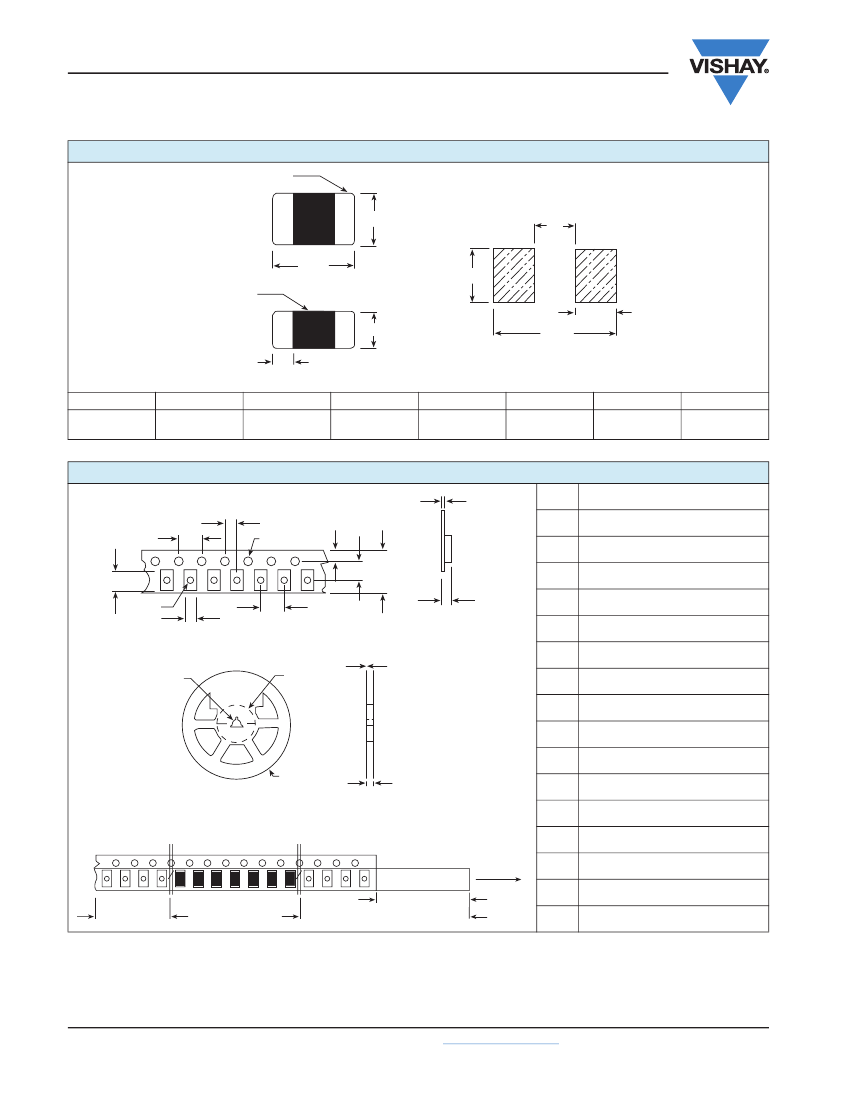

DIMENSIONS
in inches [millimeters]
100 % Sn Termination
Monolithic Chip Inductors
B
G
A
F
Ferrite Body
H
D
E
C
Dimensional Outline
Suggested Pad Layout
A
0.126 ± 0.008
[3.2 ± 0.2]
B
0.063 ± 0.008
[1.6 ± 0.2]
C
0.020 ± 0.012
[0.5 ± 0.3]
D
0.043 ± 0.012
[1.10 ± 0.3]
E
0.185
[4.7]
F
0.070
[1.8]
G
0.087
[2.2]
H
0.047
[1.2]
TAPE AND REEL SPECIFICATIONS 1206 SIZE PER EIA-481-1
in inches [millimeters]
T
P
2
P
0
Ø D
0
E
1
A
0
B
0
D
0
0.073 ± 0.004 [1.85 ± 0.1]
0.135 ± 0.004 [3.43 ± 0.1]
0.059 + 0.005/- 0.000 [1.5 + 0.127]
0.039 min. [1.0 min.]
0.069 ± 0.004 [1.75 ± 0.1]
0.138 ± 0.002 [3.50 ± 0.05]
0.048 ± 0.002 [1.22 ± 0.05]
0.157 ± 0.004 [4.00 ± 0.1]
0.157 ± 0.004 [4.00 ± 0.1]
0.079 ± 0.002 [2.00 ± 0.05]
0.327 max. [8.3 max.]
0.008 ± 0.002 [0.2 ± 0.05]
7.000 ± 0.079 [178 ± 2.0]
2.500 [63.5]
0.512 ± 0.020 [13.00 ± 0.50]
0.315 + 0.059/- 0.000 [8.00 + 1.5]
0.079 ± 0.002 [2.00 ± 0.05]
F
B
0
Ø D
1
A
0
P
1
W
D
1
K0
E
1
F
T1
ØC
ØN
K
0
P
0
P
1
P
2
W
ØA
W
1
T
A
N
Empty Trailer
Components
Empty Tape
Cover Tape Leader
Unreel
Direction
160 mm Minimum
C
W
1
T
1
160 mm Minimum
390 mm Minimum
www.vishay.com
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34029
Revision: 05-May-10
