839-22-028-30-001101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 839-22-028-30-001101

839-22-028-30-001101: DescriptionBoard Connector; CategoryThe connector The connector; File Size646KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

839-22-028-30-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	839-22-028-30-001101	-	-	View	Buy Now

839-22-028-30-001101 Overview

Board Connector

839-22-028-30-001101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR

Preview

Download Datasheet

View All

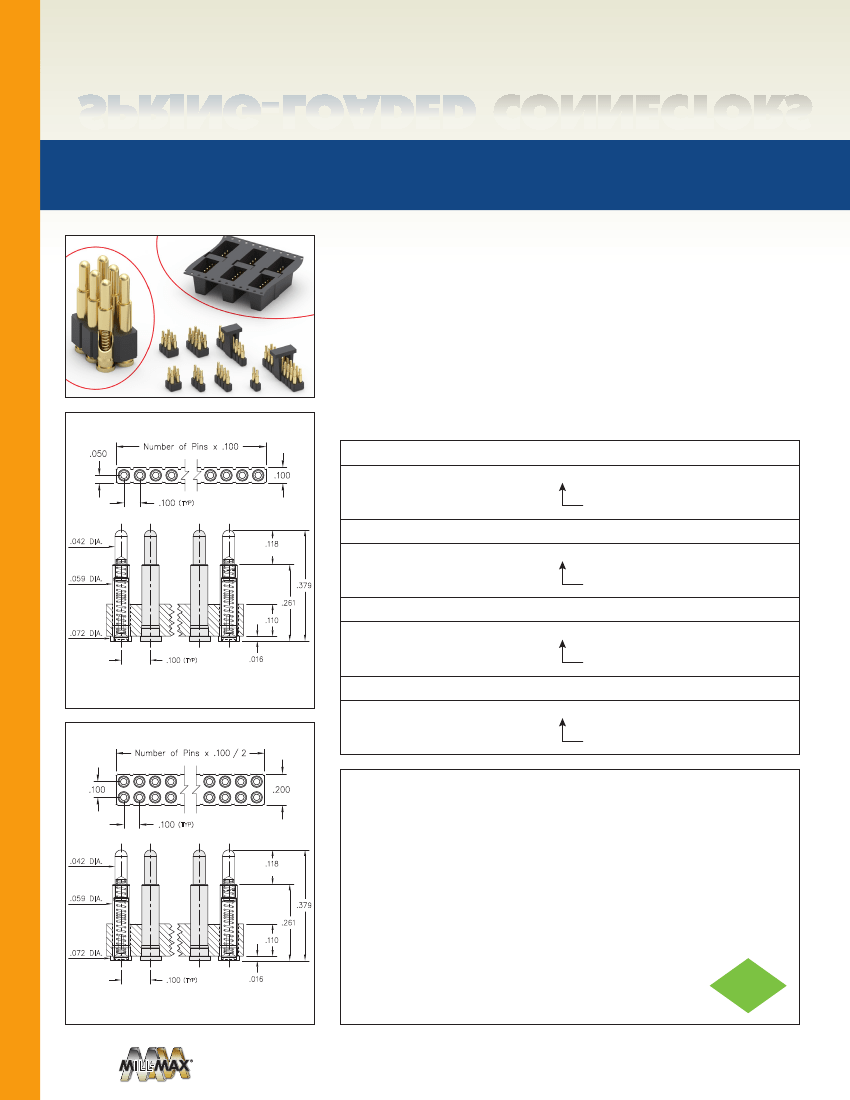

SPRING-LOADED

CONNECTORS

SERIES 837 & 839 • .100” GRID SURFACE MOUNT, 3MM MAX. STROKE •

SINGLE AND DOUBLE ROW STRIPS

• Modular contacts for use on .100” grid, available in single and double row contact strips

with recommended working travel of .030” - .100” and max. stroke of .118” +0/-.010”

• Precision-machined piston / base and gold-plated components

• Extended body provides greater bearing surface for increased strength & plunger protection

• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

• High temperature thermoplastic insulators are suitable for SMT soldering processes

• Both 837 & 839 series, are available on 44mm wide carrier tape and fitted with vacuum

pick-up clips for automated pick and place assembly. Tape and Reel packaging per EIA-481

• 837 & 839 series contact strips are designed for manual or automatic placement onto

.082” Ø solder pads

SINGLE ROW Series 837

ORDERING INFORMATION

Series 837 (Bulk Packaged)

837-22-0XX-30-001101

Specify number of contacts

01-64

Series 837 (Tape & Reel Packaged, 200 parts per reel)

Stroke

837-22-0XX-30-001191

Specify number of contacts

02-12

Series 839 (Bulk Packaged)

839-22-0XX-30-001101

Specify number of contacts

04-72

Coplanarity .005”. For Pin Counts >10 positions

consult Technical Support

Series 839 (Tape & Reel Packaged, 200 parts per reel)

839-22-0XX-30-001191

DOUBLE ROW Series 839

PAGE 9.1 | SPRING-LOADED CONNECTORS

Specify number of contacts

04-24

Materials:

Technical Specifications

Stroke

Coplanarity .005”. For Pin Counts >20 positions

consult Technical Support

Contact piston & base: Machined copper alloy plated 20μ” gold over

100μ” nickel

Spring: Stainless Steel-plated 10μ” gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (.059”): 85 grams

Durability: 100,000 cycles

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

RoHS - 2

Insulation resistance: 10,000MW min.

2011/65/EU

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
