Preview

5069-2-20-1-6: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5069-2-20-1-6 Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Surface Mount Terminal, Locking

5069-2-20-1-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.2 inch
subject depth	0.368 inch
body length	4 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	5069
Plug contact pitch	0.2 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.8674 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

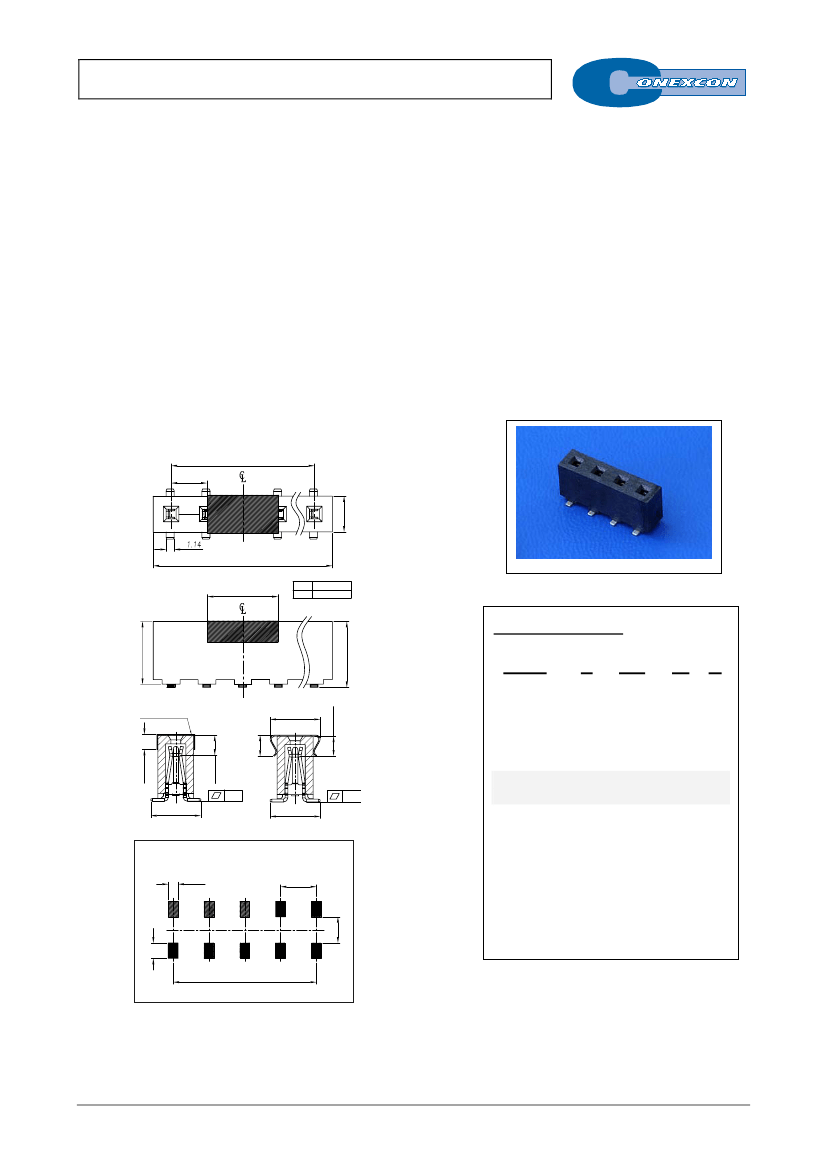

BOARD TO BOARD TOP ENTRY SMT CONNEC.

5069 SERIES.

5.08 mm (0.200”) pitch.

General Features

Electrical Features



Available in 2 through 24 circuits



Mates with 5.08 mm. pin header 1.14 mm. square/round

Pin 5086, 5087, 5088, 5071, 5072 and 3920



Box contact PCB female terminal



Voltage rating: < 250V

Current rating: < 7 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: High temperature plastic UL94 V-0 LCP

Contact: Tin plated phosphor bronze

Operating temperature: -25ºC to +125ºC

RoHS compliant



Insertion force receptacle/plug: < 0.70 Kgf/pin

Unmating force receptacle/plug: > 0.05 Kgf/pin

Contact retention force to housing: > 1.00 Kgf/pin

Durability: 50 cycles

Dimensional Information

A

±0.20

5.08

±0.20

B

±0.30

C

Dim. C

10.00

NOTE

03-20pins

5.08

9.35

±0.20

Ordering Information:

8.90

5069 -

T-

2

XX-

3

1- E

4

5

Plastic Pad

Metallic Pad

2.80 Ref.

7.10

3.00

1. Connector Series

2. (T) Contact Plating

3.00 Ref.

2.80 Ref.



T =

2.

Tin plated

0.15

Recommended Finish

3. (XX) Number of circuits

7.10

±0.20

7.10

±0.20

RECOMMENDED PCB LAYOUT

(Tolerance: ±0.05)

5.08

1.40



Available in 2 through 20 circuits

5. (E) Connector Packaging



E =

1.

Tube + Pad

E =

2.

Reel + Pad

E =

5.

Tube + Metal Pad

E =

6.

Reel + Metal Pad

2.20

A

3.70

Dimensions:

(In mm.)

A

= 5.08 x (XX*-1)

B

= 5.08 x (XX*)

* XX

(Number of circuits)

E-XX
