IHB5EB220K

Description
General Fixed Inductor, 1 ELEMENT, 22 uH, GENERAL PURPOSE INDUCTOR, HALOGEN FREE AND ROHS COMPLIANT
CategoryPassive components    inductor
File Size85KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

IHB5EB220K Overview

General Fixed Inductor, 1 ELEMENT, 22 uH, GENERAL PURPOSE INDUCTOR, HALOGEN FREE AND ROHS COMPLIANT

IHB5EB220K Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Reach Compliance Codeunknown
ECCN codeEAR99
structureBobbin
core materialFerrite
DC Resistance0.007 Ω
Nominal inductance(L)22 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Lead diameter1.83 mm
Lead length12.7 mm
lead spacing27.94 mm
Manufacturer's serial numberIHB
Number of functions1
Number of terminals2
Maximum operating temperature130 °C
Minimum operating temperature-55 °C
Package diameter40.64 mm
Package length36.83 mm
Package formRadial
method of packingBulk
Maximum rated current27 A
seriesIHB
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal surfaceTin (Sn)
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.001 MHz
Tolerance10%

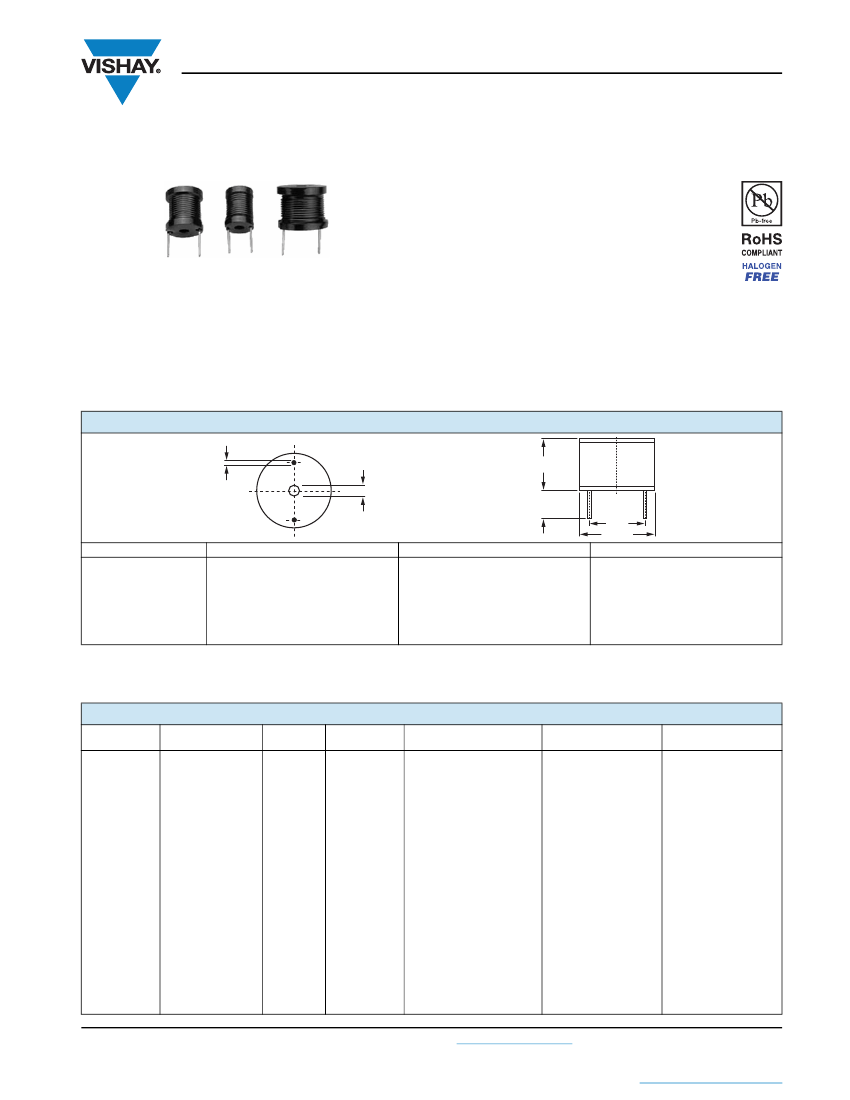

IHB
Vishay Dale
Filter Inductors, High Current, Radial Leaded
FEATURES
Printed circuit mounting
Wide range of inductance and current ratings
Pre-tinned leads
Optional polyolefin tubing and printing available
at additional cost
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21 definition
ELECTRICAL SPECIFICATIONS
Inductance:
Measured at 1.0 V with zero DC current
Dielectric:
2500 V
RMS
between winding and 0.250"
[6.35 mm] of insulating covering edge (with optional
insulating covering)
Current Rating:
Maximum continuous operating current
based on a + 50 °C temperature rise
Operating Temperature:
- 55 °C to + 130 °C (no load),
- 55 °C to + 80 °C (at full rated current)
MECHANICAL SPECIFICATIONS
Terminals:
Extensions of the winding wire, solder coated to
within 0.063" [1.60 mm] of body
Mounting:
Center hole for mechanical mounting, insulated
bushings recommended for center hole mounting
DIMENSIONS
in inches [millimeters]
F
(2)
B
D Dia.
0.500 ± 0.062
[12.70 ± 1.57]
E
(1)
A Dia.
MODEL
IHB-1
IHB-2
IHB-3
IHB-4
IHB-5
IHB-6
A (MAX.)
0.660 [16.76]
0.825 [20.96]
1.100 [27.94]
1.600 [40.64]
1.600 [40.64]
2.000 [50.80]
B (MAX.)
0.840 [21.34]
0.840 [21.34]
0.840 [21.34]
1.030 [26.16]
1.450 [36.83]
1.500 [38.10]
D (MIN.)
0.115 [2.92]
0.115 [2.92]
0.115 [2.92]
0.175 [4.45]
0.175 [4.45]
0.240 [6.10]
Notes
(1)
E varies between components, see individual model specifications for details, tolerance of ± 0.035
(2)
F varies between components, see individual model specifications for details
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IHB-1
IND. AT 1 kHz
(μH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
TOL.
(%)
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 10
± 10
± 10
± 10
± 10
± 10
± 10
± 10
DCR MAX.
()
0.003
0.003
0.004
0.004
0.005
0.005
0.005
0.006
0.007
0.007
0.008
0.009
0.010
0.011
0.015
0.016
0.020
0.030
0.040
0.046
RATED DC CURRENT
(mA)
9000
9000
9000
9000
9000
9000
9000
9000
9000
9000
9000
9000
9000
9000
7200
7200
5500
4500
4000
4000
APPROX. LEAD “E”
SPACING
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.475 [12.07]
0.475 [12.07]
MAXIMUM LEAD “F”
DIAMETER
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.045 [1.15]
0.040 [1.02]
0.040 [1.02]
0.040 [1.02]
0.032 [0.812]
0.028 [0.723]
0.028 [0.723]
www.vishay.com
1
Document Number: 34015
Revision: 13-Apr-11
For technical questions, contact:
magnetics@vishay.com
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
