BD535JJ69Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BD535JJ69Z

BD535JJ69Z: DescriptionPower Bipolar Transistor, 8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size69KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

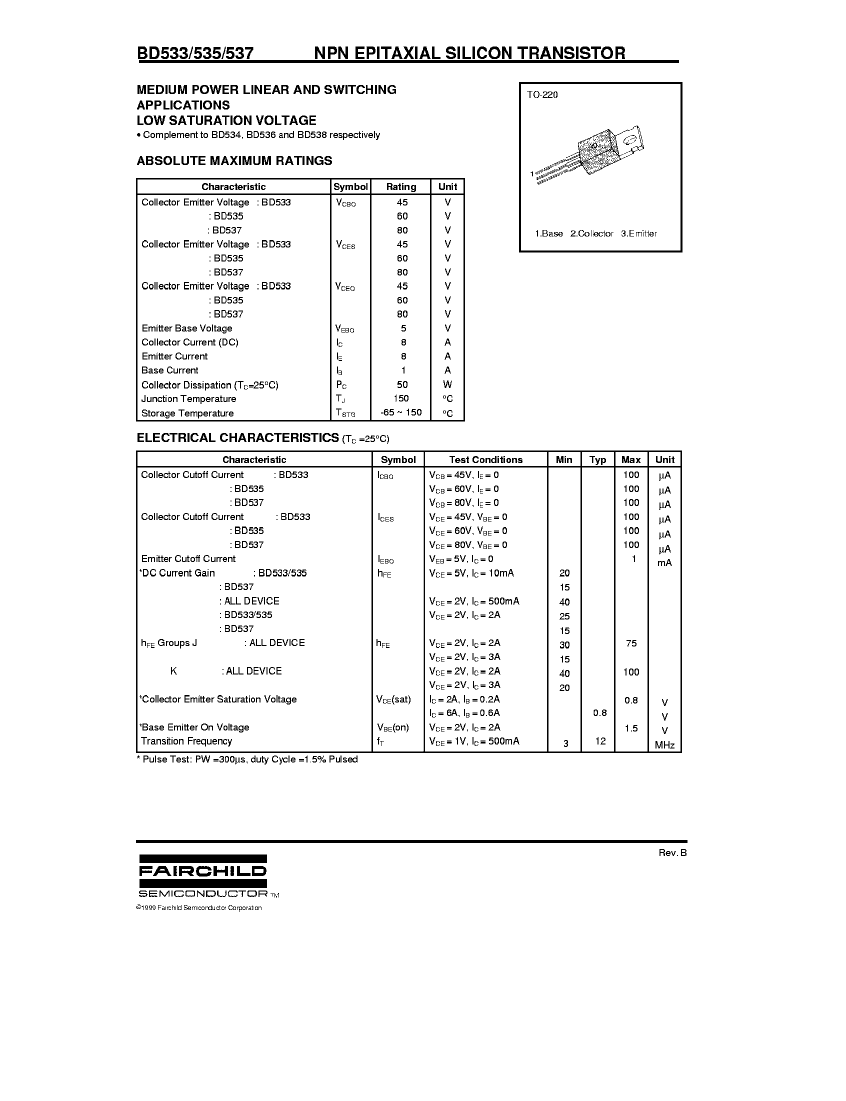

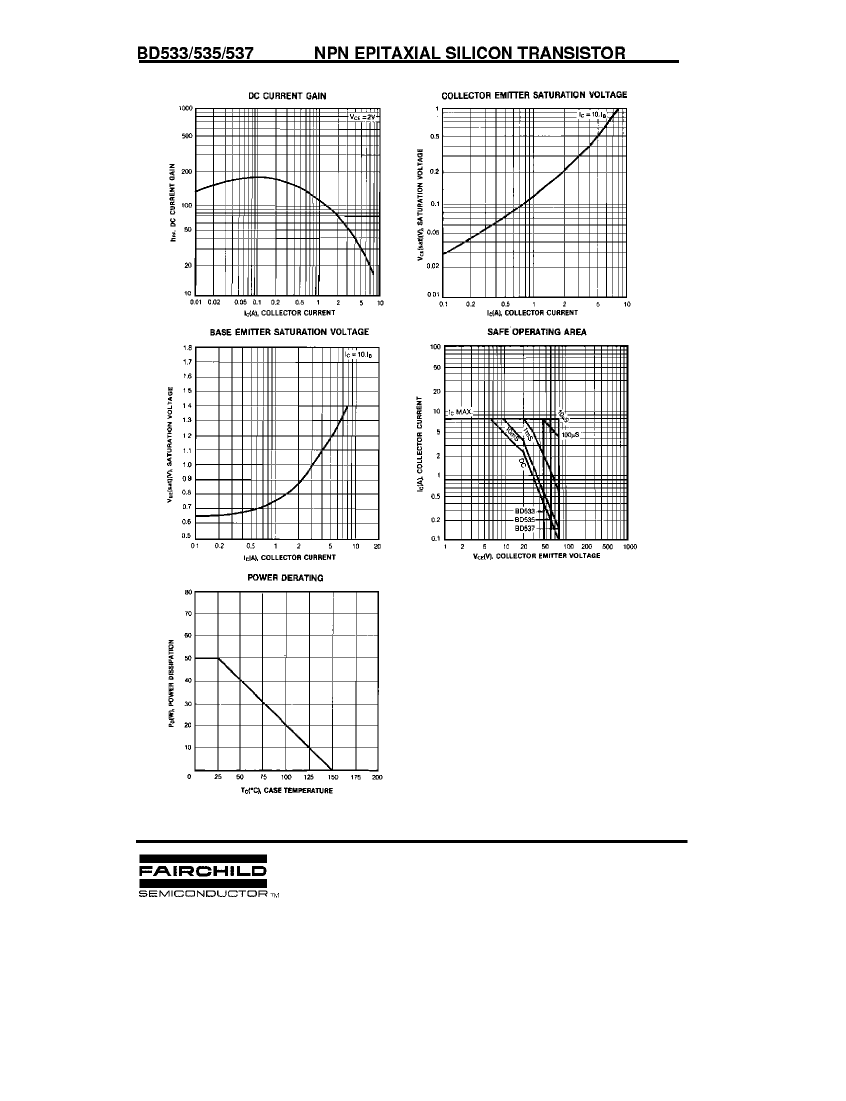

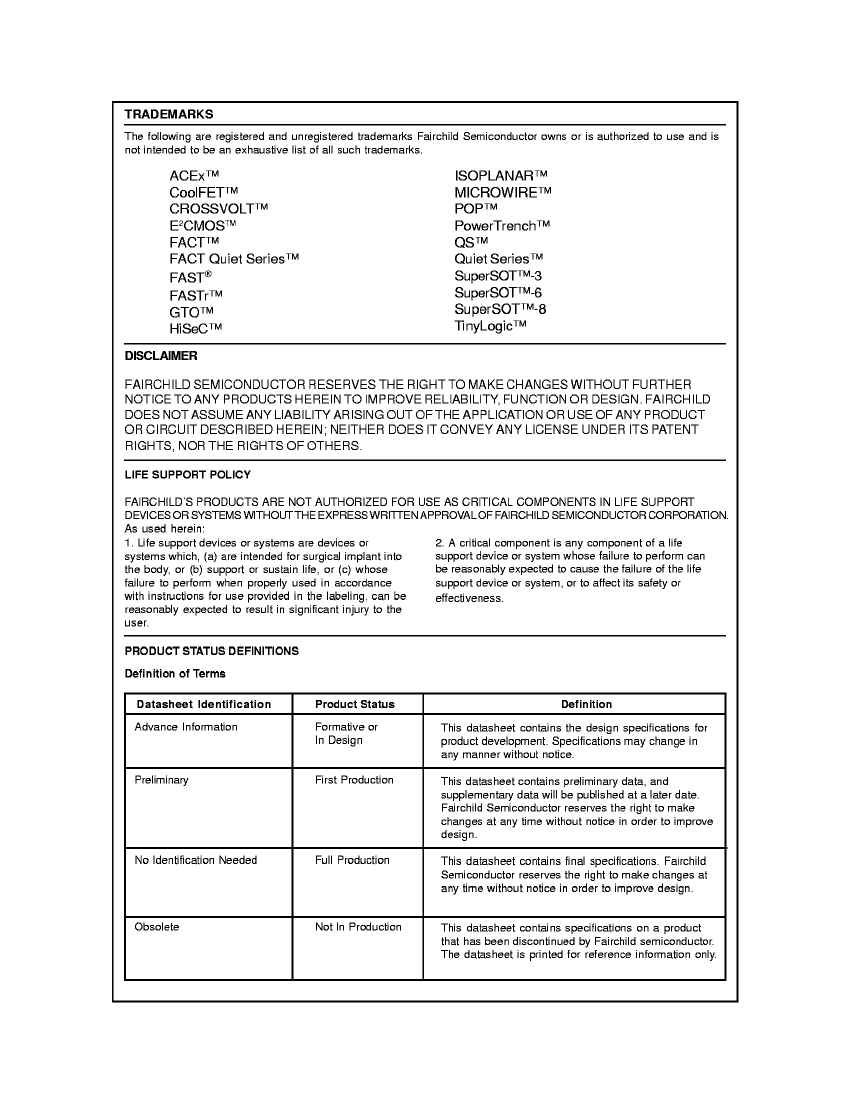

BD535JJ69Z Overview

Power Bipolar Transistor, 8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

BD535JJ69Z Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	8 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	12 MHz

BD535JJ69Z Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BD535JJ69Z Related Products

	BD535JJ69Z	BD533K	BD535J69Z	BD535K	BD537J69Z	BD537JJ69Z	BD533J69Z
Description	Power Bipolar Transistor, 8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 8A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 8A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	SFM	SFM	SFM	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Collector-emitter maximum voltage	60 V	45 V	60 V	60 V	80 V	80 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	15	20	25	20	15	15	25
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz
