Part Number

Search

BD841

Description
TRANSISTOR 1.5 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power
CategoryDiscrete semiconductor    The transistor
File Size126KB,6 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

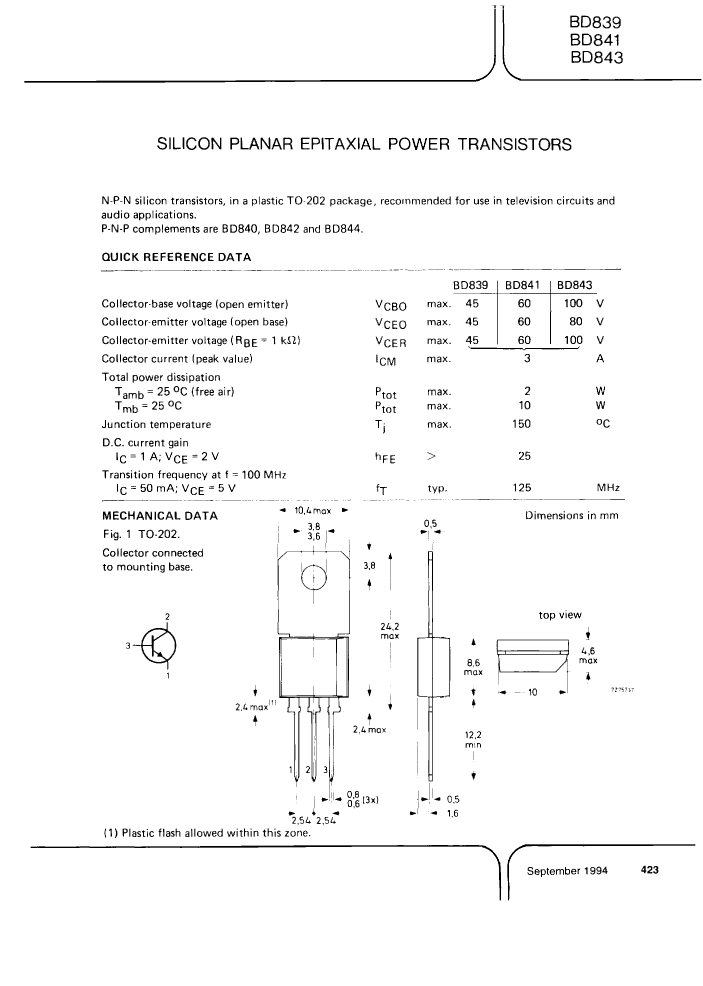

BD841 Overview

TRANSISTOR 1.5 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power

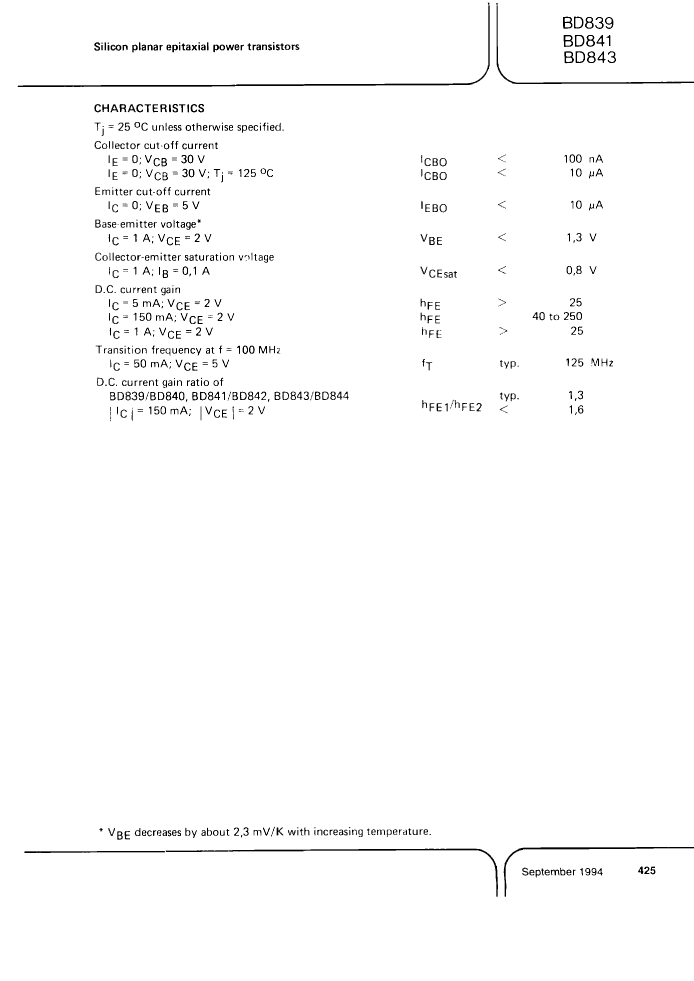

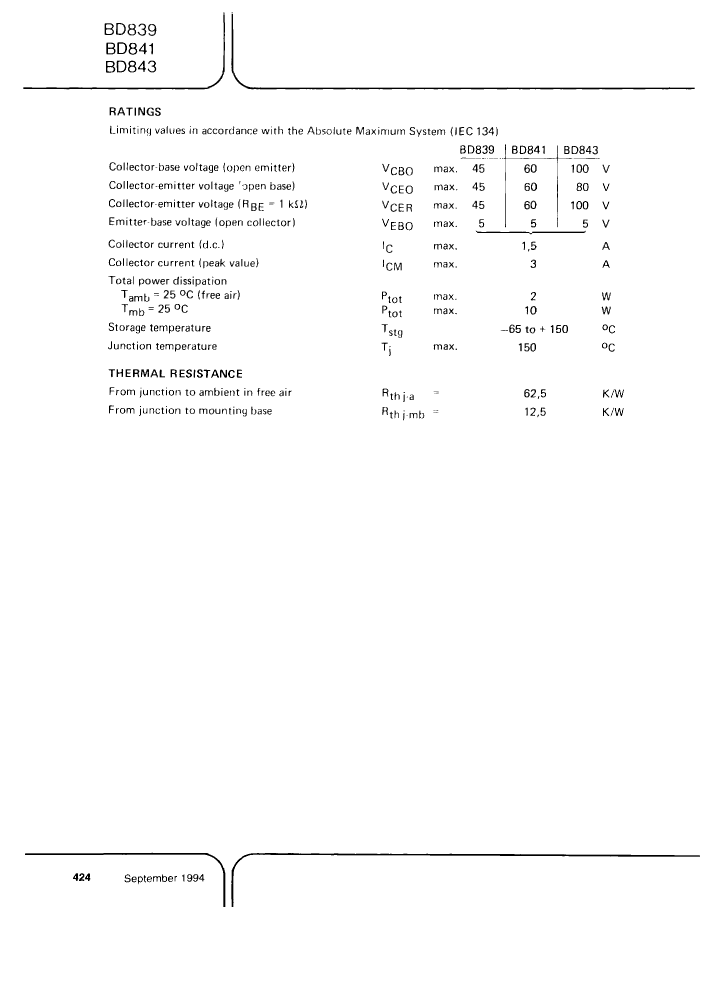

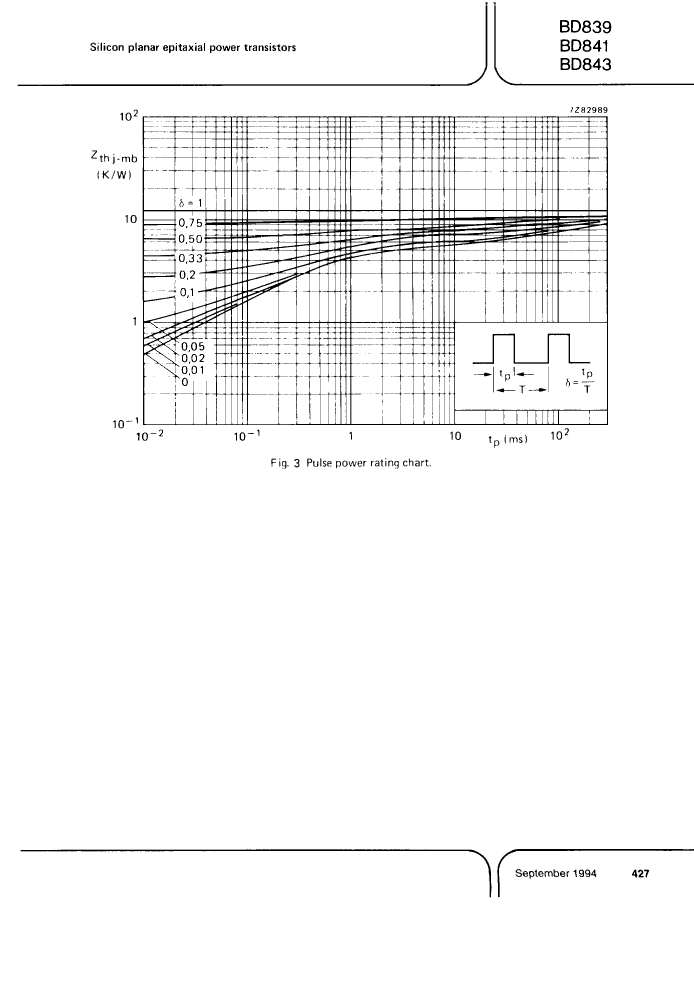

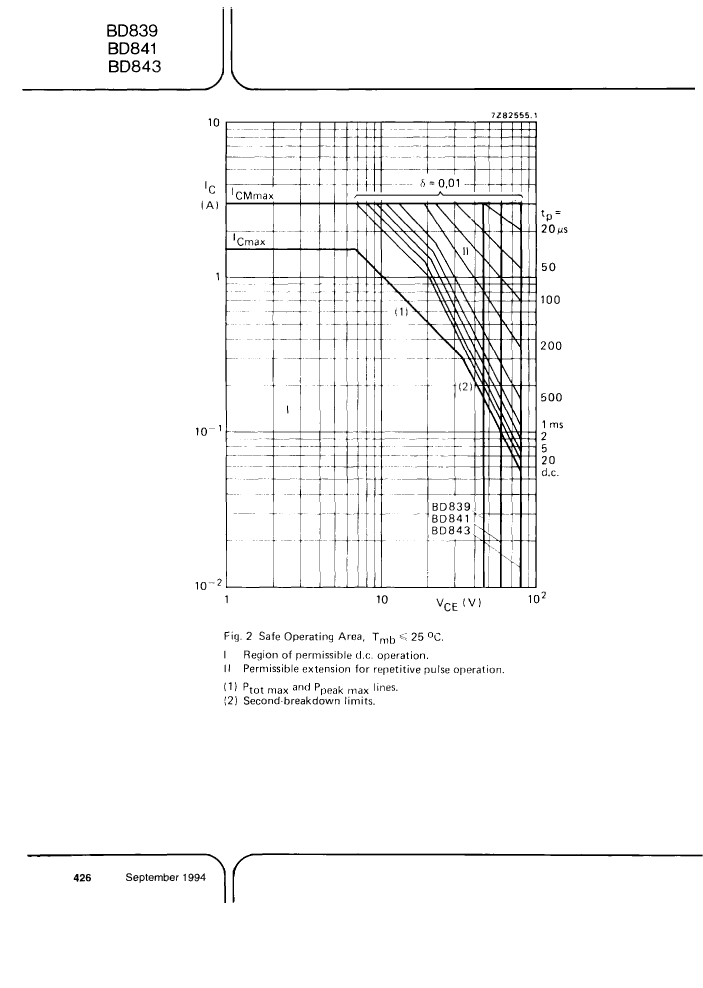

BD841 Parametric

Parameter NameAttribute value
MakerNXP
package instructionFLANGE MOUNT, R-PSFM-T3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1.5 A
Collector-emitter maximum voltage60 V
ConfigurationSINGLE
Minimum DC current gain (hFE)25
JEDEC-95 codeTO-202
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Maximum power consumption environment10 W
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)125 MHz
VCEsat-Max0.8 V

BD841 Related Products

BD841 BD843
Description TRANSISTOR 1.5 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power TRANSISTOR 1.5 A, 80 V, NPN, Si, POWER TRANSISTOR, TO-202, BIP General Purpose Power
Maker NXP NXP
package instruction FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Shell connection COLLECTOR COLLECTOR
Maximum collector current (IC) 1.5 A 1.5 A
Collector-emitter maximum voltage 60 V 80 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 25 25
JEDEC-95 code TO-202 TO-202
JESD-30 code R-PSFM-T3 R-PSFM-T3
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Polarity/channel type NPN NPN
Maximum power consumption environment 10 W 10 W
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
transistor applications AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 125 MHz 125 MHz
VCEsat-Max 0.8 V 0.8 V
