JMnic
Product Specification
Silicon PNP Power Transistors
2SA1294
DESCRIPTION
・With
TO-3PN package
・Complement
to type 2SC3263
APPLICATIONS
・Audio
and general purpose
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter

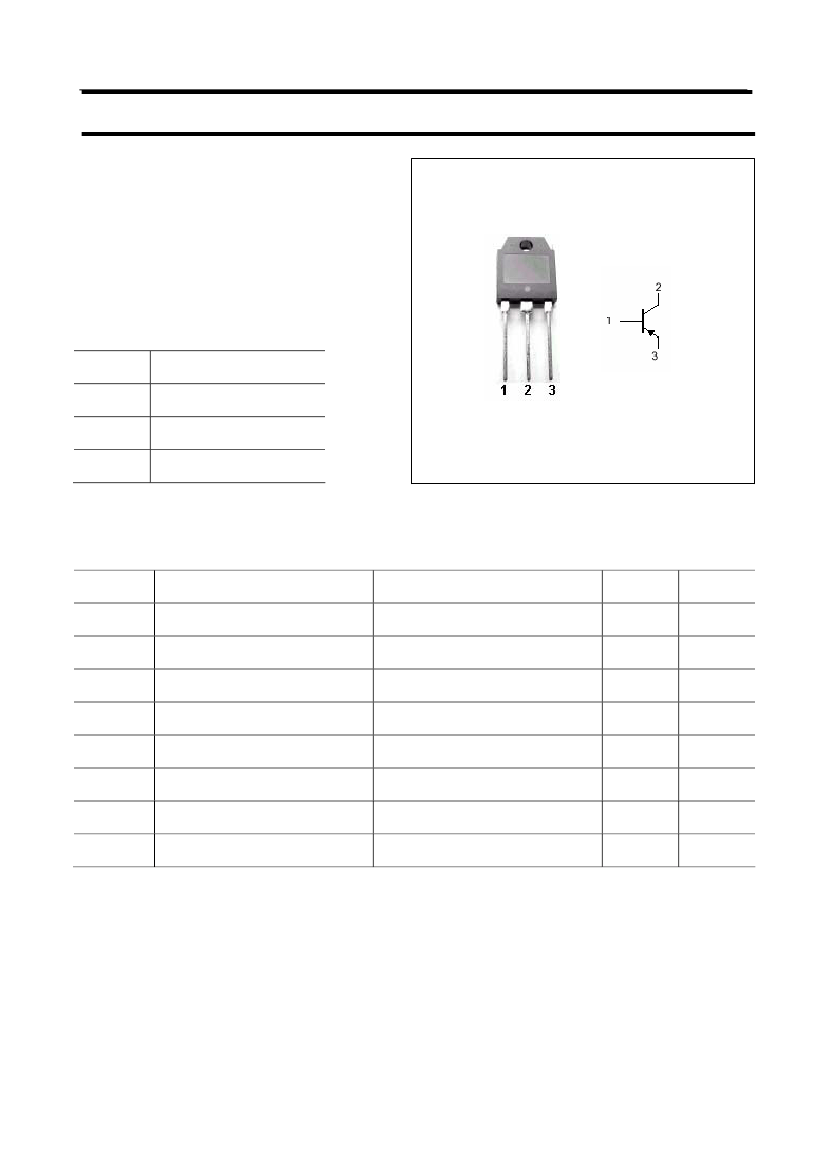

Fig.1 simplified outline (TO-3PN) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25℃
CONDITIONS
Open emitter
Open base
Open collector
VALUE
-230
-230
-5
-15
-4
130
150
-55~150
UNIT
V
V
V
A
A
W
℃
℃
JMnic
Product Specification
Silicon PNP Power Transistors
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
V
CEO
V
CEsat
I
CBO
I
EBO
h
FE
C
ob
f
T
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Output capacitance
Transition frequency
CONDITIONS
I
C
=-25mA ;I
B
=0
I
C
=-5A; I
B
=-0.5A
V
CB
=-230V; I
E
=0
V
EB
=-5V; I
C
=0
I
C
=-5A ; V
CE
=4V
I
E
=0 ; V
CB
=-10V;f=1MHz
I
E
=2A ; V
CE
=-12V
50
500
35
MIN
-230
TYP.
2SA1294
MAX
UNIT
V
-2.0
-100
-100
140
V
μA
μA
pF
MHz
Switching times
t
on
t
s
t
f
Turn-on time
Storage time
Fall time
I
C
=-5A;R
L
=12Ω
I
B1
=-I
B2
=-0.5A
V
CC
=-60V
0.35
1.5
0.3
μs
μs
μs
h
FE
Classifications
O
50-100
Y
70-140
2
JMnic
Product Specification
Silicon PNP Power Transistors
PACKAGE OUTLINE
2SA1294
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
JMnic
Product Specification
Silicon PNP Power Transistors
2SA1294

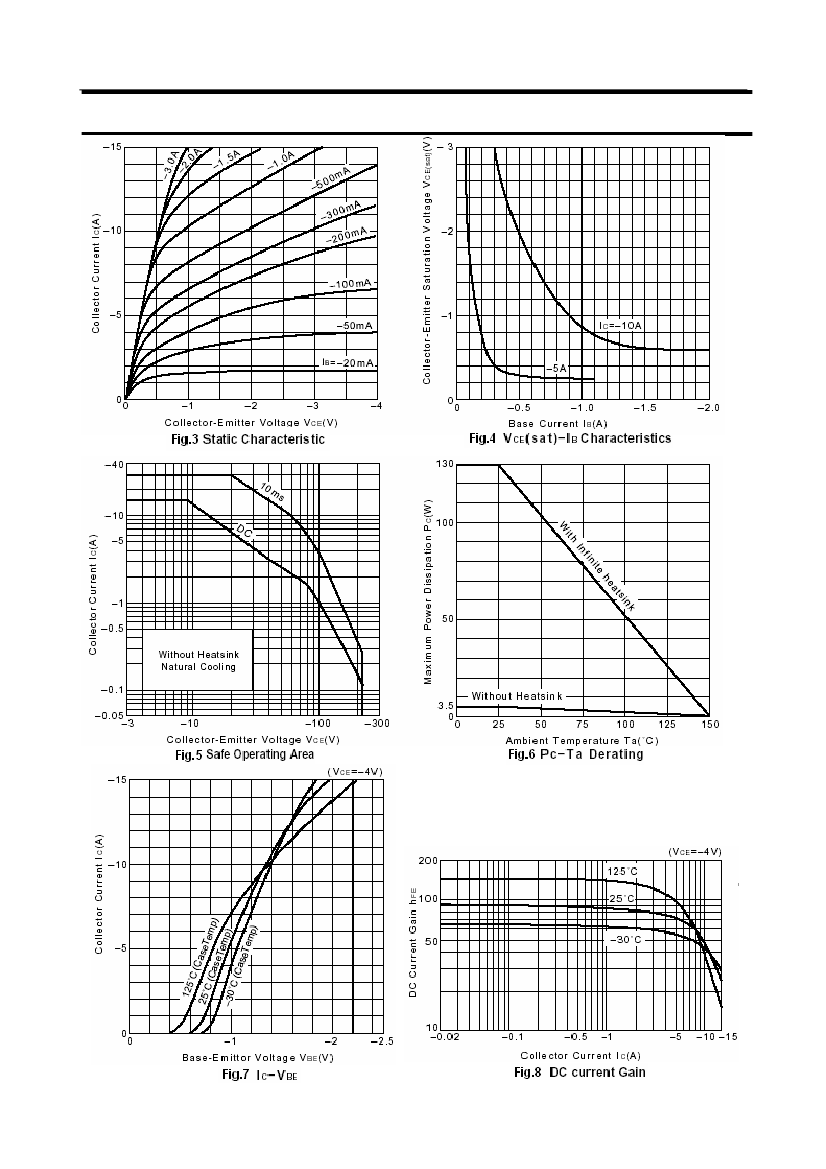

4
