10106127-5005001LF

Description
Board Connector, Female, Right Angle, Press Fit Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size153KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

10106127-5005001LF Online Shopping

Suppliers Part Number Price MOQ In stock
10106127-5005001LF - - View Buy Now

10106127-5005001LF Overview

Board Connector, Female, Right Angle, Press Fit Terminal, Locking, Receptacle

10106127-5005001LF Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsHOLE .120- .126
body width0.48 inch
subject depth0.865 inch
body length2.19 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
Dielectric withstand voltage1000VDC V
Durability500 Cycles
maximum insertion force1.0008 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number10106127
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.119 inch
Termination typePRESS FIT
Evacuation force-minimum value.1668 N

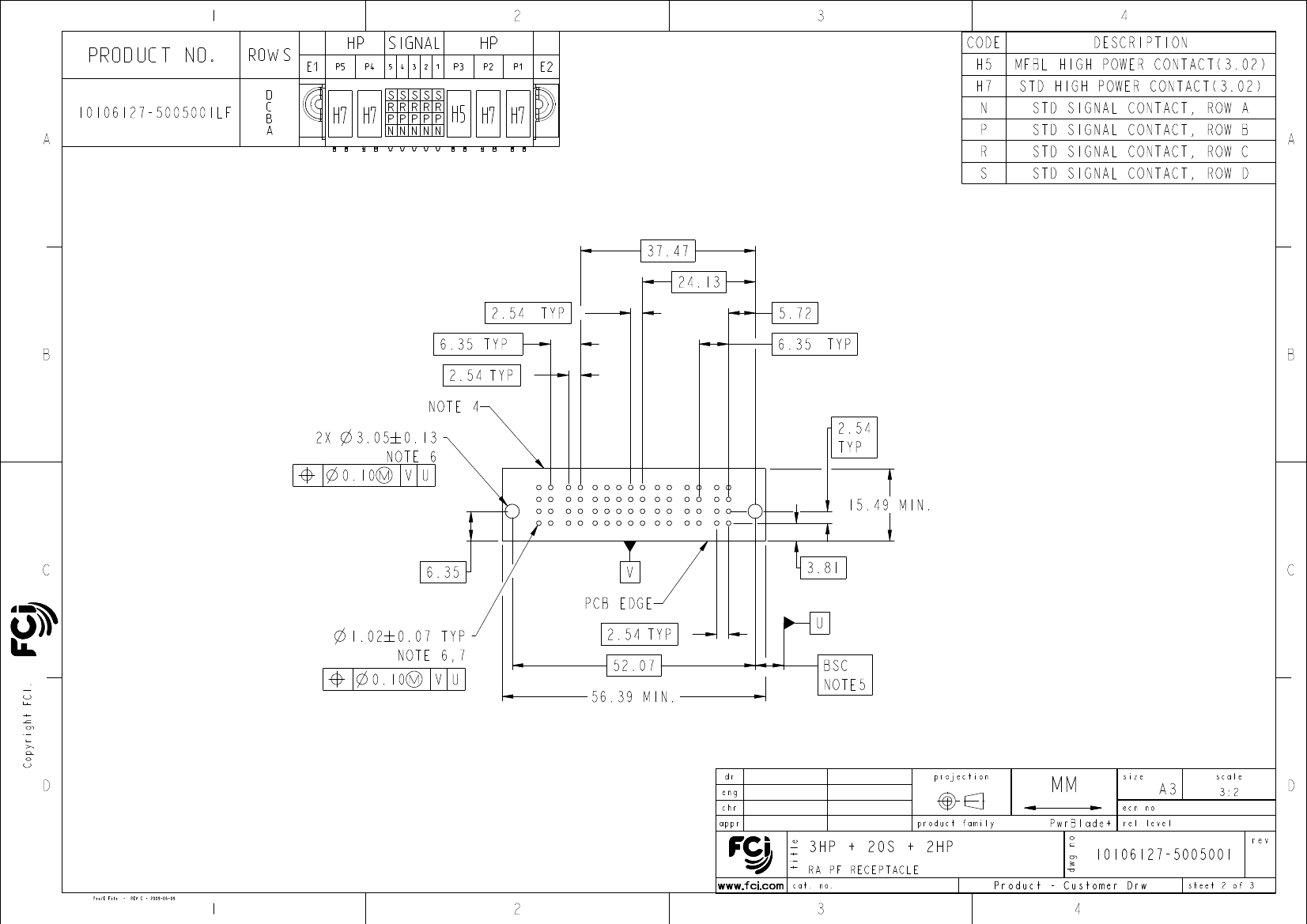

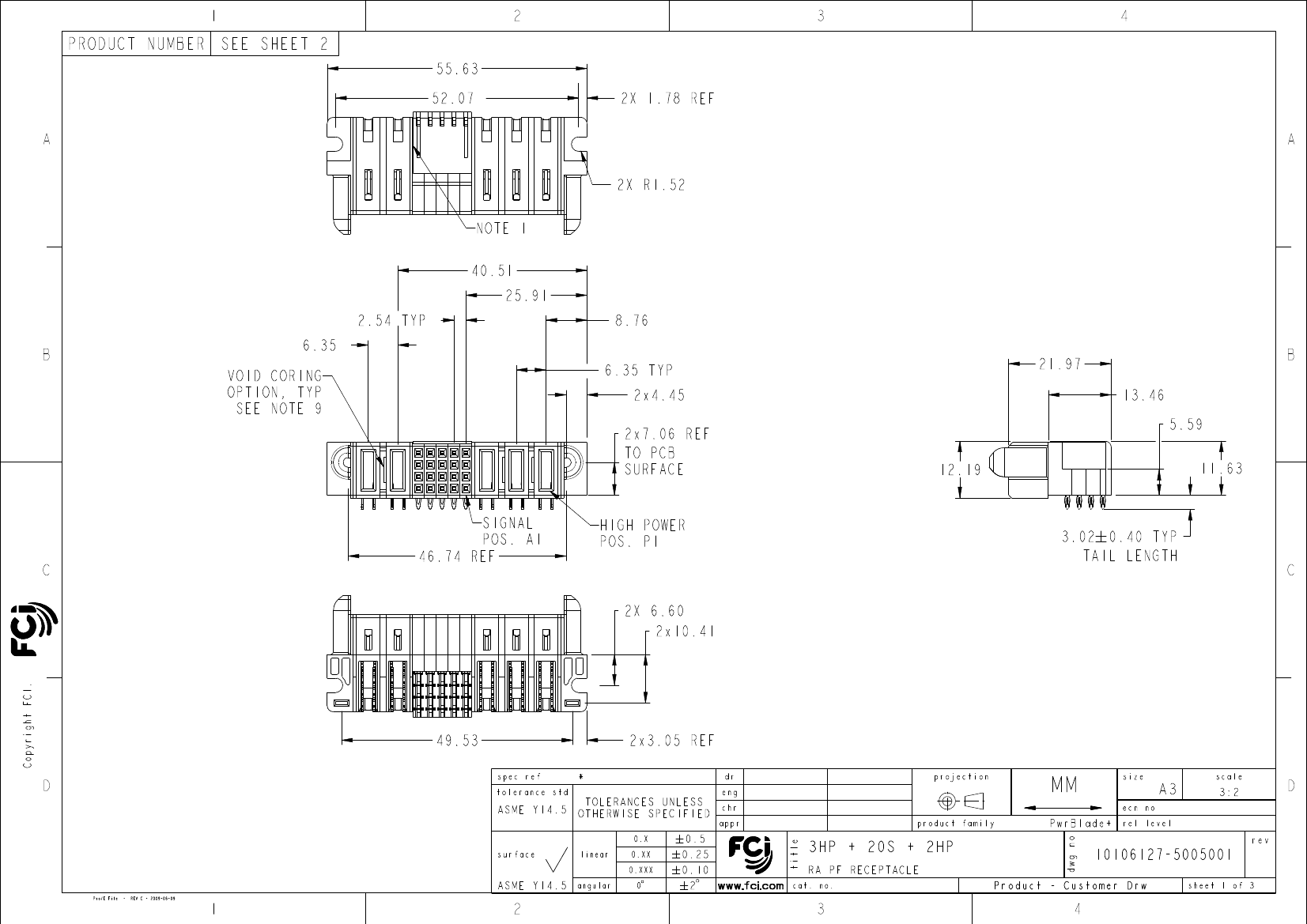

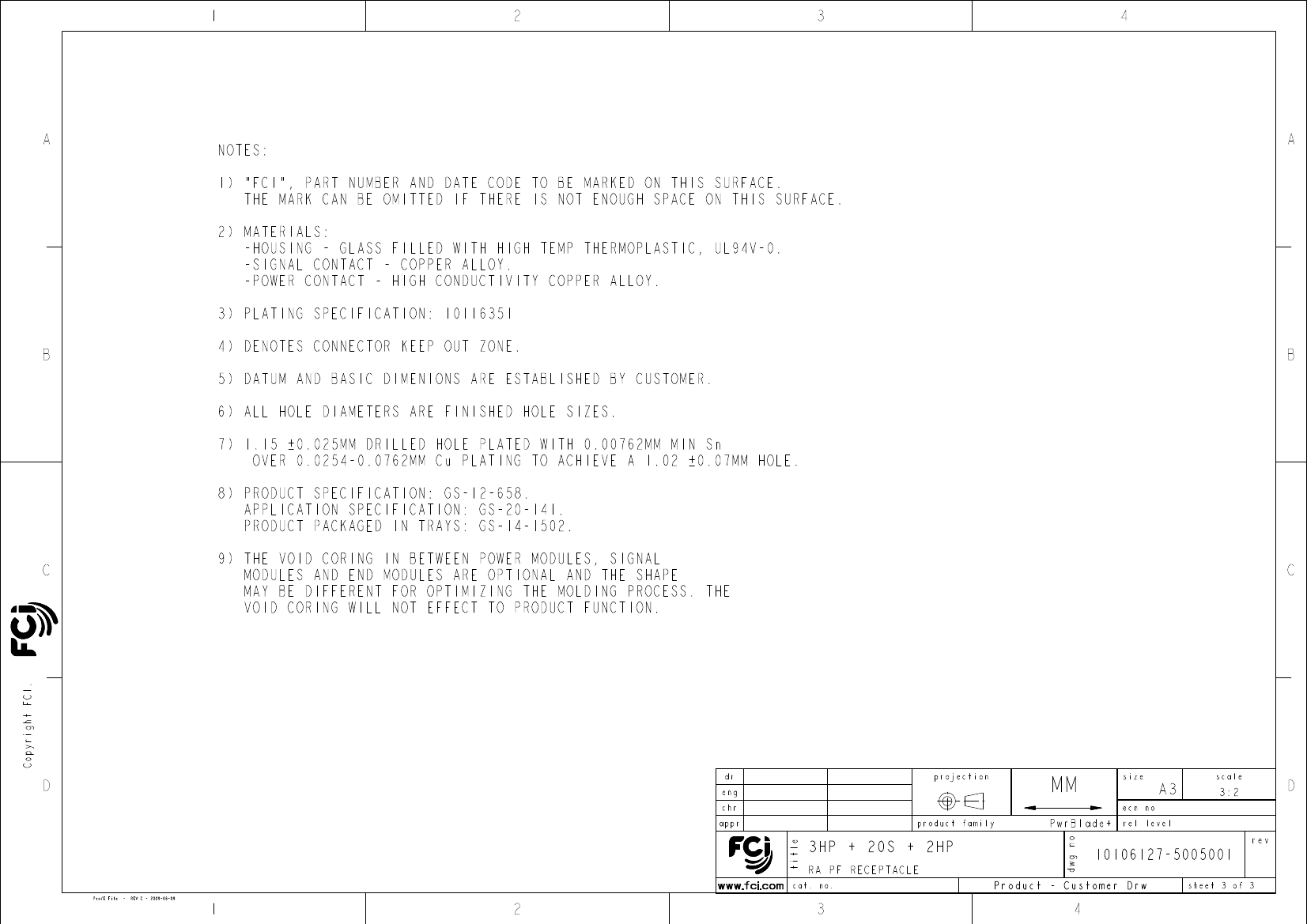

10106127-5005001LF Preview

Vicking Liu
Vicking Liu
Fancy Zhang
Pei-Ming Zheng
2016/01/14
2016/01/29
2016/01/29
2016/01/29
-
Released
A
PDS: Rev :A
STATUS:Released
Printed: Feb 02, 2016
Vicking Liu
Vicking Liu
Fancy Zhang
Pei-Ming Zheng
2016/01/14
2016/01/29
2016/01/29
2016/01/29
-
Released
A
PDS: Rev :A
STATUS:Released
Printed: Feb 02, 2016
Vicking Liu
Vicking Liu
Fancy Zhang
Pei-Ming Zheng
2016/01/14
2016/01/29
2016/01/29
2016/01/29
-
Released
A
PDS: Rev :A
STATUS:Released
Printed: Feb 02, 2016
