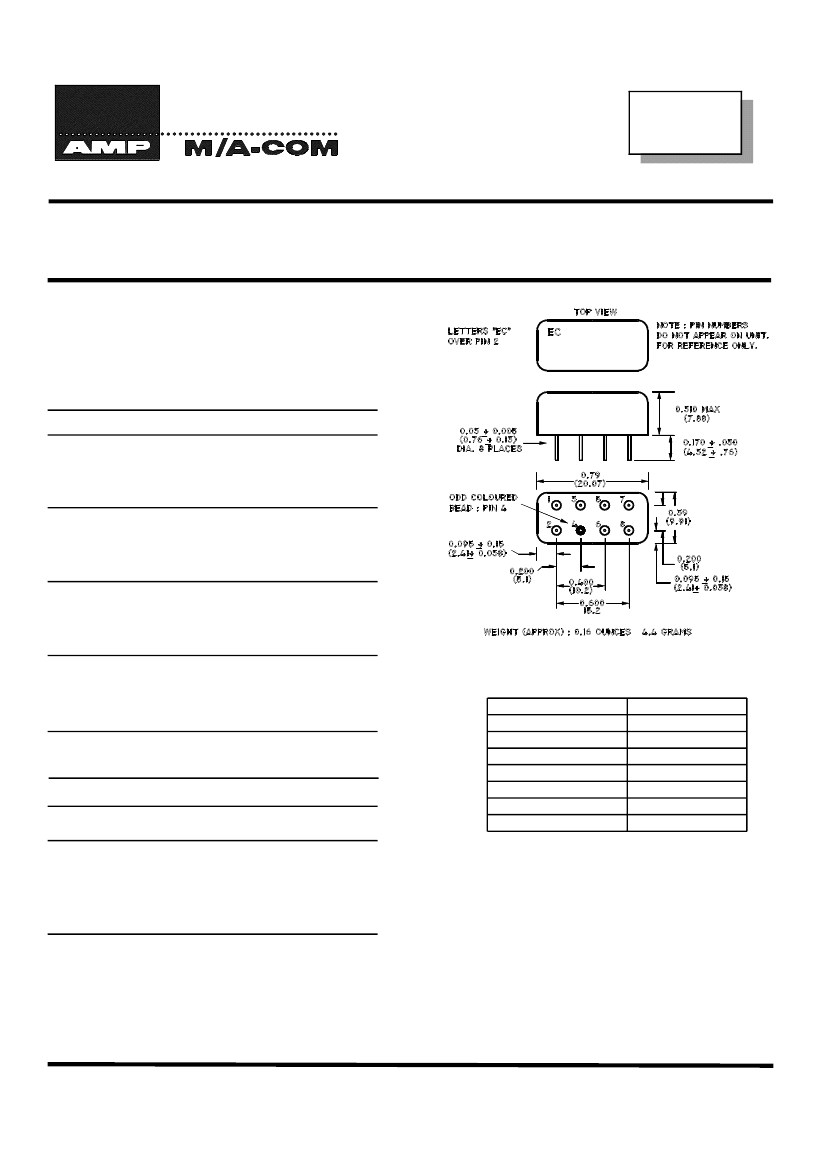

E-Series 2-Way 0° Power Divider
00.1 - 400 MHz
Features
* 2 Way
* 0 Degree
ES-2-1
R-1
Specifications @ 25°C
Frequency Range
Insertion Loss
00.1 - 1 MHz
1 - 200 MHz
200 - 400 MHz
Isolation
00.1 - 1 MHz
1 - 200 MHz
200 - 400 MHz
Amplitude Unbalance
00.1 - 1 MHz
1 - 200 MHz
200 - 400 MHz
Phase Unbalance
00.1 - 1 MHz
1 - 200 MHz
200 - 400 MHz
00.1 - 400 MHz
Typical
00.2 dB
00.4 dB
00.6 dB
Typical
20 dB
25 dB
25 dB
Maximum
00.6 dB
00.75 dB
1 dB
Minimum
15 dB
20 dB
20 dB
Maximum
00.15 dB
00.2 dB
00.3 dB
Maximum
2°
3°
4°
Operating Characteristics
Impedance
50 Ohms Nominal
Absolute Maximum Ratings
Parameter
Maximum Power Rating
Internal Load Dissipation
Pin Temp ( 10 sec )
Storage Temperature
Absolute Maximum
1 Watt
0.125 Watt
260°C
-55°C to 100°C
Function
Not Connected
External 50 Ohm
Ground
Case Ground
Input
Port 1
Port 2
Pin No.
-
-
2,3,4,7,8
2,3,4,7,8
1
5
6
Specifications Subject to Change Without Notice
S 0232 B
AMP M/A-COM Eurotec * Loughmahon Technology Park * Blackrock * Cork * Ireland * Tel: 353-21-808300 * Fax: 353-21-359935
