HIGH BRIGHTNESS LED LIGHT BAR
Part Number: KASL-4805ZG25SX15/7
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
Dimension: 48mm X 5mm X 1.6mm.
Instant light.
Linear type.
High efficiency.
Long operating life.
Low power consumption.
More energy efficient than incandescent,most halogen lamps, and fluorescent lamp.
RoHS compliant.
Package Dimensions
K
g
in
ig
r
b
t
h
CHIP
CHIP
CHIP
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3.The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK3091
APPROVED: WYNEC
REV NO: V.4B
CHECKED: Allen Liu
DATE: JUN/18/2013
DRAWN: Y.Liu
PAGE: 1 OF 8
ERP: 1209000148
Precautions
1. Do not touch the lens with any sharp object.
2. No stress should be applied on the lens.
3. Thermal grease between the light bar and heat sink is recommended to fill air gaps for better thermal conductivity.
4. For securing the LED light bar, M2 screws are recommended. The light bar should not be bent or stressed in any way
which could damage the internal circuit.
K
8. Soldering recommendations:
g
in
ig
r
b
t
h
5. To prevent damages caused by electrostatic discharge (ESD), it is recommended to wear proper gear such as
wristband or anti-static gloves when handling the product.
6. Constant current source is recommended to power the light bar. When more than one light bar are used, they should
be connected in series if possible.
7. Thermal management should be taken into consideration when using the product. Maximum driving current
should be reduced accordingly at higher ambient temperature to prevent overheating.
Soldering iron power should not exceed 40W, and should not be in contact with the joint for more than 3.5 secs.
The maximum soldering temperature should be less than 350°C.
Do not touch the product immediately after soldering.
Not reflow compatible.
9. As silicone encapsulation is permeable to gases, some corrosive substances such as H
2
S might corrode silver plating of
leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances.
SPEC NO: DSAK3091
APPROVED: WYNEC
REV NO: V.4B
CHECKED: Allen Liu
DATE: JUN/18/2013
DRAWN: Y.Liu
PAGE: 2 OF 8
ERP: 1209000148
Absolute Maximum Ratings
Parameter
Forward Current
Forward Pulse Current [1]
Power Dissipation
LED Junction Temperature
Operating Temperature
Storage Temperature
Case Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Symbol
I
F
I
FP
P
d
T
j
Topr
Tstg
T
c
Rating
700
1000
8.12
120
-30~+100
-40~+120
100
Units
mA
mA
W
°C
°C
°C
°C
Electrical / Optical Characteristics
Part Name
Device
Parameter
Forward Voltage [2]
Luminous Flux [3]
Wavelength at peak emission[4]
Dominant Wavelength
Symbol
V
F
Min.
8.4
Spectral bandwidth at 50%Φ
REL MAX
KASL-4805ZG25SX15/7
Green
in
K
Temperature coefficient of
λpeak
Temperature coefficient of
λdom
Temperature coefficient of Forward
Voltage
Thermal Resistance
b
g
ig
r
Φv
λpeak
λdom
Δλ1/2
TCλpeak
TCλdom
ΔλV
F
/ΔT
R
th j-c
2
θ
1/2
X direc-
tion
2
θ
1/2
Y direc-
tion
180
-
t
h
Typ.
10.8
240
515
-
525
30
0.14
0.11
-4
3.5
120
-
-
-
-
-
-
-
120
Max.
11.6
-
-
-
-
-
-
-
-
-
Units
V
lm
nm
nm
nm
nm/°C
nm/°C
mV/°C
°C/W
Conditions
I
F
=700mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
°
°
Emission Angle
-
I
F
=700mA
Notes:
2.Forward Voltage is measured with an accuracy of +/-0.1V.
3.Flux is measured with an accuracy of +/-15%.
4.Wavelength
:
+/-0.1nm.
5.Luminous Flux value is traceable to the CIE127-2007 compliant national standards.
6.Wavelength value is traceable to the CIE127-2007 compliant national standards.
Test Item
Moisture-proof Test
Test Condition
85°C , 85%RH for 1000 hours
SPEC NO: DSAK3091
APPROVED: WYNEC
REV NO: V.4B
CHECKED: Allen Liu
DATE: JUN/18/2013
DRAWN: Y.Liu
PAGE: 3 OF 8
ERP: 1209000148
K
g
in
ig
r
b
t
h

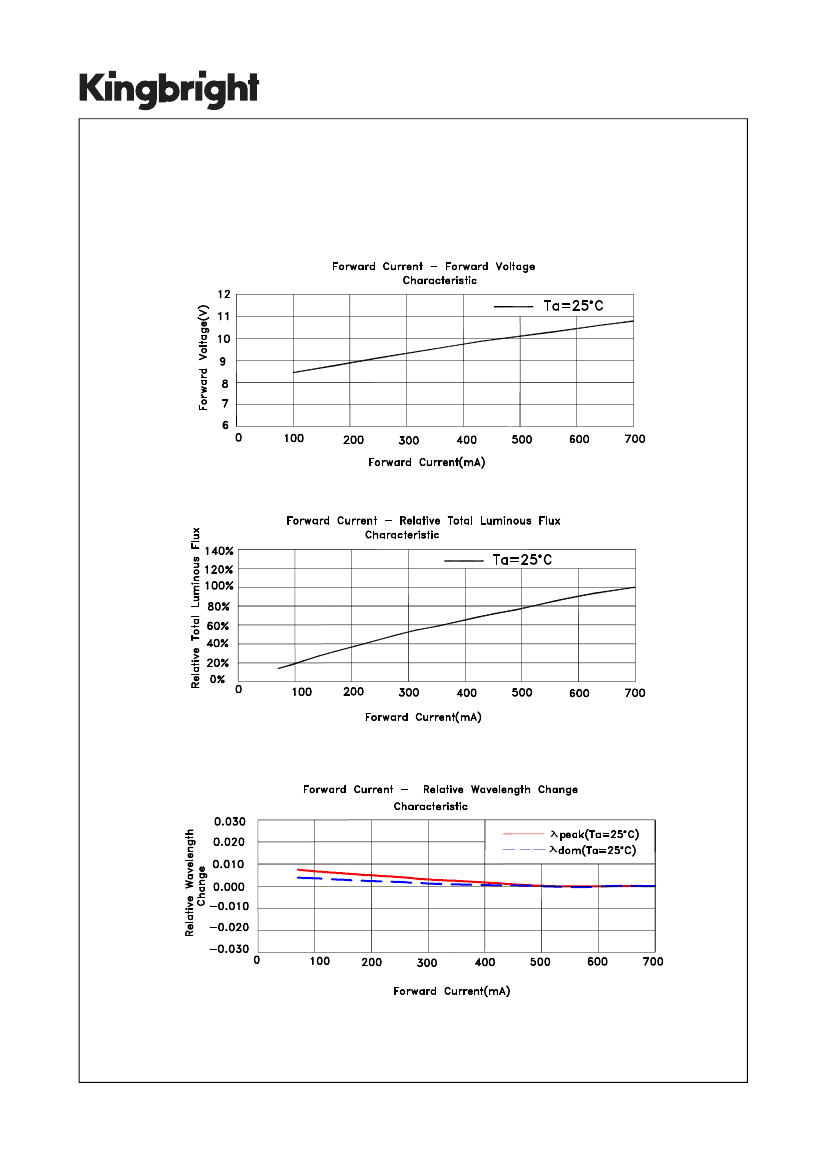

SPEC NO: DSAK3091
APPROVED: WYNEC
REV NO: V.4B
CHECKED: Allen Liu
DATE: JUN/18/2013
DRAWN: Y.Liu
PAGE: 4 OF 8
ERP: 1209000148
K
g
in
ig
r
b
t
h

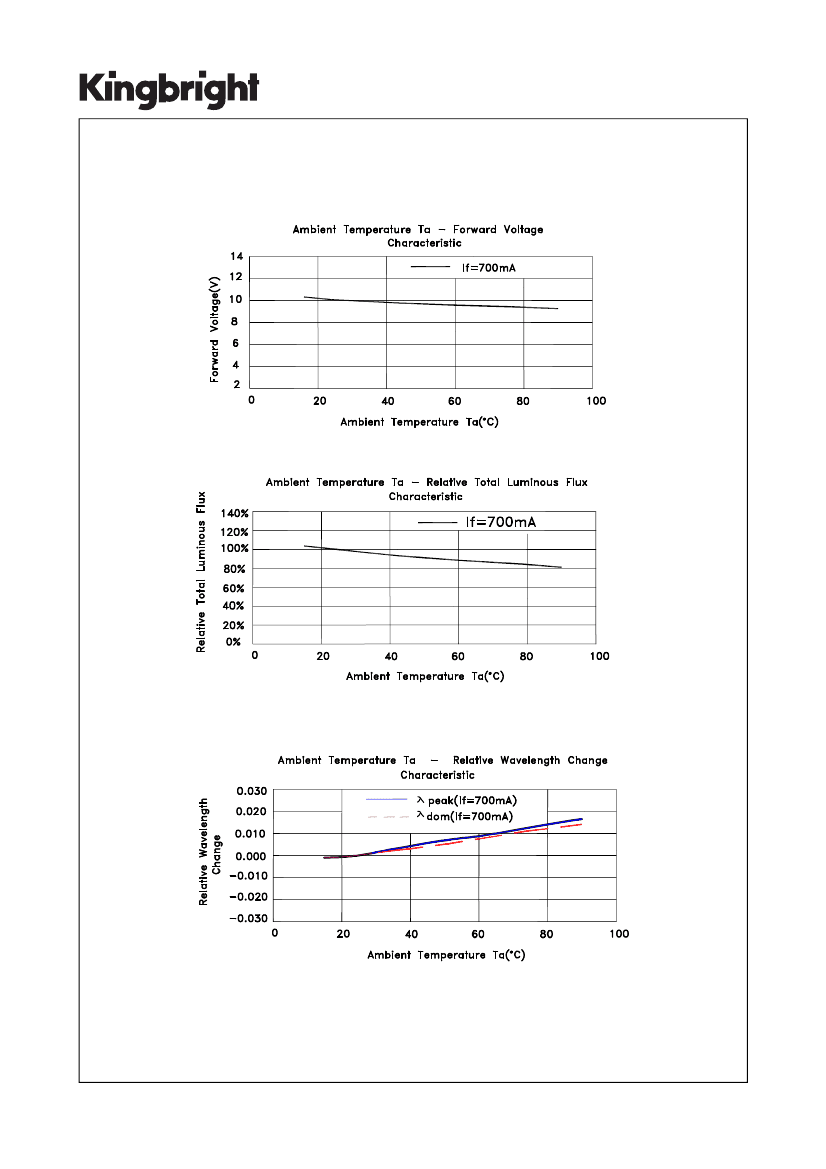

SPEC NO: DSAK3091
APPROVED: WYNEC
REV NO: V.4B
CHECKED: Allen Liu
DATE: JUN/18/2013
DRAWN: Y.Liu
PAGE: 5 OF 8
ERP: 1209000148
