2.5X2.0mm SURFACE MOUNT LED LAMP
Part Number: KT-2520ZG25Z1S
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
Dimension: 2.5mmx 2.0mm x 0.8mm.
Low thermal resistance.
Ceramic package with silicone resin.
Small package with high efficiency.
Surface mount technology.
ESD protection.
Package : 2000pcs / reel.
Moisture sensitivity level : level 2a.
Soldering methods: IR reflow soldering.
RoHS compliant.
Application Note
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Typical Applications
PDAs
Room lighting
Architectural lighting
Decorative/pathway lighting
Front panel backlight
Exterior automotive lighting:
(brake lights, turn lights, backlighting)

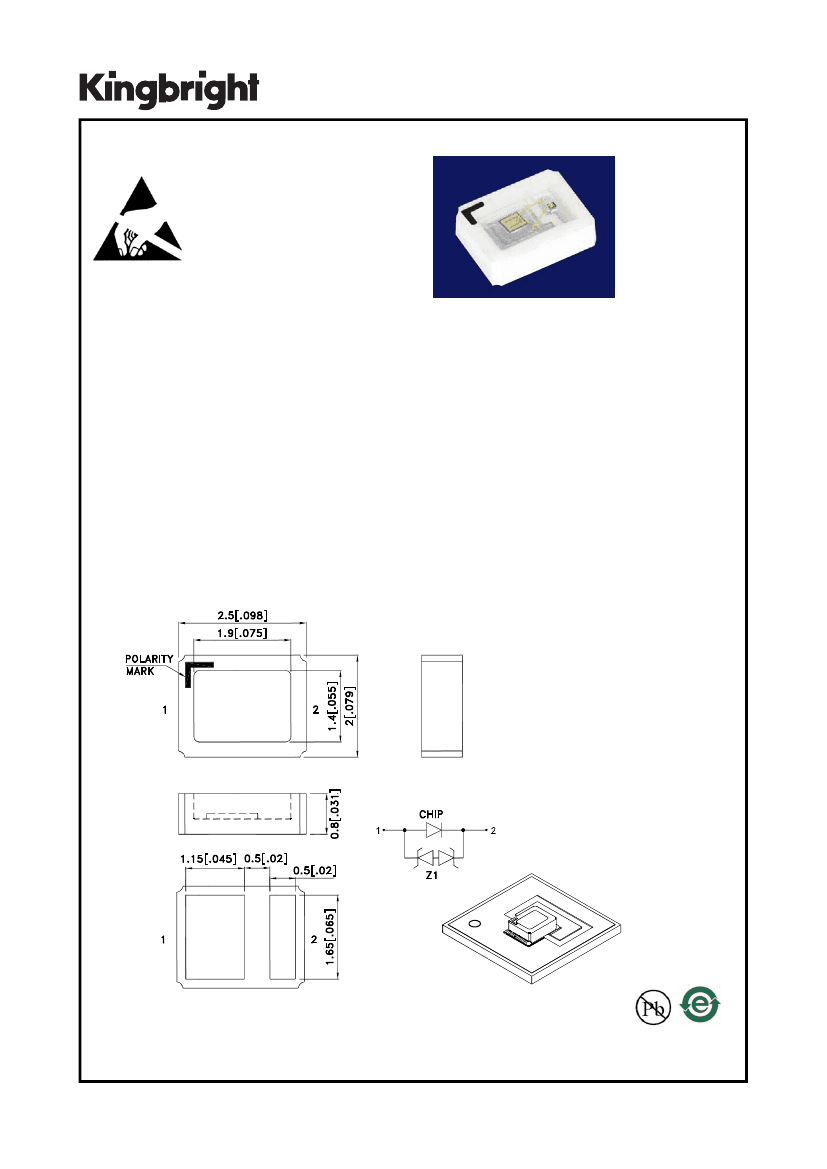

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAK3135
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/23/2010
DRAWN: Y.H.Wu
PAGE: 1 OF 7
ERP: 1212000219

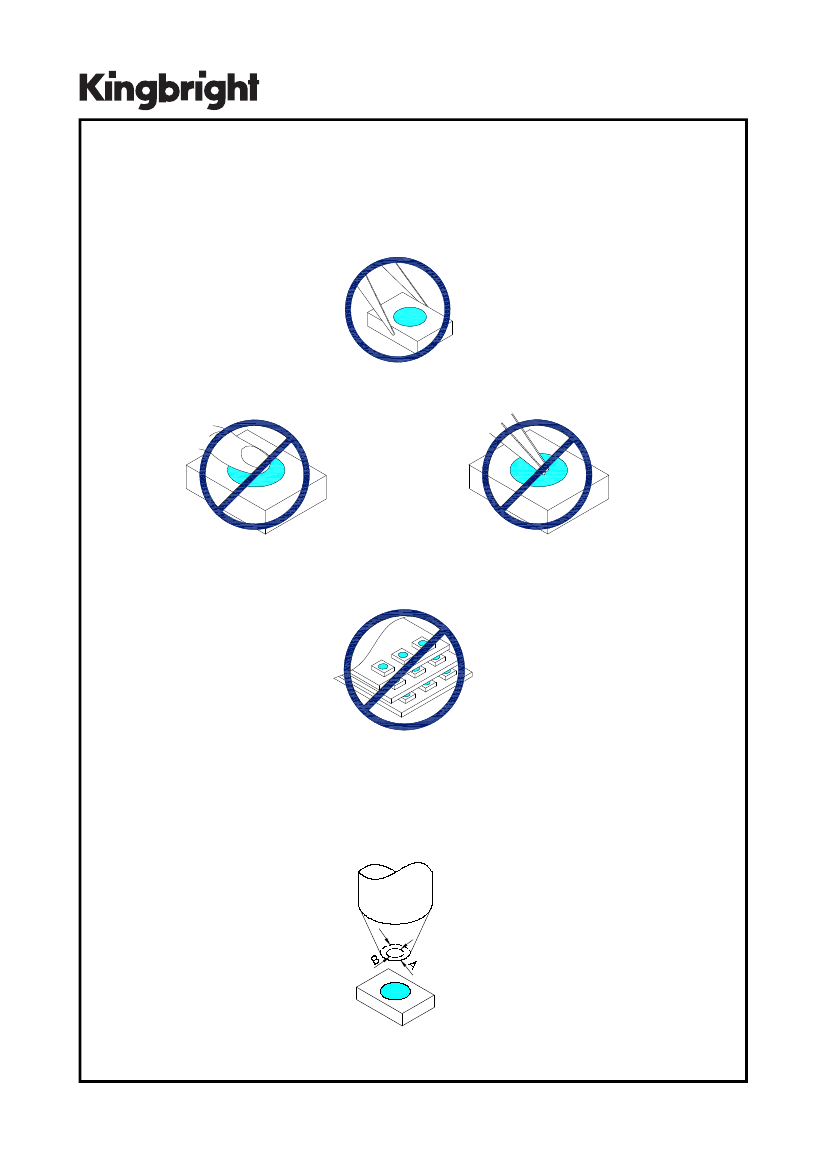

Handling Precautions
Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic
significantly reduces thermal stress, it is more susceptible to damage by external mechanical force.
As a result, special handling precautions need to be observed during assembly using silicone encapsulated
LED products. Failure to comply might lead to damage and premature failure of the LED.
1. Handle the component along the side surfaces by using forceps or appropriate tools.
2. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.
3. Do not stack together assembled PCBs containing exposed LEDs. Impact may scratch the silicone lens or
damage the internal circuitry.
4.1. The outer diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks. The inner diame-
ter of the nozzle should be as large as possible.
4.2. A pliable material is suggested for the nozzle tip to avoid scratching or damaging the LED surface during pickup.
4.3. The dimensions of the component must be accurately programmed in the pick-and-place machine to insure precise pickup
and avoid damage during production.
5. As silicone encapsulation is permeable to gases, some corrosive substances such as H
2
S might corrode silver plating of
leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances.
SPEC NO: DSAK3135
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/23/2010
DRAWN: Y.H.Wu
PAGE: 2 OF 7
ERP: 1212000219
Selection Guide
Part No.
Dice
luminous Intensity [2]
Iv(mcd)@ 150mA
Min.
KT-2520ZG25Z1S
Green (InGaN)
3600
Typ.
5000
Φv
(mlm) [2]
@ 150mA
Min.
17000
Typ.
24000
Viewing
Angle [1]
2
θ
1/2
120
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
Junction temperature[1]
Operating Temperature
Storage Temperature
Reverse Voltage
DC Forward Current [1]
Peak Forward Current [2]
Thermal resistance [1]
Thermal resistance [1]
(Junction/solder point)
Electrostatic Discharge Threshold (HBM)
Symbol
P
D
T
J
Top
Tstg
V
R
I
F
I
FM
R
th j-a
R
th j-s
Value
600
110
-40 To +100
-40 To +110
5
150
300
170
50
8000
Unit
mW
°C
°C
°C
V
mA
mA
°C/W
°C/W
V
Notes:
1. Results from mounting on PC board FR4,mounted on pc board-metal core PCB is recommend
for lowest thermal resistance.
2. 1/10 Duty Cycle, 0.1ms Pulse Width.
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Forward Voltage I
F
= 150mA [Min.]
Forward Voltage I
F
= 150mA [Typ.]
Forward Voltage I
F
= 150mA [Max.]
Allowable Reverse Current [Max.]
Wavelength at peak emission I
F
= 150mA
Dominant Wavelength I
F
= 150mA
Spectral bandwidth at 50%
Φ
REL MAX
Symbol
Value
2.9
Unit
V
F
[2]
3.5
4.0
V
I
R
[Typ.]
λ
peak
λ
dom [1]
Δλ
TC
λ
peak
TC
λ
dom
TC
V
85
515
525
30
0.09
0.03
-2.7
mA
nm
nm
nm
nm/°C
nm/°C
mV/°C
[Typ.]
I
F
= 150mA [Typ.]
Temperature coefficient of
λ
peak
I
F
= 150mA, - 10
°
C
≤
T
≤
100
°
C [Typ.]
Temperature coefficient of
λ
dom
I
F
= 150mA, - 10
°
C
≤
T
≤
100
°
C [Typ.]
Temperature coefficient of V
F
I
F
= 150mA, - 10
°
C
≤
T≤ 100
°
C [Typ.]
Notes:
1.Wavelength : + / -1nm.
2. Forward Voltage : + / - 0.1V.
SPEC NO: DSAK3135
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/23/2010
DRAWN: Y.H.Wu
PAGE: 3 OF 7
ERP: 1212000219

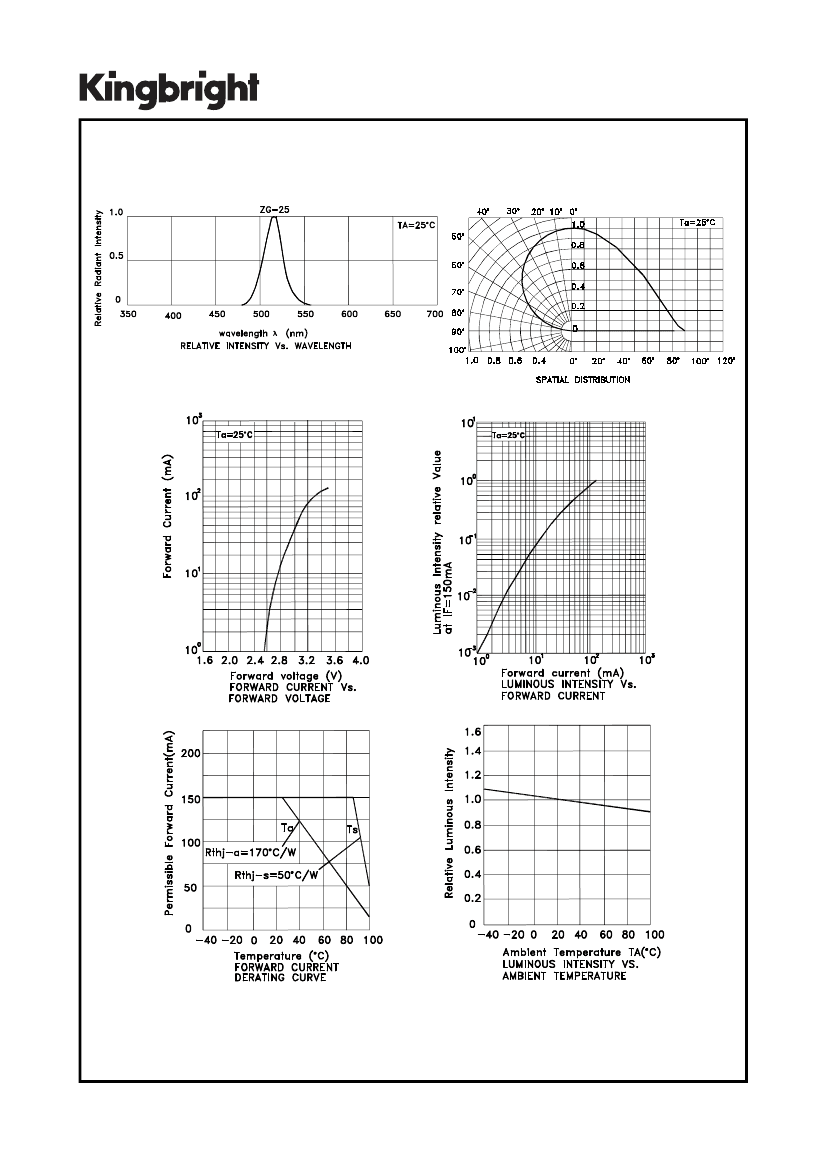

Green
KT-2520ZG25Z1S
SPEC NO: DSAK3135
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/23/2010
DRAWN: Y.H.Wu
PAGE: 4 OF 7
ERP: 1212000219
SPEC NO: DSAK3135
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/23/2010
DRAWN: Y.H.Wu
PAGE: 5 OF 7
ERP: 1212000219
