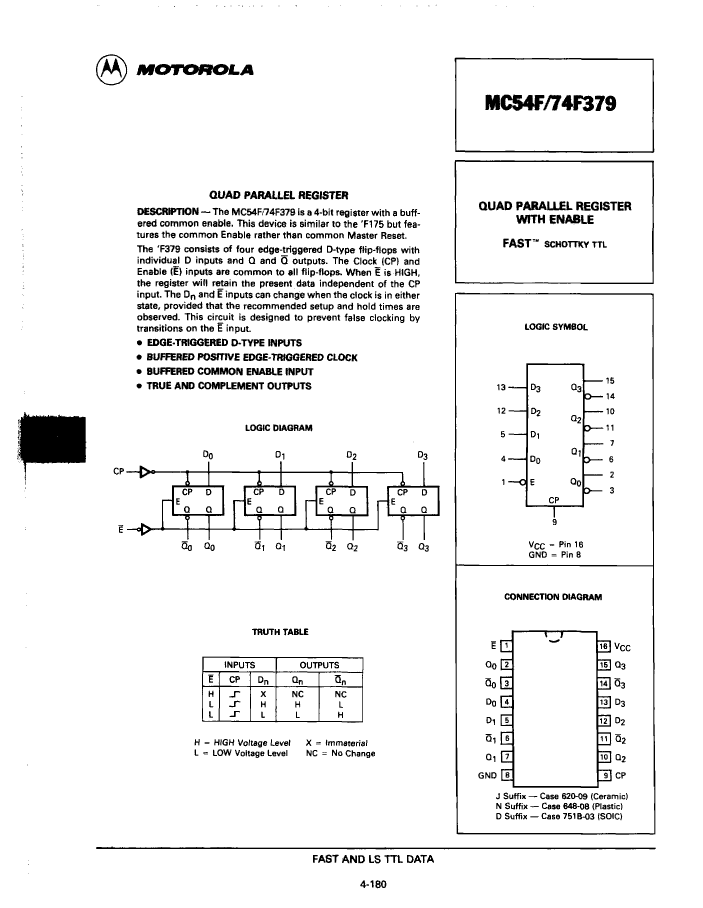

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOIC-16

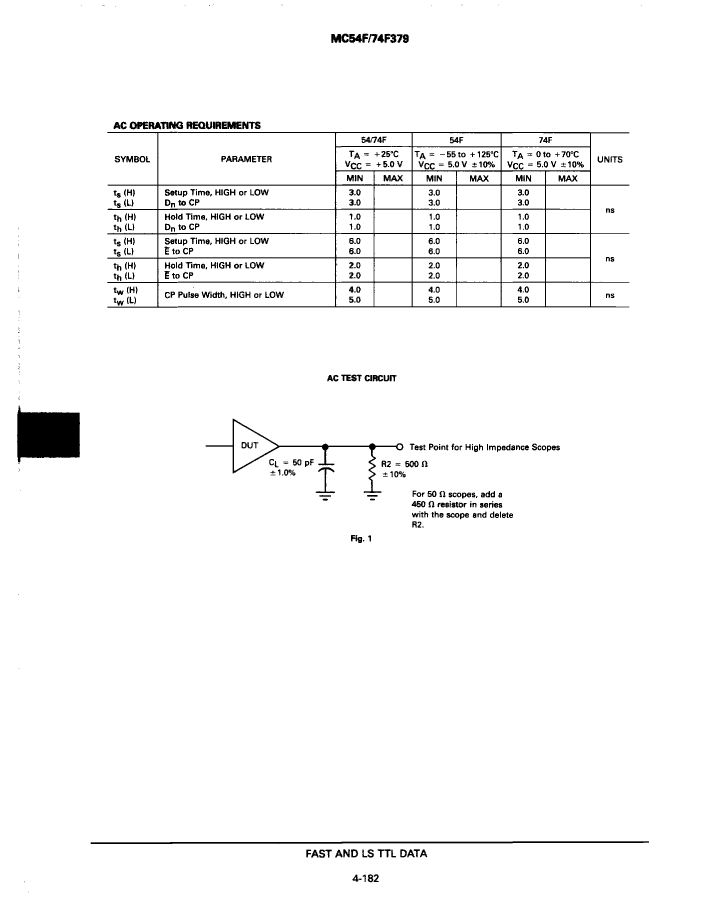

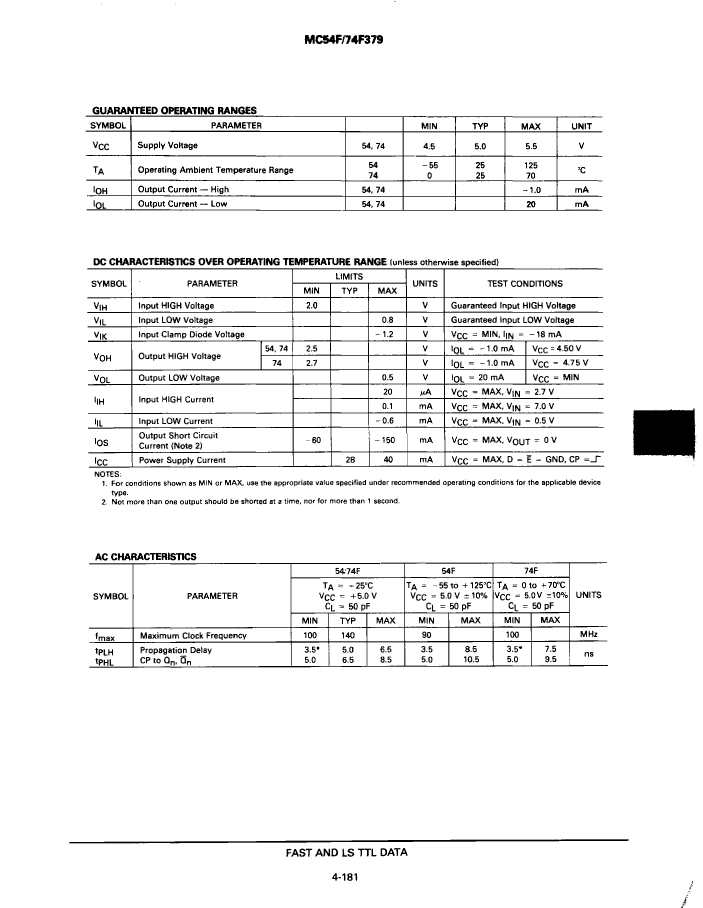

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| package instruction | SOP, |
| Reach Compliance Code | unknown |
| Other features | WITH HOLD MODE |
| series | F/FAST |
| JESD-30 code | R-PDSO-G16 |
| length | 9.9 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum supply current (ICC) | 40 mA |
| propagation delay (tpd) | 9.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| width | 3.9 mm |
| minfmax | 100 MHz |
| MC74F379DD | MC54F379JD | MC74F379DDR2 | |
|---|---|---|---|
| Description | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOIC-16 | F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16, CERAMIC, DIP-16 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOIC-16 |
| package instruction | SOP, | DIP, DIP16,.3 | SOP, |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | WITH HOLD MODE | WITH HOLD MODE | WITH HOLD MODE |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-PDSO-G16 | R-GDIP-T16 | R-PDSO-G16 |
| length | 9.9 mm | 19.3 mm | 9.9 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 40 mA | 40 mA | 40 mA |
| propagation delay (tpd) | 9.5 ns | 10.5 ns | 9.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 4.19 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 3.9 mm | 7.62 mm | 3.9 mm |
| minfmax | 100 MHz | 90 MHz | 100 MHz |
| Maker | Motorola ( NXP ) | - | Motorola ( NXP ) |
