S1750B-40.0000(T) datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> S1750B-40.0000(T)

S1750B-40.0000(T): DescriptionHCMOS/TTL Output Clock Oscillator, 1.8432MHz Min, 67MHz Max, 40MHz Nom, Hybrid; CategoryPassive components oscillator; File Size1009KB，2 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

S1750B-40.0000(T) Overview

HCMOS/TTL Output Clock Oscillator, 1.8432MHz Min, 67MHz Max, 40MHz Nom, Hybrid

S1750B-40.0000(T) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	1 YEARS AGING AVAILABLE; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
JESD-609 code	e4
Manufacturer's serial number	S1750
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	67 MHz
Minimum operating frequency	1.8432 MHz
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	5 TTL, 50 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	182.88mm x 132.08mm x 44.45mm
power supply	5 V
Certification status	Not Qualified
longest rise time	10 ns
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
technology	HYBRID
Terminal surface	Gold (Au)

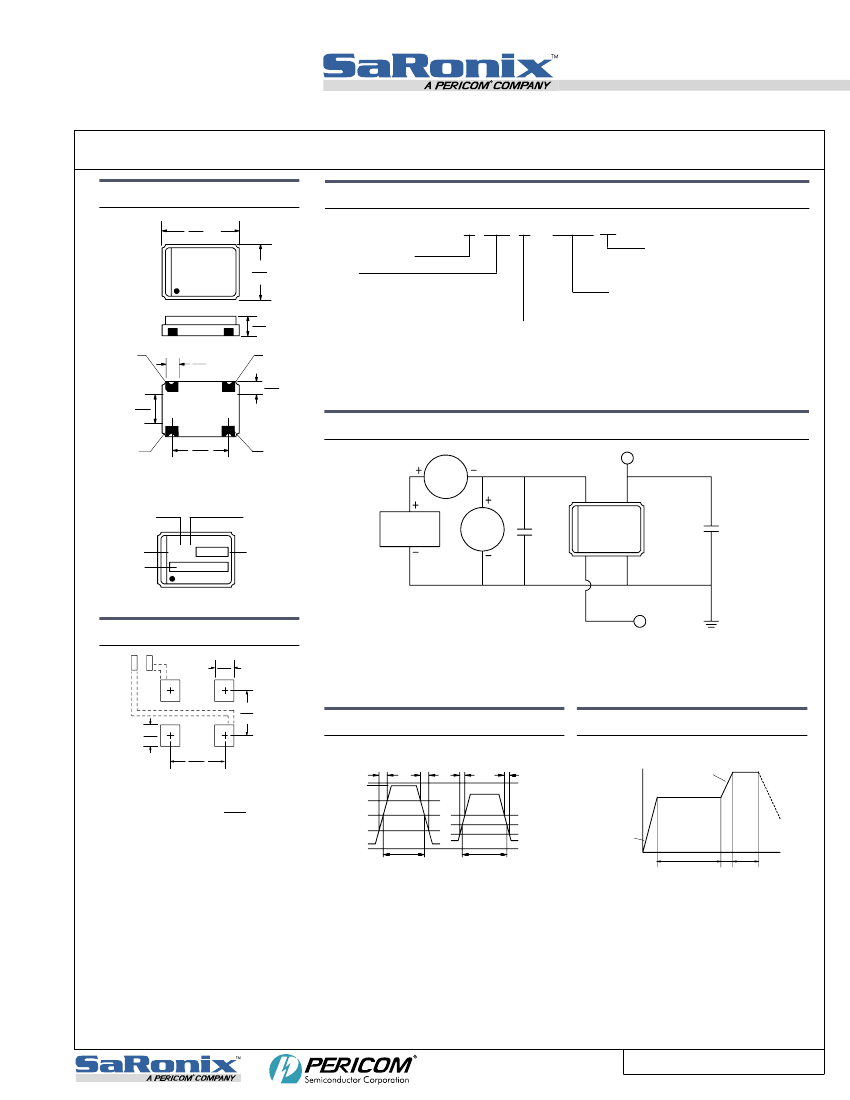

Preview

Download Datasheet

View All

Crystal Clock Oscillator

Technical Data

Frequency Range:

Frequency Stability:

*Aging:

Temperature Range:

Operating:

Storage:

Supply Voltage:

Supply Current:

1.8432 MHz to 80 MHz

3.3 & 5V, HCMOS, TTL, SMD

S1700 / S1703 / S1750 Series

±50 or ±100 ppm over all conditions; calibration tolerance, operating

temperature, rated input (supply) voltage change, load change, aging*.

1 year @ 25°C average ambient temperature), shock and vibration.

0 to +70°C

-55 to +125°C

5.0V ±10% (S1700 & S1750)

3.3V ±10% (S1703)

S1700: 15mA max 1.8432 to 35MHz

30mA max 35+ to 66MHz

50mA max 66+ to 80MHz

S1750: 20mA max 1.8432 to 20MHz

35mA max 20+ to 50MHz

60mA max 50+ to 67MHz

S1703: 8mA max 1.8432 to 34MHz (5mA max disable)

12mA max 34+ to 50MHz (8mA max disable)

15mA max 50+ to 64MHz (10mA max disable)

35mA max 64+ to 66.667MHz (23mA max disable)

35mA max 66.667+ to 80MHz (10μA max disable low

power standby)

40/60% max @ 1.5V

5ns max 0.5 to 2.5V

0.5V max

2.5V min

5 TTL

8ps max

45/55% max @ 50% V

, 40/60% max for S1703

10ns max, 20% to 80% V

(5ns max S1703 67+ MHz)

10% V

max

90% V

min

S1700: 15pF, S1703: 15pF (≤64MHz) & 30pF (64+MHz), S1750: 50pF

8ps max

ACTUAL SIZE

Description

The S1700, S1703 and S1750 are crys-

tal-controlled, low-current oscillators

providing precise rise and fall times to

drive high speed CMOS and TTL loads.

The sub-miniature, ceramic package has

gold-plated contact pads, ideal for today's

pick-and-place SMT environments and

lead-free soldering. The S1750 is a

high output load version available to

67 MHz.

Applications & Features

• Sub-miniature, very low profile package

is ideal for SMT applications

• Ideal for lead-free soldering

• CMOS, HCMOS & TTL compatible

• Perfect for PC's; notebook, palmtop

computers; portable applications; PC-

MCIA cards; disc drives.

• S1700 for low power 5V application

• S1703 for 3.3V operations. Low-power

Stand-by above 66.667MHz

• S1750 for high output load, higher fan-

out applications

• Available on tape & reel; 16mm tape,

500pcs per reel

Output:

TTL

(S1750 only)

Symmetry:

Rise & Fall Times:

Logic 0:

Logic 1:

Load:

Period Jitter RMS:

HCMOS

Symmetry:

Rise & Fall Times:

Logic 0:

Logic 1:

Load max:

Period Jitter RMS:

Output Enable Characteristics

Output Ocillation (V

Output High Impedance (V

Disable Output Delay:

Enable Output Delay:

Internal Pullup Resistance:

Mechanical:

Shock:

Solderability:

Vibration:

Solvent Resistance:

Resistance to Soldering Heat:

S1750

S1700

≥ 2.2V or N/C

≥ 90% V

or N/C

≤ 10% V

or GND ≤ 0.8V GND

≤ 100ns

≥ 50kΩ

* 10ms above 66.667 MHz for S1703

MIL-STD-883, Method 2002, Condition B

MIL-STD-883, Method 2003

MIL-STD-883, Method 2007, Condition A

MIL-STD-202, Method 215

MIL-STD-202, Method 210, Condition I or J

MIL-STD-883, Method 1014, Condition C

MIL-STD-883, Method 1014, Condition A2

MIL-STD-883, Method 1011, Condition A

MIL-STD-883, Method 1004

S1703

≥ 2.2V or N/C

≤ 0.5V or GND

≤ 150ns

≤ 150ns*

≥ 50kΩ

Environmental:

Gross Leak Test:

Fine Leak Test:

Thermal Shock:

Humidity:

www.pericom.com/saronix

DS-138

REV H
