K
Series —
Low Cost
Most Cost Effective
General Purpose
RFI Power Line Filters
FPO
UL Recognized
CSA Certified
VDE Approved

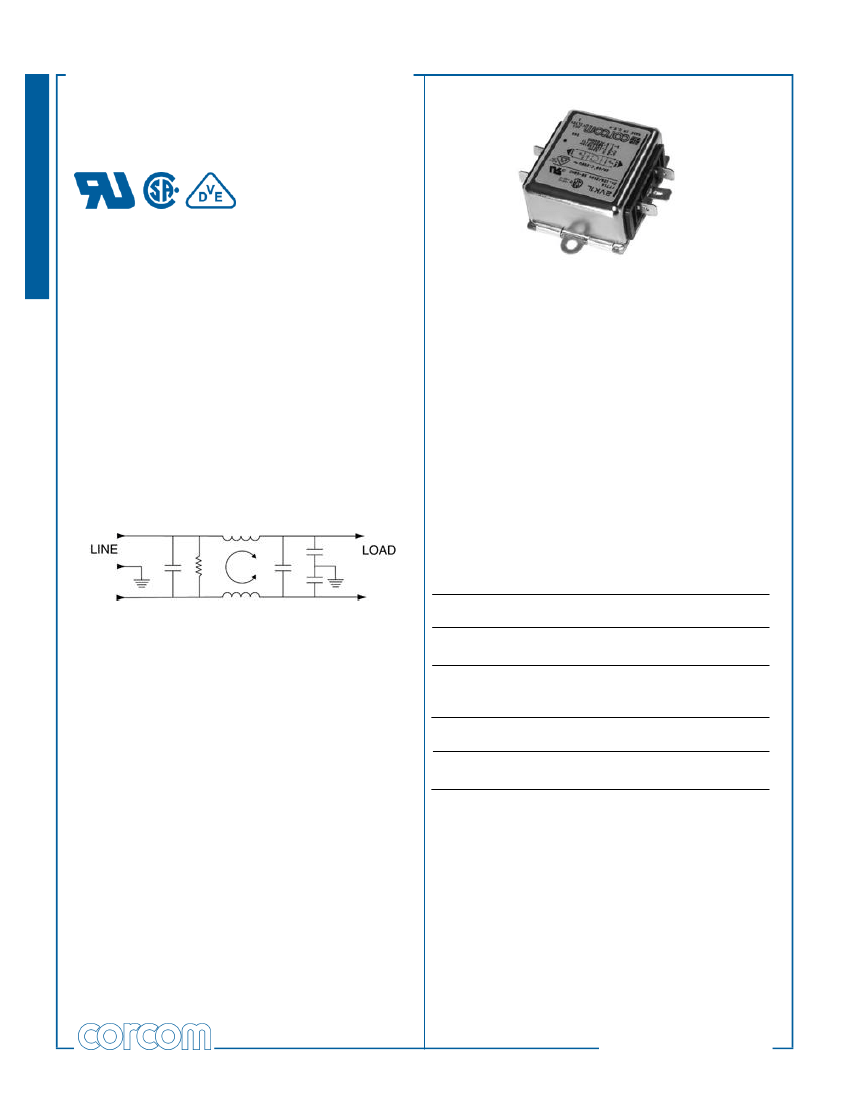

K Series -
Low Cost
Corcom K series general purpose filters are available in
an improved design. The 2, 3 and 5 amp models have
been redesigned to allow solderless connections,
economical construction and a shorter case style. The
same general purpose filtering as the K series is now
available as the cost reduced VK1L.
The VK1L series features a compact case style with
terminals on the line and load side. Flanges on either
side provide for easy mounting. With a lower price,
the series is well suited for high volume applications.
VK1L
Specifications
Maximum leakage current, each
line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage:
.4 mA
.7 mA
2250 VDC
1450 VDC
50/60 Hz
120/250 VAC
Electrical Schematic
Minimum
insertion loss in dB:
Line-to-ground in 50 ohm circuit
Resistor location for reference only.
Current
Rating
3A
2A, 5A
.15
21
10
Frequency-MHz
.5
1
2
5
34
38
44
53
25
32
37
46
10
55
50
20
55
52
30
50
53
Line-to-line in 50 ohm circuit
Current
Rating
3A
2A, 5A
.15
3
5
Frequency-MHz
.5
1
2
5
32
5
50
40
63
60
60
63
10
42
60
20
42
50
30
50
50
K
58
Libertyville, IL (847) 680-7400
Series
Case Style
Metric shown in italics.
Metric shown in italics.
K
—
Low Cost
B
(max)
2.03
51.01
C
(max)
.905
22.85
D
± .015
± .38

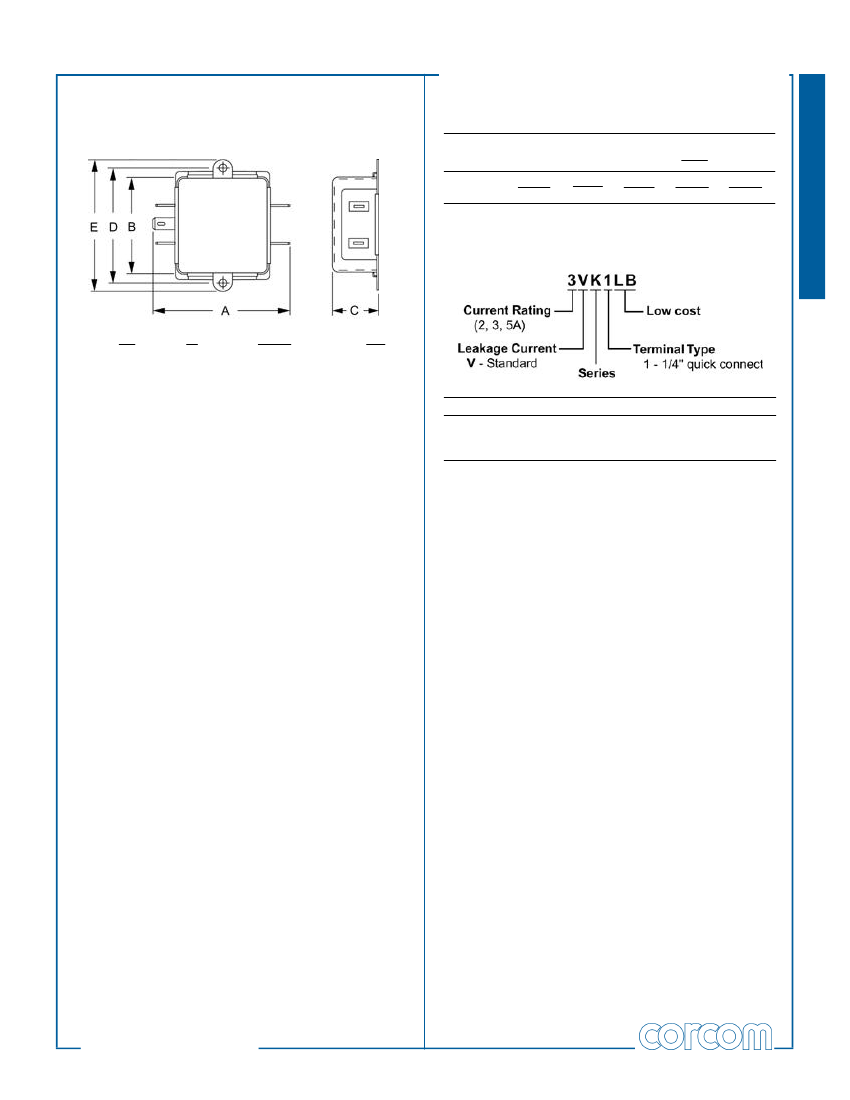

Case Dimensions
Part No.
VK1L
6EH1LB
A
(max)
3.095
78.15
E
(max)
2.805
70.83
VK1L
2.375
59.97
Ordering Information
Consult your local Corcom sales representative for pricing.
Typical dimensions
.
250
Terminals:
6.35
(5) Holes:
.
0 7
1.8
Dia.(4) Slot:
.
07 x .16
1.8 x 4.1
Mounting holes:
.
188
4.78
Dia.(2)
Available Part Numbers
2VK1L
3VK1L
5VK1L
K
59
Libertyville, IL (847) 680-7400
