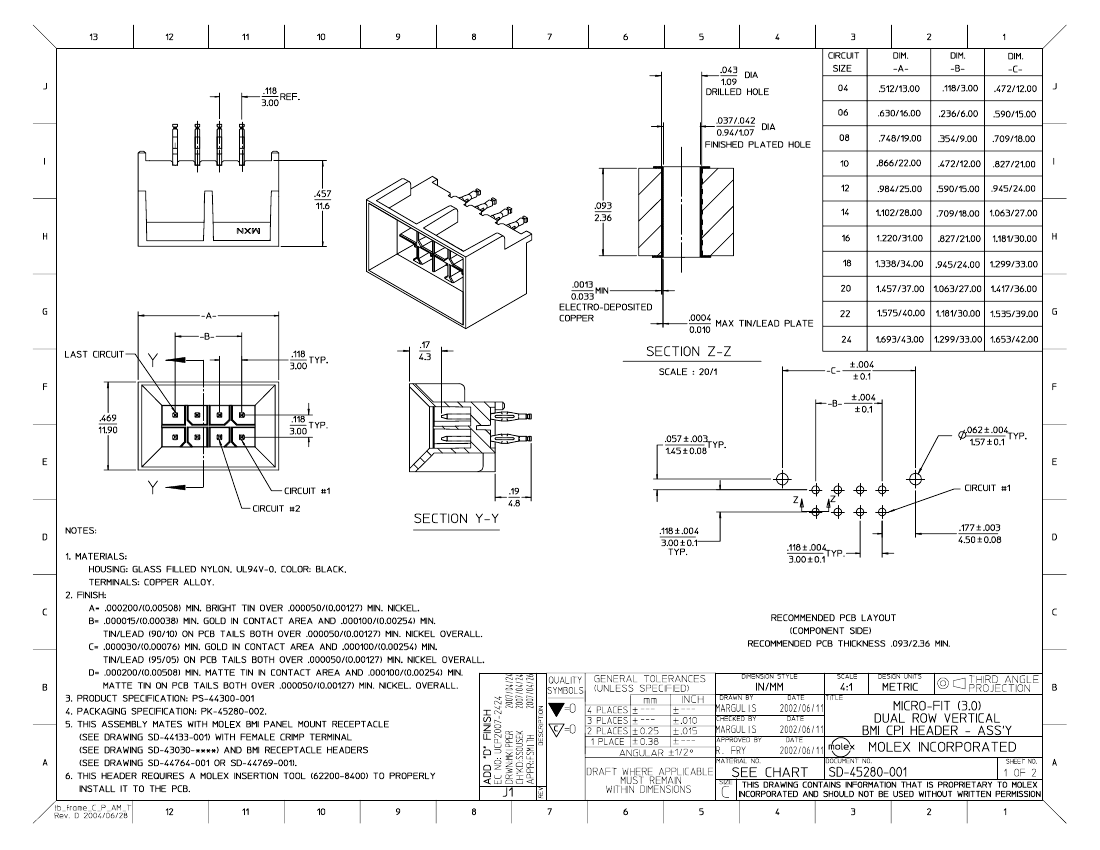

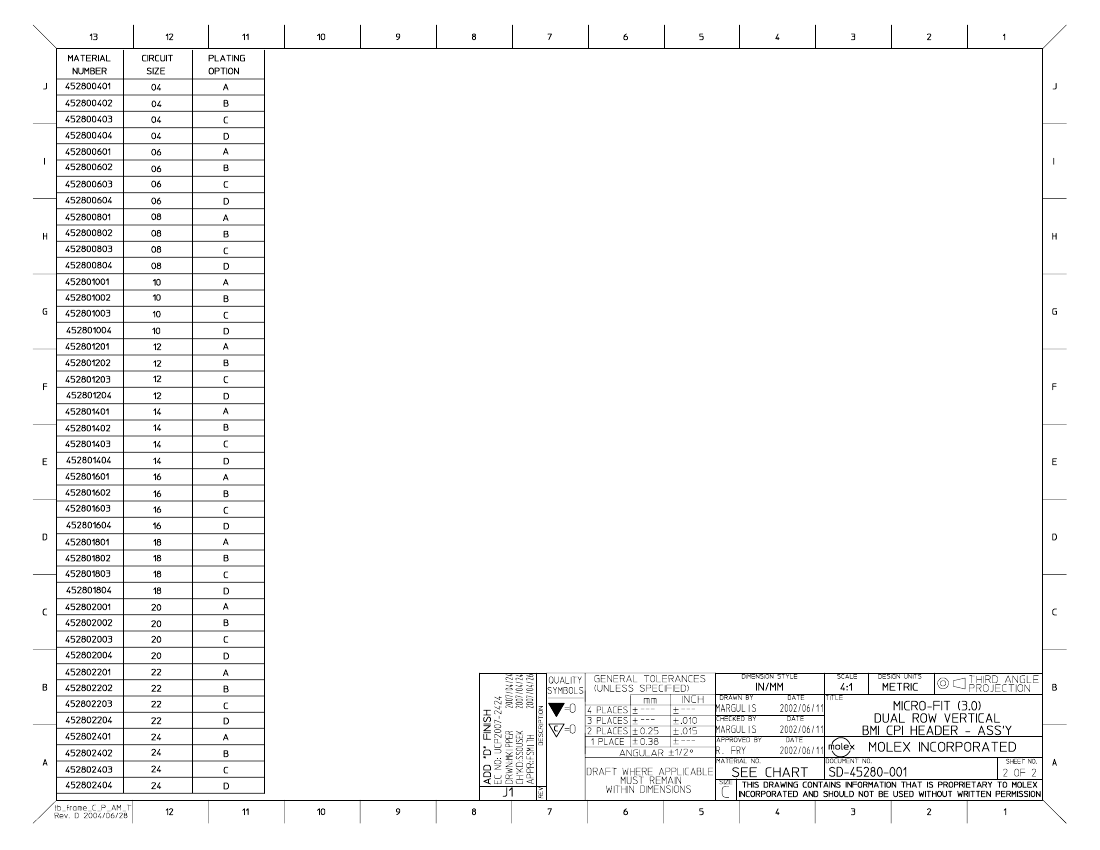

452800804: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size150KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

452800804 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator

452800804 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Board mount options	HOLE .055-.063
body width	0.469 inch
subject depth	0.457 inch
body length	0.748 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	45280
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	200u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	2.9972 mm
Termination type	PRESS FIT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

452800804 Related Products

	452800804	452802204	452801204	452801004	452801404
Description	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator,	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator
Reach Compliance Code	compli	unknown	unknown	compliant	unknown
Board mount options	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063
body width	0.469 inch	0.469 inch	0.469 inch	0.469 inch	0.469 inch
subject depth	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch
body length	0.748 inch	1.575 inch	0.984 inch	0.866 inch	1.102 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	NOT SPECIFIED	SN ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Plug contact pitch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Match contact row spacing	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm
Plating thickness	200u inch	200u inch	200u inch	200u inch	200u inch
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.19 inch	0.19 inch	0.19 inch	0.19 inch	0.19 inch
Terminal pitch	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	8	22	12	10	14
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL
Manufacturer's serial number	45280	45280	45280	-	45280
