REF195EP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> REF195EP

REF195EP: Description1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5V, PDIP8, PLASTIC, DIP-8; CategoryPower/power management The power supply circuit; File Size312KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

REF195EP Overview

1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5V, PDIP8, PLASTIC, DIP-8

REF195EP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.002 V
Minimum output voltage	4.998 V
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	0.045 mA
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	5.2 V
surface mount	NO
technology	BICMOS
Maximum voltage temperature coefficient	7 ppm/°C
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	0.04%

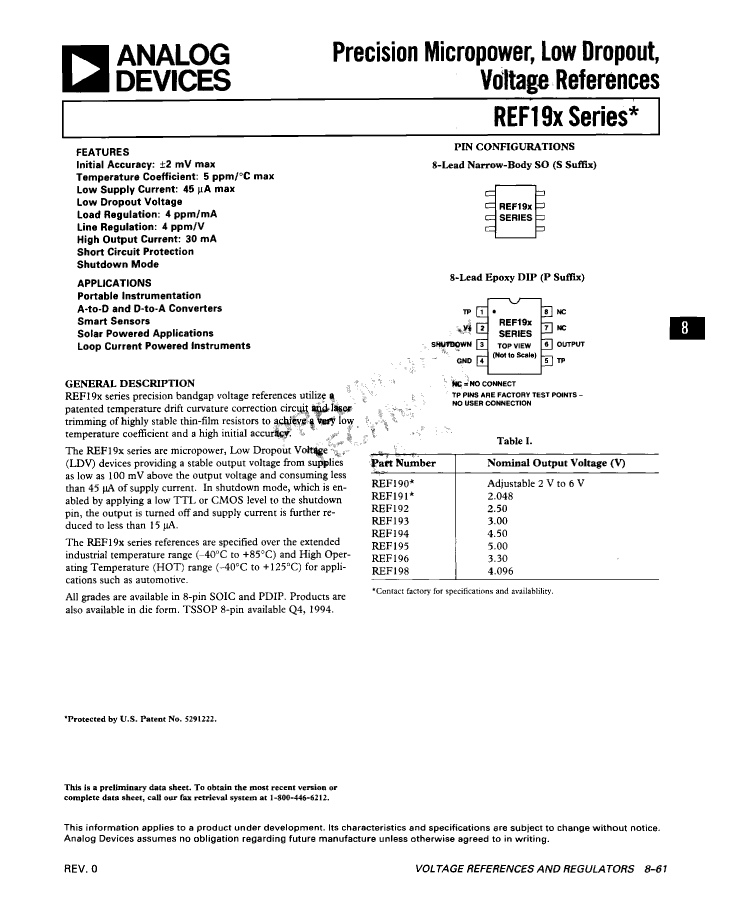

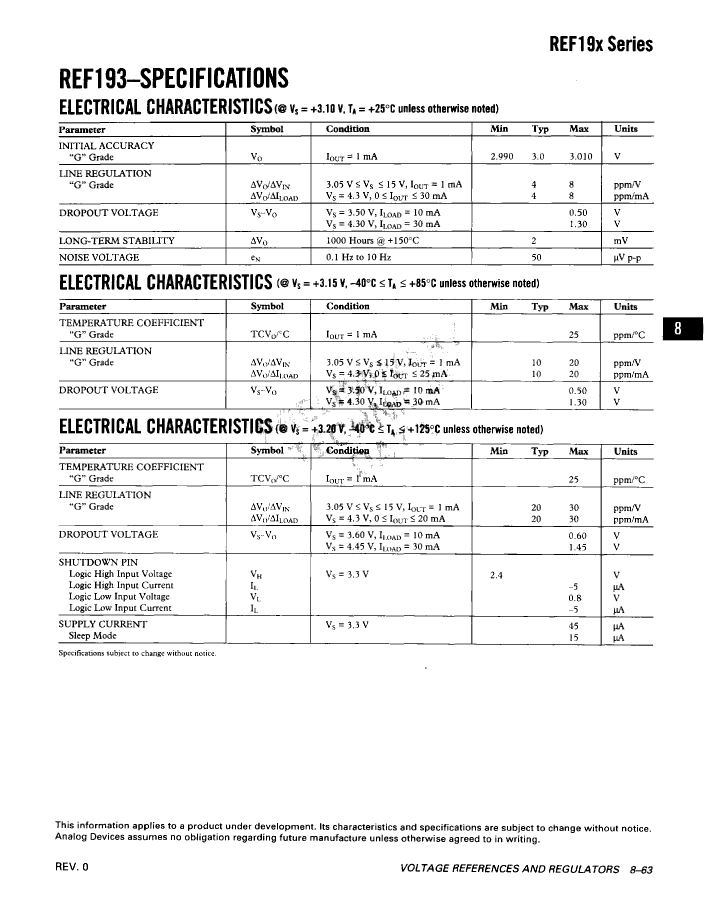

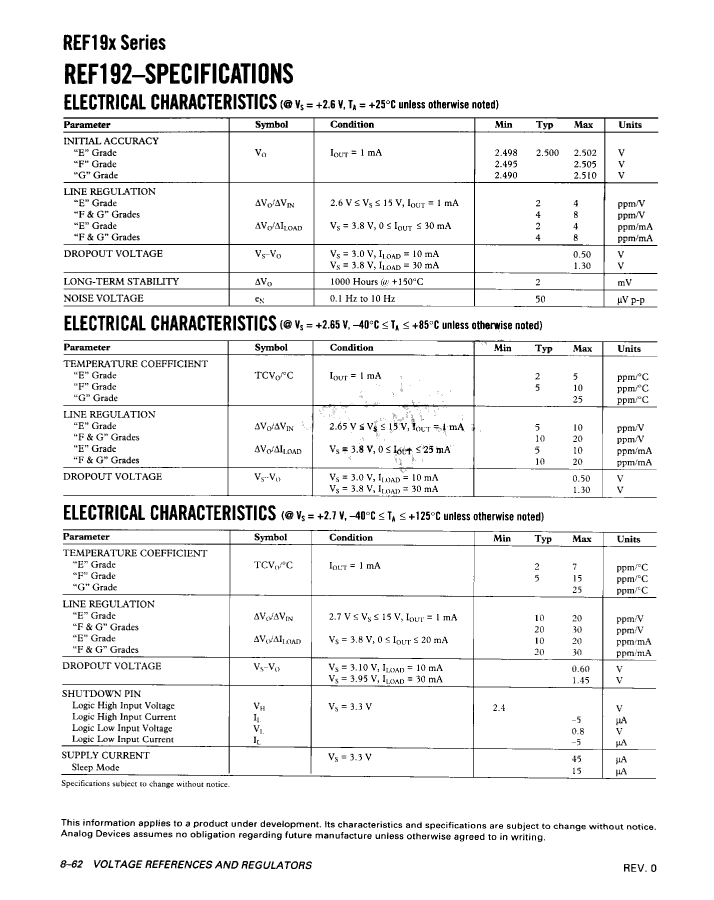

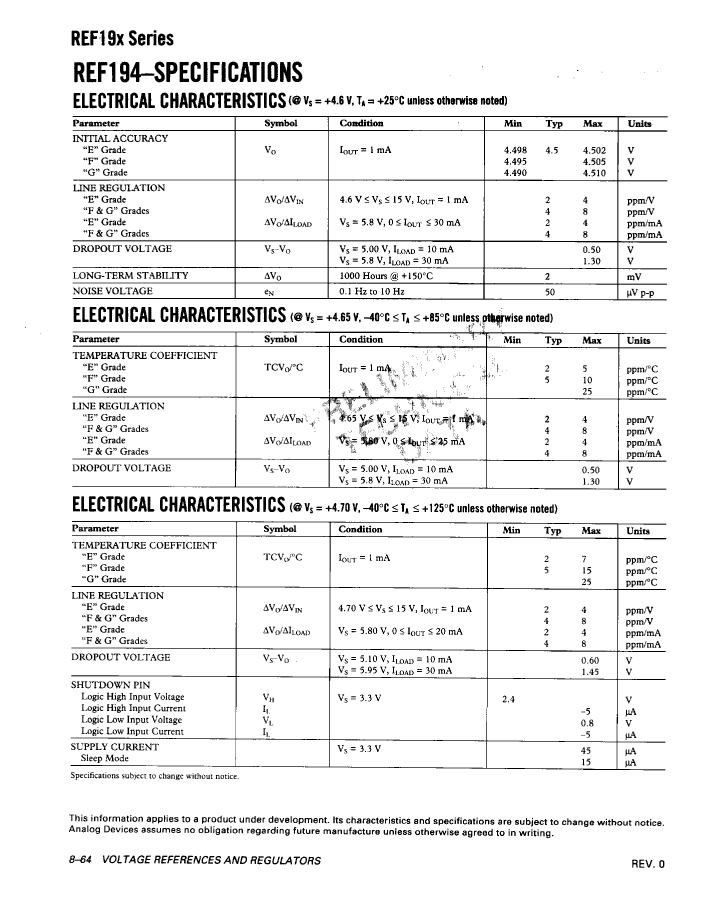

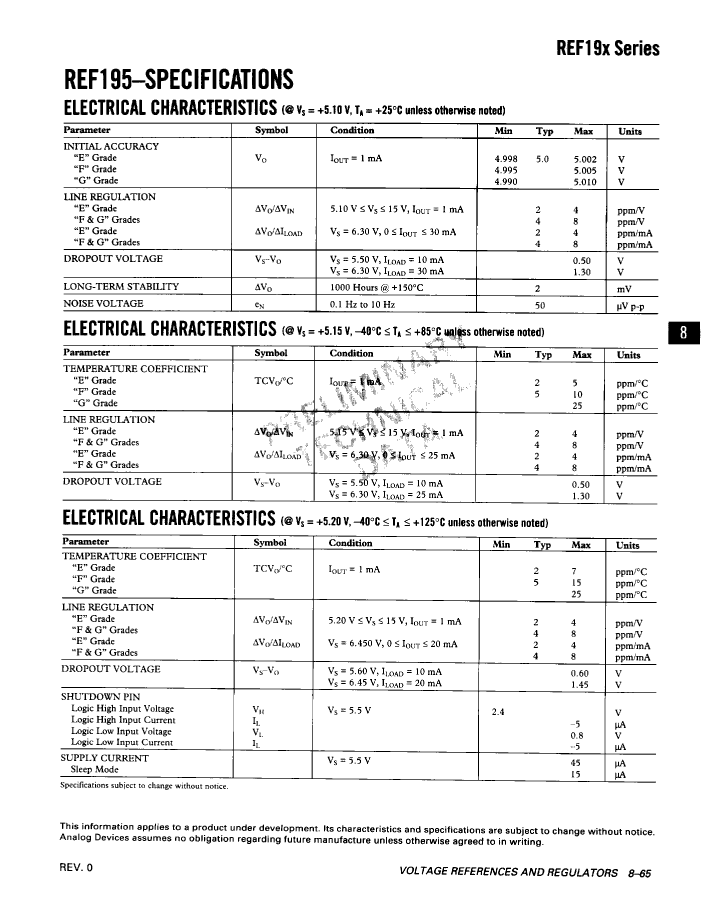

Preview

Download Datasheet

View All

REF195EP Related Products

	REF195EP	REF195FP	REF190GP	REF190GBC	REF190GS	REF192FP	REF192EP
Description	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5V, PDIP8, PLASTIC, DIP-8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5V, PDIP8, PLASTIC, DIP-8	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 6 V, PDIP8, PLASTIC, DIP-8, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 6 V, UUC6, DIE, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 6 V, PDSO8, SOIC-8, Voltage Reference	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.5V, PDIP8, PLASTIC, DIP-8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.5V, PDIP8, PLASTIC, DIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI
Parts packaging code	DIP	DIP	DIP	DIE	SOIC	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	PLASTIC, DIP-8	DIE	SOIC-8	PLASTIC, DIP-8	PLASTIC, DIP-8
Contacts	8	8	8	6	8	8	8
Reach Compliance Code	unknown	not_compliant	unknown	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	X-XUUC-N6	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Number of terminals	8	8	8	6	8	8	8
Nominal output voltage	5 V	5 V	6 V	6 V	6 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIE	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	UNCASED CHIP	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	YES	YES	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	UPPER	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
Maximum output voltage	5.002 V	5.005 V	-	-	-	2.505 V	2.502 V
Minimum output voltage	4.998 V	4.995 V	-	-	-	2.495 V	2.498 V
Maximum supply current (Isup)	0.045 mA	0.045 mA	-	0.045 mA	-	0.045 mA	0.045 mA
Maximum supply voltage (Vsup)	15 V	15 V	-	15 V	-	15 V	15 V
Minimum supply voltage (Vsup)	5.2 V	5.2 V	-	7.3 V	-	2.7 V	2.7 V
Maximum voltage temperature coefficient	7 ppm/°C	15 ppm/°C	-	-	-	15 ppm/°C	7 ppm/°C
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	-	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
