RL-2230-56-100: DescriptionSplit Bobbin Power Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size940KB，3 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric View All

RL-2230-56-100 Overview

Split Bobbin Power Transformer, ROHS COMPLIANT

RL-2230-56-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PCB MOUNTABLE
Certification	UL; CSA
Center click function 1	NO
Center click function 2	NO
high	0.85 mm
Insulation voltage	1500 V
length	1.87 mm
Manufacturer's serial number	RL-2230
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	2
Output current 1	0.1 A
Output voltage 1	28 V
physical size	L1.87XB1.56XH0.850 (mm)
main rating	DUAL 115/230V
surface mount	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
width	1.56 mm
Base Number Matches	1

Preview

Download Datasheet

View All

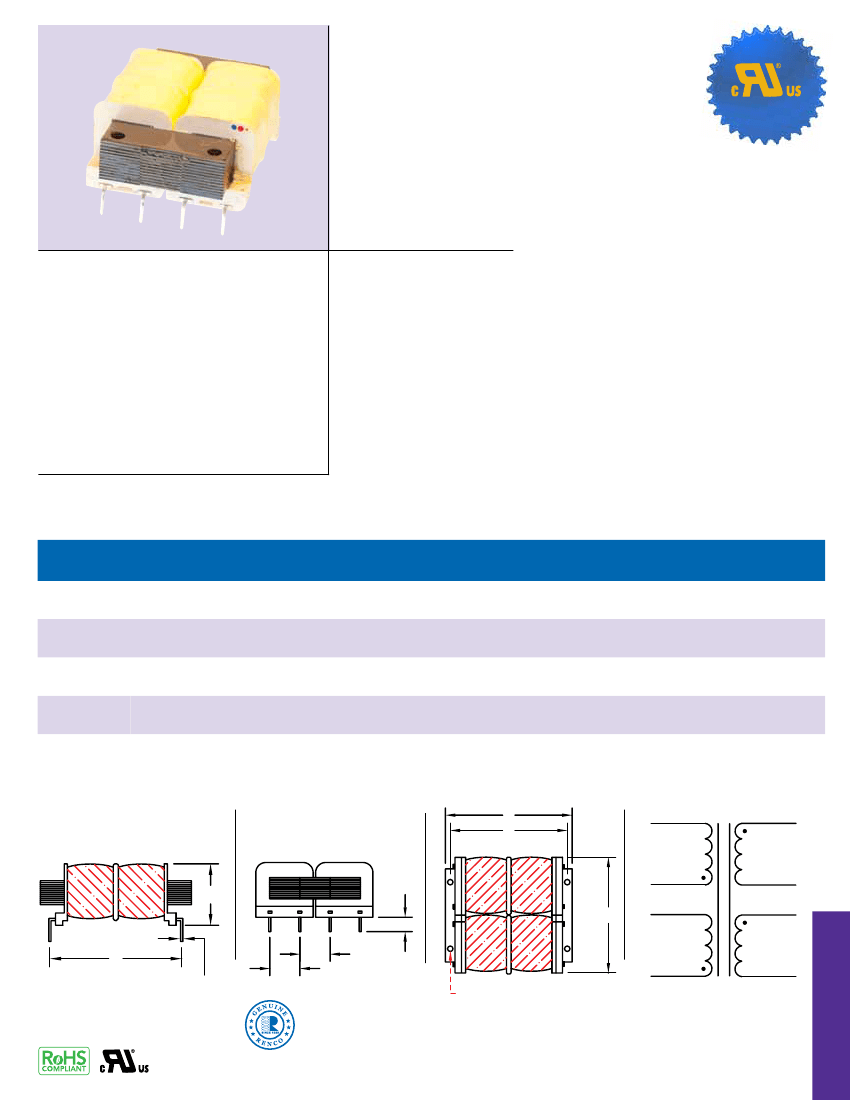

SAFETY

RL-2230

DESCRIPTION

• Flat Transformer

UL RECOGNIZED

E132629

50/60 HZ TRANSFORMERS

FLAT/TRAN™

FEATURES & APPLICATIONS

• Specifically designed for convenient PCB mounting

• The low overall height permits close spacing of adjacent

PCB to obtain maximum system density

• Using nonconcentric side-by-side winding reduces the

interwinding capacitance and eliminates the need for

electrostatic shielding

• Dual primary winding permit designs for 115/230 VAC,

50/60 Hz applications

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

•

ENVIRONMENTAL DATA

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 493

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART

NUMBER

RL-2230-2

RL-2230-6

RL-2230-12

RL-2230-24

RL-2230-48

A

1.60

(40.64)

1.60

(40.64)

2.00

(50.80)

1.90

(48.26)

2.18

(55.37)

B

(MAX.)

0.650

(16.51)

0.850

(21.59)

1.065

(27.05)

1.250

(31.75)

1.375

(34.93)

C

0.041 (1.04) x

0.020 (0.51)

0.041 (1.04) x

0.020 (0.51)

0.041 (1.04) x

0.020 (0.51

0.041

(1.04)

0.041

(1.04)

SIDE VIEW

D

(TYP.)

0.375

(9.53)

0.375

(9.53)

0.500

(12.70)

0.530

(13.46)

0.660

(16.76)

E

(TYP.)

0.38

(9.53)

0.38

(9.53)

0.50

(12.70)

0.60

(15.24)

0.60

(15.24)

F

(MIN.)

0.250

(6.35)

0.250

(6.35)

0.250

(6.35)

0.250

(6.35)

0.250

(6.35)

G

(MAX.)

1.87

(47.50)

1.87

(47.50)

2.50

(63.50)

2.87

(72.90)

3.12

(79.25)

H

(TYP.)

N/A

2.50

(63.50)

I

(MAX.)

1.56

(39.62)

1.56

(39.62)

2.00

(50.80)

2.25

(57.15)

2.50

(63.50)

FRONT VIEW

BOTTOM VIEW

G

H

COIL A

1

5

6

8

4

SCHEMATIC

5

PRIMARIES

115 V

50/60 Hz

3

6

7

B

5

D

E

7

F

2

4

I

2

PRIMARIES

115 V

50/60 Hz

1

7

A

C

3

COIL B

CLEARANCE HOLE (4PL)

7

RENCO ELECTRONICS INC.

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600

TRANSFORMERS

PIN DIMENSION SQ
