452800852 datasheet, PDF - EEWORLD Datasheet

452800852: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size193KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

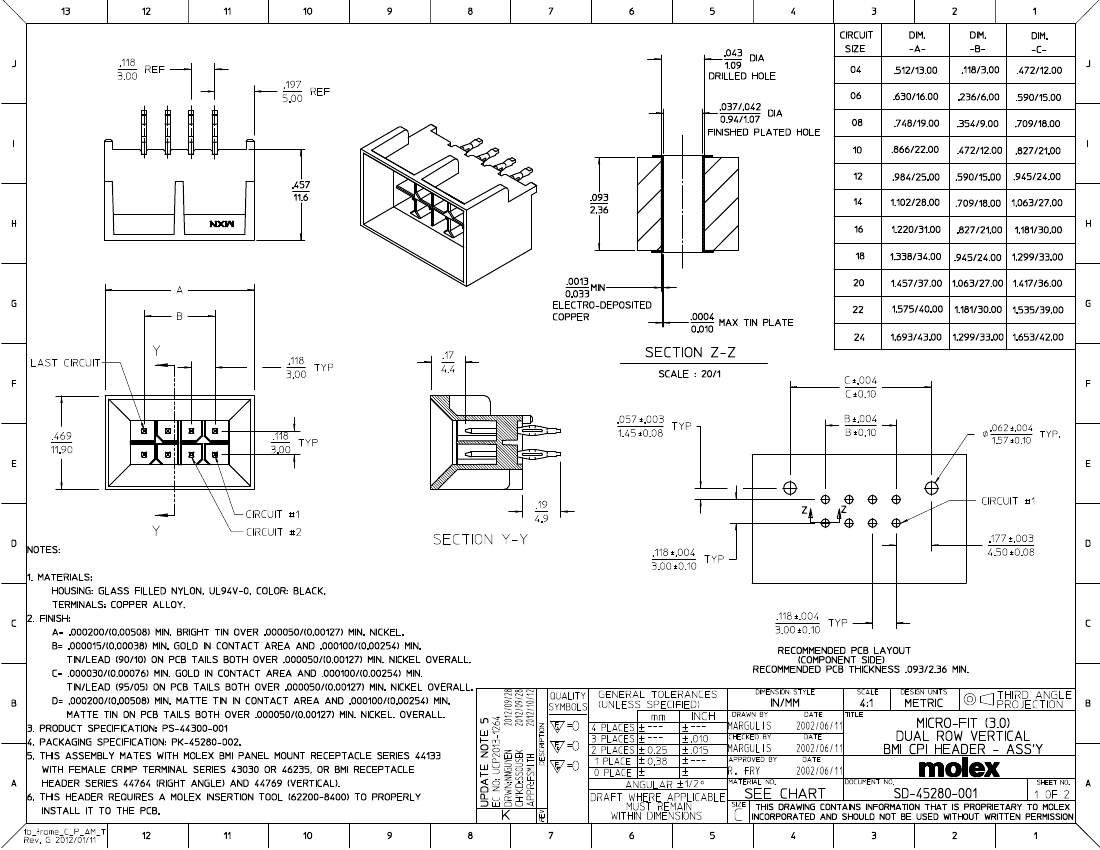

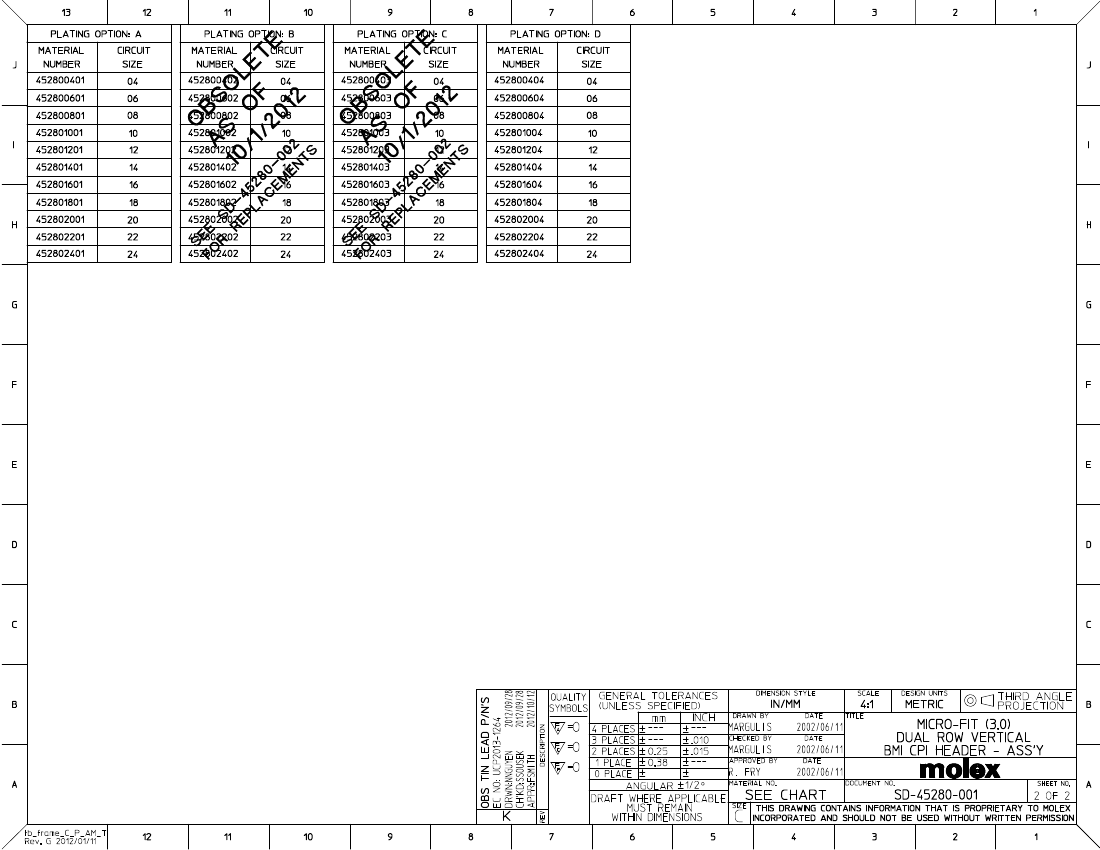

452800852 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Press Fit Terminal, Locking, Black Insulator,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	12 weeks
Board mount options	HOLE .055-.063
body width	0.469 inch
subject depth	0.457 inch
body length	0.748 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	45280
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	2.9972 mm
Termination type	PRESS FIT
Total number of contacts	8
Base Number Matches	1
