MJHK310027S-32.768KHZ-T

Description
HCMOS Output Clock Oscillator,
CategoryPassive components    oscillator
File Size108KB,2 Pages
ManufacturerMMD Monitor/Quartztek
Websitehttp://mmdcomp.com
Environmental Compliance
Download Datasheet Parametric View All

MJHK310027S-32.768KHZ-T Overview

HCMOS Output Clock Oscillator,

MJHK310027S-32.768KHZ-T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMMD Monitor/Quartztek
package instructionSMD,4 PIN
Reach Compliance Codecompliant
Other featuresSTANDBY; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time200 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
Installation featuresSURFACE MOUNT
Nominal operating frequency0.032768 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeHCMOS
Output load10 TTL, 15 pF
physical size5.2mm x 3.4mm x 1.3mm
longest rise time200 ns
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry40/60 %

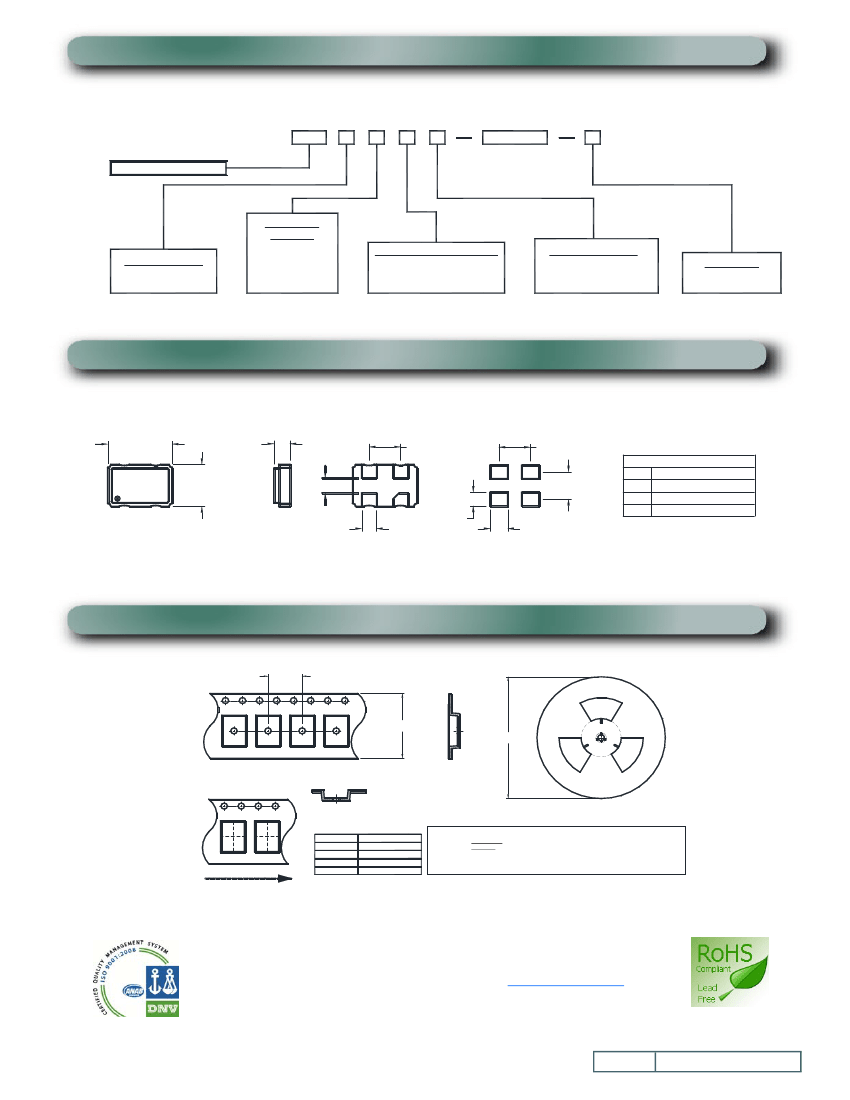

MJHK Series 3.2X5 Ceramic SMD Oscillator

Low Profile SMD Package

32.768KHZ

RoHS Compliant

HCMOS Output
Frequency
Temperature Stability*
Operating Temperature Range
Storage Temperature Range
Aging (+25°C ±3°C)
Supply Voltage
Supply Current
Waveform
Logic “0”
Logic “1”
Rise/Fall Time (10% to 90% of Supply Voltage)
Symmetry (50% of waveform)
Output Load
Start-up Time
Tri-State Operation
Standby Power Consumption
* Inclusive of Temperature., Load and Voltage
32.768KHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
±3ppm / year max at +25ºC
(See Part Number Guide for Options)
7mA max
HCMOS
10% Vdd max
90% Vdd min
0.2µs
40%/60%
15pF or 10TTL
10mSec max
Voh = 70% of Vdd min to Enable Output
Vol = 30% max or grounded to Disable Output (High Impedance)
10µA max
Mechanical & Environmental Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
=
=
=
Internal Code
4 Digit Date Code (Year /
Week)
Denotes RoHS Compliant
=
=
MMD
Frequency in MHZ
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Subject to change without notice
MJHK012811 A
Pg 1of 2
