TLSV5100AS12 datasheet, PDF - EEWORLD Datasheet

TLSV5100AS12: DescriptionDual Color LED, High Efficiency Red/green, Untinted Topdiffused, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size175KB，6 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

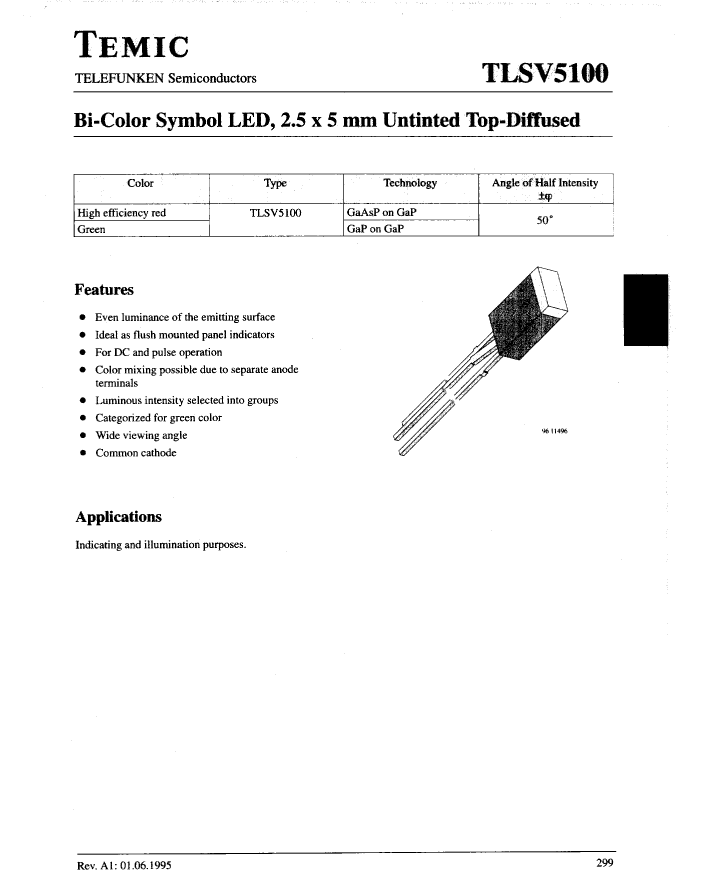

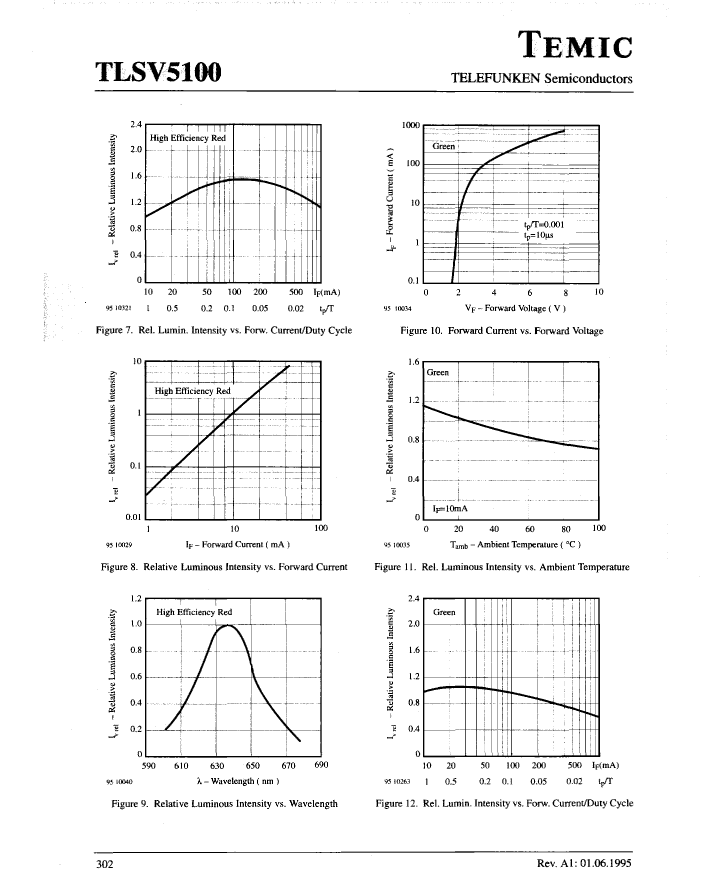

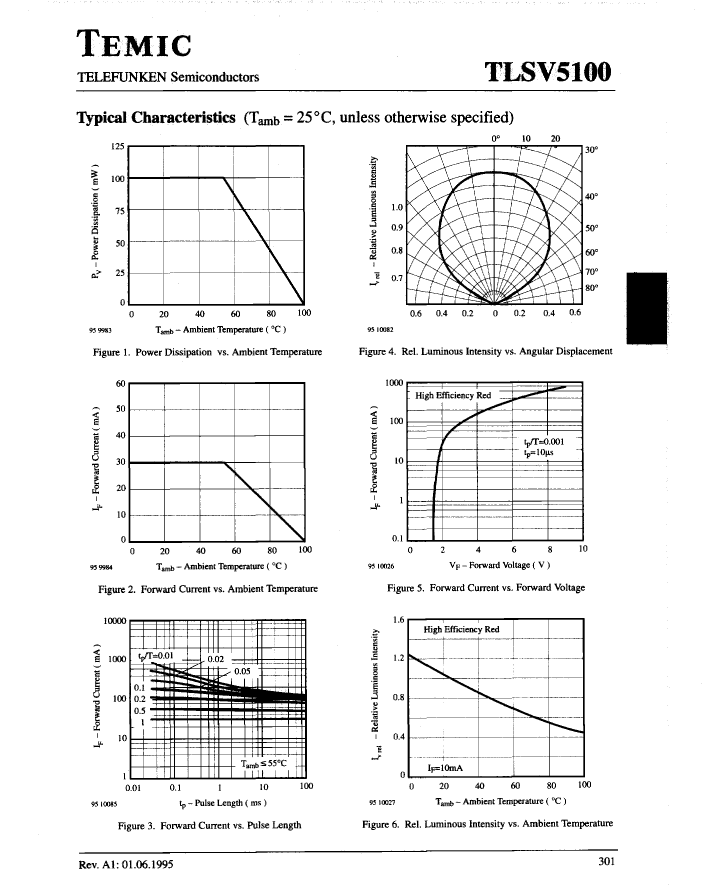

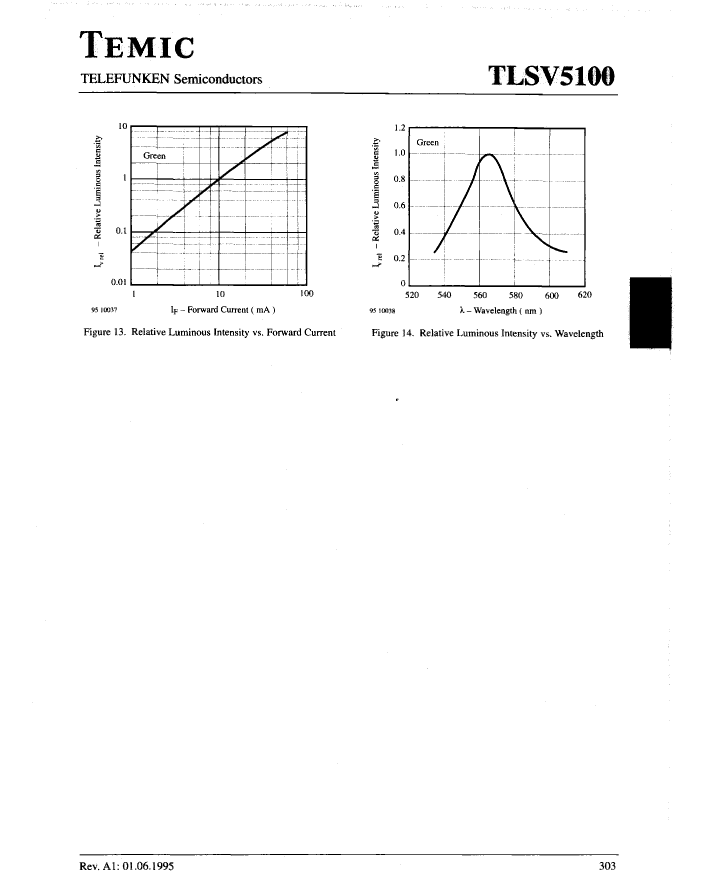

TLSV5100AS12 Overview

Dual Color LED, High Efficiency Red/green, Untinted Topdiffused, 5mm,

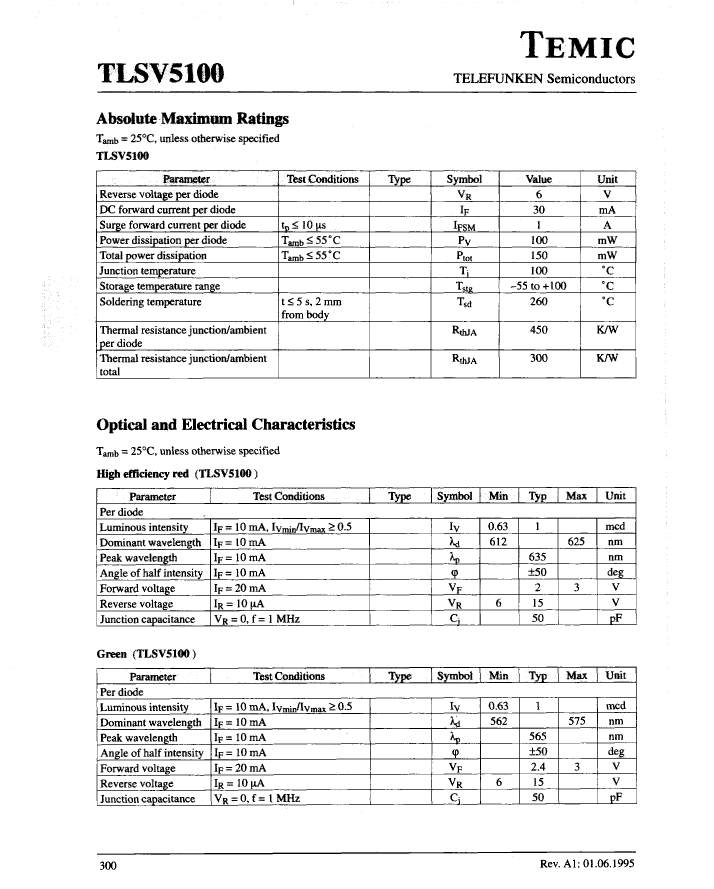

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
color	HIGH EFFICIENCY RED/GREEN
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	UNTINTED TOPDIFFUSED
Nominal luminous intensity	1.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	100 °C
Optoelectronic device types	DUAL COLOR LED
total height	9.5 mm
method of packing	TAPE AND REEL
peak wavelength	635/565 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal pitch	1.27 mm
perspective	100 deg

	TLSV5100AS12	TLSV5100AS21	TLSV5100AS12Z
Description	Dual Color LED, High Efficiency Red/green, Untinted Topdiffused, 5mm,	Dual Color LED, High Efficiency Red/green, Untinted Topdiffused, 5mm,	Dual Color LED, High Efficiency Red/green, Untinted Topdiffused, 5mm,
Reach Compliance Code	unknown	unknown	unknown
color	HIGH EFFICIENCY RED/GREEN	HIGH EFFICIENCY RED/GREEN	HIGH EFFICIENCY RED/GREEN
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A
Lens type	UNTINTED TOPDIFFUSED	UNTINTED TOPDIFFUSED	UNTINTED TOPDIFFUSED
Nominal luminous intensity	1.0 mcd	1.0 mcd	1.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	100 °C	100 °C	100 °C
Optoelectronic device types	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED
total height	9.5 mm	9.5 mm	9.5 mm
method of packing	TAPE AND REEL	TAPE AND REEL	FAN-FOLD
peak wavelength	635/565 nm	635/565 nm	635/565 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	5 mm	5 mm	5 mm
surface mount	NO	NO	NO
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
perspective	100 deg	100 deg	100 deg
Maker	TEMIC	-	TEMIC
