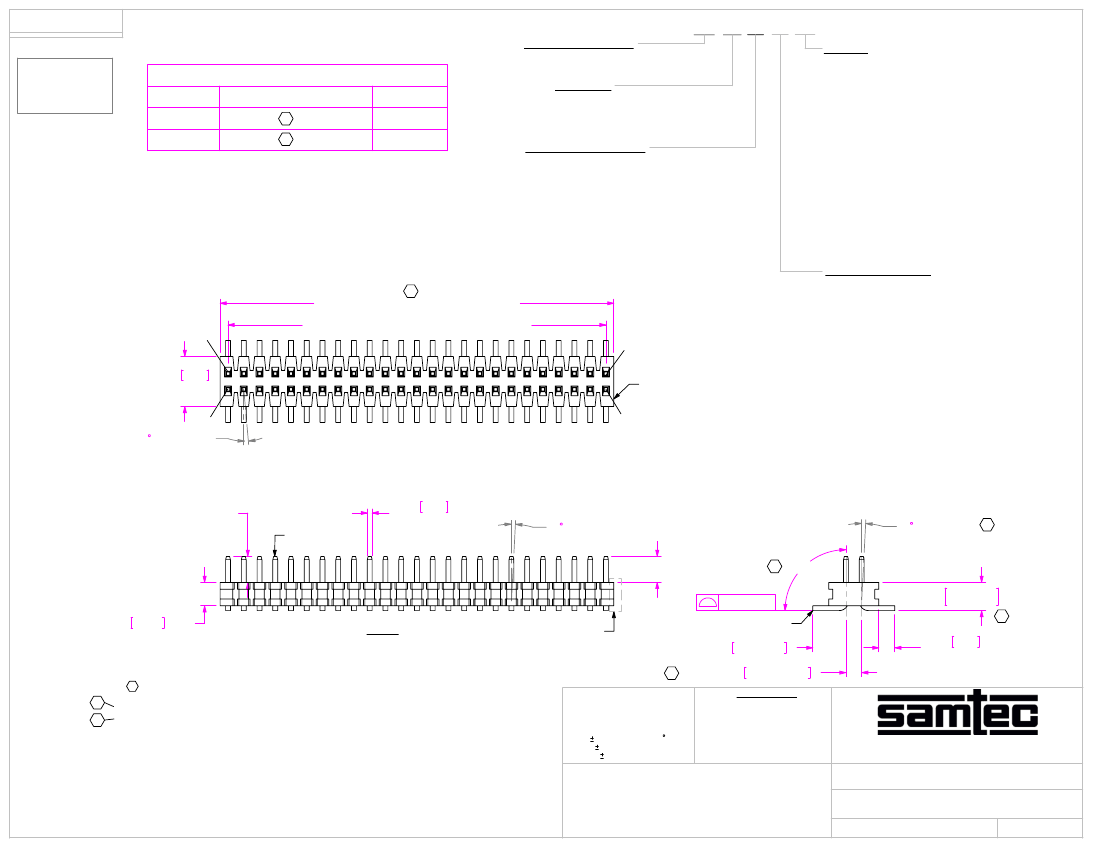

REVISION BE
DO NOT
SCALE FROM
THIS PRINT
TABLE 1
LEAD STYLE
-02
-03
"A"
.075 [1.91]
C
.065 [1.65]
C
"B"
0.075
0.055
No OF POS PER ROW
-02 THRU -50
(SEE NOTE 10)
FTMH-1XX-XX-XX-DV-XX
OPTIONS
-P: PICK & PLACE PAD (USE PPP-30)
(USE PPP-30-NT FOR TAPE & REEL)
(SEE FIG 3, SHT 4; 6 POS MIN)
-TR: TAPE & REEL PACKAGING
-ES: SNAP ON END SHROUDS
(SEE FIG 2, SHT 2; 9 POS MIN)
MOLD TO POSITION END SHROUDS
(5 POS MIN; SEE FIG 2, SHT 2)
(SAMTEC DISCRETION ON WHICH END SHROUDS
ARE USED FOR POSITIONS -09 AND GREATER)
-EP: GUIDE POST (SEE FIG 4, SHT 4; 9 POS MIN)
(USE ONLY WHEN MATING WITH A CLM)
-EC: LOCKING CLIP (SEE FIG 5, SHT 4)
(SEE NOTE 9; 9 POS MIN)
-A: ALIGNMENT PIN (SEE FIG 6 & 7, SHT 5)
(SAMTEC DISCRETION ON WHICH -A PIN IS USED)
(MOLDED: 3 POS MIN, USE FTMH-75-D-XX)
(STAKED: 7 POS MIN, USE FTMH-60-D)
ROW SPECIFICATION
-DV: DOUBLE ROW VERTICAL
(USE FTMH-75-D)
LEAD STYLE
-02: .075 [1.91]
(USE T-1S16-03-XX-2)
-03: .065 [1.65]
(USE T-1S16-04-XX-2)
PLATING SPECIFICATION
-L: 10µ" LIGHT SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT
AREA, 3µ" FLASH GOLD ON TAIL
-G: 10µ" GOLD IN CONTACT AREA,
3µ" FLASH GOLD ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
C
No OF POS x .03937[1.0000]±.010[0.25]
02
.125 3.18
REF
01
2 MAX SWAY
(EITHER DIRECTION)
49
No OF POS X .03937[1.0000]-.03937[1.0000]
50
FTMH-75-D
"B"
CONTACT AREA
(SEE NOTE 8)
(SEE TABLE 1)
.012 0.30 SQ
REF
T-1S16-03-XX-2
2 MAX SWAY
(EITHER DIRECTION)
"A"
(SEE TABLE 1)
C
90°±3°
.004[0.10]
2 MAX SWAY
C
(EITHER DIRECTION)
.0705
- .000
1.791
+.005
+0.13
0.00
(SEE NOTE 6)
C
.0585 1.486 REF
FTMH-125-03-X-DV SHOWN
NOTES:
1.
C
REPRESENTS CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 1.0 LB = 16 OZ.
C 3. MAXIMUM BURR: .003 [0.08]
C 4. MAXIMUM CUT FLASH: .010 [0.25]
5. POSITIONS -02 THRU -04 TO BE LAYER PACKAGED.
6. MEASURED AT BEND RADIUS.
7. SHEAR TAILS TO DIMENSION SHOWN.
8. FOR SELECTIVE PLATING OPTIONS, GOLD PLATING TO
BE ON POST, TIN PLATING TO BE ON TAIL.
9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -EC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -EC OPTION.
10. NUMBER OF POSITIONS MAY BE AS HIGH AS -75 FOR SAMTEC
MANUFACTURING ONLY.
FIG 1
SEE NOTE 4
(2 PLCS)
SEE NOTE 3
.205±.008 5.21±0.20
C
.03937±.004 1.0000±0.10
.040 1.02 REF
(SEE NOTE 7)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
INSULATOR:
BLACK, LCP, UL-94-V-0
TERMINAL:
PHOSPHOR BRONZE
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
BY:
PURVIS
FTMH-1XX-XX-XX-DV-XX
04/22/96
SHEET
1

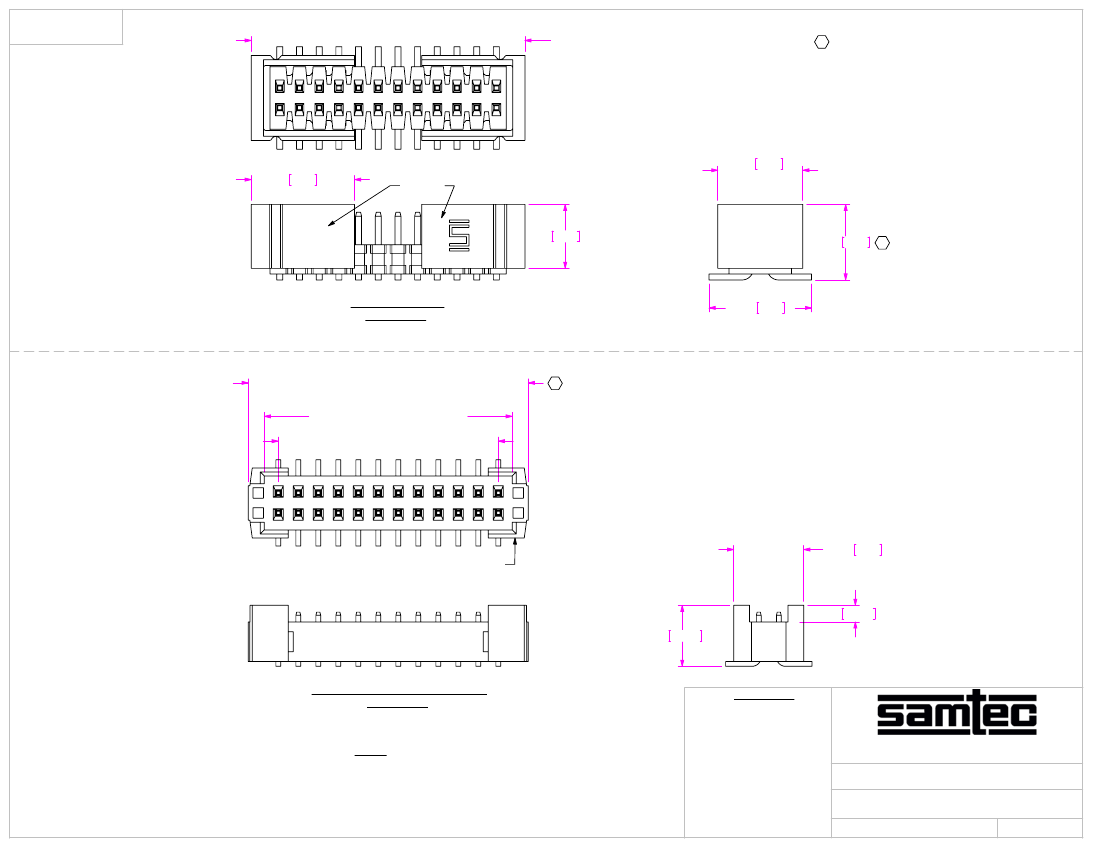

OF
5
REVISION BE
(NO OF POSITIONS + 2) x .03937[1.0000]±.008[0.20]
C
.206 5.24 REF
ES-FTMH
.170 4.32
REF
.128 3.25 REF
.151 3.84
C
SNAP ON END
SHROUDS
.205 5.21
(No OF POS + 2) x .03937[1.0000] ±.010[0.25]
(No OF POS x .03937[1.0000]
+.021[0.52] REF
(No OF POS - 1) x .03937[1.0000]
- .001
+.003
[0.08]
[0.03]
C
.175 4.45 REF
FTMH-75-ES-XX
.0415 1.054 REF
.1525 3.874 REF
MOLDED TO POSITION END
SHROUDS
FIG 2
-ES: END SHROUDS
FTMH-112-02-X-DV-ES SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04/22/96
SHEET
2
OF
5
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
PURVIS
REVISION BE
THEORETICAL
CUT LINES
FTMH-105-XX-XX-DV-ES SHOWN (BEFORE CUT)
THEORETICAL CUT LINES
FTMH-110-XX-XX-DV-ES SHOWN (BEFORE CUT)
THEORETICAL CUT LINES
FTMH-113-XX-XX-DV-ES SHOWN (BEFORE CUT)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04/22/96
SHEET
3
OF
5
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
PURVIS

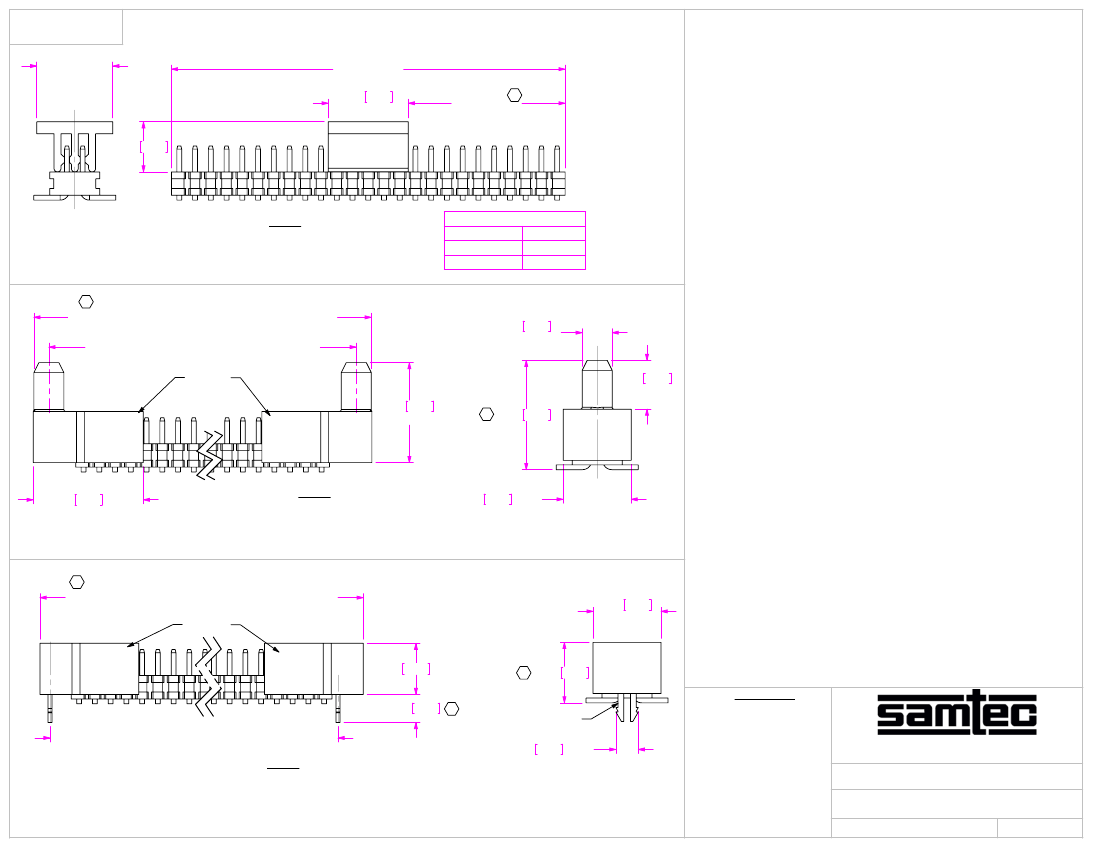

REVISION BE
"B" REF
(SEE TABLE 3)
C
L
NOTE
"M" = USED MEASURED DIMENSION (REF)
"P" = (("M" - .200[5.08]) / 2) ±.020[.51]
"M"
(SEE NOTE)
.200 5.08
REF
.125 3.18
"P"
C
(SEE NOTE)
-P: PICK & PLACE PAD
FTMH-125-03-X-DV-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
PAD
PPP-30
PPP-30-NT
TABLE 3
"B"
.125[3.18]
.190[4.83]
C
NO OF POS x .03937[1.0000] + .216[5.48]±.008[0.20]
NO OF POS x .03937[1.0000] + .137[3.47] REF
FTMH-EP
.250 6.35
REF
.075 1.91
REF
C
L
.122 3.10
REF
C
.273 6.94
.275 6.99 REF
-EP: GUIDE POST
FTMH-125-03-X-DV-EP SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
.170 4.32 REF
C
NO OF POS x .03937[1.0000] + .160[4.07]±.008[0.20]
FTMH-EC
.170 4.32
REF
.128 3.25 REF
.070 1.78
NO OF POS x .03937[1.0000] + .110[2.84]±.008[0.20]
-EC: LOCKING CLIP
FTMH-125-03-X-DV-EC SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
C
C
.151 3.84
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
LC-05-TM
.056 1.42 REF
FIG 5
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04/22/96
SHEET
4
OF
5
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
PURVIS

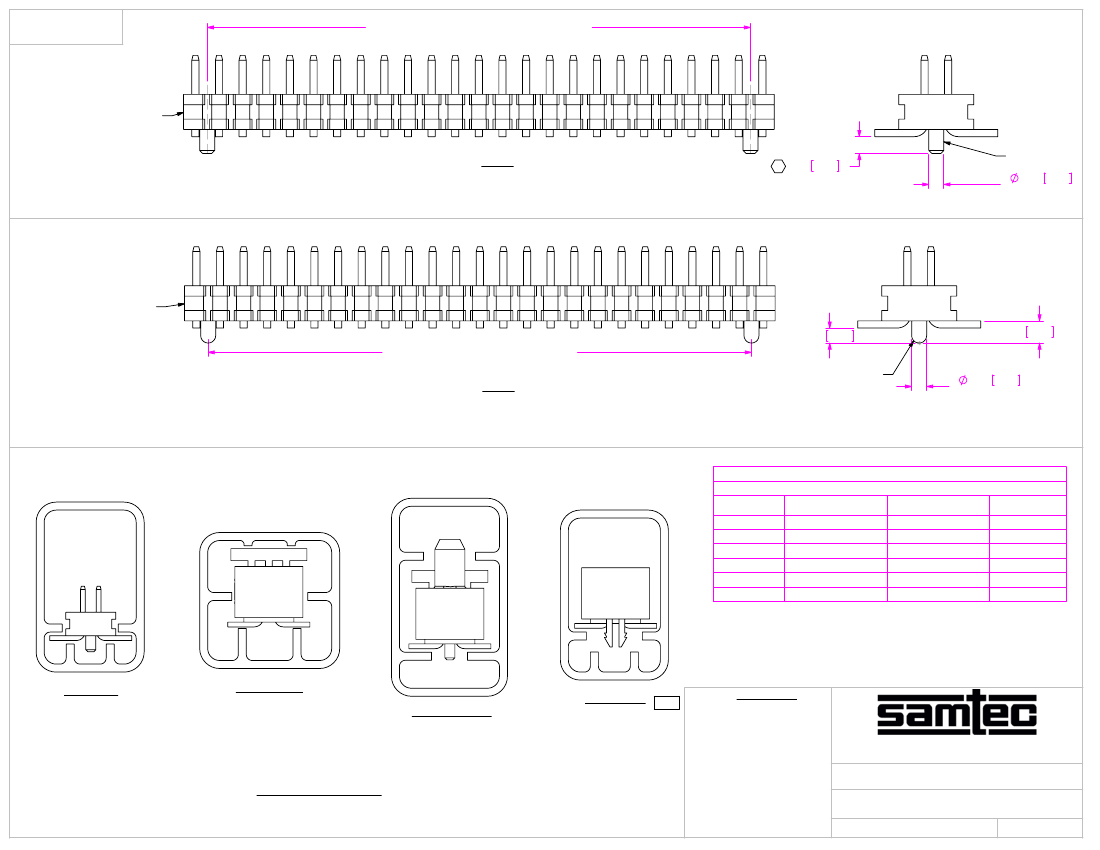

REVISION BE
(No OF POS -2) x .03937[1.0000]±.005[0.13]
FTMH-60-D
SM-A7H
.025 0.64
REF
-A: ALIGNMENT PIN (STAKED)
(MIN 7 POSITIONS)
FTMH-125-03-X-DV-A SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 6
C
.028 0.71
FTMH-75-D-XX
.025 0.64
(No OF POS -2) x .03937[1.0000] REF
FULL RADIUS
.037 0.94 REF
-A: ALIGNMENT PIN (MOLDED)
(MIN 3 POSITIONS)
FTMH-125-03-X-DV-A SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 7
.025 0.64
REF
TABLE 2
(SEE NOTE 5 FOR PACKAGING NOTES)
LEAD STYLE
-02, -03
-02, -03
-02, -03
-02, -03
-02, -03
-02, -03
OPTION (S)
-NONE
-A
-P, -A-P
-ES, -ES-P, -ES-A, EP
-EC, -EC-P, -EC-A
-EP-A, -EP-A-P
PACKAGING TUBE
PT-1-24-01-60
PT-1-24-01-60
PT-1-24-01-60
PT-1-24-01-63
PT-1-24-01-60
PT-1-24-02-15
TUBE PLUG
TP-03 (x 2)
TP-03 (x 2)
TP-03 (x 2)
TP-24 (x 2)
TP-03 (x 2)
TP-03 (x 2)
-A OPTION
PT-1-24-01-60
-ES-P OPTION
PT-1-24-01-63
-EP-A-P OPTION
PT-1-24-02-15
-EC OPTION
PT-1-24-01-60
BE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
PACKAGING VIEWS
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04/22/96
SHEET
5
OF
5
BY:
PURVIS
