4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
20
3
LOC
2
DIST
1
C
COPYRIGHT
20
FT
0
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C4
PN 2-282959-0 RELEASED FOR PRODUCTION
04DEC2018
RK
PS
D

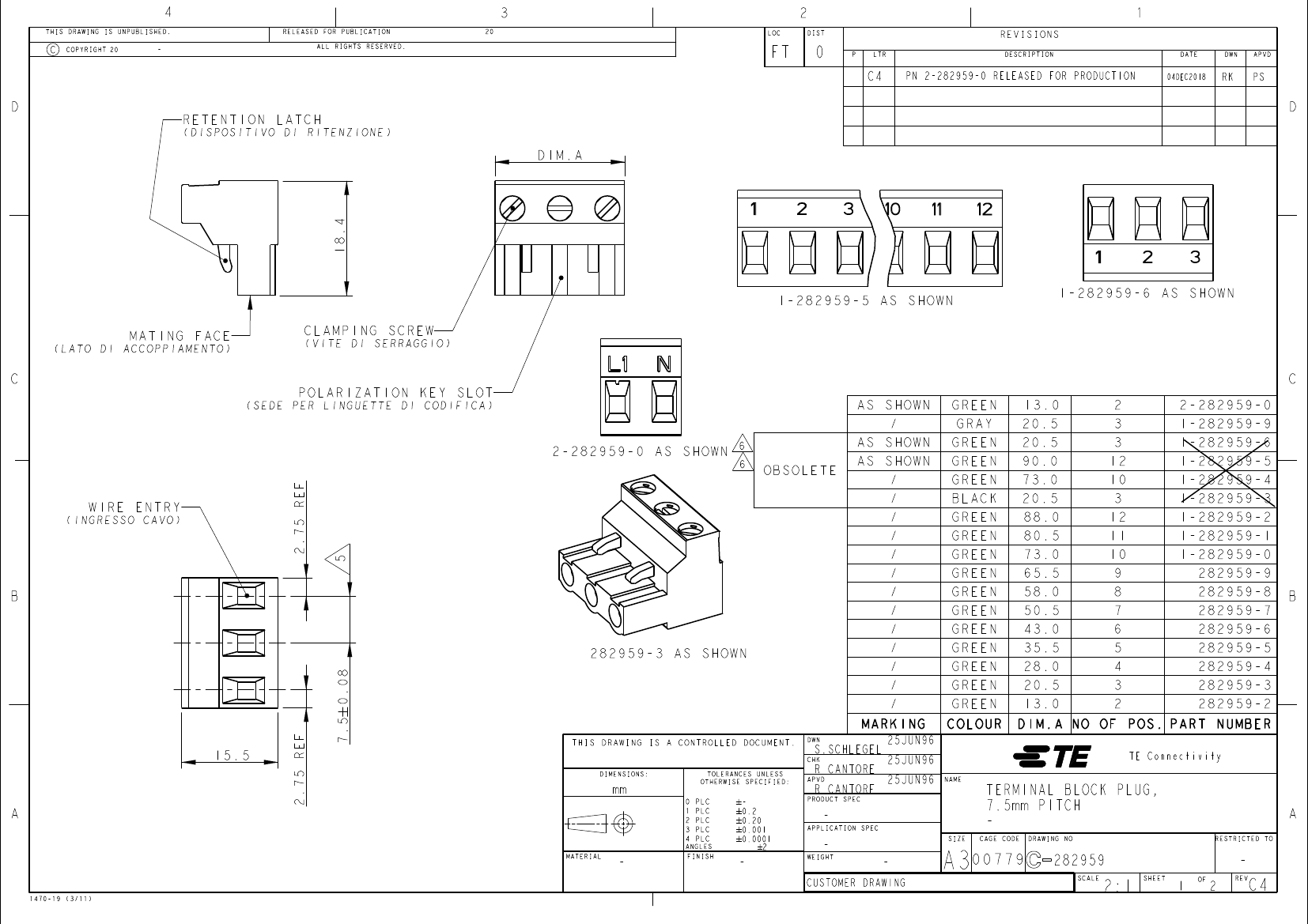

(DISPOSITIVO DI RITENZIONE)
RETENTION LATCH
D
DIM.A
18.4
1
2
3
10
11
12
1
2
3
1-282959-5 AS SHOWN
(LATO DI ACCOPPIAMENTO)
1-282959-6 AS SHOWN
MATING FACE
CLAMPING SCREW
(VITE DI SERRAGGIO)
C
(SEDE PER LINGUETTE DI CODIFICA)
POLARIZATION KEY SLOT
C
AS SHOWN
2-282959-0 AS SHOWN
6
6
AS SHOWN
OBSOLETE
AS SHOWN
/
/
/
/
/
/
GREEN
GREEN
GRAY
13.0
20.5
20.5
2
3
3
2-282959-0
1-282959-9
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
BLACK
90.0
20.5
73.0
12
10
12
11
10
9
8
7
6
5
4
3
NO OF POS.
2
3
1-282959-6
1-282959-5
1-282959-4
1-282959-3
(INGRESSO CAVO)
WIRE ENTRY
2.75 REF
88.0
80.5
73.0
65.5
58.0
50.5
43.0
35.5
28.0
20.5
13.0
DIM.A
1-282959-2
1-282959-1
1-282959-0
282959-9
282959-8
282959-7
282959-6
282959-5
282959-4
282959-3
282959-2
5
/
/
/
/
/
/
/
/
B
B
282959-3 AS SHOWN
7.5 # 0.08
2.75 REF
15.5
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
MARKING
S.SCHLEGEL
R CANTORE
25JUN96
25JUN96
25JUN96
COLOUR
GREEN
PART NUMBER
TE Connectivity
NAME
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
-
FINISH
-
-
0.2
0.20
0.001
0.0001
2
PRODUCT SPEC
R CANTORE
APPLICATION SPEC
-
WEIGHT
-
-
CUSTOMER DRAWING
1470-19 (3/11)
A3
00779
SIZE
CAGE CODE
TERMINAL BLOCK PLUG,
7.5mm PITCH
-
DRAWING NO
A
RESTRICTED TO
282959
SCALE
2:1
SHEET
1
OF
2
REV
-
C4
4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
20
3
LOC
2
DIST
1
C
COPYRIGHT
20
FT
0
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
-
SEE SHEET 1
-
-
-
D
D

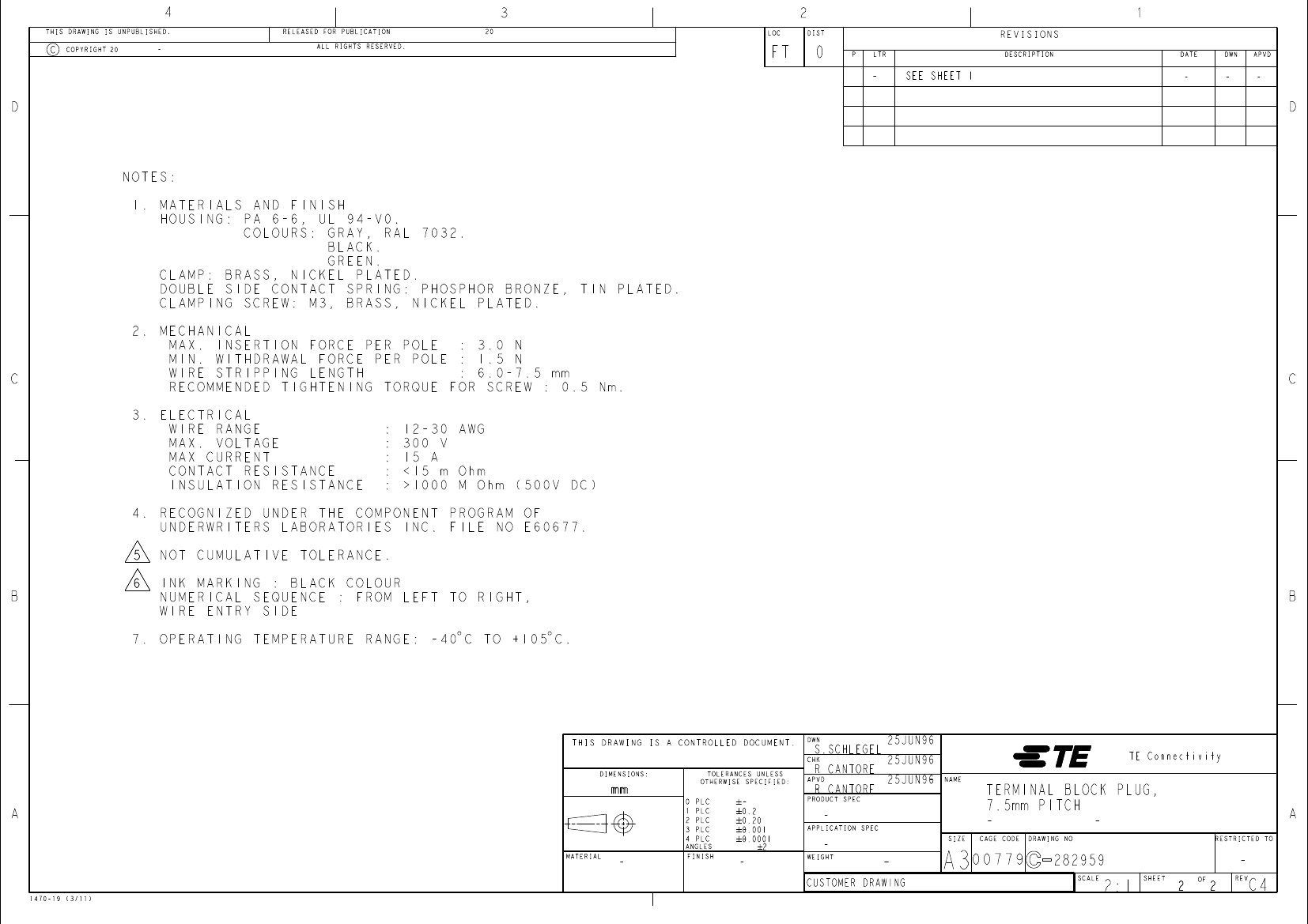

NOTES:
1. MATERIALS AND FINISH
HOUSING: PA 6-6, UL 94-V0.
COLOURS: GRAY, RAL 7032.
BLACK.
GREEN.
CLAMP: BRASS, NICKEL PLATED.
DOUBLE SIDE CONTACT SPRING: PHOSPHOR BRONZE, TIN PLATED.
CLAMPING SCREW: M3, BRASS, NICKEL PLATED.
2. MECHANICAL
MAX. INSERTION FORCE PER POLE : 3.0 N
MIN. WITHDRAWAL FORCE PER POLE : 1.5 N
WIRE STRIPPING LENGTH
: 6.0-7.5 mm
RECOMMENDED TIGHTENING TORQUE FOR SCREW : 0.5 Nm.
3. ELECTRICAL
WIRE RANGE
MAX. VOLTAGE
MAX CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
:
:
:
:
:
12-30 AWG
300 V
15 A
<15 m Ohm
>1000 M Ohm (500V DC)
C
C
4. RECOGNIZED UNDER THE COMPONENT PROGRAM OF
UNDERWRITERS LABORATORIES INC. FILE NO E60677.
5 NOT CUMULATIVE TOLERANCE.
B
6 INK MARKING : BLACK COLOUR
NUMERICAL SEQUENCE : FROM LEFT TO RIGHT,
WIRE ENTRY SIDE
7. OPERATING TEMPERATURE RANGE: -40 $ C TO +105 $ C.
B
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
S.SCHLEGEL
R CANTORE
25JUN96
25JUN96
25JUN96 -
NAME
TE Connectivity
DIMENSIONS:
mm
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
-
FINISH
-
-
-
0.2
0.20
0.001
-
0.0001
-
2
PRODUCT SPEC
R CANTORE
-
APPLICATION SPEC
-
WEIGHT
-
-
-
CUSTOMER DRAWING
1470-19 (3/11)
A3
00779
SIZE
CAGE CODE
TERMINAL BLOCK PLUG,
7.5mm PITCH
-
-
DRAWING NO
A
RESTRICTED TO
282959
SCALE
2:1
SHEET
2
OF
2
REV
-
C4
