282962-5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 282962-5

Preview

282962-5: Description15A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size136KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

282962-5 Overview

15A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK

282962-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARDS: IEC 998-1/998-2-1; 94V-0, PA66
Fastening method	CONNECTOR
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	5
Rated current	15 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

C4

PART STATUS UPDATED

11JAN2018

RK

PS

D

12.0

1

282962-3 AS SHOWN

2

3

MATERIALS AND FINISH

HOUSING: PA 6-6, UL 94-V0, COLOR: SEE TABLE.

TERMINAL: COPPER ALLOY, TIN PLATED.

SUITABLE FOR 1,6-2,4mm PC BOARD THICKNESS.

RECOGNIZED UNDER THE COMPONENT PROGRAM OF

UNDERWRITERS LABORATORIES INC. FILE NO E60677.

IMQ CERTIFICATE WITH SURVEILLANCE IN CONFORMITY

WITH IEC 998-1/998-2-1.

NOT CUMULATIVE TOLERANCE

C

4

C

5

A

GREEN

8.35

3.85

0.10

3.5

3.35 REF

7.5±0.08

5

1.00

0.02

10.50

0.15

DWN

CHK

DIMENSIONS:

GRAY

0.15

OBSOLETE

GREEN

1.00

0.02

GREEN

E. ZANOLINI

14DEC2001

NAME

89.20

81.70

74.20

66.70

59.20

51.70

44.20

36.70

29.20

21.70

14.20

21.70

12

11

10

9

8

7

6

5

4

3

2

3

1-282962-2

1-282962-1

1-282962-0

282962-9

282962-8

282962-7

282962-6

282962-5

282962-4

282962-3

PART NUMBER

282962-2

1-282962-3

B

RECOMMENDED PC BOARD LAYOUT

+0.1

-0

THIS DRAWING IS A CONTROLLED DOCUMENT.

COLOR

DIM. A

NO OF POS.

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

7.5

1470-19 (3/13)

MATERIAL

0

1

2

3

4

ANGLES

PLC

-

.3

.25

-

14DEC2001

D. BIEVENOUR

APVD

14DEC2001

D. BIEVENOUR

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

108-20166

114-20079

-

FINISH

2

WEIGHT

1

CUSTOMER DRAWING

A3

00779

SIZE

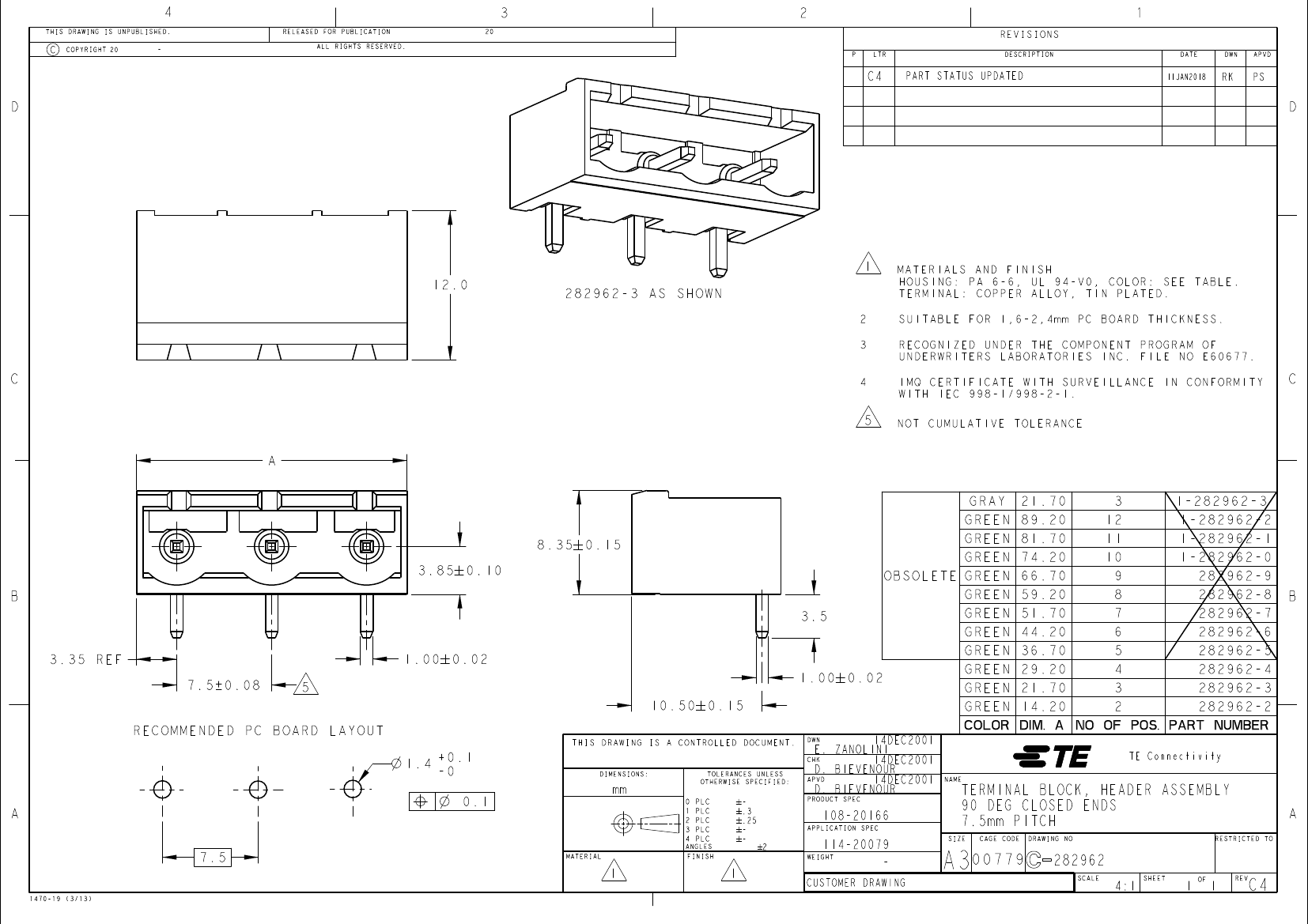

TERMINAL BLOCK, HEADER ASSEMBLY

90 DEG CLOSED ENDS

7.5mm PITCH

CAGE CODE

DRAWING NO

A

RESTRICTED TO

282962

SCALE

4:1

SHEET

1

OF

1

REV

C4
