MU19D0900 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MU19D0900

MU19D0900: DescriptionRF UHF Connector, Cable Mount; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

MU19D0900 Overview

RF UHF Connector, Cable Mount

MU19D0900 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES:BELDEN 8227; BELDEN 89207
Connector type	RF UHF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	ACETAL
MIL compliance	NO
Manufacturer's serial number	UHF
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	0.3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO

Preview

Download Datasheet

View All

Our years of experience translates to immediate support for

™

existing or new project development. Continued commitment

to technological advancement assures our customers access

to the latest developments available.

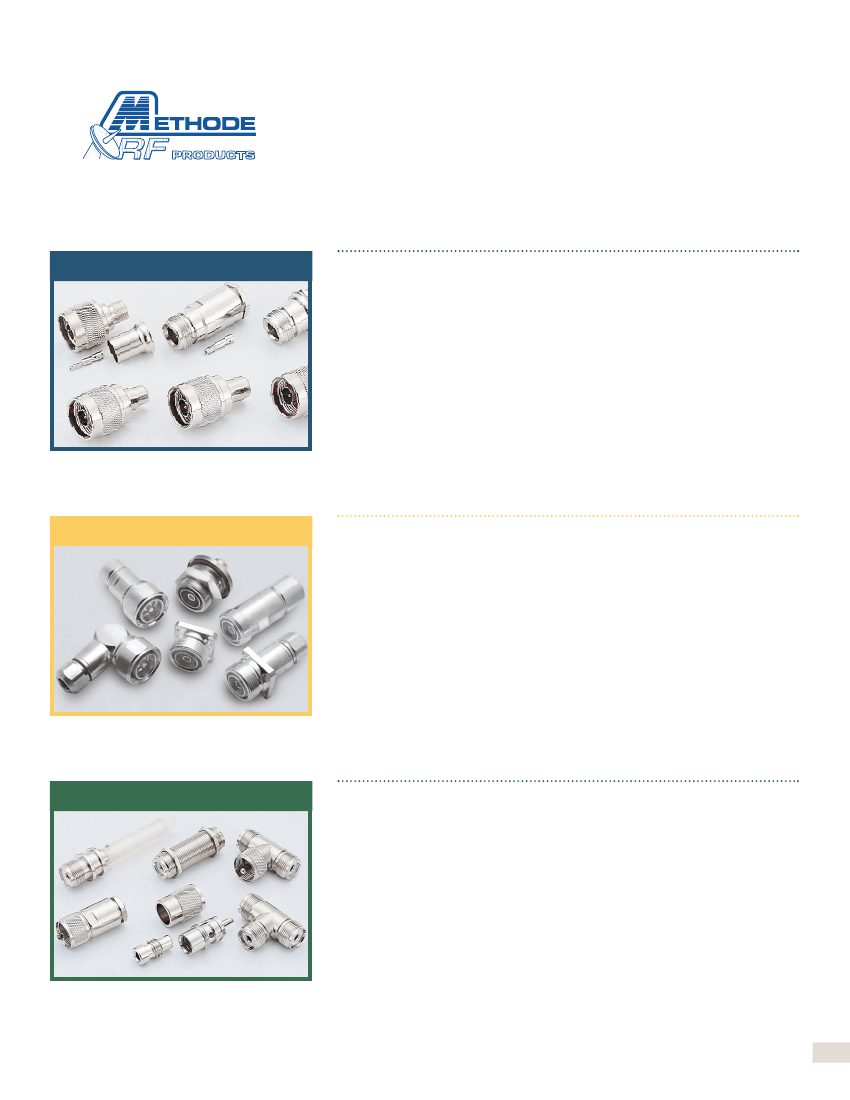

N Series

Applications:

Transmitters and Receivers, Broadcast Equipment, Antenna,

LANs, Test and Measurement

*Electrical Specifications:

Voltage Rating:

Withstanding Voltage:

Insulation Resistance:

Contact Resistance:

VSWR:

Frequency Range:

Impedance:

AC 500V

AC 1000V one minute

1000 MΩ min at DC 500V

3 mΩ max at DC 1A

1.2 max 0-4 GHz

0-4000 MHz

50 Ohm

DIN 7/16 Series

Applications:

Broadcast Communications, Control Components, Cellular Base

Stations, Jumper Cables

*Electrical Specifications:

Voltage Rating:

Withstanding Voltage:

Insulation Resistance:

Contact Resistance:

VSWR:

Frequency Range:

Impedance:

2.7 kV RMS

4 kV RMS

10 GΩ min

8 mΩ After Conditioning

1.02 max 0-7 GHz

DC-7 GHz

50 Ohm

UHF Series

Applications:

CB Radios, Antennas, Public Address Systems, Landing Systems,

Ground Control Apparatus

*Electrical Specifications:

Voltage Rating:

Withstanding Voltage:

Insulation Resistance:

Contact Resistance:

Frequency Range:

Impedance

AC 500V

AC 1000V one minute

1000 MΩ min at DC 500V

3 mΩ max at DC 1A

0-300 MHz

Non-Constant

*These characteristics are typical and may not apply to all connectors
