CS-8164TH5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> CS-8164TH5

PDF

CS-8164TH5: DescriptionFixed Positive LDO Regulator, 2 Output, 8V1, 5V2, BIPolar, PSFM5, HORIZONTAL, TO-220, 5 PIN; CategoryPower/power management The power supply circuit; File Size794KB，8 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet Parametric Compare View All

CS-8164TH5 Overview

Fixed Positive LDO Regulator, 2 Output, 8V1, 5V2, BIPolar, PSFM5, HORIZONTAL, TO-220, 5 PIN

CS-8164TH5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CHERRY
package instruction	HORIZONTAL, TO-220, 5 PIN
Reach Compliance Code	unknown
Adjustability	FIXED
Maximum absolute input voltage	26 V
Maximum input voltage	26 V
Minimum input voltage	13 V
JESD-30 code	R-PSFM-T5
JESD-609 code	e0
Maximum grid adjustment rate	0.08%
Maximum load regulation	0.08%
Number of functions	1
Output times	2
Number of terminals	5
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-40 °C
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.75 A
Maximum output current 2	0.1 A
Maximum output voltage 1	8.4 V
Minimum output voltage 1	7.6 V
Nominal output voltage 1	8 V
Nominal output voltage 2	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP5H,.15,.7,67TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.7 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%

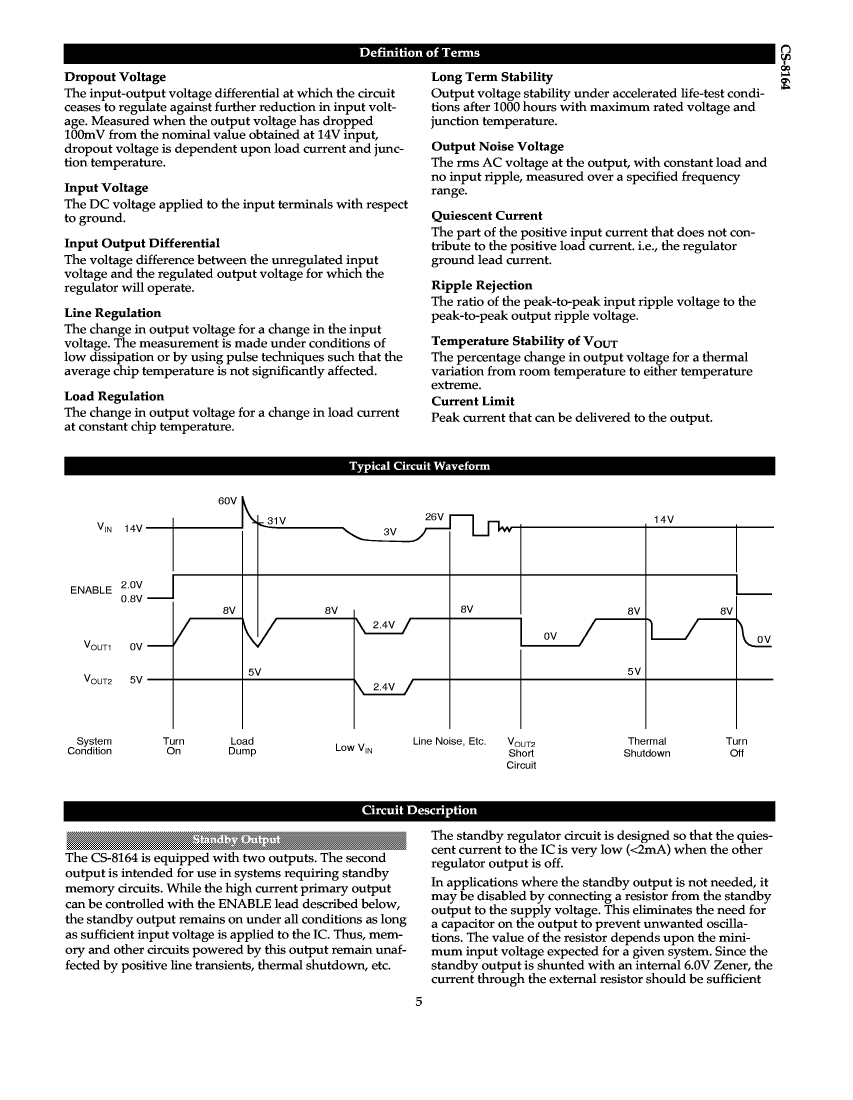

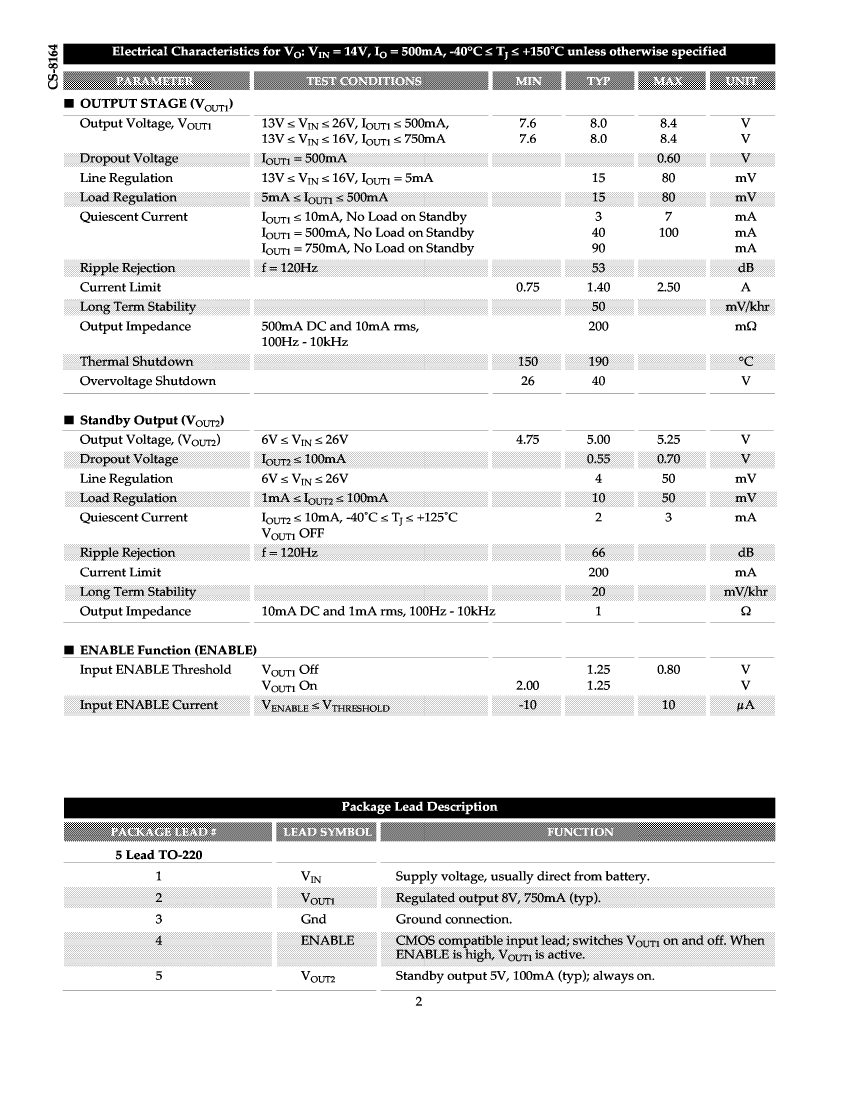

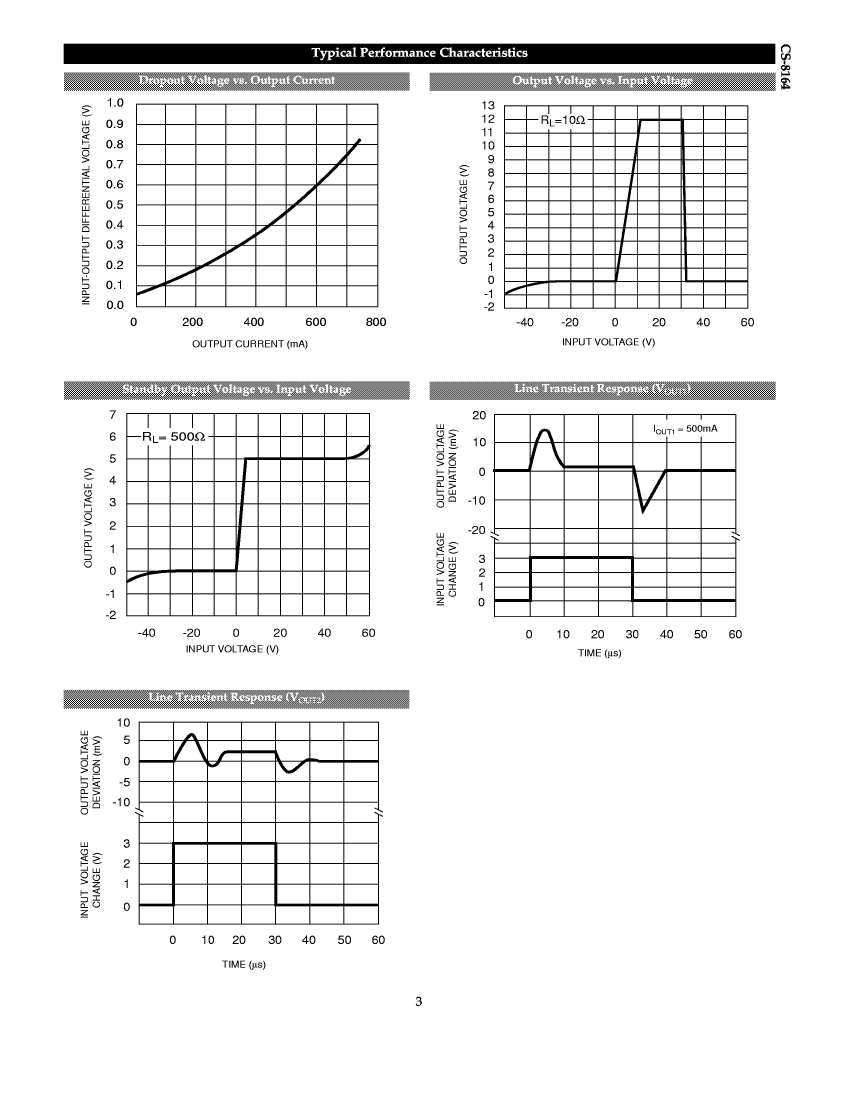

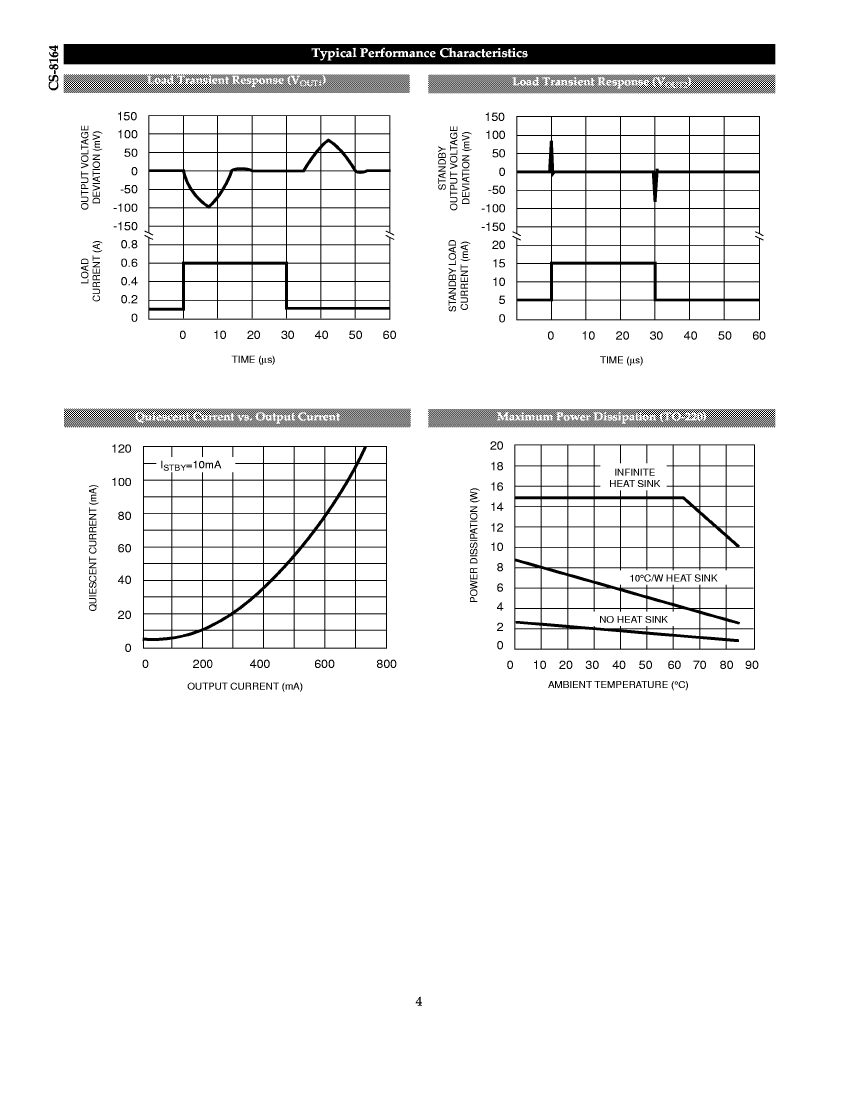

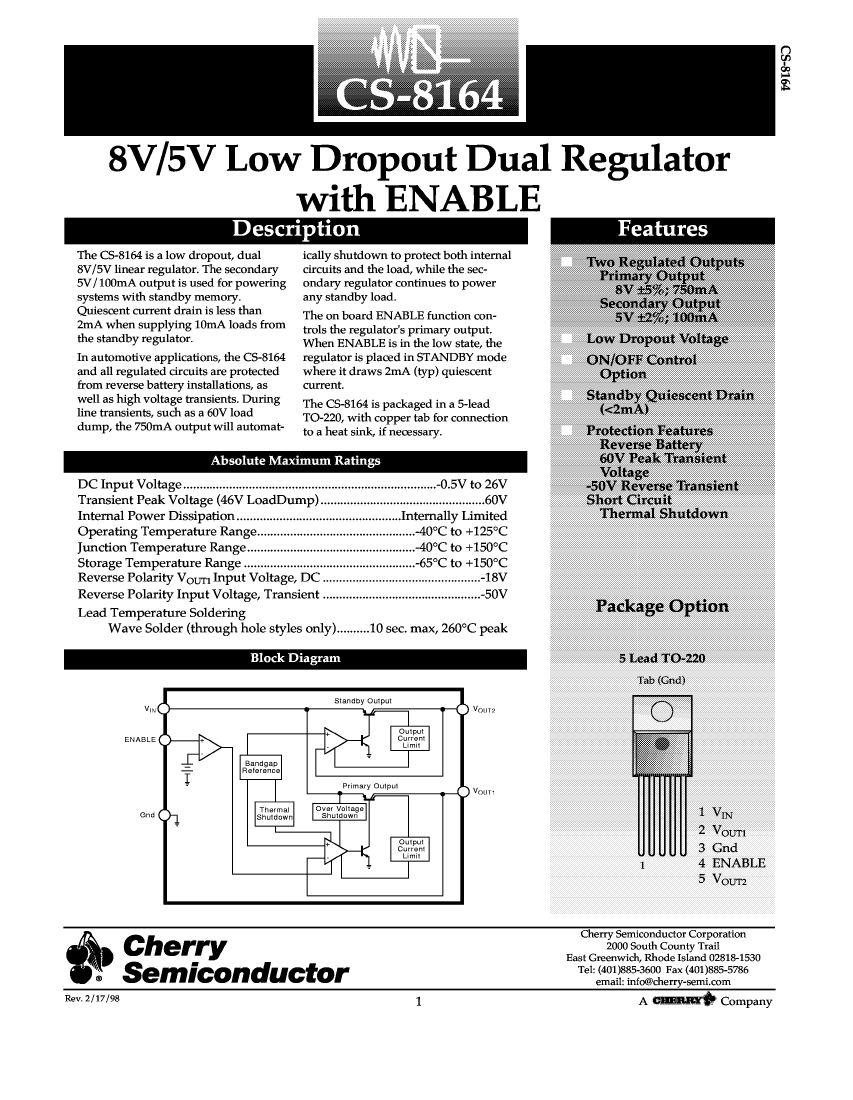

CS-8164TH5 Preview
