3-215308-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-215308-4

3-215308-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-215308-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN

3-215308-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	SIDE BY SIDE STACKABLE
body width	0.199 inch
subject depth	0.276 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	215308
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT TOP MOUNT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	98u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	68
Base Number Matches	1

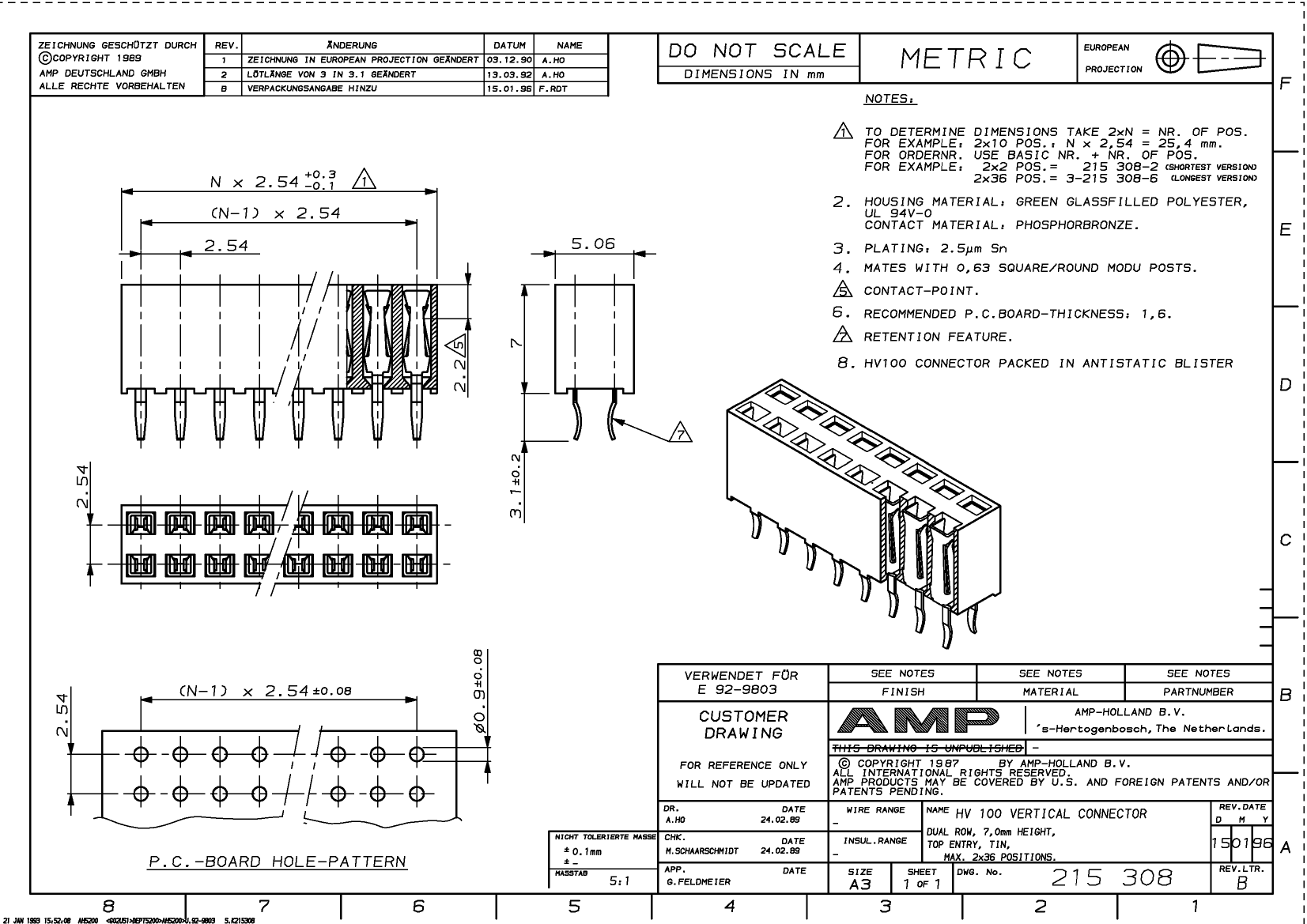

Preview

Download Datasheet

View All

3-215308-4 Related Products

	3-215308-4	215308-6	215308-2	215308-3	3-215308-3
Description	HEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,12 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,6 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,66 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli
Other features	SIDE BY SIDE STACKABLE	SIDE BY SIDE STACKABLE	SIDE BY SIDE STACKABLE	SIDE BY SIDE STACKABLE	SIDE BY SIDE STACKABLE
body width	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch
subject depth	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	215308	215308	215308	215308	215308
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT TOP MOUNT	STRAIGHT TOP MOUNT	STRAIGHT TOP MOUNT	STRAIGHT TOP MOUNT	STRAIGHT TOP MOUNT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	98u inch	98u inch	98u inch	98u inch	98u inch
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	68	12	4	6	66
Base Number Matches	1	1	1	1	1
