NC7SZ66L6X

Description
1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, 1 X 1 MM, MO-252UAAD, MICROPAK-6
CategoryAnalog mixed-signal IC    The signal circuit
File Size1MB，10 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

NC7SZ66L6X Online Shopping

Suppliers Part Number Price MOQ In stock
NC7SZ66L6X - - View Buy Now

NC7SZ66L6X Overview

1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, 1 X 1 MM, MO-252UAAD, MICROPAK-6

NC7SZ66L6X Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRochester Electronics
Parts packaging codeSON
package instructionVSON,
Contacts6
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSPST
JESD-30 codeR-PDSO-N6
JESD-609 codee4
length1.45 mm
Humidity sensitivity level1
Number of channels1
Number of functions1
Number of terminals6
Nominal off-state isolation50 dB
On-state resistance matching specifications125 Ω
Maximum on-state resistance (Ron)60 Ω
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeVSON
Package shapeRECTANGULAR
Package formSMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)260
Maximum seat height0.55 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)1.65 V
Nominal supply voltage (Vsup)1.8 V
surface mountYES
Maximum disconnect time18.2 ns
Maximum connection time14.2 ns
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceNICKEL GOLD
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
width1 mm

NC7SZ66L6X Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
NC7SZ66 — Low Voltage Single SPST Normally Open Bus Switch
December 2010
NC7SZ66
Low Voltage Single SPST Normally Open Bus Switch
Features
Broad V
CC
Operating Range: 1.65V to 5.5V
Rail-to-Rail Signal Handling
Power Down High-Impedance Inputs/Outputs
5Ω Switch Connection between Two Ports
Minimal Propagation Delay through the Switch
Low I
CC
Zero Bounce in Flow-Through Mode
Control Input Compatible with CMOS Input Levels
Ultra-Small MicroPak™ Packages
Space-Saving SOT23 and SC70 Packages
Description
The NC7SZ66 is a ultra high-speed (UHS) CMOS
compatible single-pole/single-throw (SPST) bus switch.
The LOW on resistance of the switch allows inputs to
be connected to out-puts with minimal propagation
delay and without generating additional ground bounce
noise. The device is organized as a 1- bit switch with a
switch enable (OE) signal. When OE is HIGH, the
switch is on and port A is connected to port B. When
OE is LOW, the switch is open and a high-impedance
state exists between the two ports..
Ordering Information
Part Number
NC7SZ66M5X
NC7SZ66P5X
NC7SZ66L6X
Top Mark
7Z66
Z66
EE
Package
5-Lead SOT23, JEDEC MO-178 1.6mm
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
6-Lead, MicroPak™, 1x1mm Wide
Packing Method
3000 Units on Tape & Reel
3000 Units on Tape & Reel
5000 Units on Tape & Reel
© 1996 Fairchild Semiconductor Corporation
NC7SZ66 • Rev. 1.0.4
www.fairchildsemi.com
NC7SZ66 — Low Voltage Single SPST Normally Open Bus Switch

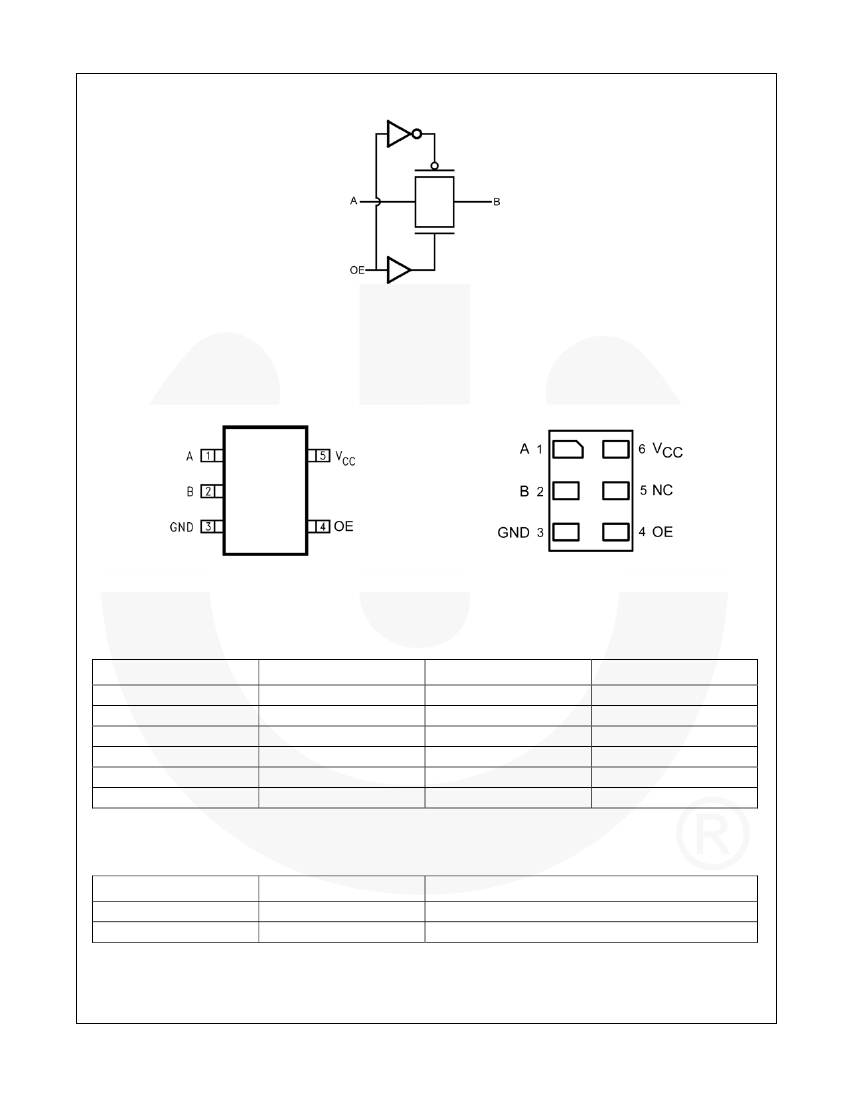

Connection Diagrams
Figure 1. Logic Symbol
Pin Configurations
Figure 2. SC70 and SOT23 (Top View)
Figure 3. MicroPak™ (Top Through View)
Pin Definitions
Pin # SC70 / SOT23
1
2
3
4
5
Pin # MicroPak™
1
2
3
4
6
5
Name
A
B
GND
OE
V
CC
NC
Description
Bus A I/O
Bus B I/O
Ground
Switch Enable Input
Supply Voltage
No Connect
Function Table
OE
L
H
H = HIGH Logic Level
L = LOW Logic Level
B
0
High Z-State
A
0
Function
Disconnected
Connect
© 1996 Fairchild Semiconductor Corporation
NC7SZ66 • Rev. 1.0.4
www.fairchildsemi.com
2
NC7SZ66 — Low Voltage Single SPST Normally Open Bus Switch
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device
reliability. The absolute maximum ratings are stress ratings only.
Symbol
V
CC
V
S
V
IN
I
IK
I
OUT
I
CC
or I
GND
T
STG
T
J
T
L
P
D
ESD
Supply Voltage
DC Switch Voltage
DC Input Voltage
DC Input Diode Current
DC Output Sink Current
(1)
Parameter
Min.
-0.5
-0.5
-0.5
Max.
7.0
V
CC
to 0.5
7.0
-50
128
±100
Unit
V
V
V
mA
mA
mA
°C
°C
°C
mW
V
V
IN
< 0V
DC V
CC
or Ground Current
Storage Temperature Range
Junction Temperature Under Bias
Junction Lead Temperature (Soldering, 10 Seconds)
Power Dissipation at +85°C
SOT-23
SC70-5
-65
+150
+150
+260
200
150
4000
1500
Human Body Model, JEDEC:JESD22-A114
Charge Device Model: JEDEC:JESD22-C101
Note:
1. The input and output negative voltage ratings may be exceeded if the input and output diode current ratings are
observed.
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to Absolute Maximum Ratings.
Symbol
V
CC
V
IN
V
S
V
OUT
t
r
, t
f
T
A
θ
JA
Parameter
Supply Voltage Operating
Input Voltage
Switch Input Voltage
Output Voltage
Conditions
Min.
1.65
0
0
0
Max.
5.50
5.5
V
CC
V
CC
10
5
DC
+85
300
425
Unit
V
V
V
V
ns/V
°C
°C/W
V
CC
=2.3V - 3.6V
Input Rise and Fall Times
Operating Temperature
Thermal Resistance
SOT-23
SC70-5
V
CC
=4.5V – 5.5V
Switching I/O
0
0
0
-40
Note:
2. Unused inputs must be held HIGH or LOW; they may not float.
© 1996 Fairchild Semiconductor Corporation
NC7SZ66 • Rev. 1.0.4
www.fairchildsemi.com
3
NC7SZ66 — Low Voltage Single SPST Normally Open Bus Switch
DC Electrical Characteristics
All typical values are at the specified V
CC
, and T
A
= 25°C.
Symbol
V
IH
V
IL
Parameter
HIGH Level
Input Voltage
LOW Level
Input Voltage
Control Input
Leakage
Current
Off Leakage
Current
V
CC
1.65 to 1.95
2.30 to 5.50
1.65 to 1.95
2.30 to 5.50
0 to 5.5
Conditions
T
A
=-40 to +85°C
Min.
0.75V
CC
0.7V
CC
0.25V
CC
0.3V
CC
T
A
=+25°C
Min.
Typ.
Units
V
V
Typ.
Max.
I
IN
I
OFF
0
≤
V
IN
≤
5.5V
±0.05
±0.05
3
5
7
4
10
5
13
7
25
±1.00
±10.00
7
12
15
9
20
12
30
28
60
6
12
µA
µA
1.65 to 5.50 0
≤
A, B
≤
V
CC
V
IN
=0V, I
IN
=30mA
4.5
V
IN
=2.4V, I
IN
=15mA
V
IN
=4.5V, I
IN
=30mA
V
IN
=0V, I
IN
=24mA
V
IN
=3V, I
IN
=24mA
V
IN
=0V, I
IN
=8mA
V
IN
=2.3V, I
IN
=8mA
V
IN
=0V, I
IN
=4mA
V
IN
=1.8V, I
IN
=4mA
I
A
=-30mA,
0
≤
V
Bn
≤
V
CC
I
A
=-24mA,
0
≤
V
Bn
≤
V
CC
I
A
=-8mA,
0
≤
V
Bn
≤
V
CC
I
A
=-4mA,
0
≤
V
Bn
≤
V
CC
V
IN
= V
CC
or GND,
I
OUT
=0
R
ON
Switch On
(3)
Resistance
3.0
2.30
1.8
5.0
Ω
R
flat
On
Resistance
(3,4,5)
Flatness
3.3
2.5
1.8
Ω
128
125
0.05
10.00
µA
I
CC
Quiescent
Supply
Current
1.65 to 5.50
Notes:
3. Measured by the voltage drop between pins A and B at the indicated current through the switch. On resistance
is determined by the lower of the voltages on the two (A or B) pins.
4. Parameter is characterized but not tested in production.
5. Flatness is defined as the difference between the maximum and minimum value of on resistance over the
specified range of conditions.
© 1996 Fairchild Semiconductor Corporation
NC7SZ66 • Rev. 1.0.4
www.fairchildsemi.com
4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

NC7SZ66L6X Related Products

NC7SZ66L6X NC7SZ66M5X NC7SZ66P5X
Description 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, 1 X 1 MM, MO-252UAAD, MICROPAK-6 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, 1.60 MM, MO-178AA, SOT-23, 5 PIN 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Rochester Electronics Rochester Electronics Rochester Electronics
Parts packaging code SON SOIC SOIC
package instruction VSON, LSSOP, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN
Contacts 6 5 5
Reach Compliance Code unknown unknown unknown
Analog Integrated Circuits - Other Types SPST SPST SPST
JESD-30 code R-PDSO-N6 R-PDSO-G5 R-PDSO-G5
JESD-609 code e4 e3 e3
length 1.45 mm 2.9 mm 2 mm
Humidity sensitivity level 1 1 1
Number of channels 1 1 1
Number of functions 1 1 1
Number of terminals 6 5 5
Nominal off-state isolation 50 dB 50 dB 50 dB
On-state resistance matching specifications 125 Ω 125 Ω 125 Ω
Maximum on-state resistance (Ron) 60 Ω 60 Ω 60 Ω
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code VSON LSSOP TSSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, VERY THIN PROFILE SMALL OUTLINE, LOW PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) 260 260 260
Maximum seat height 0.55 mm 1.45 mm 1.1 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 1.65 V 1.65 V 1.65 V
Nominal supply voltage (Vsup) 1.8 V 1.8 V 1.8 V
surface mount YES YES YES
Maximum disconnect time 18.2 ns 18.2 ns 18.2 ns
Maximum connection time 14.2 ns 14.2 ns 14.2 ns
technology CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface NICKEL GOLD MATTE TIN MATTE TIN
Terminal form NO LEAD GULL WING GULL WING
Terminal pitch 0.5 mm 0.95 mm 0.65 mm
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature 30 30 30
width 1 mm 1.6 mm 1.25 mm

Recommended Resources

Using 74LS244 to expand 24-channel input interface circuit

Simple temperature controller

Electronic keyboard radio circuit

Voltage-limited nickel-cadmium battery charger

frequency synthesizer circuit

LED-capacitor step-down: circuit explained in detail

Address mapping problem
What is the function of MapCallerPtr and why should I use it? I still don't understand! Please give me some advice!...
tt181003 Embedded System
NXP presents new car-to-x communication platform
NXP presents new car-to-x communication platform A major milestone towards safer roadsNXP Semiconductors NV ( Nasdaq : NXPI ) recently demonstrated car-to-x (C2X) communications live on a public road ...
恩智浦半导体 Automotive Electronics
Question + Do I need an external pull-up resistor when using the TI C2000 I2C module?
...
qinkaiabc Microcontroller MCU
How to use the spectrum analyzer in multisim10.0
[i=s]This post was last edited by dontium on 2015-1-23 13:38[/i]How to use the spectrum analyzer in multisim10.0Directly on the picture, please help analyze how to read the spectrum analyzerWhat does ...
CMKMJL Analogue and Mixed Signal
It's about to collapse. The 2553 uart just can't send messages. I'm waiting online. I'm so anxious.
Copied the code from another friend on the forum: void UartRegCfg() { UCA0CTL1 |=UCSWRST; //reset UART module,as well as enable UART module UCA0CTL1 |=UCSSEL_2; //UART clock is SMCLK UCA0BR0 |=65; // ...
cxx909221500 Microcontroller MCU
Universal joint angle adjustment
I have read many posts in the past few days. Many people said that the universal joint is used to adjust the angle, but there should be a motor to drive it, right? ? Isn't there a motor in the list? T...
lss2014 Electronics Design Contest
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. PC795_14
  2. TPS62088
  3. 8T6-20C35SDM
  4. MSPSMAJ11CATR
  5. MJHS-02L3-36C-018-3J41
  6. U27L1Y9AW4RE22
  7. LCCT20BE1231SUF
  8. CDR35BX184AMMM
  9. S1B_R1_00001
  10. 1.5SMCJ33-AU-R1-00001
  11. A2541WV-3P-D1016-G30
  12. A2006HD-2x10P-OR

Popular Articles

  1. Connective Peripherals series of connection products are available from element14
  2. Kernel (2.6.14) + root file system + Qtopia Core 4 ported for S3C2410
  3. TI introduces sensorless field-oriented control trapezoidal control BLDC motor drive without programming
  4. BYD may place orders for billion-yuan automotive-grade IGBTs from Silan Microelectronics
  5. Samsung's foldable phone sales exceeded 8 million this year, four times last year
  6. In-depth analysis of the composition structure of electric vehicles
  7. 51 MCU Introduction - UART Serial Port
  8. Analysis of Linux UART serial port driver generation
  9. Qi® charging gets much-needed safety boost
  10. Introduction to Convolutional Neural Networks: What is Machine Learning? — Part 1

Technical ResourceMore

  1. Principles and steps of mobile terminal audio testing
  2. Filter Design with Parasitic Passband Suppression Structure
  3. Semiconductor Failure Analysis
  4. Temperature characteristics of LDMOS power amplifier and design of temperature compensation circuit
  5. PL2303 Driver
  6. Several issues on the design of intermittent flyback transformer
  7. Solar cell module packaging process
  8. Television Monitoring System Textbook
  9. Production planning and control training materials for a certain LCD display company
  10. LC Oscillation Frequency Calculation

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1754  1239  769  2293  1296  36  25  16  47  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
